Security backplate Edge Plus narrow outside D-pusher PC92 core protection

6767-36-11/92BU
arrow_selector
close

SKG 3

bronze

Police Hallmark

Reliable and stylish Edge, burglar-resistant security backplate.

  • sturdy and reliable
  • for both left and right-opening doors (the pusher is reversible)
  • finely polished and less sensitive to scratches
  • larger shield size usually completely covers the imprint of the old shield
  • seal prevents damage to the paintwork when dismounting and keeps water and draught out effectively
  • complies with Police Hallmark for Safe Living and SKG3 (Façade Quality Institution hallmark)
Specifications Downloads Technical drawings Alternative products
Commercial information
expand_more
Type Edge Plus narrow outside D-pusher PC92 core protection
Use for front doors
Safety information
expand_more
Burglarproof True
SKG SKG 3
Police Hallmark True
CE certificate of conformity False
Cradle to Cradle sustainability label bronze
Technical information
expand_more
Product Length 252 mm
Product Width 38 mm
Thickness Security backplate/rosette outside 12 mm
Direction of rotation inward-opening
Shape right
Outside security backplate handle-pusher-knob type D-Pusher
Heart to heart size type handle hole - Euro profile hole (PC)
Material Aluminum
Finish Polished anodised F1, natural
Assembly information
expand_more
Including Mounting Material False
Assembly time 5 min
Logistic information
expand_more
EAN small package 8713249351230
Pieces per bulk package 10 piece
EAN bulk package 8713249369266
Dimensions bulk package 290 x 200 x 120 mm

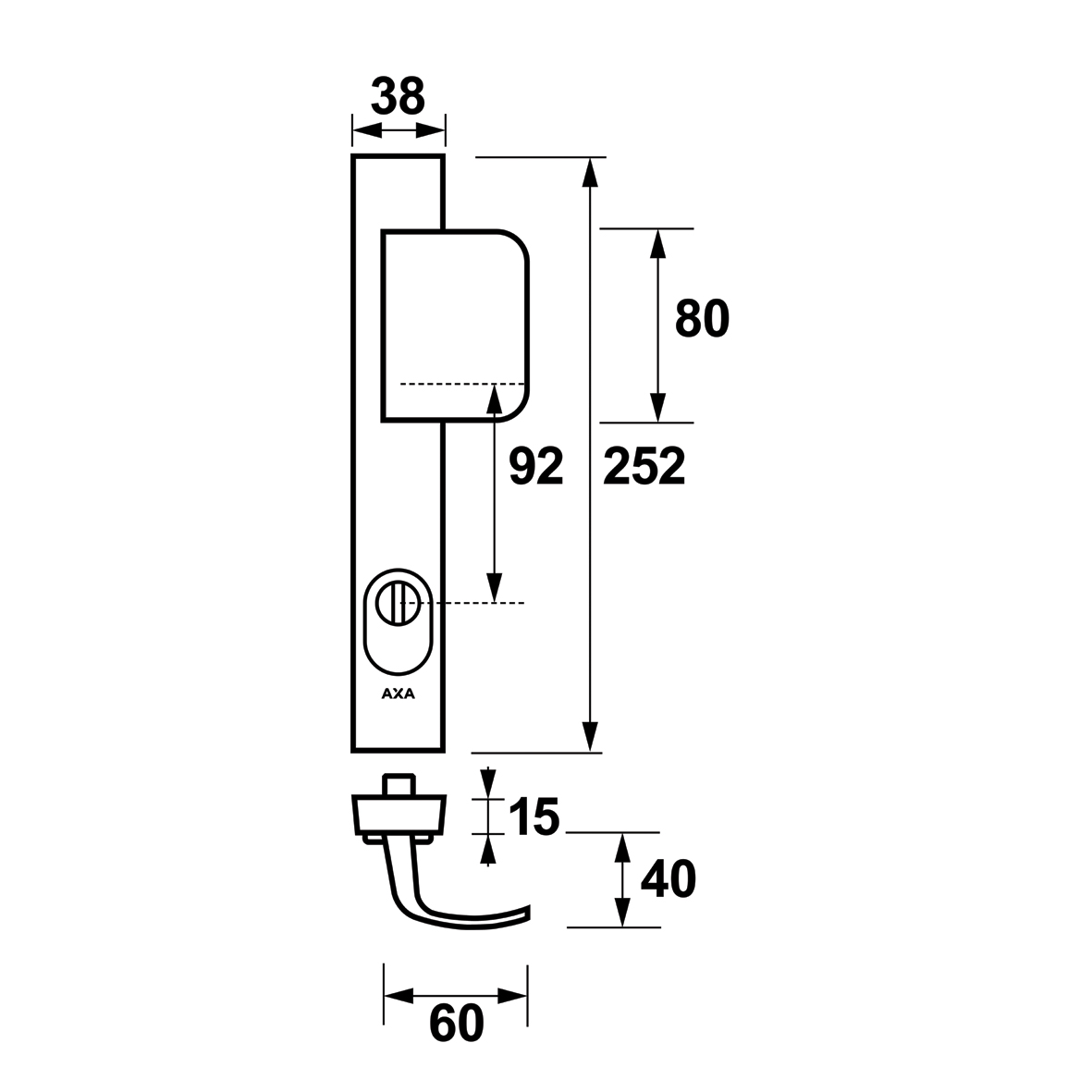

Technical drawings
Security backplate Edge Plus narrow outside D-pusher PC92 core protection
6767361192BU

Alternative products

Security backplate Edge Plus outside D-pusher PC92 core protection

6667-36-11/92BU
