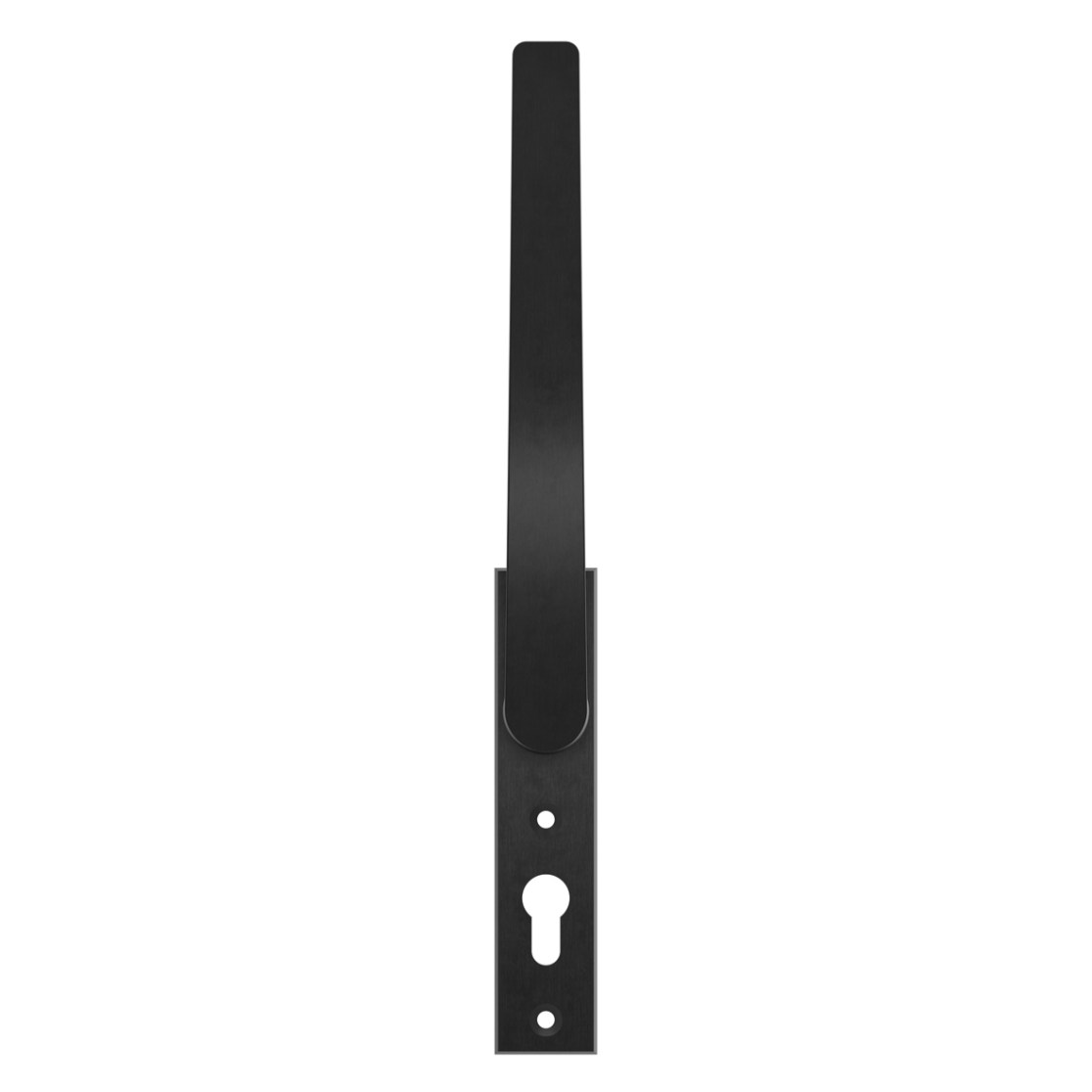

Security backplate Edge Plus handle Blok inside PC69 slide door

6743-85-18/69KS
arrow_selector
close

SKG 3

Police Hallmark

Reliable and stylish Edge Plus security backplate.

  • sturdy and reliable
  • finely polished and less sensitive to scratches
  • seal prevents damage to the paintwork
Specifications Downloads Technical drawings Associated products Alternative products Similar products

Specifications

Commercial information
expand_more
Type Edge Plus handle Blok inside PC69 slide door
Use for lift-slide doors
Safety information
expand_more
Burglarproof True
SKG SKG 3
Police Hallmark True
CE Applicable False
Technical information
expand_more
Product Length 180 mm
Product Length 2 297 mm
Product Width 38 mm
Thickness inside 15 mm
Shape right
Inside handle type handle Block
Handle length 260 mm
Handle depth 75 mm
Handle assembly handle integrated in backplate/rosettes
Heart to heart size type handle hole - Euro profile hole (PC)
Material Aluminum
Finish Polished anodised F8, black
Assembly information
expand_more
Including Mounting Material False
Assembly time 5 min
Logistic information
expand_more
Pieces per small package 1 piece
EAN small package 8713249352640
Weight small package 0.692 kg
Dimensions small package 318 x 105 x 50 mm
Pieces per bulk package 5 piece
EAN bulk package 8713249352657
Dimensions bulk package 320 x 280 x 160 mm

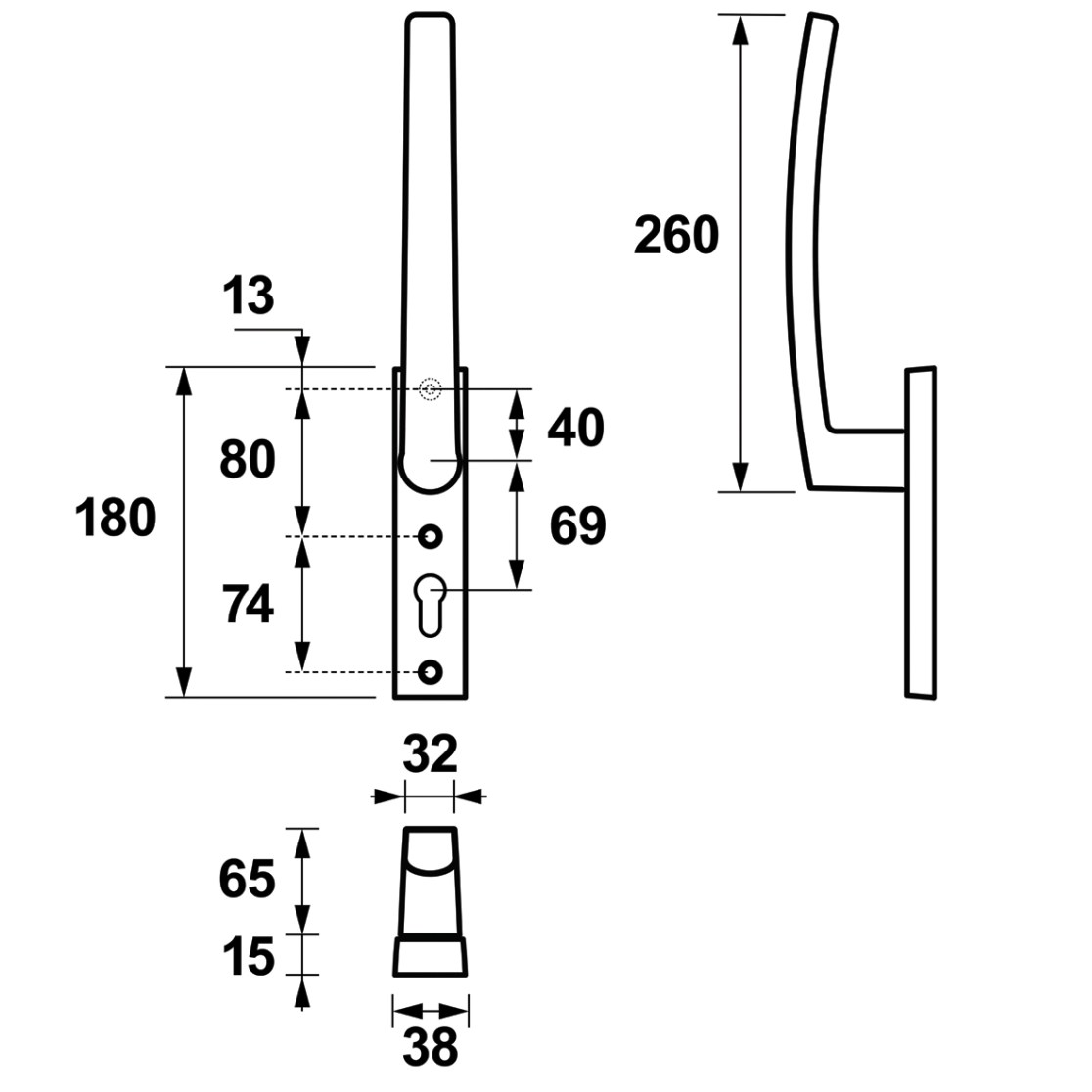

Technical drawings
Security backplate Edge Plus handle Blok inside PC69 slide door
6743851869KS

Associated products

Spindle + set of bolts 10×160+M6x100 (3x)

6741-67-57/E

Spindle + set of bolts 10×160+M6x100 (3x)

6741-67-23/E

Half spindle + set of bolts 10×75+M6x70 (3x)

6740-77-57/E

Half spindle + set of bolts 10×100+M6x100 (3x)

6740-07-57/E

Half spindle + set of bolts 10×75+M6x70 (3x)

6740-77-23/E

Half spindle + set of bolts 10×100+M6x100 (3x)

6740-07-23/E

Half spindle + set of bolts 10×85+M6x90 (3x)

6740-97-23/E

Half spindle + set of bolts 10×85+M6x90 (3x)

6740-97-57/E

Alternative products

Security backplate Oval Plus handle U inside PC69 slide door

6744-85-18/69US

Security backplate Edge Plus handle Blok inside blind slide door

6743-85-18/KS

Security backplate Curve Plus handle Blok inside PC69 slide door

6741-85-18/69KS

Similar products

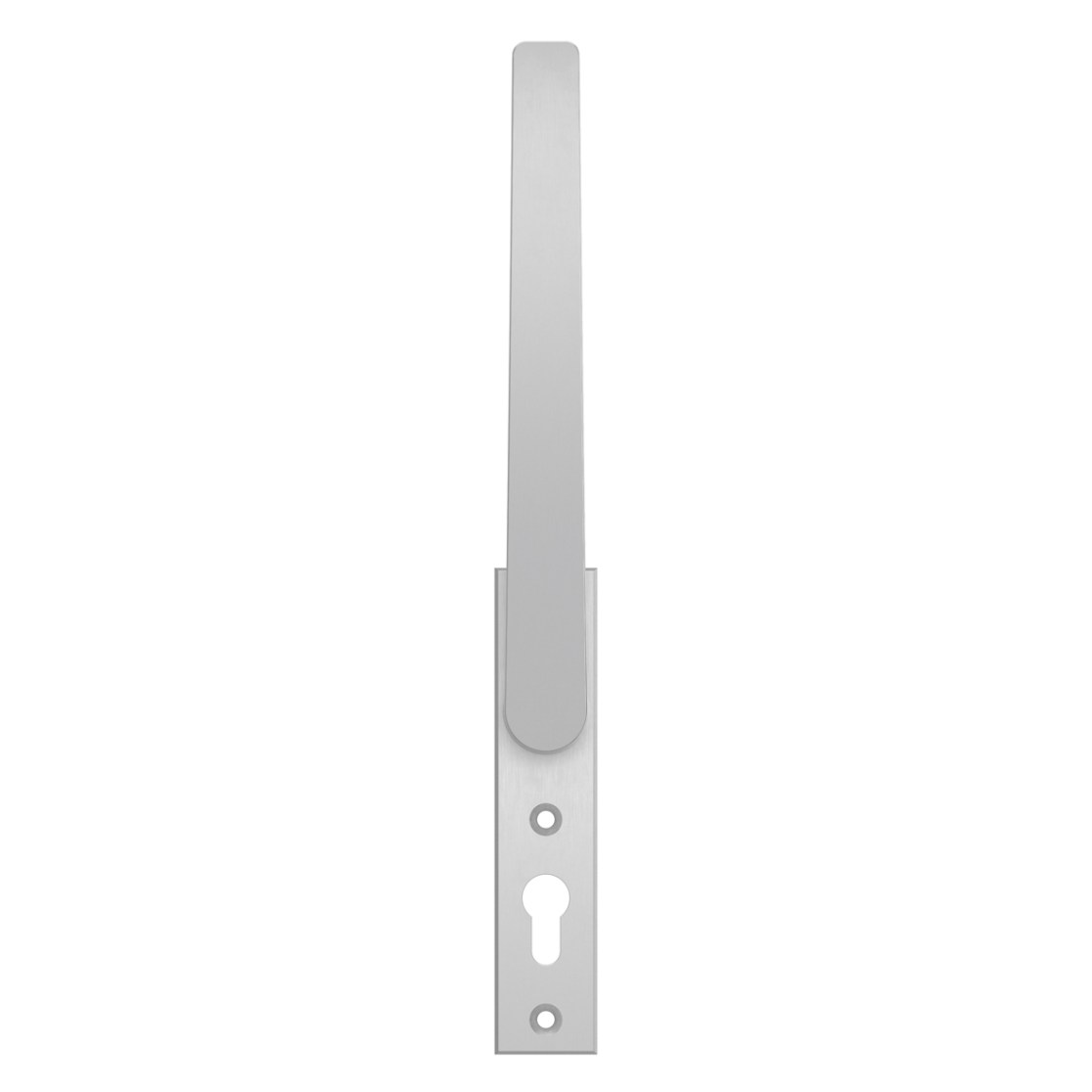

Security backplate Edge Plus handle Blok inside PC69 slide door
