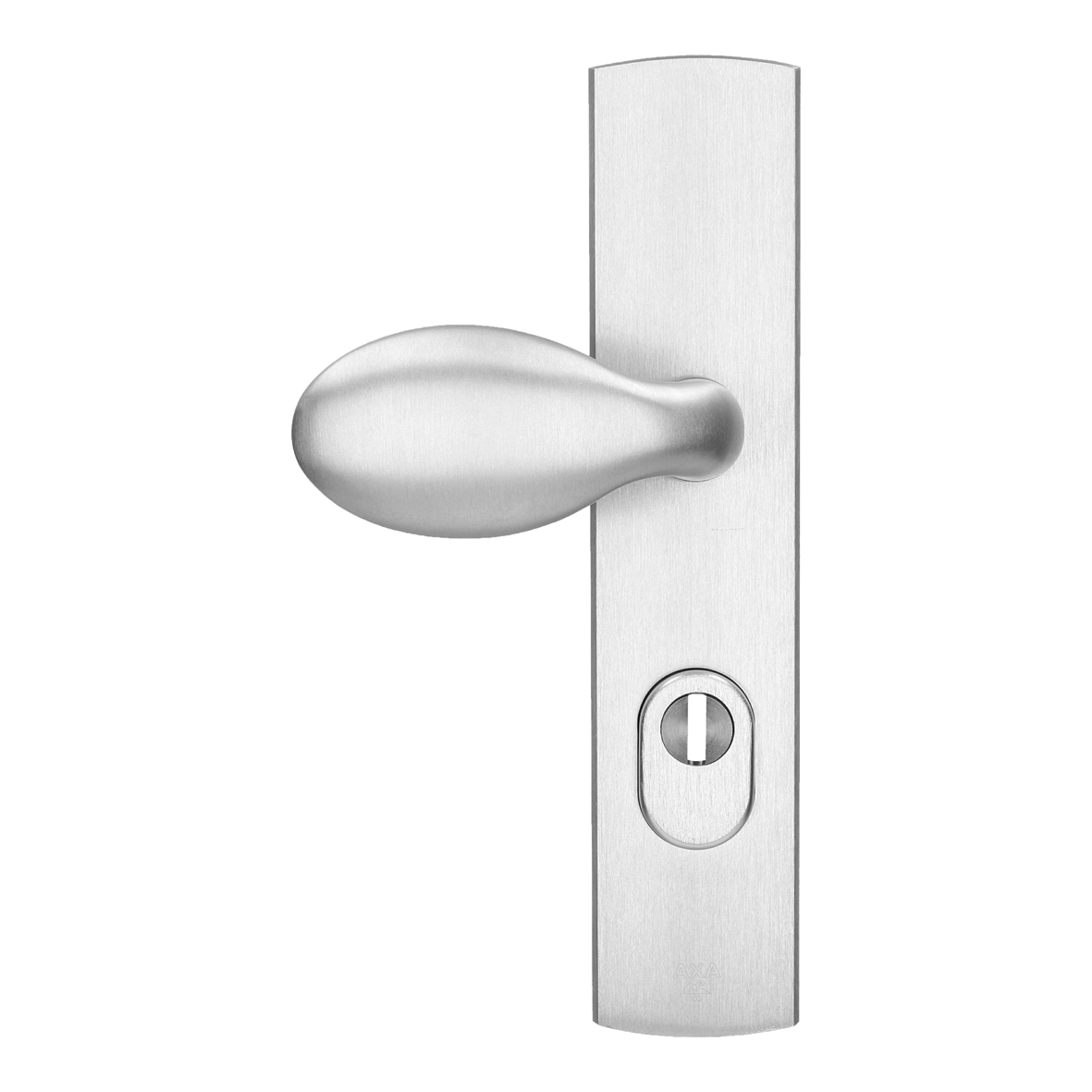

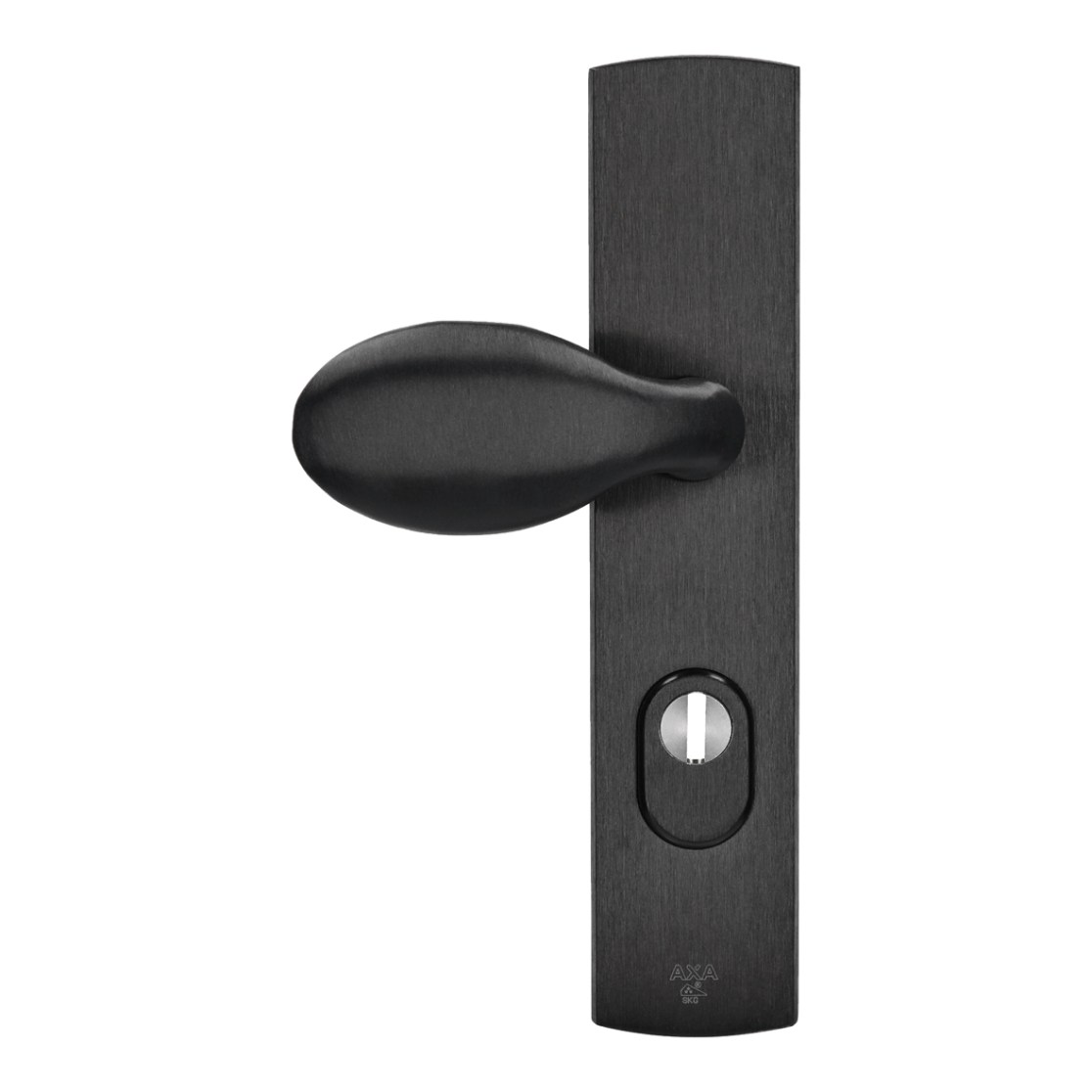

Security backplate Curve Plus outside EL-knob PC72 core protection
6665-48-11/72
Reliable and stylish Curve burglar-resistant security fittings.
- sturdy and reliable
- for both left and right-opening doors (the knob is reversible)
- with Self-aligning Cylinder Core Protection (SCP)
- finely polished and less sensitive to scratches
- round shapes for optimal run-off stops moisture from affecting paintwork.
- seal prevents damage to the paintwork when dismounting and keeps water and draught out effectively
- possible to use on all doors with a thickness from 38 to 40 mm
- extended handle spindles and bolts are available for thicker doors
- complies with the Police Hallmark for Safe Living and SKG3
- complete with attachment materials
Reliable and stylish Curve burglar-resistant security fittings.
- sturdy and reliable
- for both left and right-opening doors (the knob is reversible)
- with Self-aligning Cylinder Core Protection (SCP)
- finely polished and less sensitive to scratches
- round shapes for optimal run-off stops moisture from affecting paintwork.
- seal prevents damage to the paintwork when dismounting and keeps water and draught out effectively
- possible to use on all doors with a thickness from 38 to 40 mm
- extended handle spindles and bolts are available for thicker doors
- complies with the Police Hallmark for Safe Living and SKG3
- complete with attachment materials
Specifications
Recommended Mounting Materials
- M6 x 50 mm bolt: 3 pieces
- M6 x 70 mm bolt: 3 pieces
- M6 x 6 mm grub screw: 1 piece
- exchangeable shank: 2 pieces
- M6 x 50 mm bolt: 3 pieces
- M6 x 70 mm bolt: 3 pieces
- M6 x 6 mm grub screw: 1 piece
- exchangeable shank: 2 pieces
Commercial information
Type Curve Plus outside EL-knob PC72 core protection
Use for front doors
Safety information
Burglarproof True
SKG SKG 3
Police Hallmark True
CE Applicable False

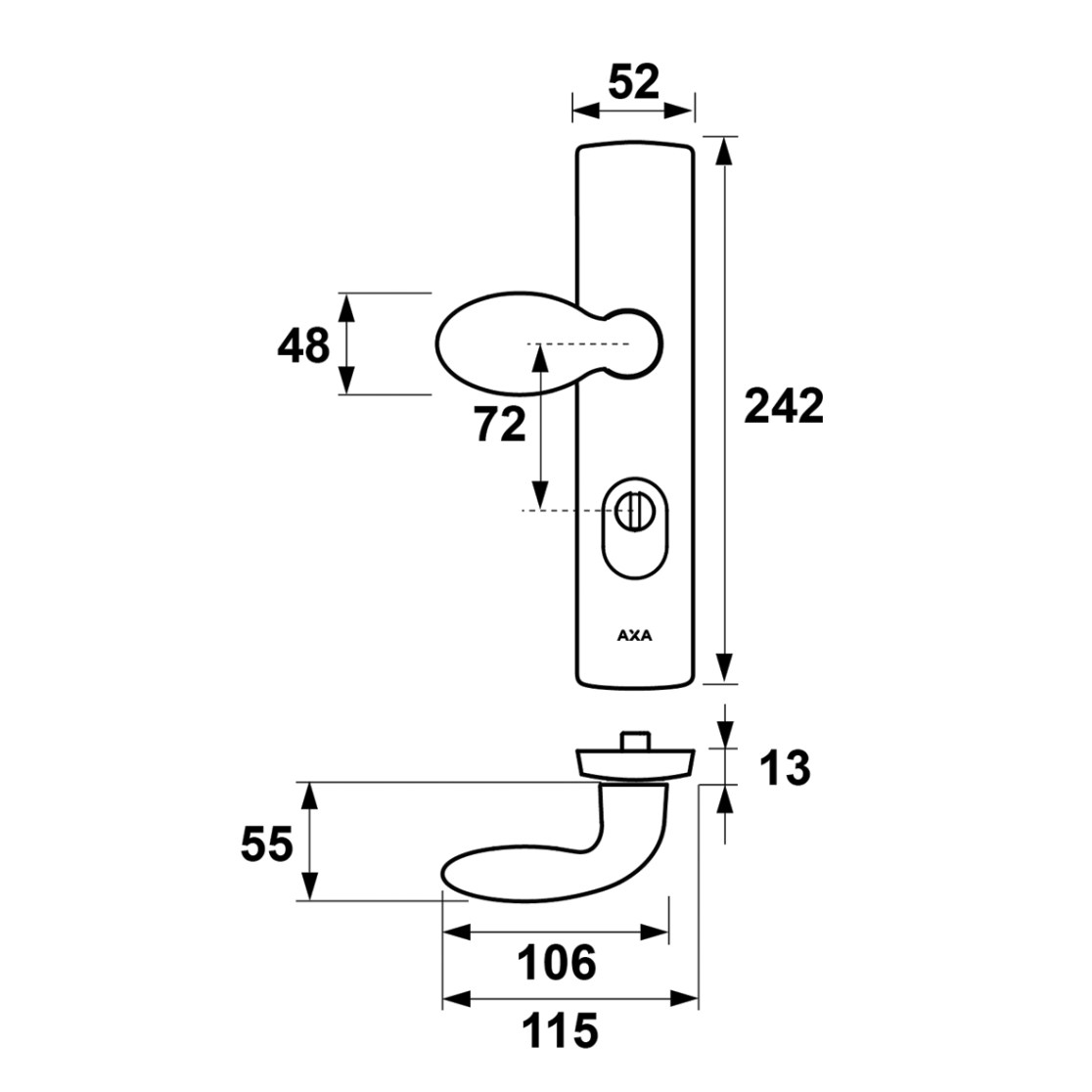

Technical information
Product Length 242 mm
Product Width 52 mm
Thickness outside 13 mm
Direction of rotation inward-opening
Shape curved
Outside handle-Pusher-Knob type EL-Knob
Handle length 106 mm
Handle depth 55 mm
Handle assembly grub screw fix
Spring supported handle False
Heart to heart size type handle hole - Euro profile hole (PC)
Material Aluminum
Finish Polished anodised F1, natural
Assembly information
Including Mounting Material True
Assembly time 20 min
Recommended Mounting Materials
- M6 x 50 mm bolt: 3 pieces
- M6 x 70 mm bolt: 3 pieces
- M6 x 6 mm grub screw: 1 piece
- exchangeable shank: 2 pieces
- M6 x 50 mm bolt: 3 pieces
- M6 x 70 mm bolt: 3 pieces
- M6 x 6 mm grub screw: 1 piece
- exchangeable shank: 2 pieces
Logistic information
Product Weight 1100 gr
Pieces per small package 1 piece
EAN small package 8713249334110
Weight small package 1.18 kg
Dimensions small package 257 x 122 x 72 mm
Pieces per bulk package 10 piece
EAN bulk package 8713249334127
Weight bulk package 12.2 kg
Dimensions bulk package 530 x 320 x 171 mm
