Security backplate Curve Plus handle Blok inside blind slide door

6741-85-18/KS
arrow_selector
close

SKG 3

Police Hallmark

Reliable and stylish Curve Plus security backplate.

  • sturdy and reliable
  • finely polished and less sensitive to scratches
  • seal prevents damage to the paintwork
Specifications Downloads Technical drawings Associated products Alternative products Similar products
Commercial information
expand_more
Type Curve Plus handle Blok inside blind slide door
Use for lift-slide doors
Safety information
expand_more
Burglarproof True
SKG SKG 3
Police Hallmark True
CE certificate of conformity False
Technical information
expand_more
Product Length 180 mm
Product Length 2 297 mm
Product Width 38 mm
Thickness Security backplate/rosette inside 15 mm
Direction of rotation lift and slide
Shape curved
Inside security backplate handle type handle Block
Handle length 260 mm
Handle depth 75 mm
Handle assembly handle integrated in backplate/rosettes
Material Aluminum
Finish Polished anodised F8, black
Assembly information
expand_more
Including Mounting Material False
Assembly time 5 min
Logistic information
expand_more
Pieces per small package 1 piece
EAN small package 8713249352473
Weight small package 0.692 kg
Dimensions small package 318 x 105 x 50 mm
Pieces per bulk package 5 piece
EAN bulk package 8713249352480
Dimensions bulk package 320 x 280 x 160 mm

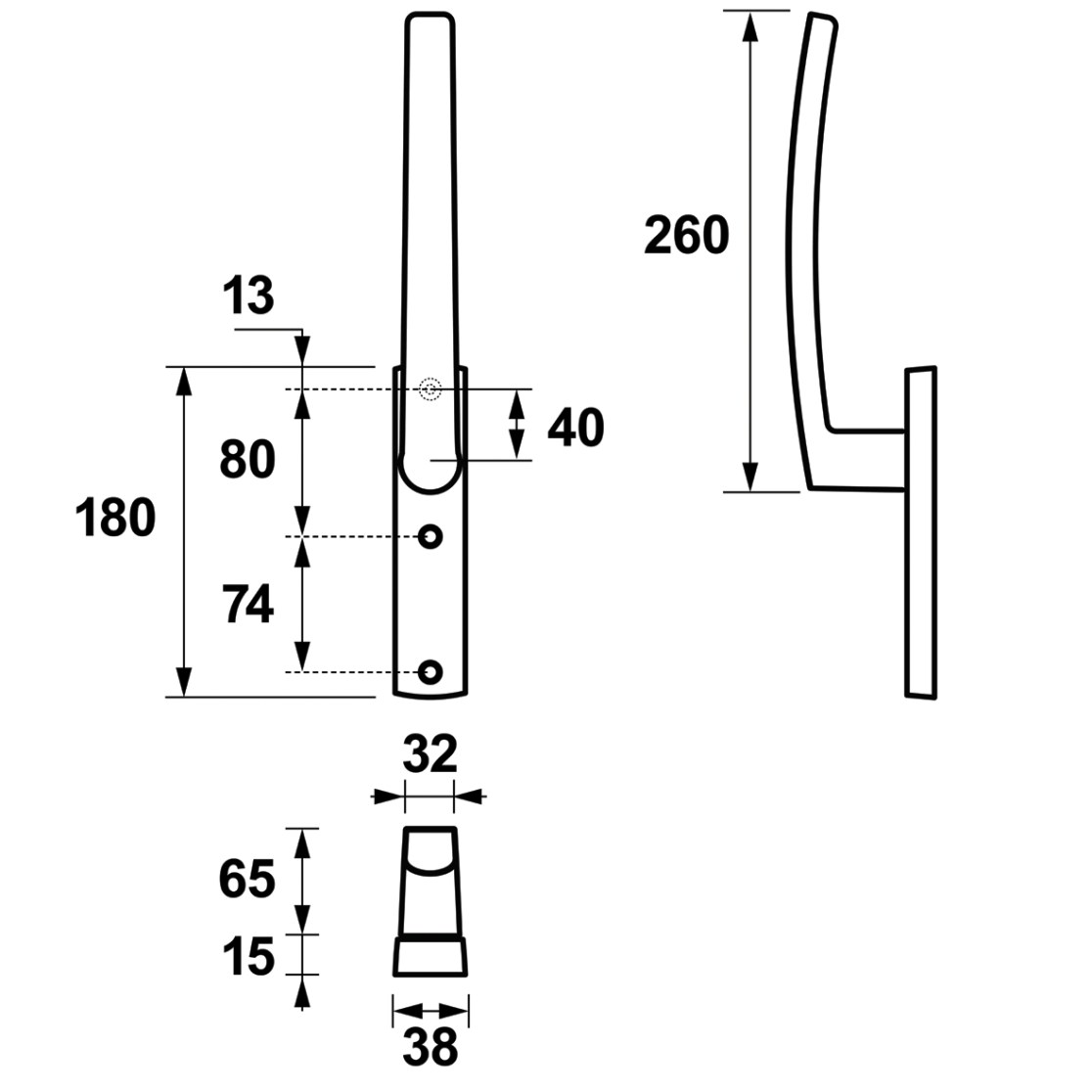

Technical drawings
Security backplate Curve Plus handle Blok inside blind slide door
67418518KS
