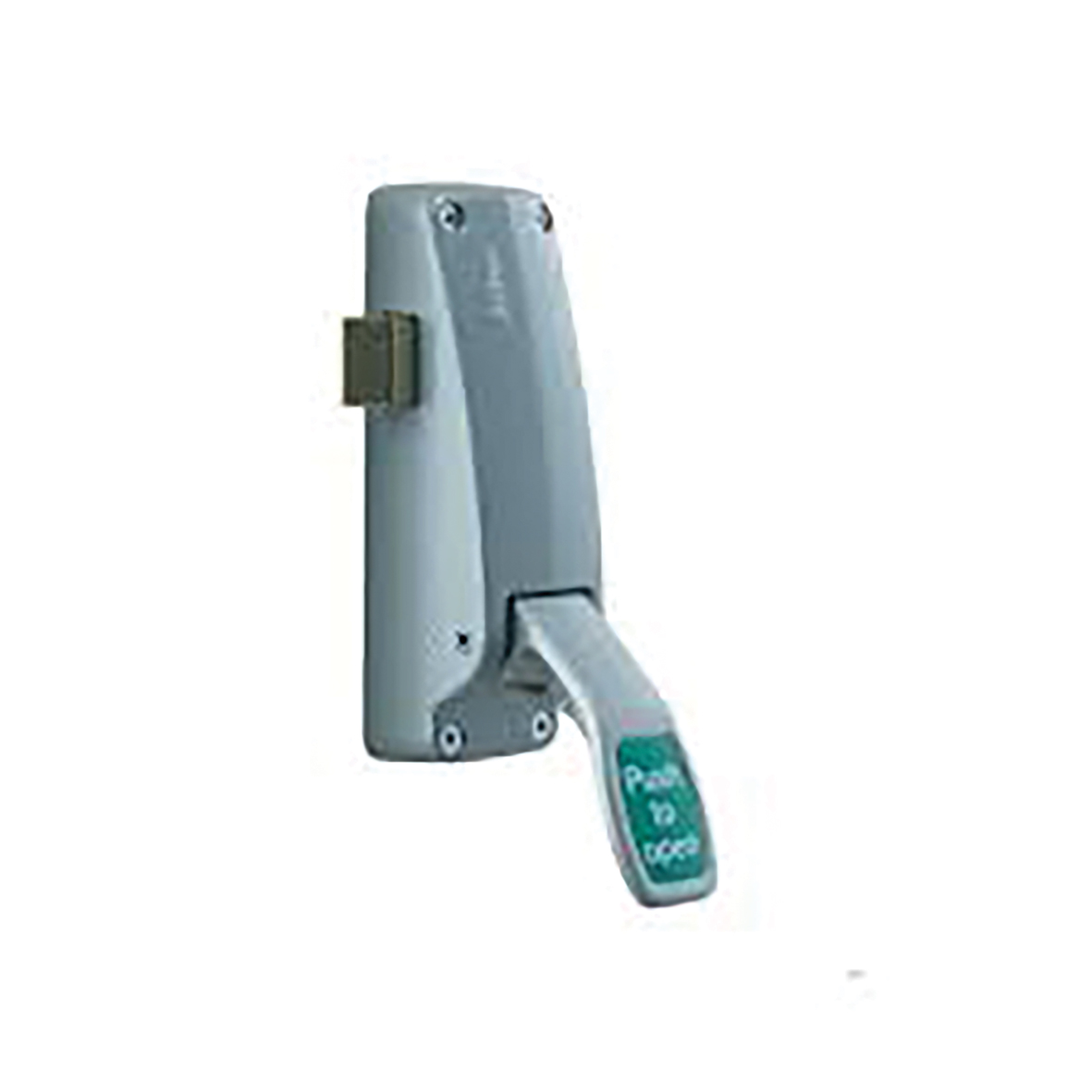

Pushpad side bolt
7BR-1438-RSEPushpad for emergency exit doors
- for single and double rebated doors
- for use on fire & smoke doors 665mm to 1300mm wide, height up to
- 2500mm and door weight 200kg
- one point locking for security
- Supplied right hand (latch reversible on site)
- pad operated rim latch
- can be fitted with a rim cylinder for outside access
Pushpad for emergency exit doors
- for single and double rebated doors
- for use on fire & smoke doors 665mm to 1300mm wide, height up to
- 2500mm and door weight 200kg
- one point locking for security
- Supplied right hand (latch reversible on site)
- pad operated rim latch
- can be fitted with a rim cylinder for outside access
Specifications
Commercial information
Type side bolt
Use for emergency exit doors
Safety information
SKG No
Police Hallmark False
CE Applicable True
Technical information
Product Width 55 mm
Product Height 165 mm
Thickness 99 mm
Operation from the inside
Material Aluminum
Finish Grey lacquered
Material 2 Steel
Finish 2 Grey lacquered
Logistic information
Pieces per small package 1 piece
EAN small package 5050640029799
