Anti-panic cross bar set 2 bolts top-buttom

7BR-376D-SE
arrow_selector
close

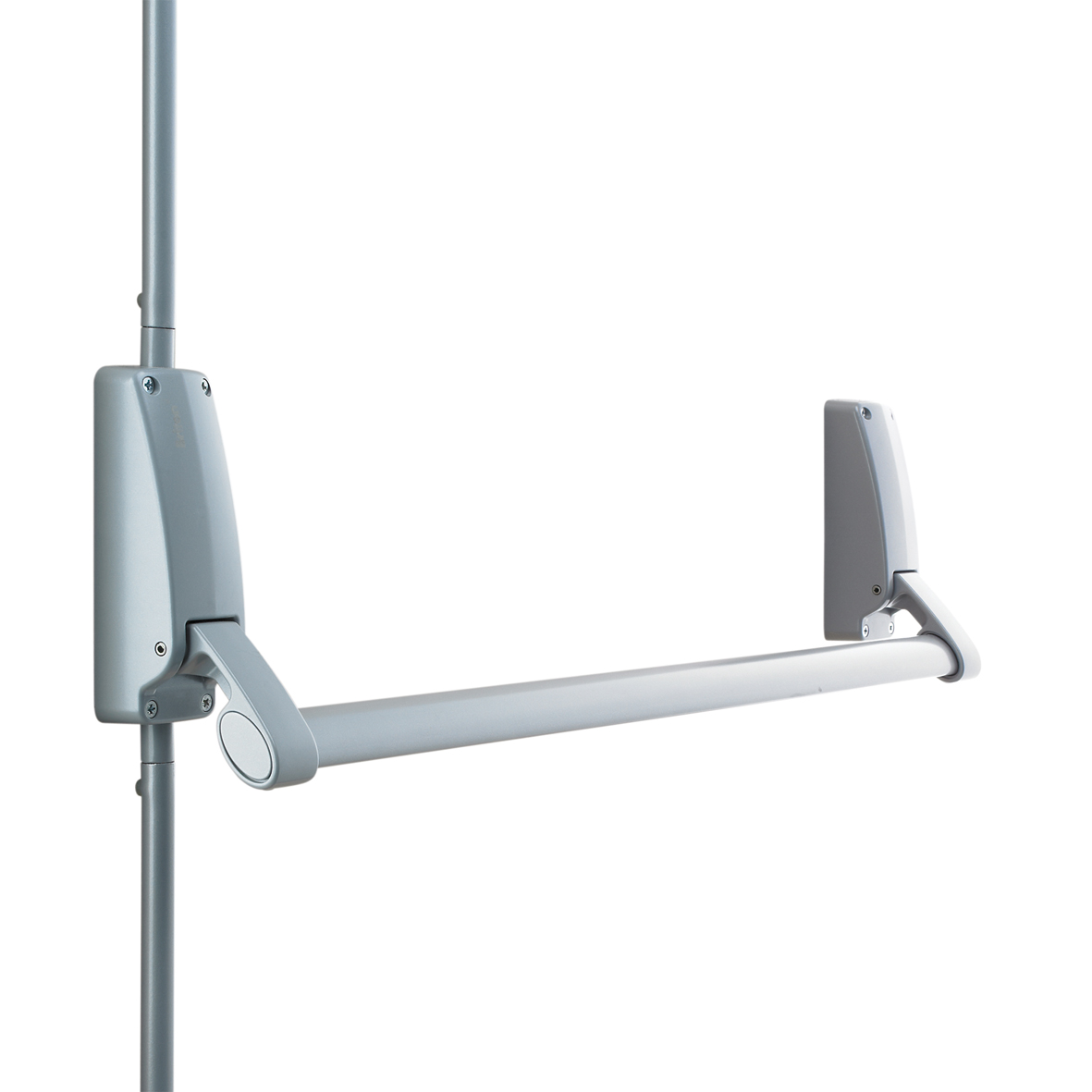

Solid anti-panic cross bar set.

  • with 2 top-buttom bolts
  • for single and double doors
  • low operating force
  • low noise
  • can be cut up to 300 mm
  • fast installation
  • easy inspection and maintenance
  • fully certified to EN 1125
Specifications Downloads Technical drawings Alternative products

Specifications

Commercial information
expand_more
Type 2 bolts top-buttom
Use for single emergency exit door
Safety information
expand_more
SKG No
Police Hallmark False
CE Applicable True
Technical information
expand_more
Product Width 1200 mm
Product Height 139 mm
Thickness 100 mm
Operation from the inside
Material Steel
Finish Grey lacquered
Material 2 Steel
Finish 2 Galvanized
Logistic information
expand_more
Product Weight 3389 gr
Pieces per small package 1 piece
EAN small package 5050640030245
Weight small package 3.872 kg
Dimensions small package 123 x 17 x 65 mm

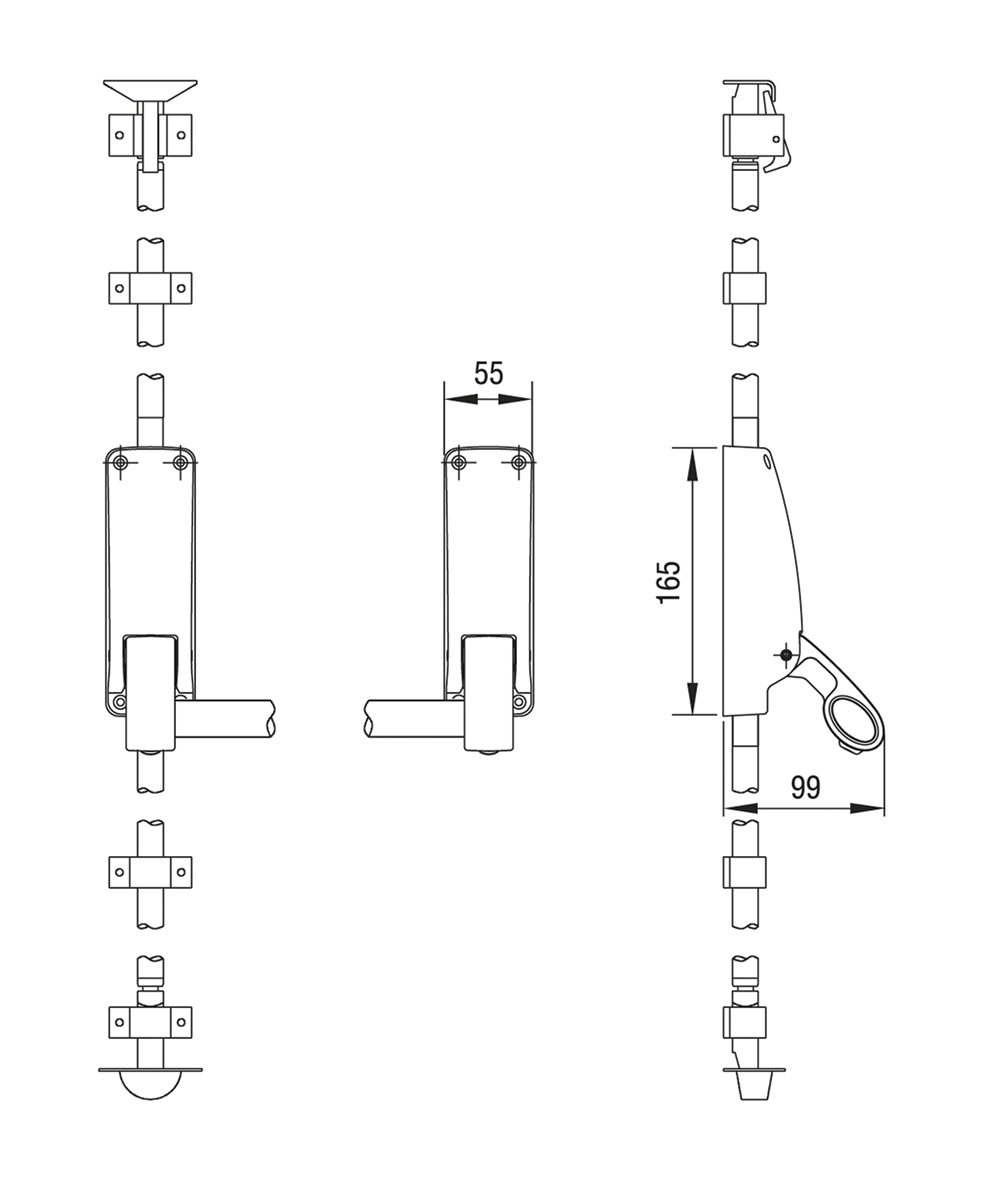

Technical drawings

Alternative products

Anti-panic set Fast Push 2 bolts top-buttom

7536-12-36/28

Anti-panic set Fast Push 2 bolts top-buttom+1 side

7534-12-36/28
