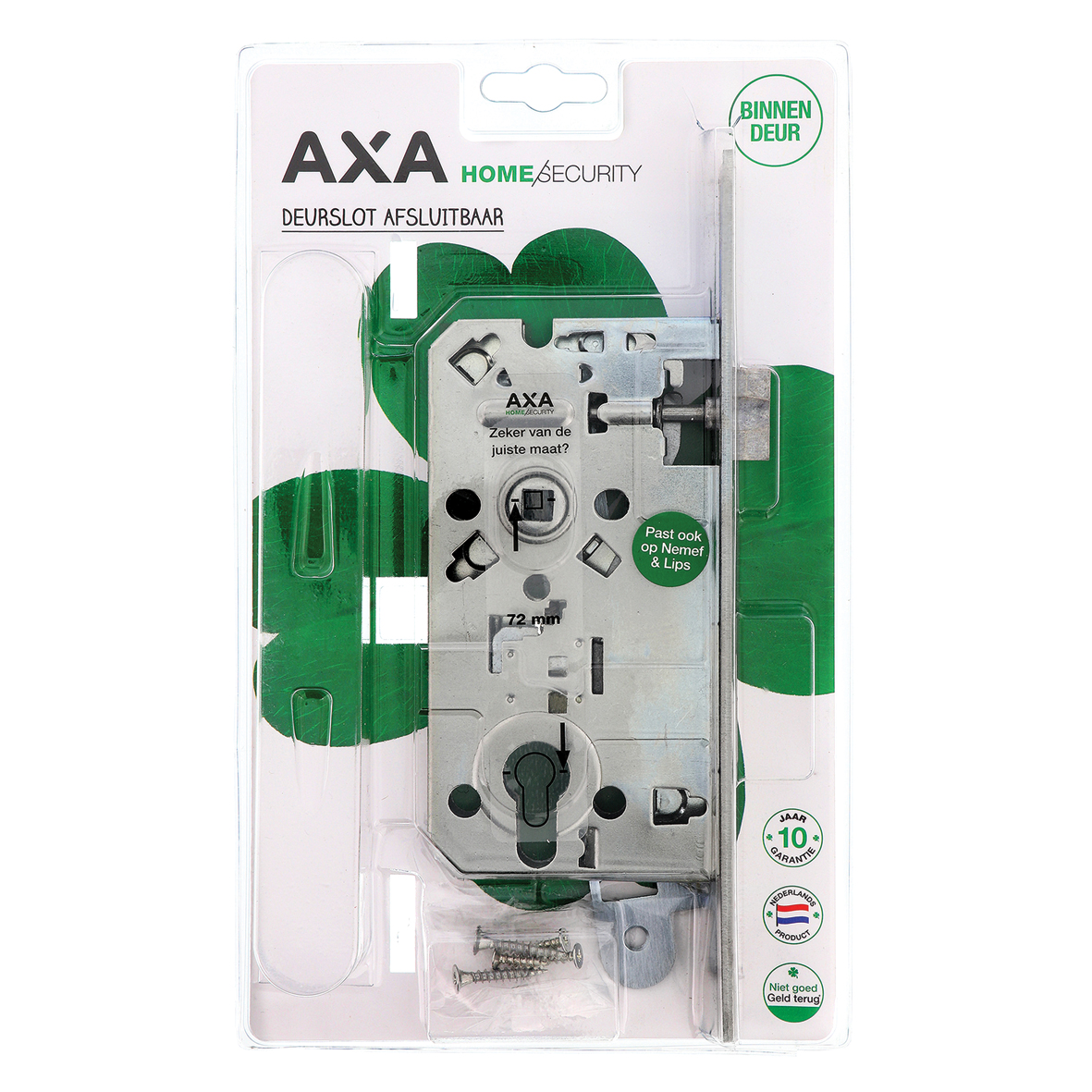

Mortice lock 7145 PC72

7145-50-22/72BL
arrow_selector
close

Universal mortice lock for interior doors.

  • with zinc-plated faceplate
  • with a cylinder hole
  • quick reversible nickel-plated brass latch
  • sturdy spindle mechanism
  • including attachment materials
Specifications Downloads Technical drawings Alternative products

Specifications

Recommended Mounting Materials
- 4.0 x 20 mm screw: 2 pieces
- 3.0 x 20 mm screw: 2 pieces
Commercial information
expand_more
Type 7145 PC72
Use for interior doors
Safety information
expand_more
SKG No
Police Hallmark False
CE Applicable False
Technical information
expand_more
Product Length 240 mm
Product Width 25 mm
Mounting depth 77 mm
Corner shape right angle
Direction of rotation DIN all directions
Bolt type dead bolt
Bolt catcher striking plate
Heart to heart size type handle hole - Euro profile hole (PC)
Backset 50 mm
Material Steel
Finish Galvanized
Assembly information
expand_more
Including Mounting Material True
Recommended Mounting Materials
- 4.0 x 20 mm screw: 2 pieces
- 3.0 x 20 mm screw: 2 pieces
Logistic information
expand_more
Product Weight 462 gr
Pieces per small package 1 piece
EAN small package 8713249226880
Weight small package 0.46 kg
Dimensions small package 275 x 166 x 30 mm
Pieces per bulk package 4 piece
EAN bulk package 8713249226897
Weight bulk package 2.04 kg
Dimensions bulk package 290 x 200 x 120 mm

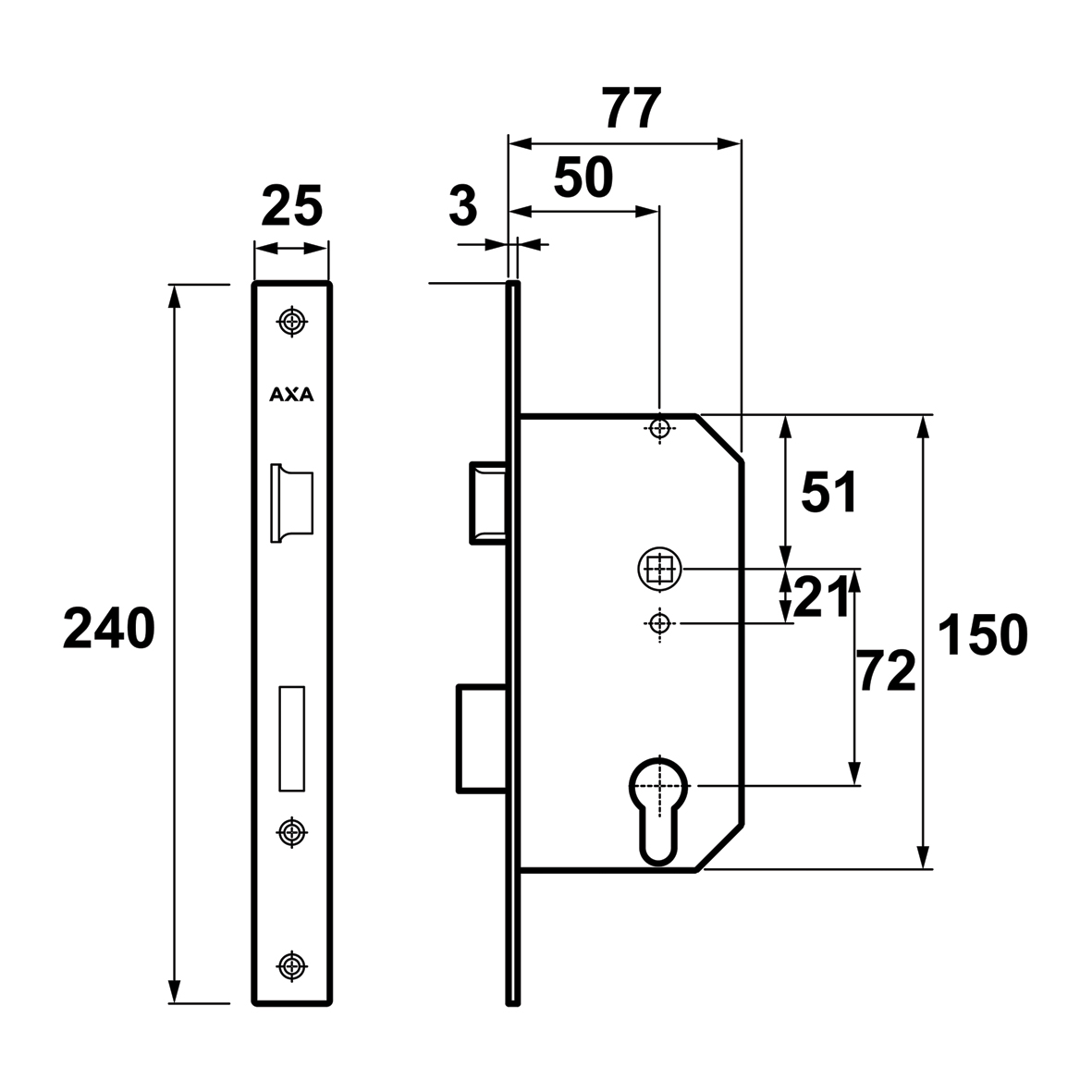

Technical drawings
