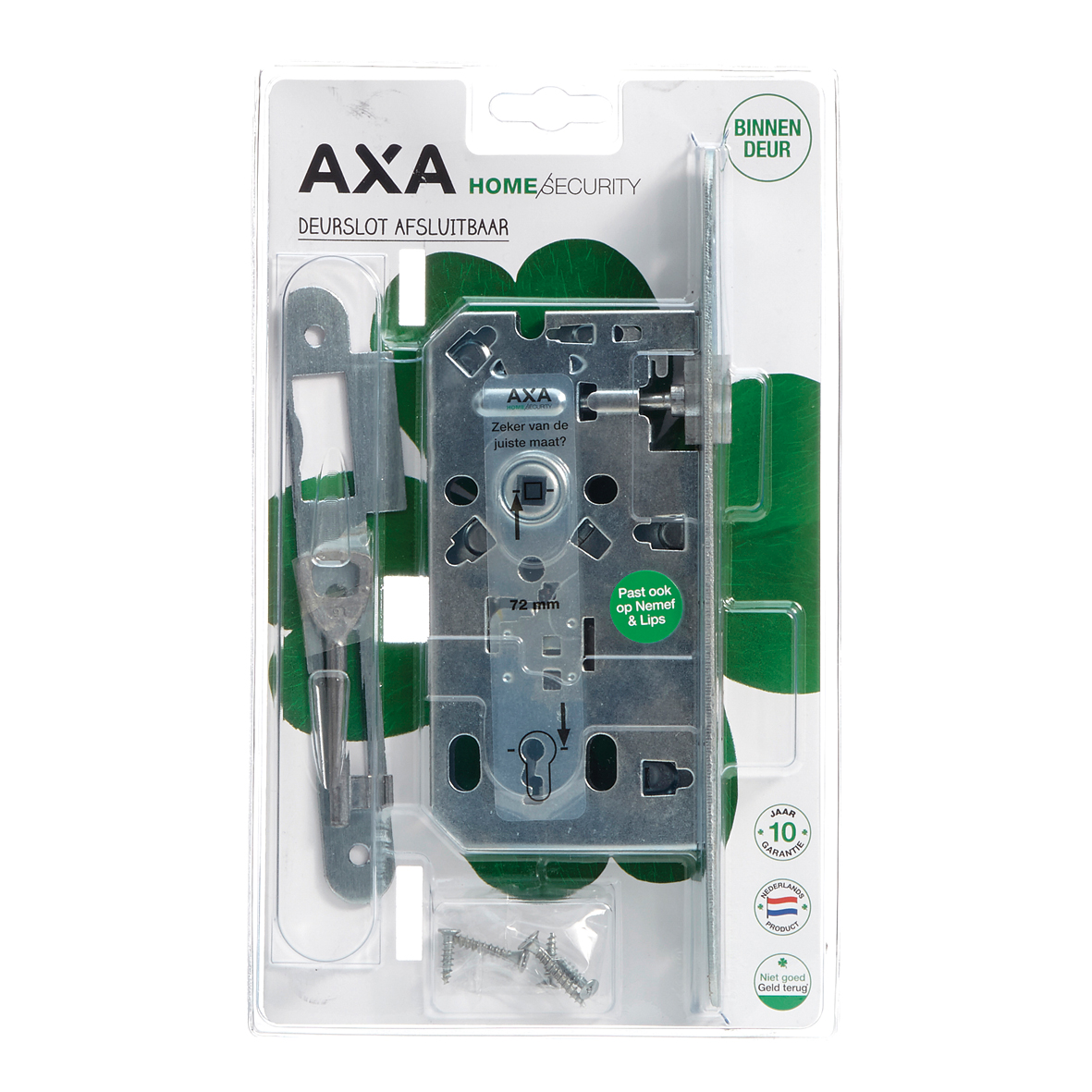

Mortice lock 7135 SL72

7135-50-22/72BL
arrow_selector
close

Universal mortice lock for interior doors.

  • with zinc-plated faceplate
  • with keyhole
  • quick reversible nickel-plated brass latch
  • sturdy spindle mechanism
  • including attachment materials and a key
Specifications Downloads Technical drawings

Specifications

Recommended Mounting Materials
- 4.0 x 20 mm screw: 2 pieces
- 3.0 x 20 mm screw: 2 pieces
Commercial information
expand_more
Type 7135 SL72
Use for interior doors
Safety information
expand_more
SKG No
Police Hallmark False
CE Applicable False
Technical information
expand_more
Product Length 240 mm
Product Width 25 mm
Mounting depth 81 mm
Corner shape right angle
Direction of rotation DIN all directions
Bolt type dead bolt
Bolt catcher striking plate
Heart to heart size type handle hole - lever key (SL)
Backset 50 mm
Number of Keys 1
Material Steel
Finish Galvanized
Assembly information
expand_more
Including Mounting Material True
Assembly time 30 min
Recommended Mounting Materials
- 4.0 x 20 mm screw: 2 pieces
- 3.0 x 20 mm screw: 2 pieces
Logistic information
expand_more
Product Weight 472 gr
Pieces per small package 1 piece
EAN small package 8713249226859
Weight small package 0.47 kg
Dimensions small package 275 x 166 x 30 mm
Pieces per bulk package 4 piece
EAN bulk package 8713249226866
Weight bulk package 2.08 kg
Dimensions bulk package 290 x 200 x 120 mm

Technical drawings
