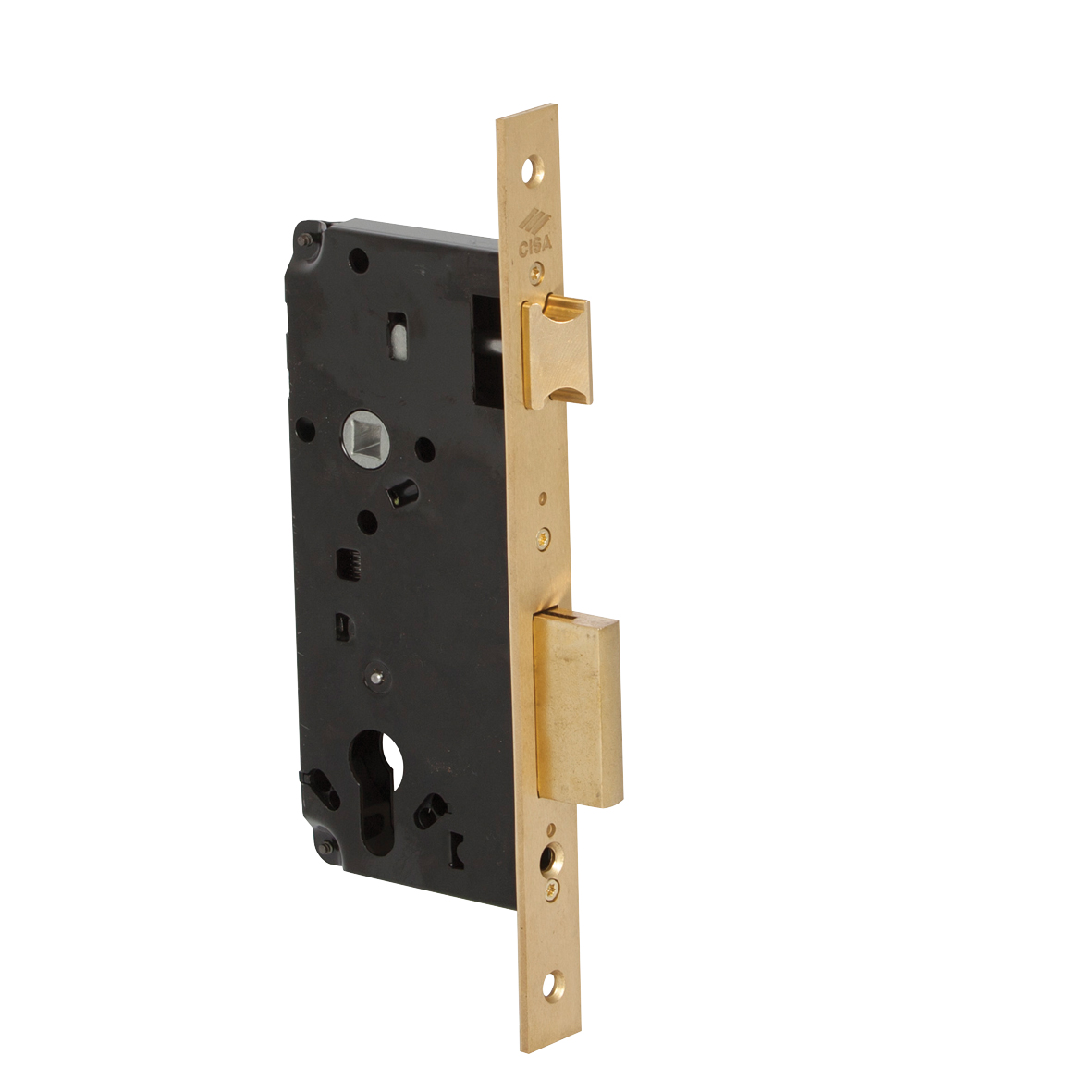

Mortice lock 5C110.60

7CS-5C11-0600
arrow_selector
close

An interior door locks enable your doors to function optimally.

  • with brass plated faceplate
  • with a cylinder hole
  • quick reversible nickel-plated brass latch
  • sturdy spindle mechanism
  • inclusive striking plate and fastening materials
Specifications Downloads Technical drawings

Specifications

Commercial information
expand_more
Type 5C110.60
Use for interior doors
Safety information
expand_more
SKG No
Police Hallmark False
CE Applicable False
Technical information
expand_more
Product Length 240 mm
Product Width 22 mm
Thickness 14 mm
Mounting depth 86 mm
Corner shape right angle
Bolt type dead bolt
Heart to heart size type handle hole - Euro profile hole (PC)
Backset 60 mm
Material Steel
Finish Brass-plated
Material 2 Steel
Finish 2 Black lacquered
Assembly information
expand_more
Including Mounting Material True
Logistic information
expand_more
Product Weight 800 gr
Pieces per small package 1 piece
EAN small package 8015345679462
Dimensions small package 245 x 100 x 25 mm

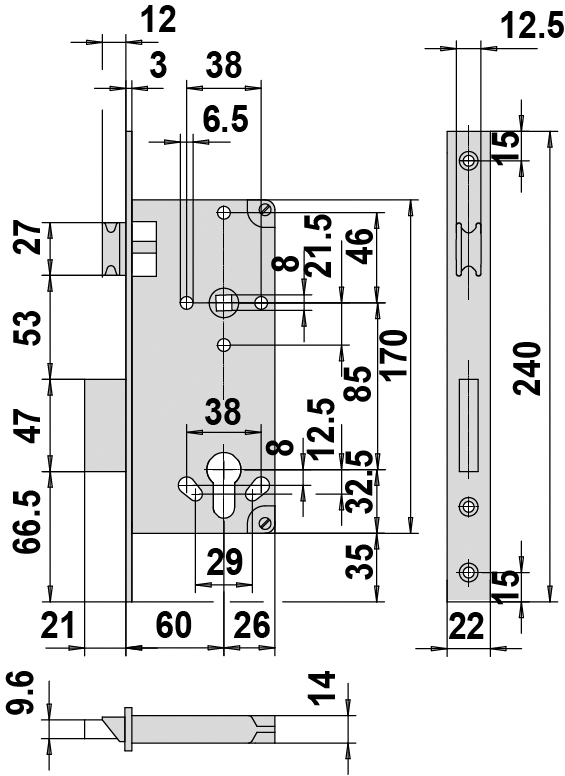

Technical drawings
