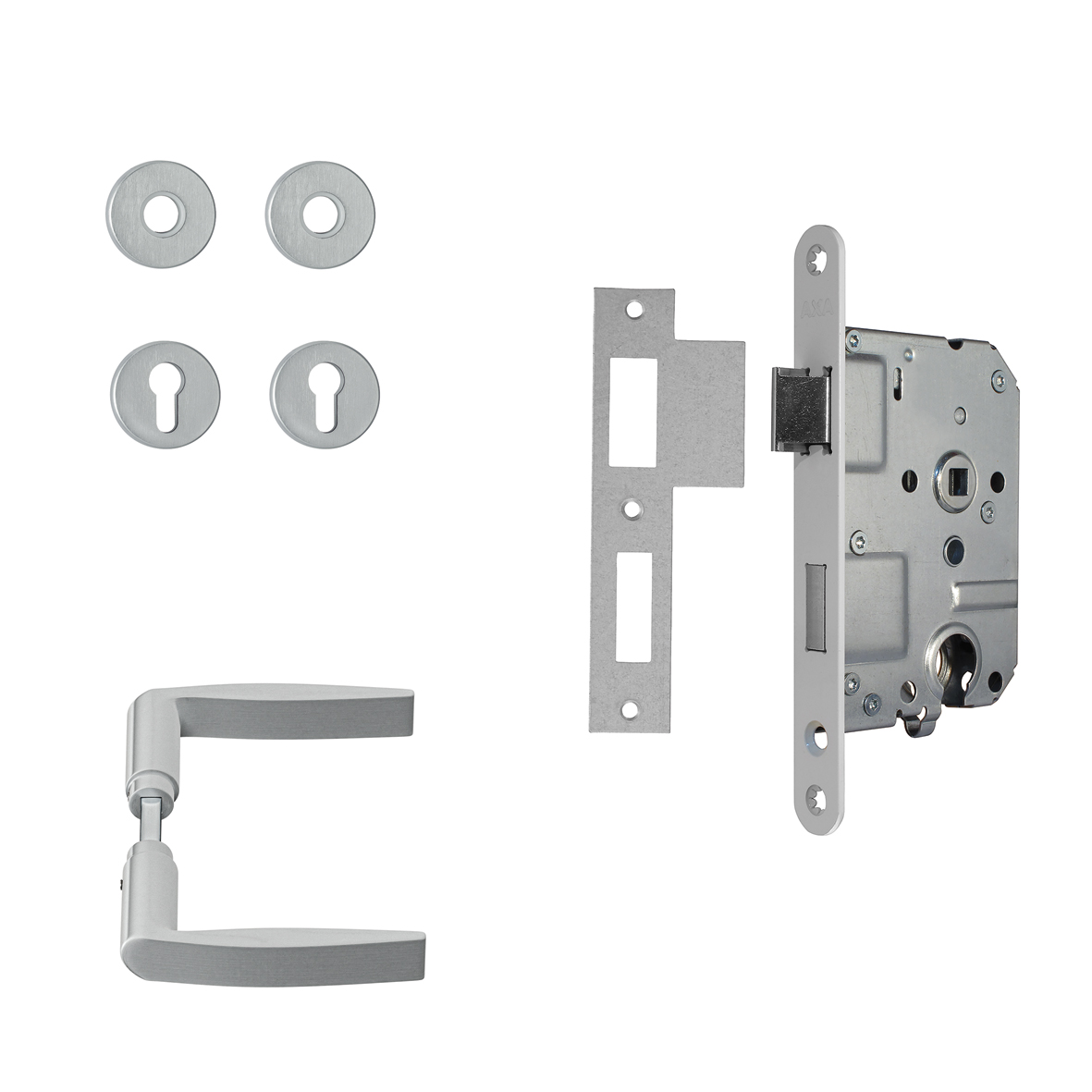

Interior door fitting Klik rosettes round+PC handle Curve+lock

7145-99-54/55E
arrow_selector

Stylish interior door fitting with matching lock, no visible attachment points, finely polished and less sensitive to scratching.

  • with white faceplate
  • with a cylinder hole
  • quick reversible nickel-plated brass latch
  • sturdy spindle mechanism
  • matching interior door fitting
  • stylish appearance, finely polished, less sensitive to scratches
  • no visible attachment points, because the rosette is clicked over a plastic base plate
  • integrated plastic handle bearings
  • can be excellently combined with the Security fittings for exterior doors
  • inclusive striking plate and fastening materials

Specifications

Recommended Mounting Materials
- 4.0 x 20 mm screw: 6 pieces
- 3.0 x 20 mm screw: 2 pieces
Commercial information
expand_more
Type Klik rosettes round+PC handle Curve+lock
Use for interior doors
Safety information
expand_more
Burglarproof False
SKG No
Police Hallmark False
CE Applicable False
Technical information
expand_more
Product Length 2 174 mm
Product Width 2 20 mm
Thickness 9 mm
Thickness 2 3 mm
Mounting depth 80 mm
Corner shape round corner
Direction of rotation DIN all directions
Bolt type dead bolt
Bolt catcher striking plate
Shape round
Suitable for door thickness 38 - 40 mm
Handle type Curve
Handle length 116 mm
Handle depth 53 mm
Handle assembly grub screw fix
Diameter rosette 52 mm
Heart to heart size type handle hole - Euro profile hole (PC)
Backset 50 mm
Material Aluminum
Finish Polished anodised F1, natural
Material 2 Steel
Finish 2 White lacquered
Assembly information
expand_more
Assembly time 45 min
Recommended Mounting Materials
- 4.0 x 20 mm screw: 6 pieces
- 3.0 x 20 mm screw: 2 pieces
Logistic information
expand_more
Pieces per small package 1 piece
EAN small package 8713249306209
Pieces per bulk package 8 piece
EAN bulk package 8713249306216

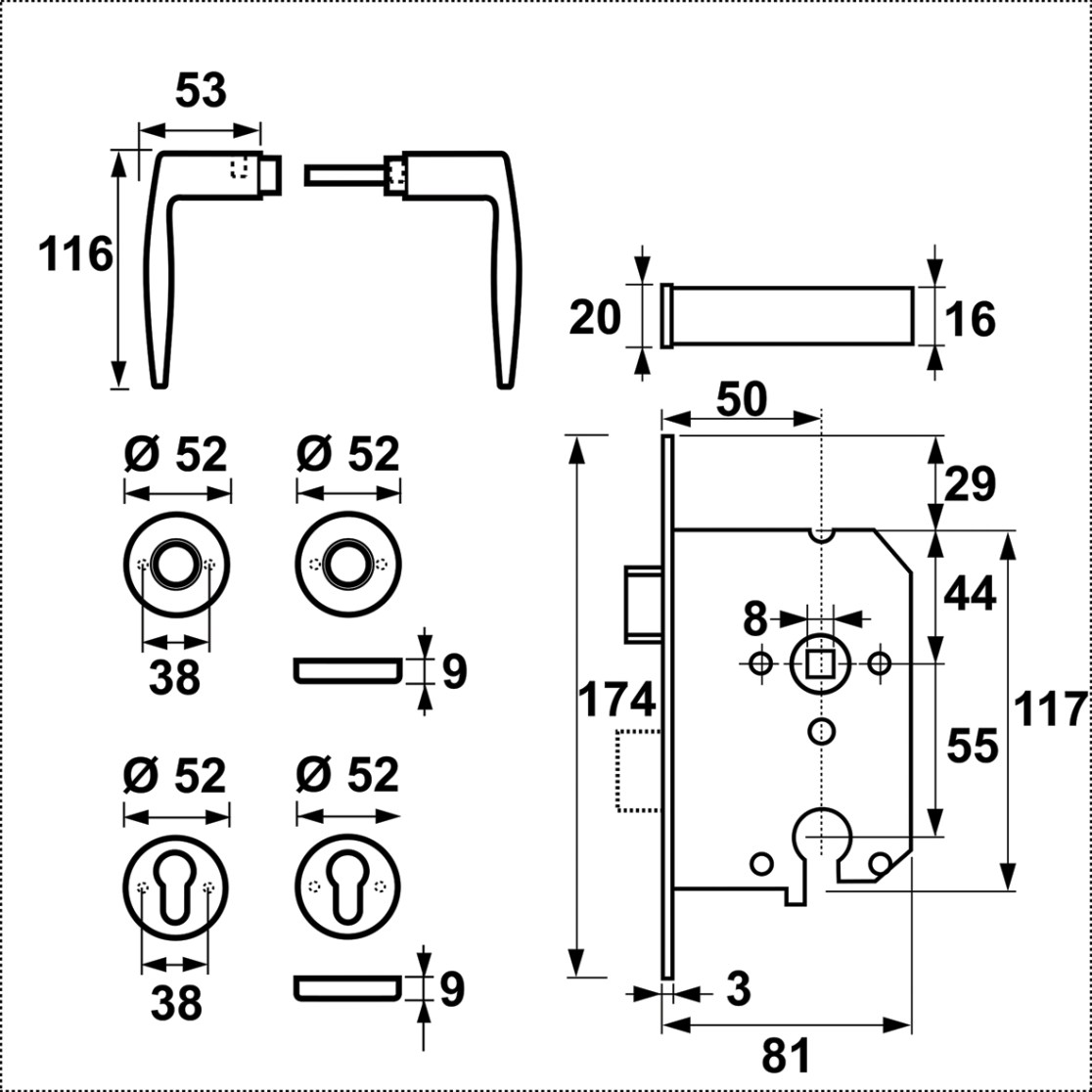

Technical drawings

Interior door fitting Klik rosettes round+PC handle Curve+lock
7145995455E

Alternative products

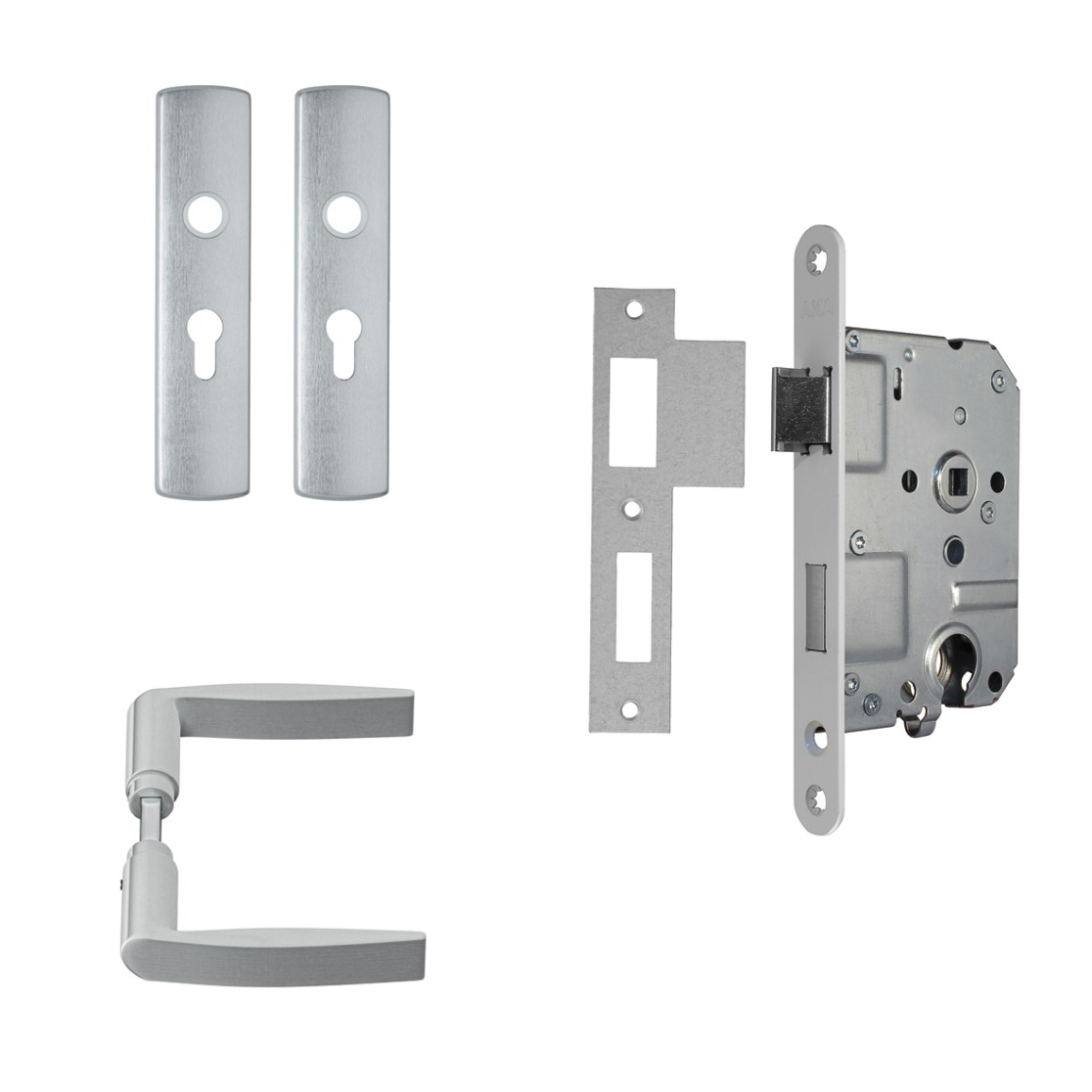

Interior door fitting Curve Klik handle Curve PC55+lock

7145-98-54/55E

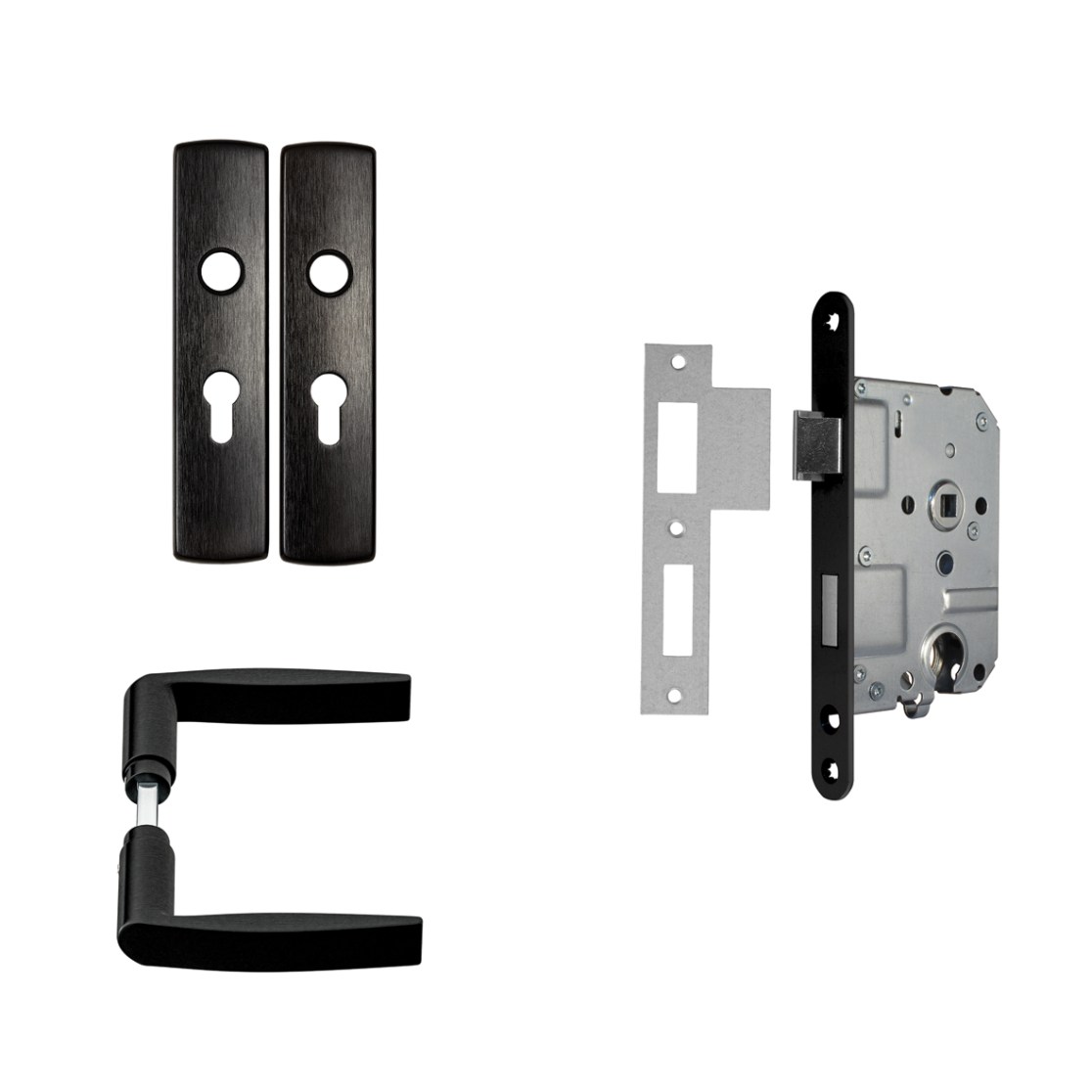

Interior door fitting Curve Klik handle Curve PC55+lock

7145-98-56/55E

Similar products

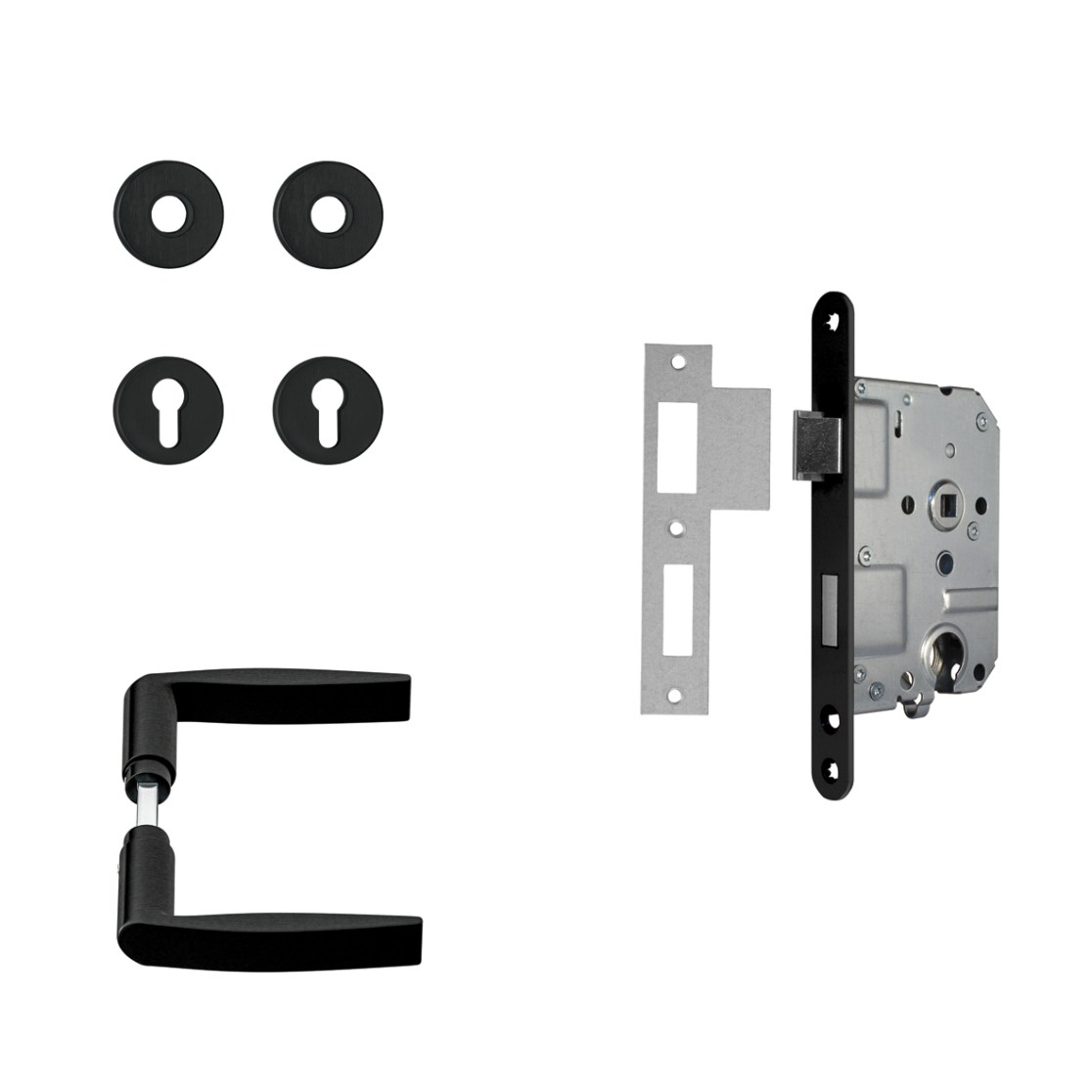

Interior door fitting Klik rosettes round+PC handle Curve+lock
