Interior door fitting Klik rosettes round+PC handle Blok

6229-30-13/E
arrow_selector
  • stylish appearance, finely polished, less sensitive to scratches
  • no visible attachment points, because the back plate is clicked over a plastic base plate
  • integrated plastic handle bearings
  • can be excellently combined with the AXA Security fittings for exterior doors

Specifications

Recommended Mounting Materials
- 4.0 x 20 mm screw: 8 pieces
- M6 x 6 mm grub screw: 2 pieces
Commercial information
expand_more
Type Klik rosettes round+PC handle Blok
Use for interior doors
Safety information
expand_more
Burglarproof False
SKG No
Police Hallmark False
CE Applicable False
Technical information
expand_more
Thickness 9 mm
Shape round
Suitable for door thickness 38 - 40 mm
Handle type Block
Handle length 125 mm
Handle depth 60 mm
Handle assembly grub screw fix
Diameter rosette 52 mm
Material Aluminum
Finish Polished anodised F3, gold
Assembly information
expand_more
Including Mounting Material True
Assembly time 10 min
Logistic information
expand_more
Product Weight 375 gr
Pieces per small package 1 piece
EAN small package 8713249338422
Weight small package 0.375 kg
Dimensions small package 160 x 130 x 30 mm
Pieces per bulk package 8 piece
EAN bulk package 8713249338439
Weight bulk package 3.18 kg
Dimensions bulk package 290 x 200 x 120 mm

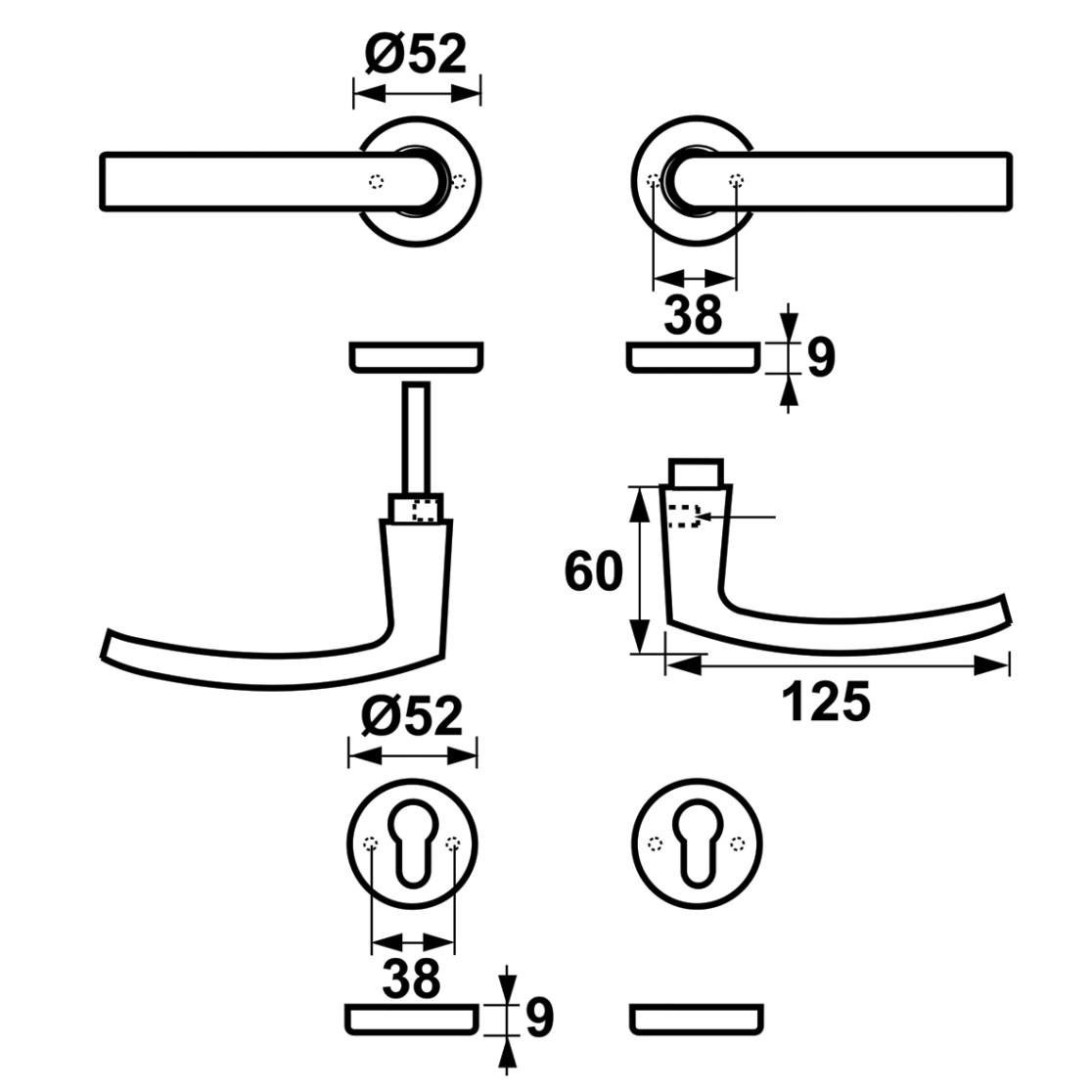

Technical drawings
