Interior door fitting Edge handle Blok toilet 63-8+lock

7165-90-56/63BL
arrow_selector
close

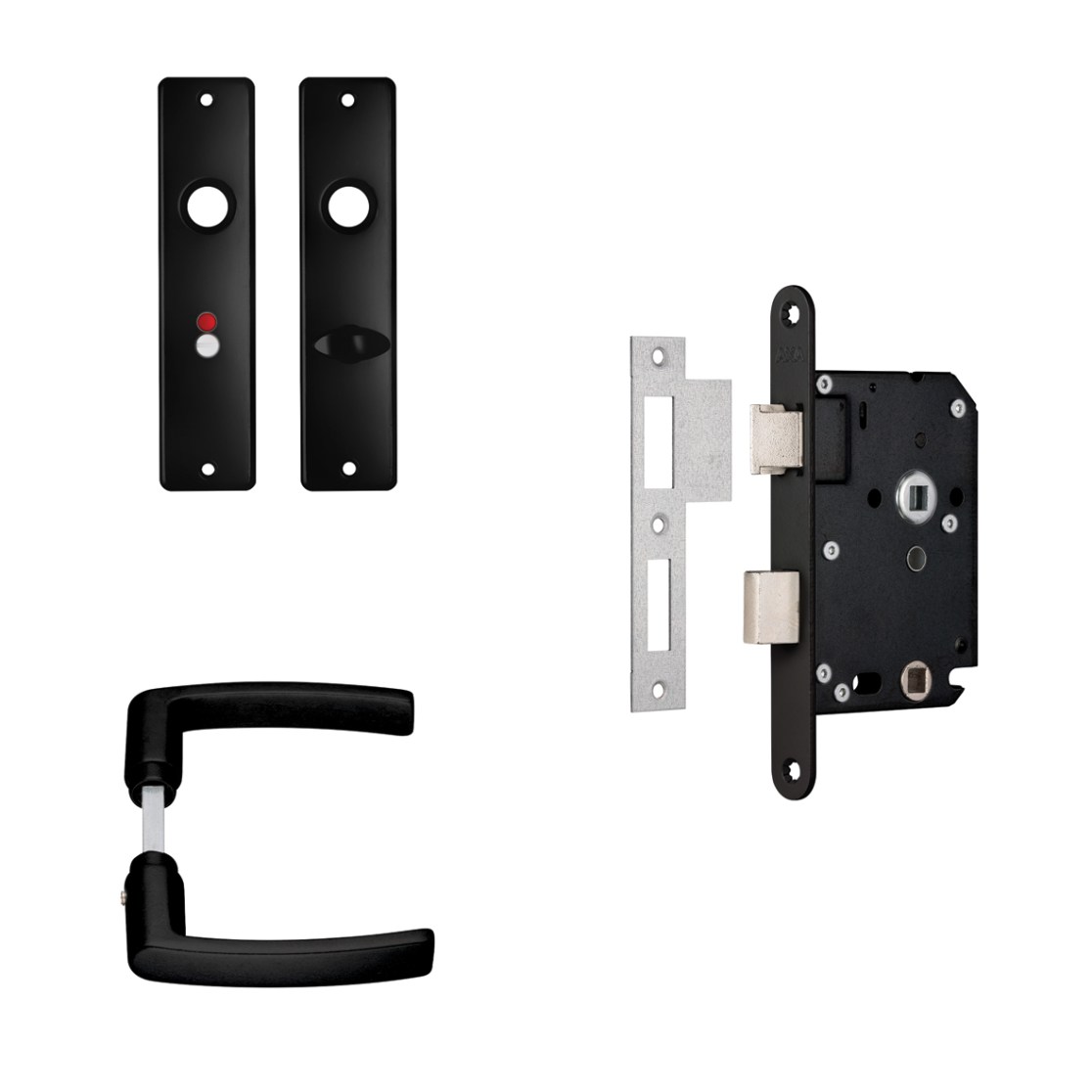

Stylish door fittings for interior doors with matching lock.

  • universally usable on doors with a thickness of 38 to 42 mm
  • with matching lock
  • complete with attachment materials
  • simple assembly
  • can be excellently combined with the AXA Security fittings for exterior doors
Specifications Downloads Technical drawings Alternative products Similar products

Specifications

Recommended Mounting Materials
- 4.0 x 25 mm screw: 2 pieces
- 3.5 x 16 mm screw: 2 pieces
- M4 x 42 mm patent bolt: 2 pieces
- M4 x 20 mm bush: 2 pieces
- M6 x 9 mm grub screw: 1 piece
Commercial information
expand_more
Type Edge handle Blok toilet 63-8+lock
Use for interior doors
Safety information
expand_more
Burglarproof False
SKG No
Police Hallmark False
CE Applicable False
Technical information
expand_more
Product Length 180 mm
Product Length 2 174 mm
Product Width 42 mm
Product Width 2 42 mm
Thickness 6 mm
Thickness 2 3 mm
Mounting depth 80 mm
Corner shape round corner
Bolt type dead bolt
Bolt catcher striking plate
Shape right
Suitable for door thickness 38 - 42 mm
Handle type Block
Handle length 112 mm
Handle depth 51 mm
Handle assembly grub screw fix
Heart to heart size type handle hole - toilet operating hole (TL)
Backset 50 mm
Material Aluminum
Finish Anodised F8, black
Material 2 Steel
Finish 2 Black lacquered
Assembly information
expand_more
Including Mounting Material True
Assembly time 45 min
Recommended Mounting Materials
- 4.0 x 25 mm screw: 2 pieces
- 3.5 x 16 mm screw: 2 pieces
- M4 x 42 mm patent bolt: 2 pieces
- M4 x 20 mm bush: 2 pieces
- M6 x 9 mm grub screw: 1 piece
Logistic information
expand_more
Product Weight 822 gr
Pieces per small package 5 piece
EAN small package 8713249321622
Pieces per bulk package 20 piece
EAN bulk package 8713249321639

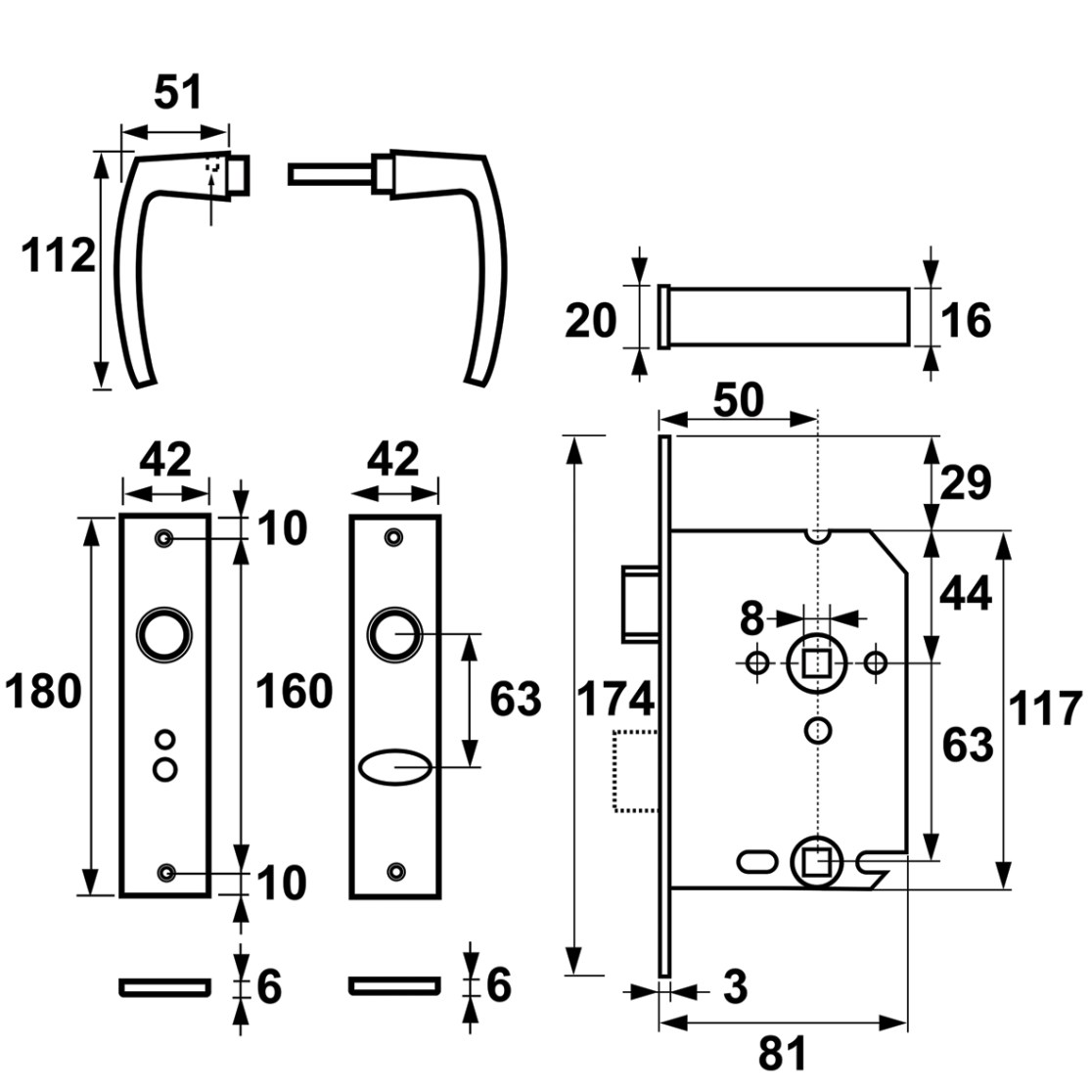

Technical drawings
