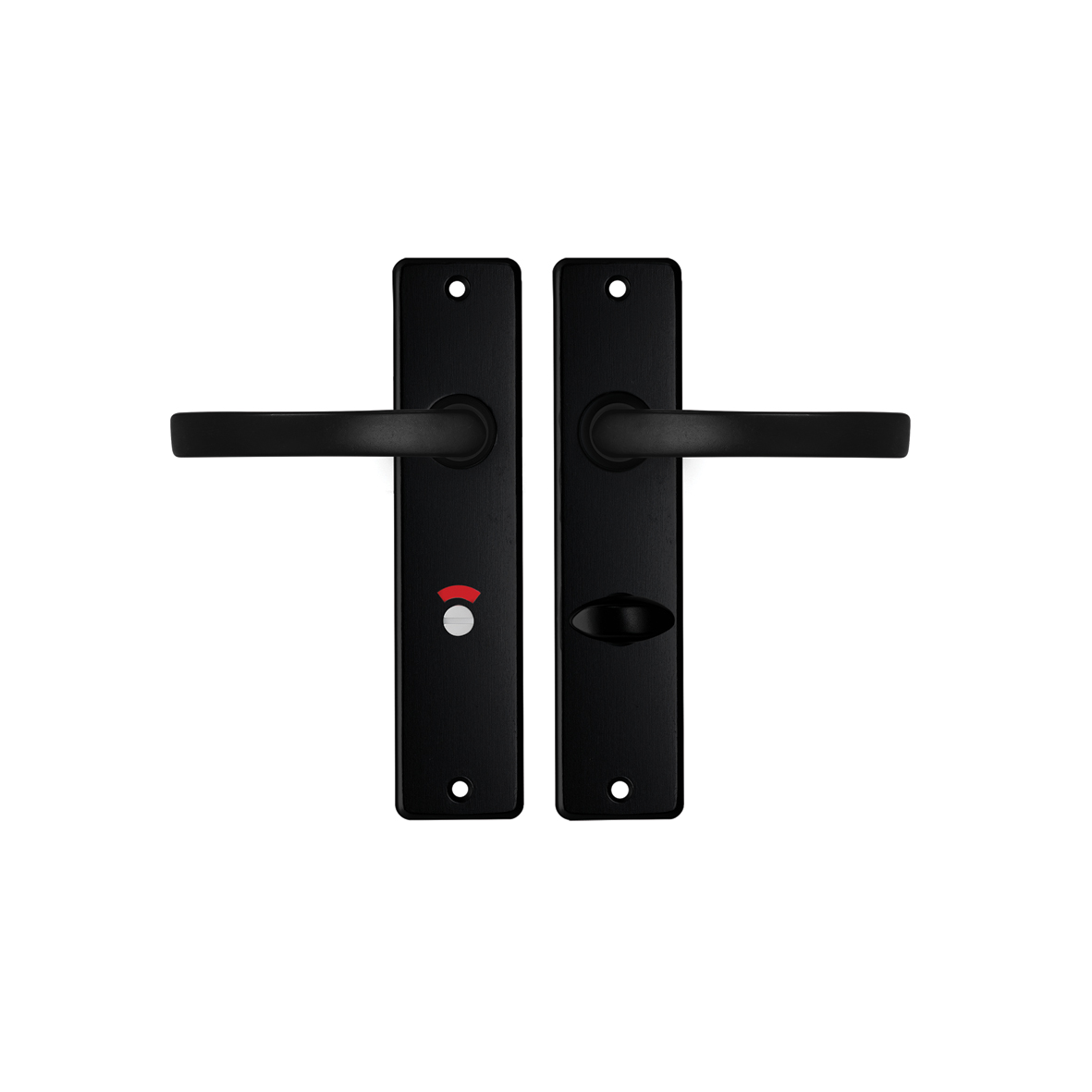

Interior door fitting Edge Basic handle Blok toilet 63-8

6349-48-86/63E
arrow_selector
close

Standard interior door fittings in Edge model.

  • universally usable on doors with a thickness of 38 to 42 mm
  • complete with attachment materials
  • simple assembly
  • can be excellently combined with the AXA Security fittings for exterior doors
Specifications Downloads Technical drawings Alternative products Similar products

Specifications

Recommended Mounting Materials
- M4 x 42 mm patent bolt: 2 pieces
- M4 x 20 mm bus: 2 pieces
- M6 x 9 mm grub screw: 1 piece
Commercial information
expand_more
Type Edge Basic handle Blok toilet 63-8
Use for interior doors
Safety information
expand_more
Burglarproof False
SKG No
Police Hallmark False
CE Applicable False
Technical information
expand_more
Product Length 180 mm
Product Width 41 mm
Thickness 6 mm
Shape recht
Suitable for door thickness 38 - 42 mm
Handle type Block
Handle length 112 mm
Handle depth 51 mm
Handle assembly grub screw fix
Heart to heart size type handle hole - toilet operating hole (TL)
Material Aluminum
Finish Black lacquered
Assembly information
expand_more
Including Mounting Material True
Assembly time 10 min
Recommended Mounting Materials
- M4 x 42 mm patent bolt: 2 pieces
- M4 x 20 mm bus: 2 pieces
- M6 x 9 mm grub screw: 1 piece
Logistic information
expand_more
Pieces per small package 1 piece
EAN small package 8713249331904
Pieces per bulk package 10 piece
EAN bulk package 8713249331911
Dimensions bulk package 290 x 200 x 120 mm
