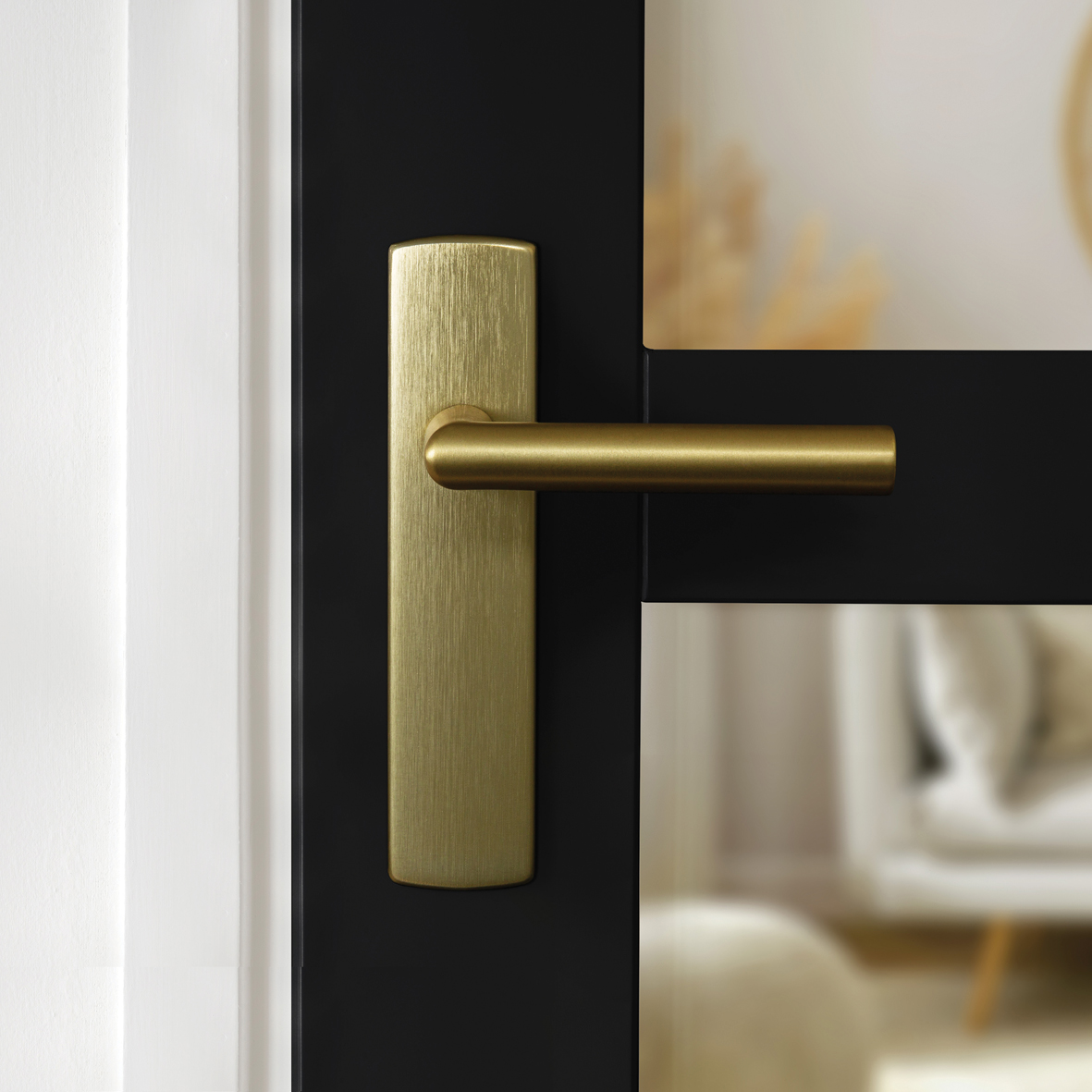

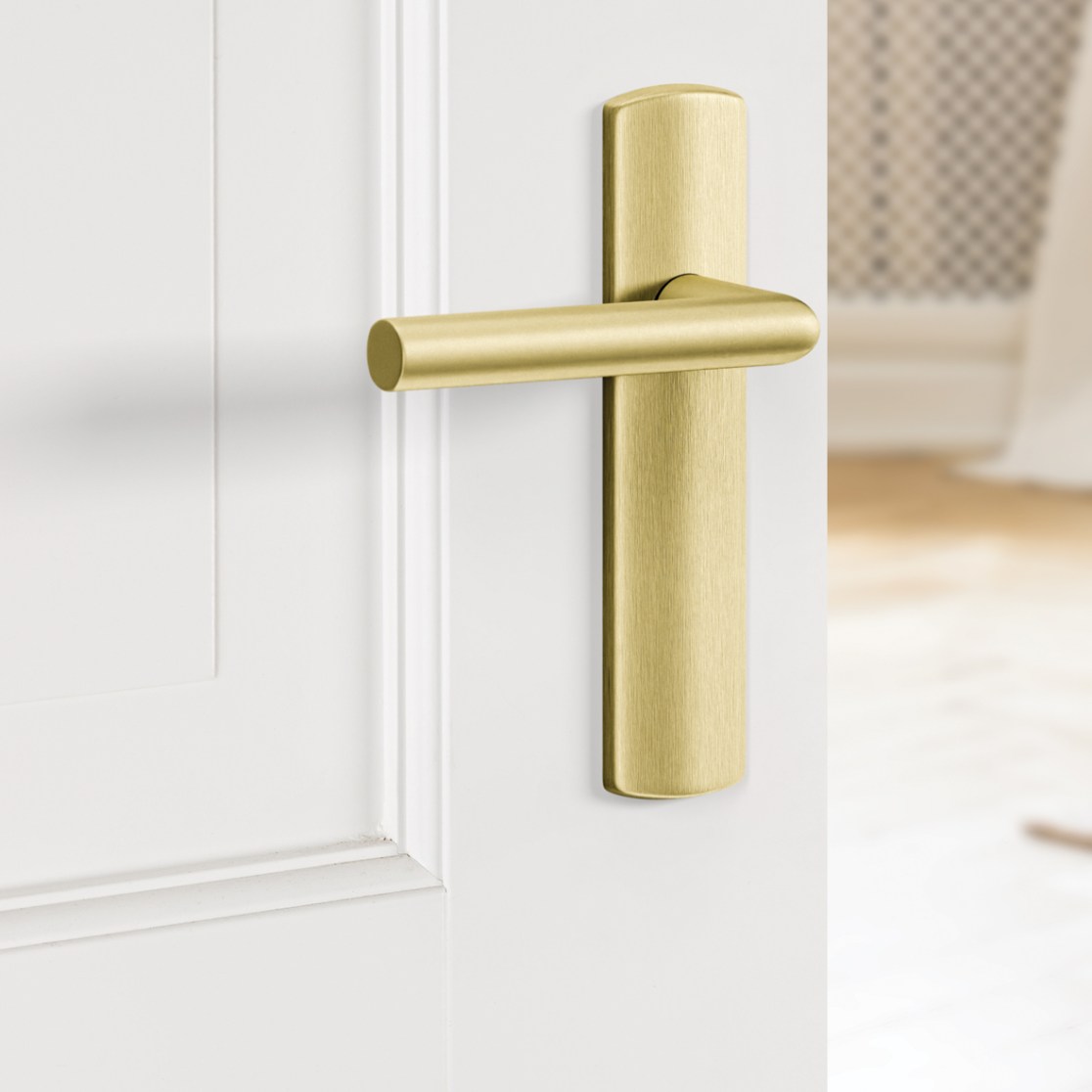

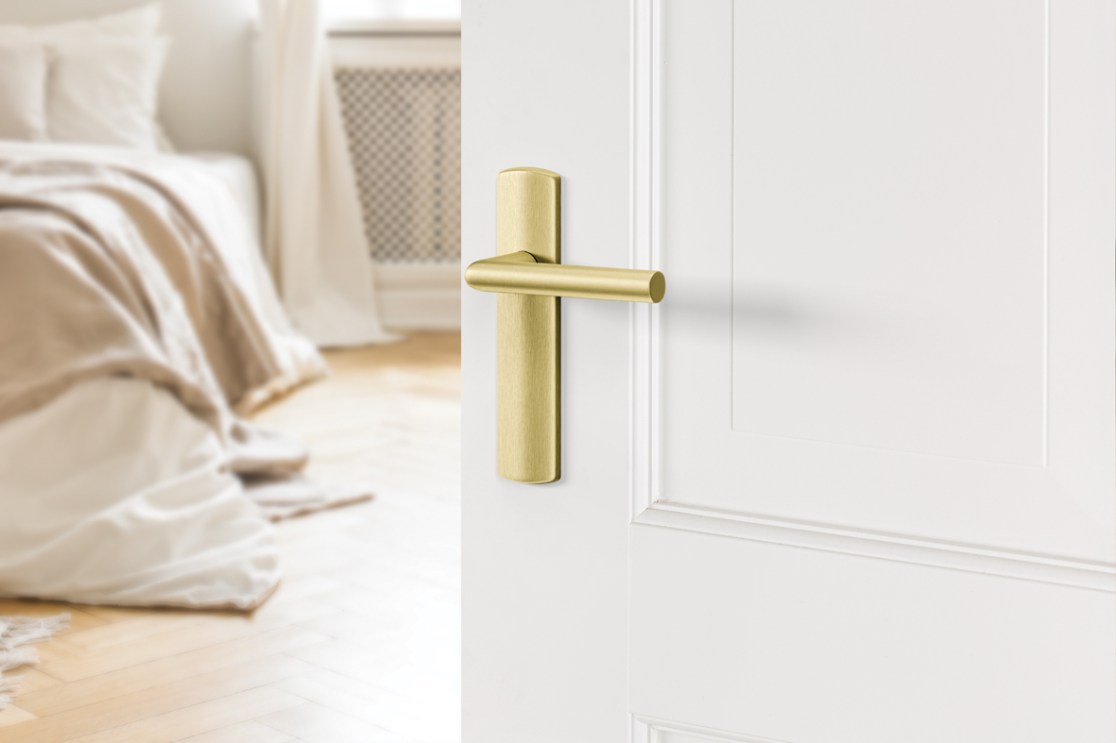

Interior door fitting Curve Klik handle Milan
6216-50-13/EStylish, no visible attachment points, finely polished and less sensitive to scratching.
- stylish appearance, finely polished, less sensitive to scratches
- no visible attachment points, because the back plate is clicked over a plastic base plate
- integrated plastic handle bearings
- universally usable on doors with a thickness of 38 to 42 mm
- complete with attachment materials
- simple assembly
- can be excellently combined with the AXA Security fittings for exterior doors
+
2
Stylish, no visible attachment points, finely polished and less sensitive to scratching.
- stylish appearance, finely polished, less sensitive to scratches
- no visible attachment points, because the back plate is clicked over a plastic base plate
- integrated plastic handle bearings
- universally usable on doors with a thickness of 38 to 42 mm
- complete with attachment materials
- simple assembly
- can be excellently combined with the AXA Security fittings for exterior doors
Specifications
Recommended Mounting Materials
- M4 x 38 mm patent bolt: 2 pieces
- M4 x 22 mm bus: 2 pieces
- M6 x 6 mm grub screw: 2 pieces
- M4 x 38 mm patent bolt: 2 pieces
- M4 x 22 mm bus: 2 pieces
- M6 x 6 mm grub screw: 2 pieces
Commercial information
Type Curve Klik handle Milan
Use for interior doors
Safety information
Burglarproof False
SKG No
Police Hallmark False
CE Applicable False
Technical information
Product Length 200 mm
Product Width 45 mm
Thickness 8 mm
Shape curved
Suitable for door thickness 38 - 42 mm
Handle type Milan
Handle length 136 mm
Handle depth 57 mm
Diameter handle 20 mm
Handle assembly grub screw fix
Material Aluminum
Finish Polished anodised F3, gold
Assembly information
Including Mounting Material True
Assembly time 15 min
Recommended Mounting Materials
- M4 x 38 mm patent bolt: 2 pieces
- M4 x 22 mm bus: 2 pieces
- M6 x 6 mm grub screw: 2 pieces
- M4 x 38 mm patent bolt: 2 pieces
- M4 x 22 mm bus: 2 pieces
- M6 x 6 mm grub screw: 2 pieces
Logistic information
Product Weight 529 gr
Pieces per small package 1 piece
EAN small package 8713249339108
Dimensions small package 200 x 125 x 45 mm
Pieces per bulk package 8 piece
EAN bulk package 8713249339115
Dimensions bulk package 290 x 200 x 120 mm
Downloads
Main Image Environmental Product Declaration (EPD)Technical drawings
