Interior door fitting Curve handle Vlinder PC55

6357-20-38/55E
arrow_selector
close

Stylish fittings for interior doors.

  • universally usable on doors with a thickness of 38 to 42 mm
  • complete with attachment materials
  • simple assembly
  • can be excellently combined with the AXA Security fittings for exterior doors
Specifications Downloads Technical drawings Associated products Alternative products Similar products

Specifications

Recommended Mounting Materials
- M4 x 38 mm patent bolt: 2 pieces
- M4 x 22 mm bus: 2 pieces
- 3 x 24 mm spindle pin: 1 piece
- M5 x 25 mm bolt: 1 piece
Commercial information
expand_more
Type Curve handle Vlinder PC55
Use for interior doors
Safety information
expand_more
Burglarproof False
SKG No
Police Hallmark False
CE Applicable False
Technical information
expand_more
Product Length 180 mm
Product Width 41 mm
Thickness 6 mm
Shape curved
Suitable for door thickness 38 - 42 mm
Handle type Butterfly
Handle length 115 mm
Handle depth 60 mm
Handle assembly pin fix
Heart to heart size type handle hole - Euro profile hole (PC)
Material Aluminum
Finish Anodised F8, black
Assembly information
expand_more
Including Mounting Material True
Assembly time 15 min
Recommended Mounting Materials
- M4 x 38 mm patent bolt: 2 pieces
- M4 x 22 mm bus: 2 pieces
- 3 x 24 mm spindle pin: 1 piece
- M5 x 25 mm bolt: 1 piece
Logistic information
expand_more
Product Weight 280 gr
Pieces per small package 1 piece
EAN small package 8713249319483
Weight small package 0.28 kg
Dimensions small package 180 x 110 x 25 mm
Pieces per bulk package 8 piece
EAN bulk package 8713249319490
Weight bulk package 2.24 kg
Dimensions bulk package 290 x 200 x 120 mm

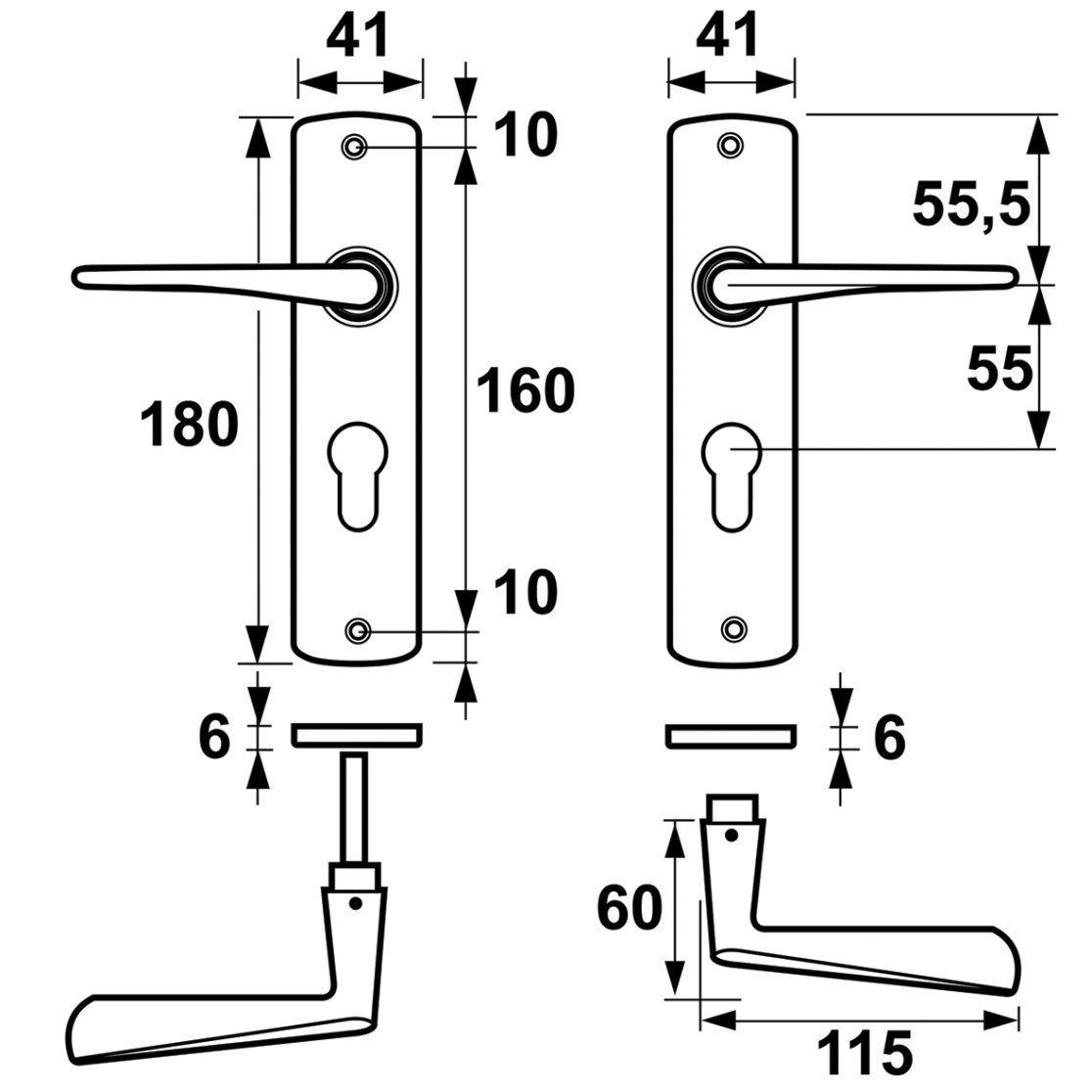

Technical drawings
