Interior door fitting Curve handle Blok PC55
6359-20-38/55EStylish fittings for interior doors.
- universally usable on doors with a thickness of 38 to 42 mm
- complete with attachment materials
- simple assembly
- can be excellently combined with the AXA Security fittings for exterior doors

Stylish fittings for interior doors.
- universally usable on doors with a thickness of 38 to 42 mm
- complete with attachment materials
- simple assembly
- can be excellently combined with the AXA Security fittings for exterior doors
Specifications
Recommended Mounting Materials
- M4 x 38 mm patent bolt: 2 pieces
- M4 x 20 mm bus: 2 pieces
- 3 x 24 mm spindle pin: 1 piece
- M5 x 25 mm bolt: 1 piece
- M4 x 38 mm patent bolt: 2 pieces
- M4 x 20 mm bus: 2 pieces
- 3 x 24 mm spindle pin: 1 piece
- M5 x 25 mm bolt: 1 piece
Commercial information
Type Curve handle Blok PC55
Use for interior doors
Safety information
Burglarproof False
SKG No
Police Hallmark False
CE Applicable False
Technical information
Product Length 180 mm
Product Width 41 mm
Thickness 6 mm
Shape curved
Suitable for door thickness 38 - 42 mm
Handle type Block
Handle length 112 mm
Handle depth 51 mm
Handle assembly pin fix
Heart to heart size type handle hole - Euro profile hole (PC)
Material Aluminum
Finish Anodised F8, black
Assembly information
Including Mounting Material True
Assembly time 10 min
Recommended Mounting Materials
- M4 x 38 mm patent bolt: 2 pieces
- M4 x 20 mm bus: 2 pieces
- 3 x 24 mm spindle pin: 1 piece
- M5 x 25 mm bolt: 1 piece
- M4 x 38 mm patent bolt: 2 pieces
- M4 x 20 mm bus: 2 pieces
- 3 x 24 mm spindle pin: 1 piece
- M5 x 25 mm bolt: 1 piece
Logistic information
Product Weight 252 gr
Pieces per small package 1 piece
EAN small package 8713249312583
Weight small package 0.25 kg
Dimensions small package 180 x 110 x 25 mm
Pieces per bulk package 8 piece
EAN bulk package 8713249312590
Weight bulk package 2.21 kg
Dimensions bulk package 290 x 200 x 120 mm
Downloads

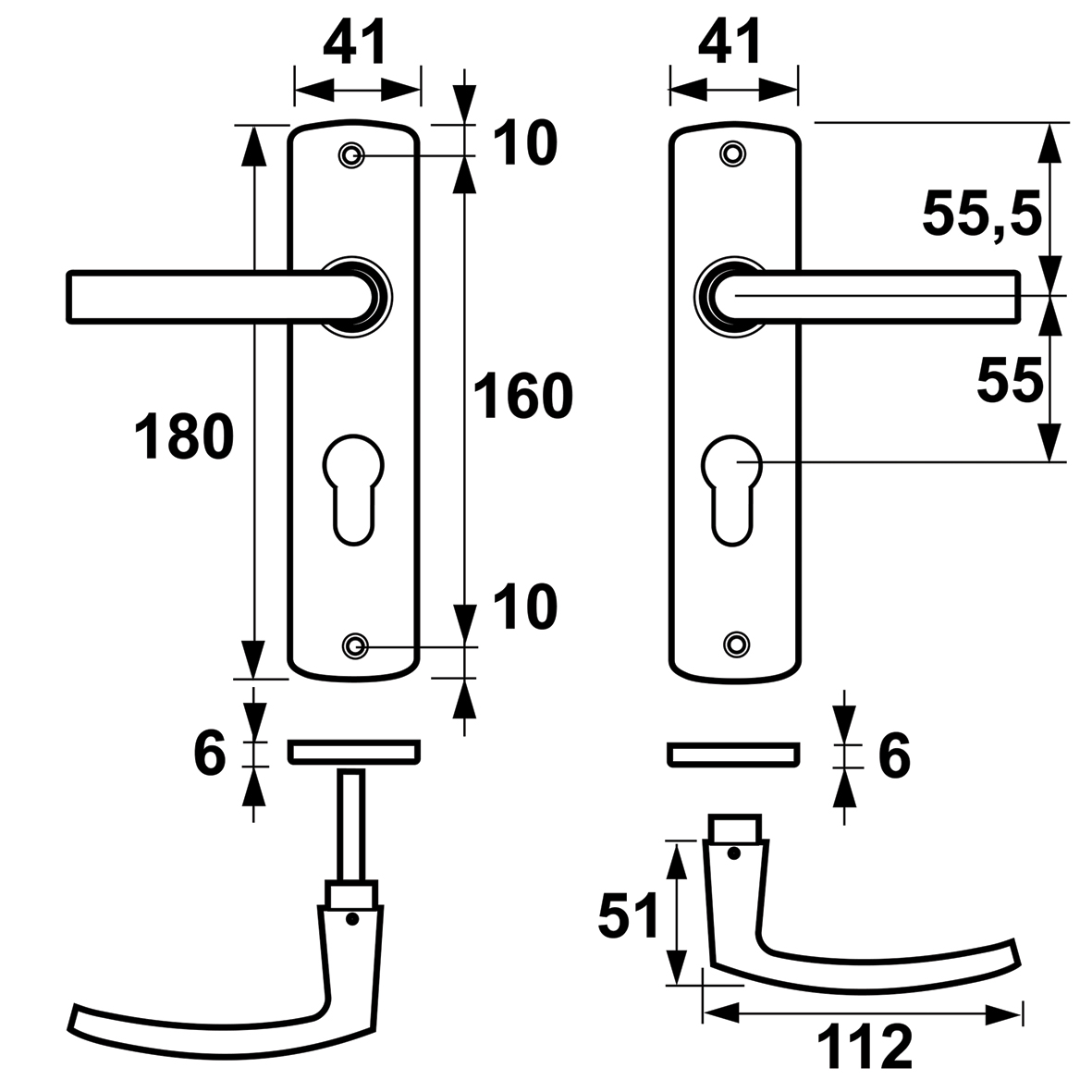

Main Image Environmental Product Declaration (EPD)Technical drawings
