Hinge Venelite

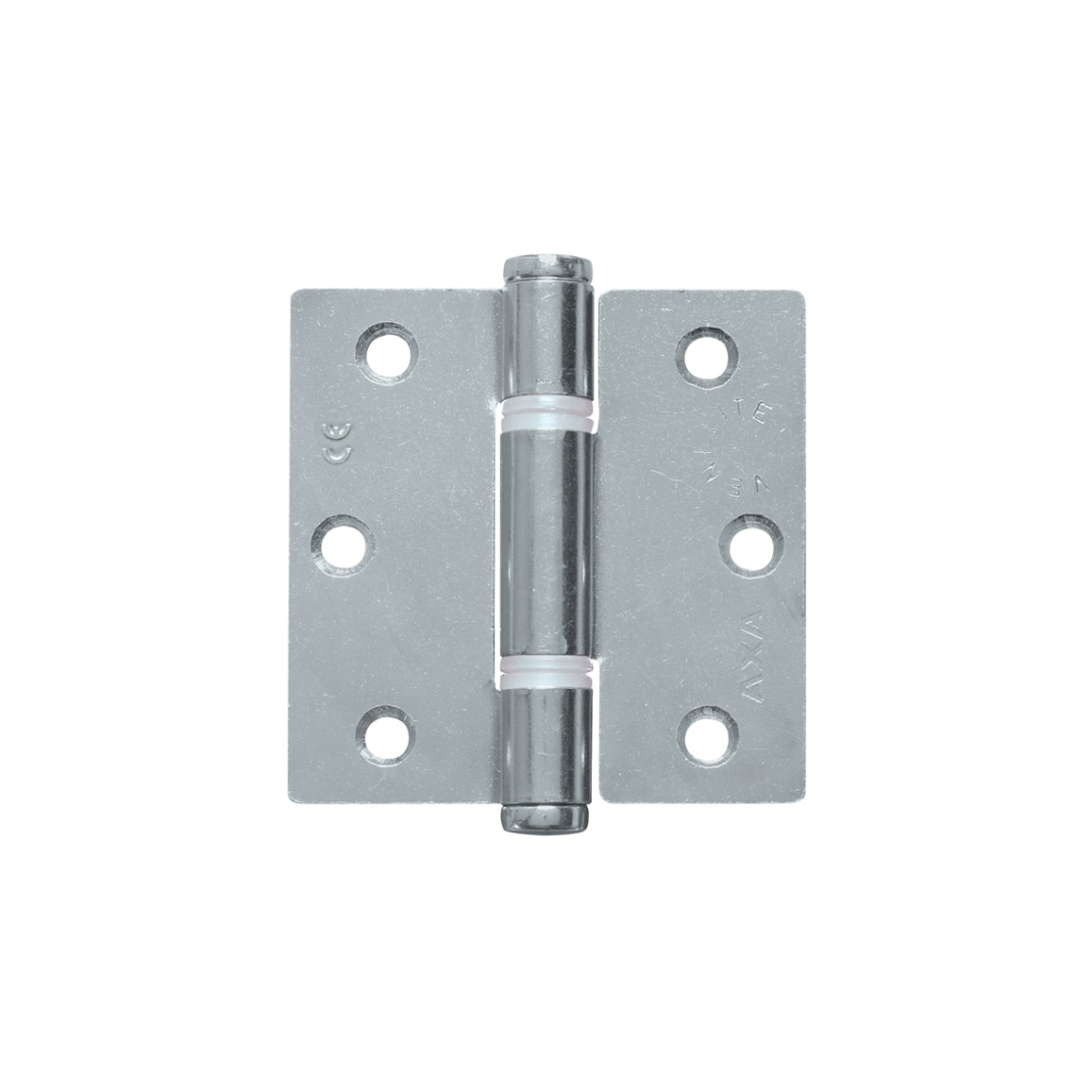

1137-24-23/EThe AXA Venelite bearing hinge is smooth-running and silent.
- with plastic Venelite bearings
- smooth-running
- silent
The AXA Venelite bearing hinge is smooth-running and silent.
- with plastic Venelite bearings
- smooth-running
- silent
Specifications
Recommended Mounting Materials
- 4.0 x 40 mm screw: 6 pieces
- 4.0 x 40 mm screw: 6 pieces
Commercial information
Type Venelite
Use for windows
Safety information
Burglarproof False
SKG No
Police Hallmark False
CE Applicable True
Technical information

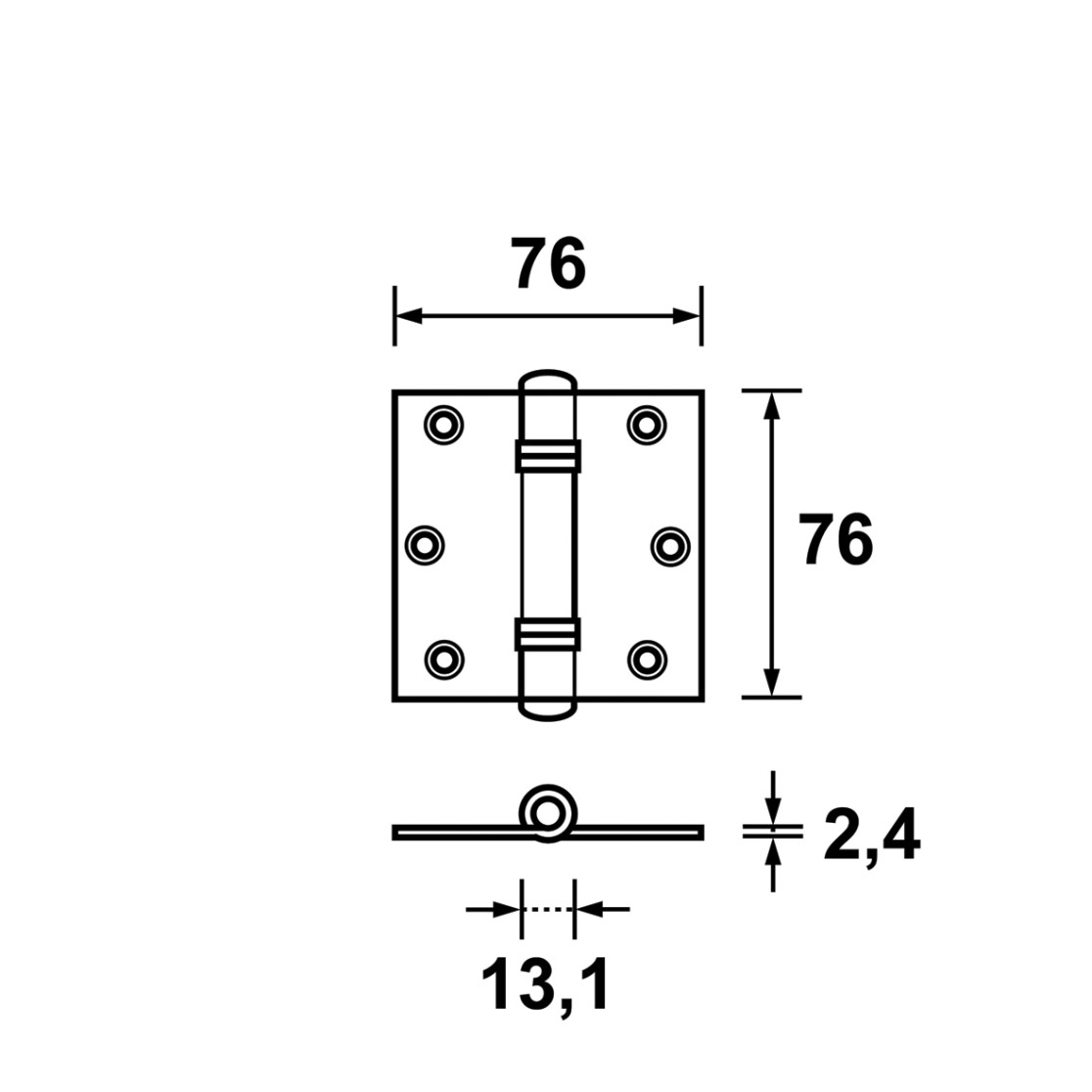

Product Width 76 mm
Product Height 76 mm
Thickness 2.4 mm
Diameter knuckle 13.1 mm
Corner shape right angle
Bearing synthetic Venelite bearing
Direction of rotation outward and inward-opening
Load bearing capacity 2 hinges 15 kg
Load bearing capacity 3 hinges 25 kg
Load bearing capacity 4 hinges 35 kg
Material Steel
Finish Topcoat galvanized
Assembly information
Including Mounting Material False
Recommended Mounting Materials
- 4.0 x 40 mm screw: 6 pieces
- 4.0 x 40 mm screw: 6 pieces
Logistic information
Product Weight 155 gr
Pieces per small package 6 piece
EAN small package 8713249109374
Weight small package 0.95 kg
Dimensions small package 94 x 68 x 57 mm
Pieces per bulk package 48 piece
EAN bulk package 8713249109381
Weight bulk package 7.73 kg
Dimensions bulk package 200 x 150 x 120 mm
Downloads
Main Image Environmental Product Declaration (EPD)Technical drawings
