Hinge bearing free

1103-24-23/K
arrow_selector
close

The AXA bearing-free hinge is ideal for hopper windows and interior doors

  • high bearing capacity
  • smooth-running
Specifications Downloads Technical drawings Associated products Alternative products Similar products

Specifications

Recommended Mounting Materials
- 4.0 x 40 mm screw: 6 pieces
Commercial information
expand_more
Type bearing free
Use for windows
Safety information
expand_more
Burglarproof False
SKG No
Police Hallmark False
CE Applicable True
Technical information
expand_more
Product Width 76 mm
Product Height 76 mm
Thickness 2 mm
Diameter knuckle 10 mm
Corner shape right angle
Bearing bearing-free
Direction of rotation outward and inward-opening
Load bearing capacity 2 hinges 20 kg
Load bearing capacity 3 hinges 30 kg
Load bearing capacity 4 hinges 40 kg
Material Steel
Finish Topcoat galvanized
Assembly information
expand_more
Including Mounting Material False
Recommended Mounting Materials
- 4.0 x 40 mm screw: 6 pieces
Logistic information
expand_more
Product Weight 125 gr
Pieces per bulk package 100 piece
EAN bulk package 8713249221694
Weight bulk package 12.63 kg
Dimensions bulk package 200 x 150 x 120 mm

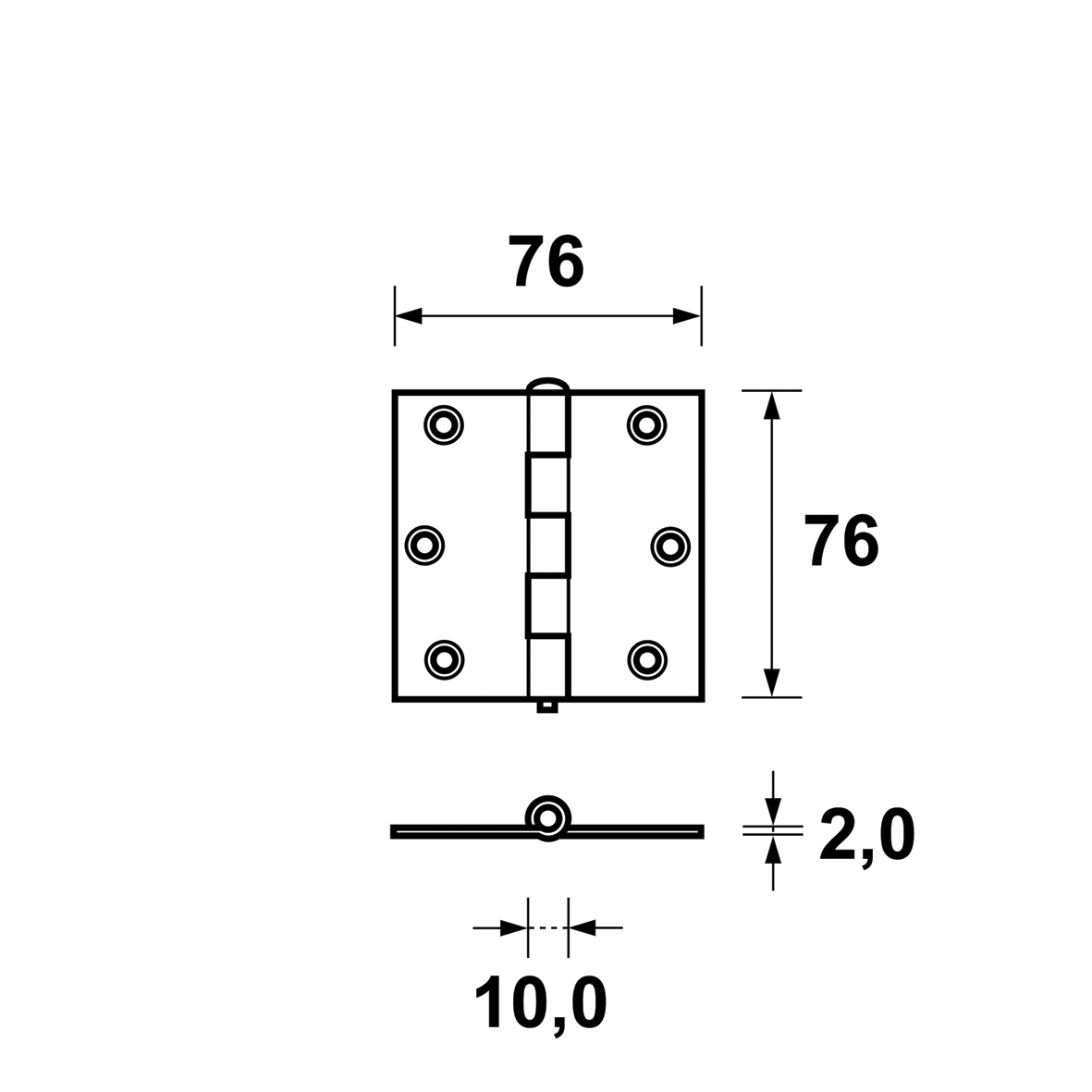

Technical drawings
