Hinge Heavy Duty disc bearing

1837-09-23
arrow_selector
close

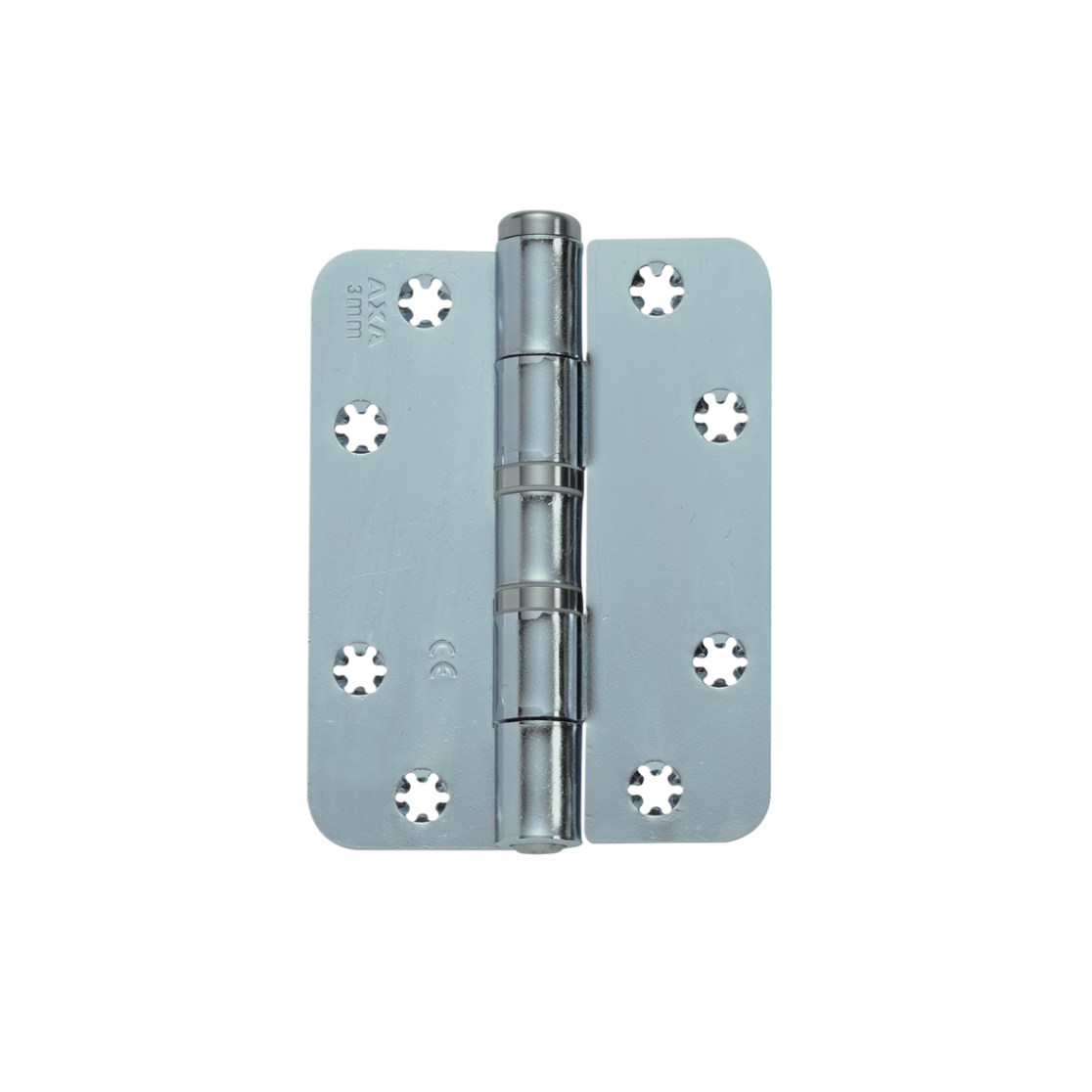

The AXA Heavy Duty disc bearing hinge is a smooth-running hinge with very high bearing capacity and special, low-maintenance water and dirt-resistant disc bearings.

  • very high bearing capacity
  • very smooth-running thanks to special water and dirt resistant disc bearings
  • the special star-shaped screw holes reduce the chance of screw breakage
Specifications Downloads Technical drawings Alternative products

Specifications

Recommended Mounting Materials
- 4.5 x 40 mm screw: 8 pieces
- 4.5 x 30 mm screw: 8 pieces
Commercial information
expand_more
Type Heavy Duty disc bearing
Use for heavy doors
Safety information
expand_more
Burglarproof False
SKG No
Police Hallmark False
CE Applicable True
Technical information
expand_more
Product Width 89 mm
Product Height 114 mm
Thickness 3 mm
Diameter knuckle 17 mm
Corner shape round corner
Bearing disc bearing
Direction of rotation outward and inward-opening
Load bearing capacity 3 hinges 140 kg
Load bearing capacity 4 hinges 160 kg
Material Steel
Finish Topcoat galvanized
Assembly information
expand_more
Including Mounting Material False
Recommended Mounting Materials
- 4.5 x 40 mm screw: 8 pieces
- 4.5 x 30 mm screw: 8 pieces
Logistic information
expand_more
Product Weight 368 gr
Pieces per small package 6 piece
EAN small package 8713249125268
Weight small package 2.25 kg
Dimensions small package 140 x 94 x 57 mm
Pieces per bulk package 24 piece
EAN bulk package 8713249125275
Weight bulk package 9.15 kg
Dimensions bulk package 200 x 150 x 120 mm

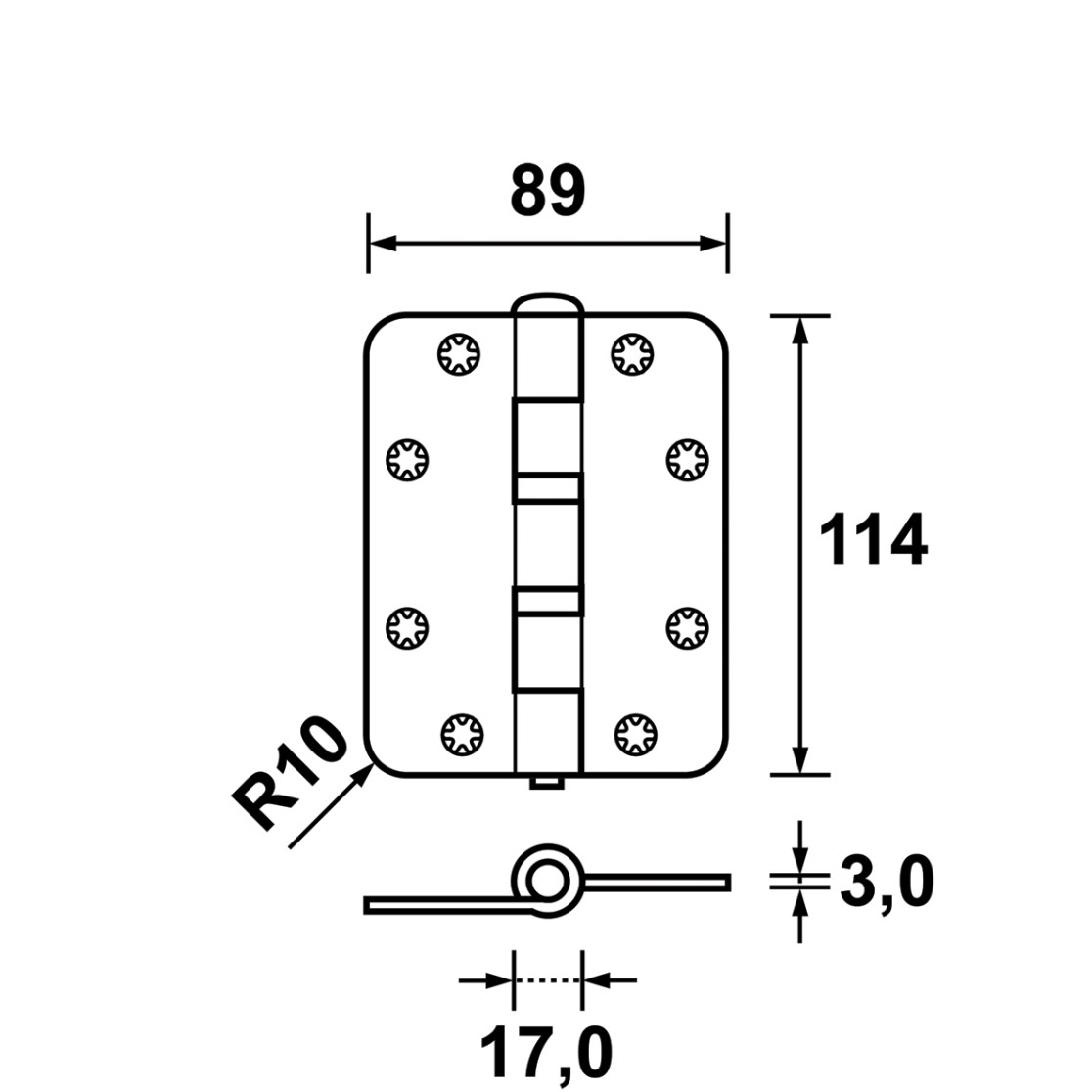

Technical drawings
