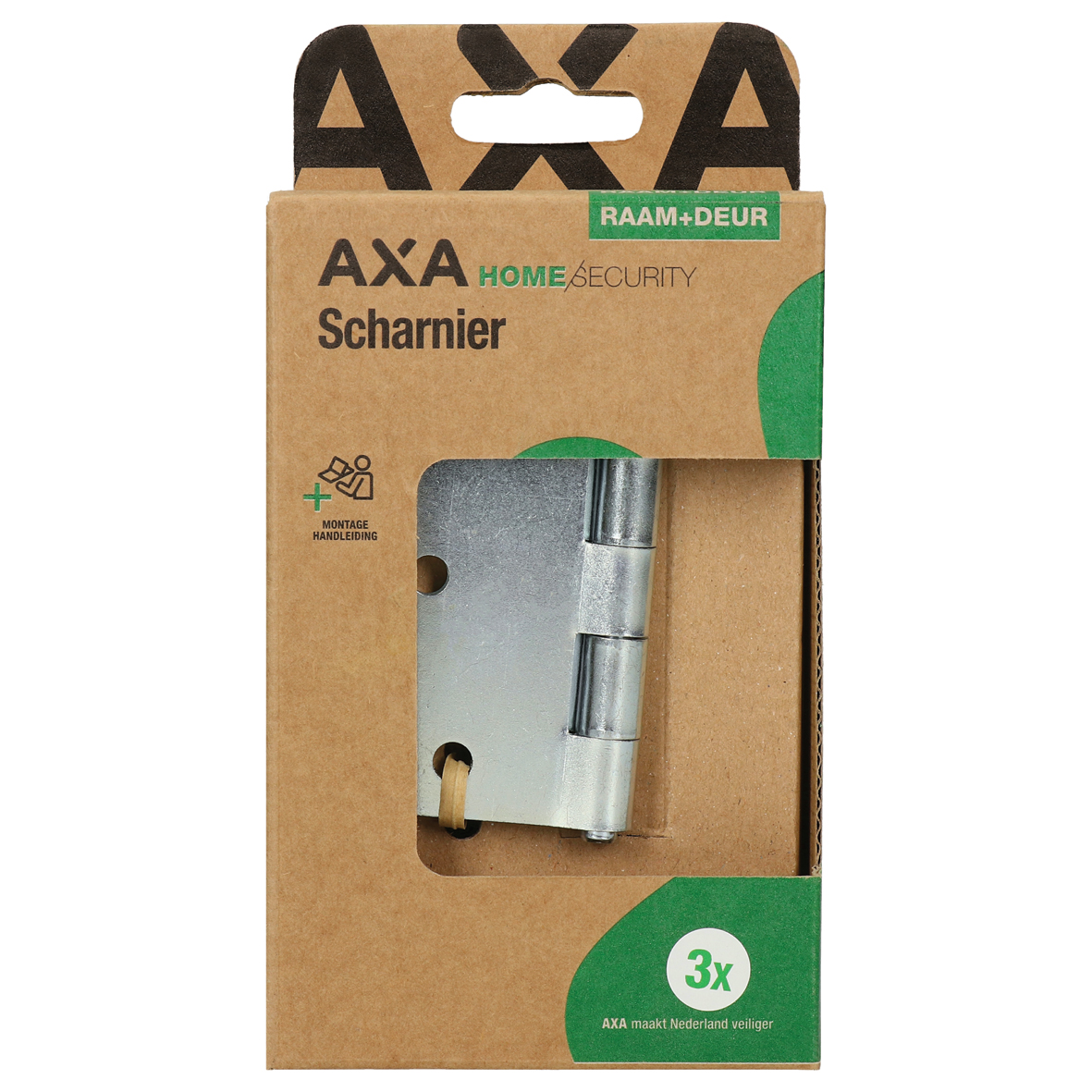

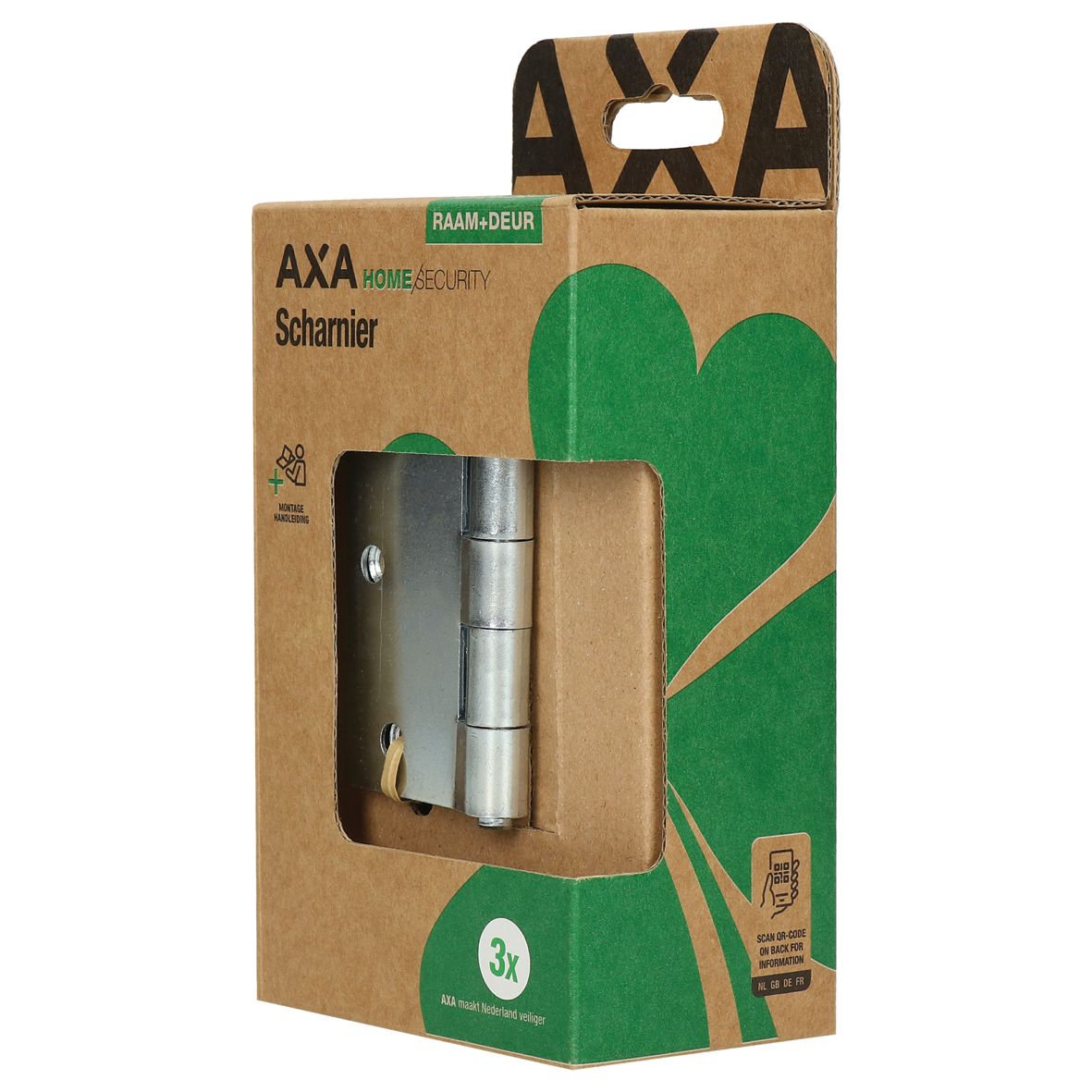

Hinge bearing-free (3x)

1103-24-23/CP3
arrow_selector
close

The AXA bearing-free hinge is ideal for hopper windows and interior doors

  • high bearing capacity
  • smooth-running
Specifications Downloads Technical drawings Associated products Alternative products Similar products

Specifications

Recommended Mounting Materials
- 4.0 x 40 mm screw: 6 pieces
Commercial information
expand_more
Type bearing-free (3x)
Use for windows
Safety information
expand_more
Burglarproof False
SKG No
Police Hallmark False
CE Applicable True
Technical information
expand_more
Product Width 76 mm
Product Height 76 mm
Thickness 2 mm
Diameter knuckle 10 mm
Corner shape right angle
Bearing bearing-free
Direction of rotation outward and inward-opening
Load bearing capacity 2 hinges 20 kg
Load bearing capacity 3 hinges 30 kg
Load bearing capacity 4 hinges 40 kg
Material Steel
Finish Topcoat galvanized
Assembly information
expand_more
Including Mounting Material False
Recommended Mounting Materials
- 4.0 x 40 mm screw: 6 pieces
Logistic information
expand_more
Pieces per small package 1 piece
EAN small package 8713249353647
Dimensions small package 165 x 85 x 56 mm
Pieces per bulk package 6 piece
EAN bulk package 8713249353692
Dimensions bulk package 225 x 175 x 120 mm

Technical drawings
Hinge bearing-free (3x)
11032423CP3
