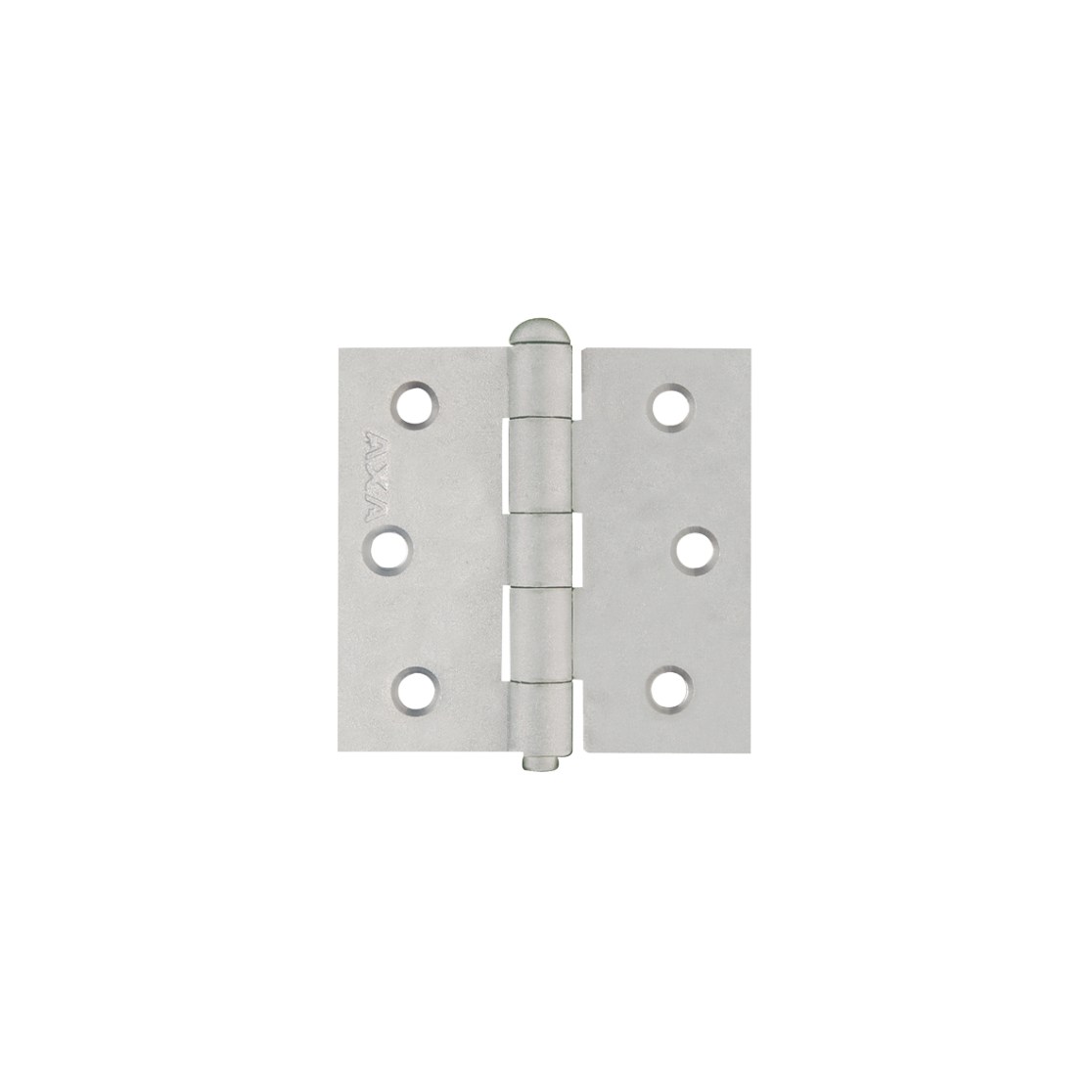

Hinge bearing-free

1103-22-23/E
arrow_selector
close

The AXA narrow hinge is ideal for use in light structures.

smooth-running
Specifications Downloads Technical drawings Alternative products

Specifications

Recommended Mounting Materials
- 3.5 x 20 mm screw: 6 pieces
Commercial information
expand_more
Type bearing-free
Use for light constructions
Safety information
expand_more
Burglarproof False
SKG No
Police Hallmark False
CE Applicable False
Technical information
expand_more
Product Width 51 mm
Product Height 51 mm
Thickness 1.6 mm
Diameter knuckle 8 mm
Corner shape right angle
Bearing bearing-free
Load bearing capacity 2 hinges 10 kg
Load bearing capacity 3 hinges 15 kg
Load bearing capacity 4 hinges 20 kg
Material Steel
Finish Topcoat galvanized
Assembly information
expand_more
Including Mounting Material False
Recommended Mounting Materials
- 3.5 x 20 mm screw: 6 pieces
Logistic information
expand_more
Product Weight 47 gr
Pieces per small package 40 piece
EAN small package 8713249108100
Weight small package 1.92 kg
Dimensions small package 116 x 68 x 62 mm
Pieces per bulk package 240 piece
EAN bulk package 8713249108117
Weight bulk package 11.65 kg
Dimensions bulk package 200 x 150 x 120 mm

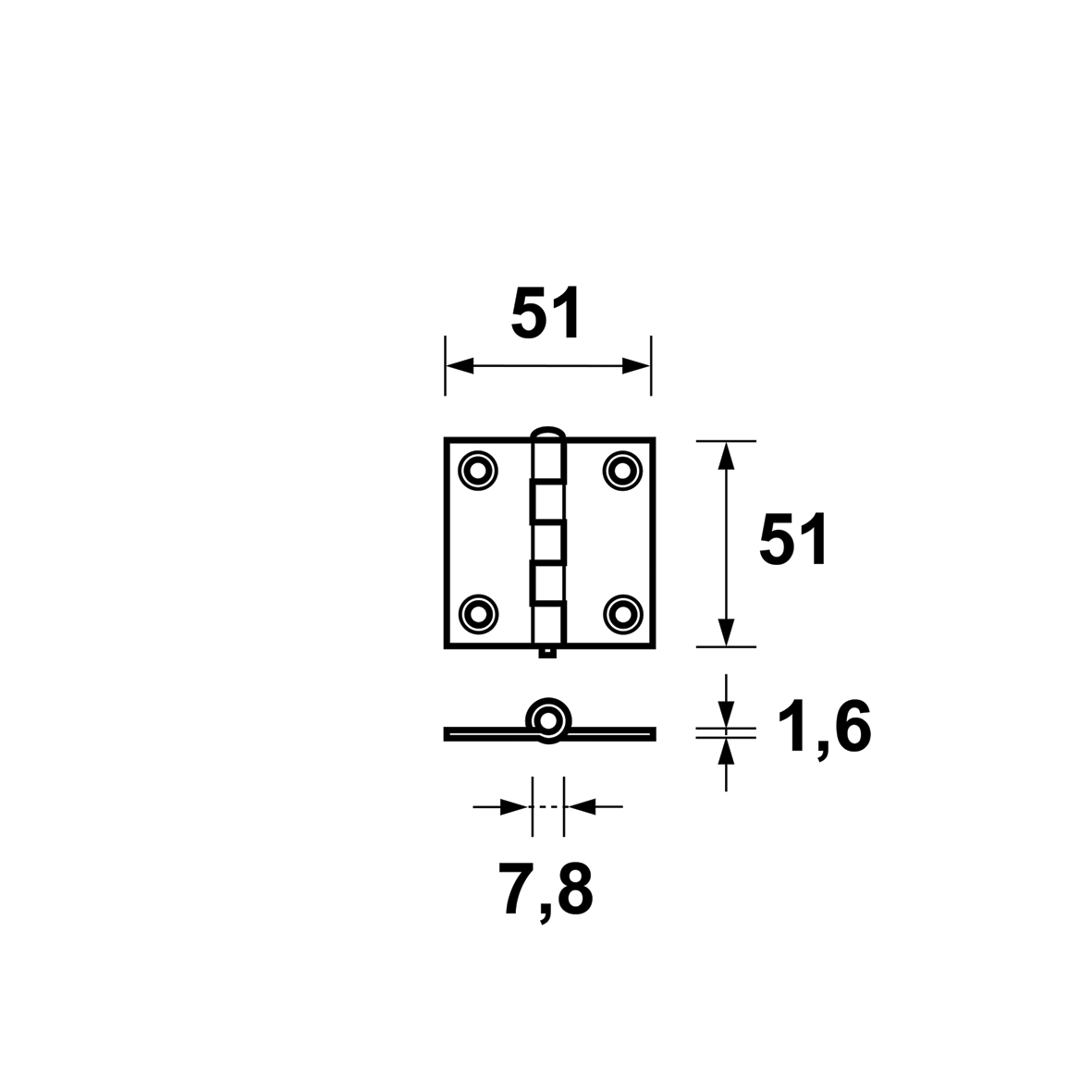

Technical drawings
Hinge bearing-free
11032223E
