Hinge ball bearing

1KL2-28-98/9BLACK
arrow_selector
close

Smooth-running stainless steel, black lacquered ball bearings hinges.

  • with ball bearings
  • smooth-running
  • stainless steel black lacquered
Specifications Downloads Technical drawings Alternative products Similar products

Specifications

Recommended Mounting Materials
- 4.0 x 40 mm screw: 8 pieces
Commercial information
expand_more
Type ball bearing
Use for windows and doors
Safety information
expand_more
Burglarproof False
SKG No
Police Hallmark False
CE Applicable True
Technical information
expand_more
Product Width 89 mm
Product Height 89 mm
Thickness 2.5 mm
Diameter knuckle 12 mm
Corner shape round corner
Bearing ball-bearing
Direction of rotation outward and inward-opening
Load bearing capacity 2 hinges 50 kg
Load bearing capacity 3 hinges 65 kg
Load bearing capacity 4 hinges 80 kg
Material Stainless steel
Finish Black lacquered
Assembly information
expand_more
Including Mounting Material True
Recommended Mounting Materials
- 4.0 x 40 mm screw: 8 pieces
Logistic information
expand_more
Product Weight 203 gr
Pieces per small package 10 piece
EAN small package 8713249265773
Weight small package 2.06 kg
Dimensions small package 115 x 98 x 58 mm
Pieces per bulk package 50 piece
EAN bulk package 8713249265780
Weight bulk package 10.43 kg
Dimensions bulk package 310 x 135 x 115 mm

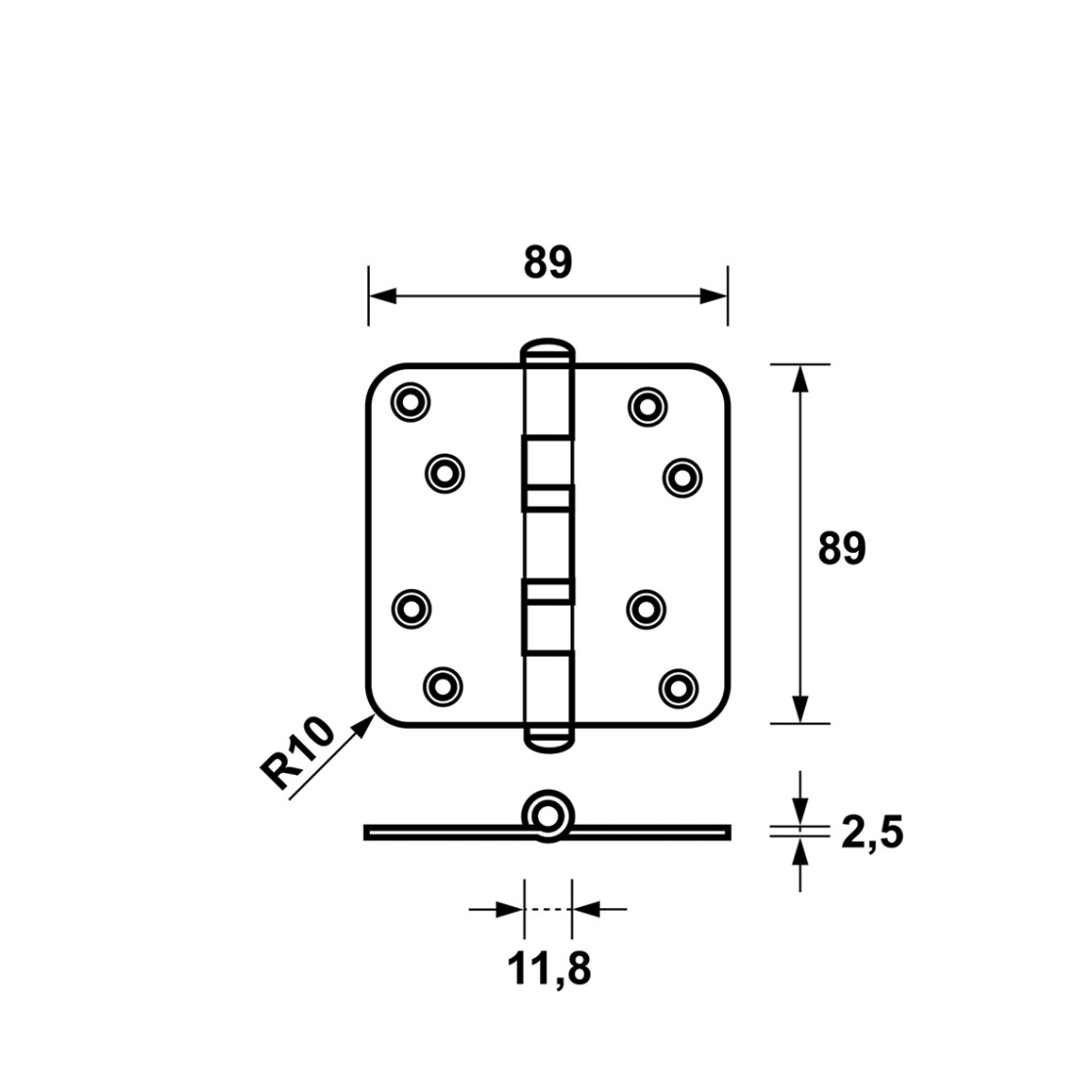

Technical drawings
