Hinge ball bearing

1533-25-23/7
arrow_selector
close

The AXA ball bearing hinge is a smooth-running hinge with a high bearing capacity.

  • with ball bearings
  • smooth-running
  • high bearing capacity
Specifications Downloads Technical drawings Associated products Alternative products Similar products

Specifications

Recommended Mounting Materials
- 4.0 x 40 mm screw: 8 pieces
Commercial information
expand_more
Type ball bearing
Use for windows
Safety information
expand_more
Burglarproof False
SKG No
Police Hallmark False
CE Applicable True
Technical information
expand_more
Product Width 89 mm
Product Height 89 mm
Thickness 2.4 mm
Diameter knuckle 11.8 mm
Corner shape round corner
Bearing ball-bearing
Direction of rotation outward and inward-opening
Load bearing capacity 2 hinges 50 kg
Load bearing capacity 3 hinges 65 kg
Load bearing capacity 4 hinges 80 kg
Material Steel
Finish Topcoat galvanized
Assembly information
expand_more
Including Mounting Material False
Recommended Mounting Materials
- 4.0 x 40 mm screw: 8 pieces
Logistic information
expand_more
Product Weight 204 gr
Pieces per bulk package 50 piece
EAN bulk package 8713249090313
Weight bulk package 10.4 kg
Dimensions bulk package 290 x 200 x 120 mm

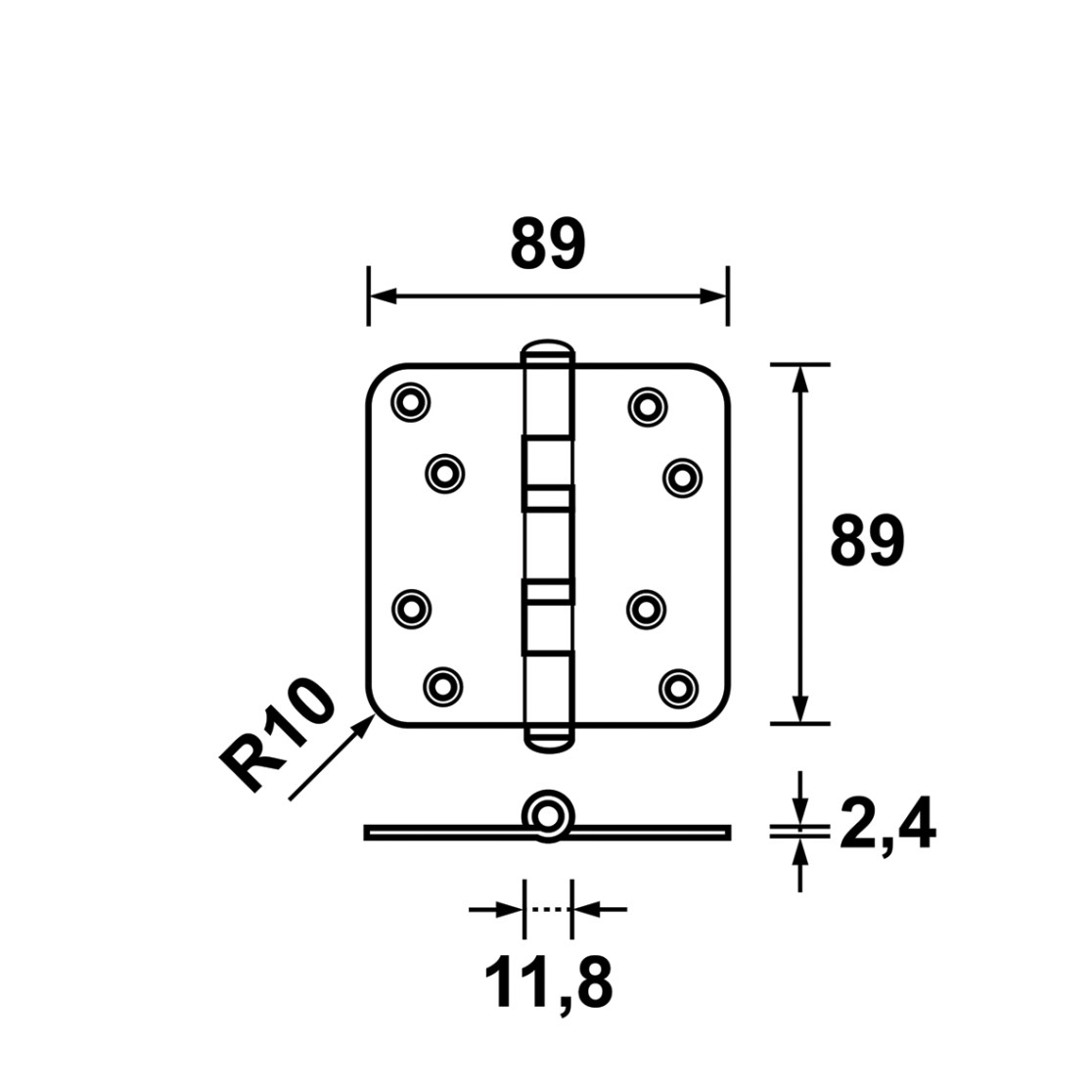

Technical drawings
Hinge ball bearing
153325237
