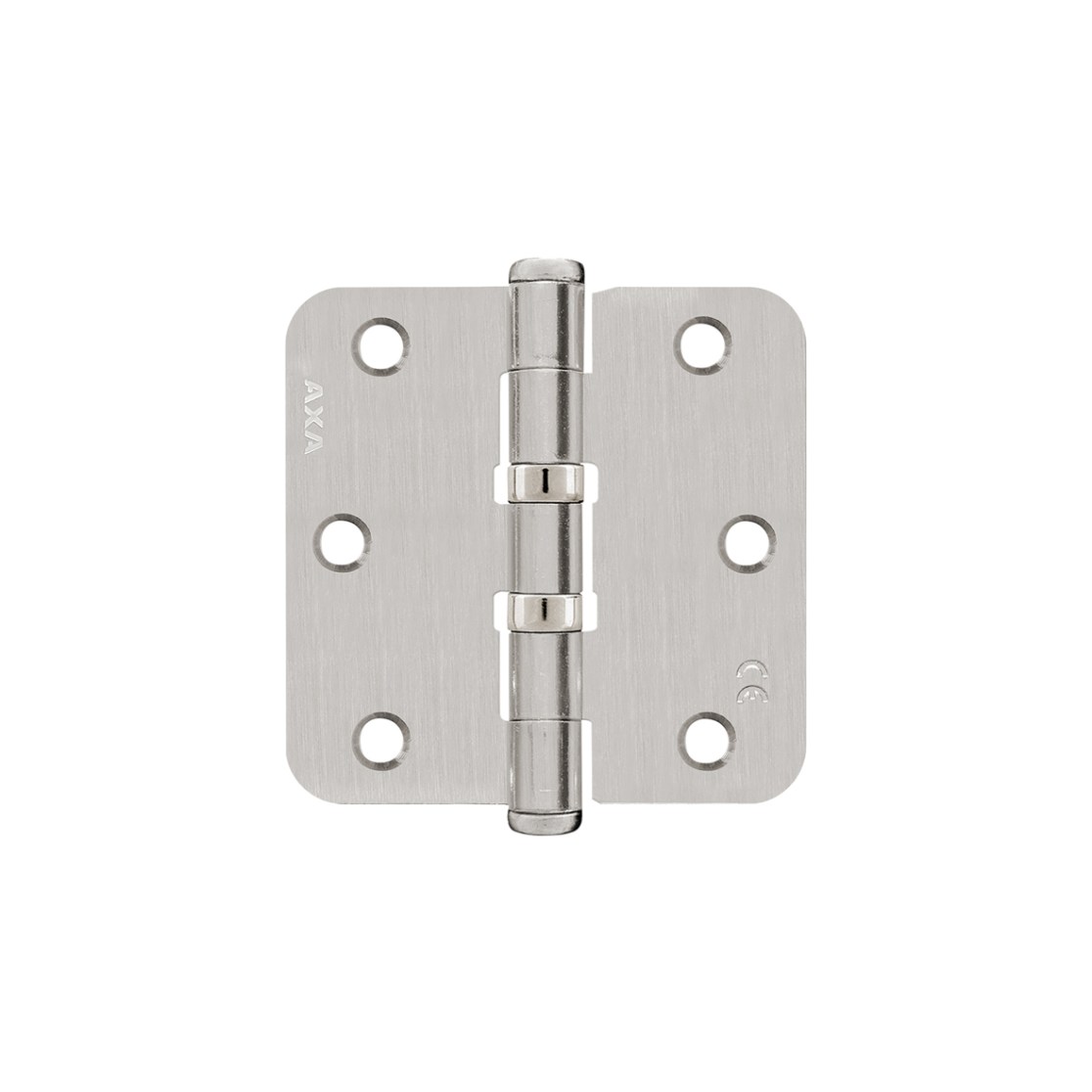

Hinge ball bearing

1533-24-81/E
arrow_selector
close

The AXA ball bearing hinge is a smooth-running hinge with a high bearing capacity.

  • with ball bearings
  • smooth-running
  • high bearing capacity
  • stainless steel
Specifications Downloads Technical drawings Associated products Alternative products

Specifications

Recommended Mounting Materials
- 4.0 x 40 mm screw: 6 pieces
Commercial information
expand_more
Type ball bearing
Use for windows and doors
Safety information
expand_more
Burglarproof False
SKG No
Police Hallmark False
CE Applicable True
Technical information
expand_more
Product Width 76 mm
Product Height 76 mm
Thickness 2.4 mm
Diameter knuckle 10.8 mm
Corner shape round corner
Bearing ball-bearing
Direction of rotation outward and inward-opening
Load bearing capacity 2 hinges 25 kg
Load bearing capacity 3 hinges 35 kg
Load bearing capacity 4 hinges 45 kg
Material Stainless steel
Finish Brushed
Assembly information
expand_more
Including Mounting Material False
Recommended Mounting Materials
- 4.0 x 40 mm screw: 6 pieces
Logistic information
expand_more
Product Weight 148 gr
Pieces per small package 6 piece
EAN small package 8713249340081
Weight small package 0.914 kg
Dimensions small package 94 x 68 x 57 mm
Pieces per bulk package 48 piece
EAN bulk package 8713249340098
Weight bulk package 7.44 kg
Dimensions bulk package 200 x 150 x 120 mm

Technical drawings
Hinge ball bearing
15332481E
