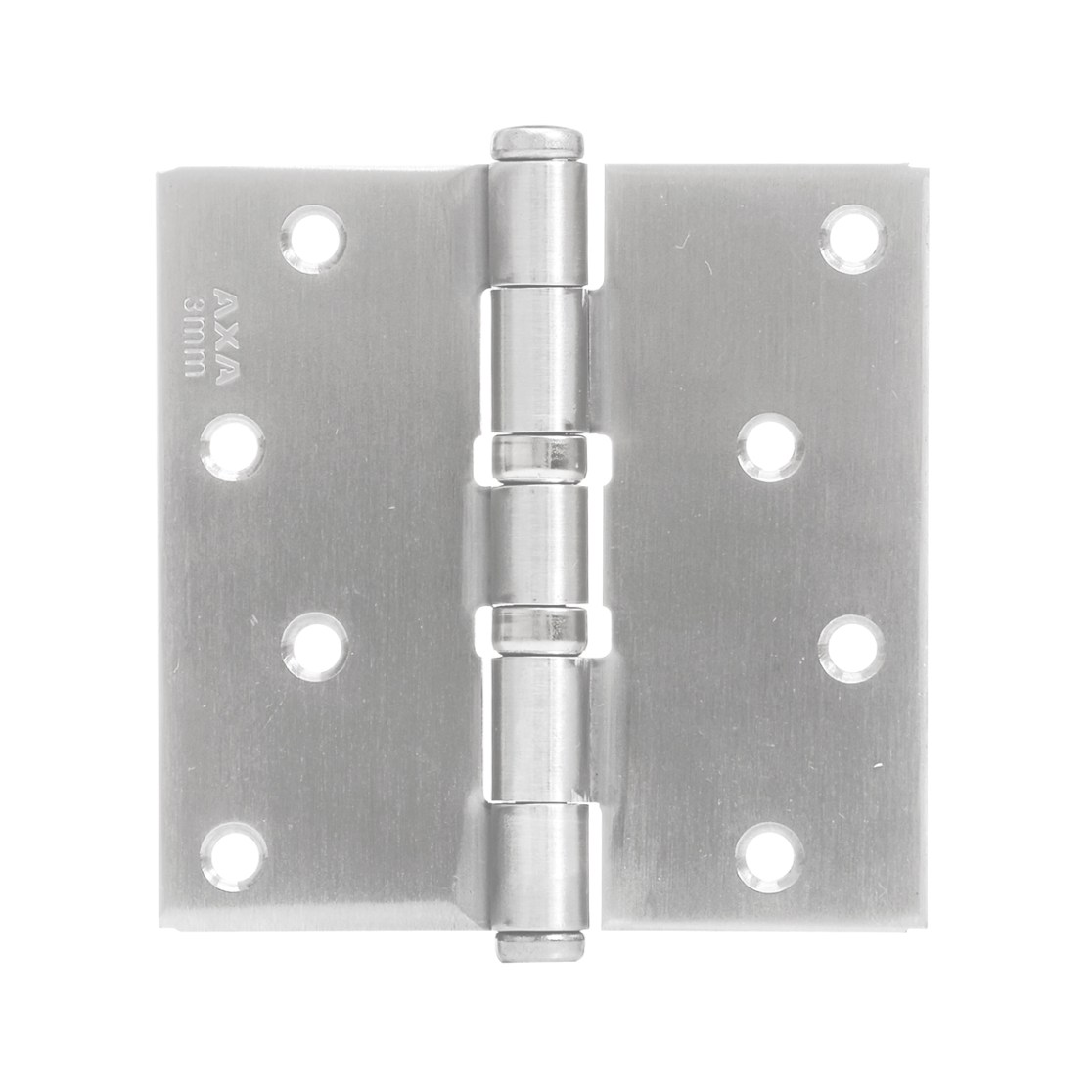

Hinge ball bearing

1531-26-81/E
arrow_selector
close

The AXA ball bearing hinge is a smooth-running hinge with a high bearing capacity.

  • with ball bearings
  • smooth-running
  • high bearing capacity
  • stainless steel
Specifications Downloads Technical drawings Associated products Alternative products

Specifications

Recommended Mounting Materials
- 4.0 x 45 mm screw: 8 pieces
Commercial information
expand_more
Type ball bearing
Use for windows and doors
Safety information
expand_more
Burglarproof False
SKG No
Police Hallmark False
CE Applicable True
Technical information
expand_more
Product Width 102 mm
Product Height 102 mm
Thickness 3 mm
Diameter knuckle 11.8 mm
Corner shape right angle
Bearing ball-bearing
Direction of rotation outward and inward-opening
Load bearing capacity 2 hinges 50 kg
Load bearing capacity 3 hinges 70 kg
Load bearing capacity 4 hinges 80 kg
Material Stainless steel
Finish Brushed
Assembly information
expand_more
Including Mounting Material False
Recommended Mounting Materials
- 4.0 x 45 mm screw: 8 pieces
Logistic information
expand_more
Product Weight 310 gr
Pieces per small package 6 piece
EAN small package 8713249191997
Weight small package 1.89 kg
Dimensions small package 116 x 68 x 62 mm
Pieces per bulk package 36 piece
EAN bulk package 8713249192000
Weight bulk package 11.5 kg
Dimensions bulk package 200 x 150 x 120 mm

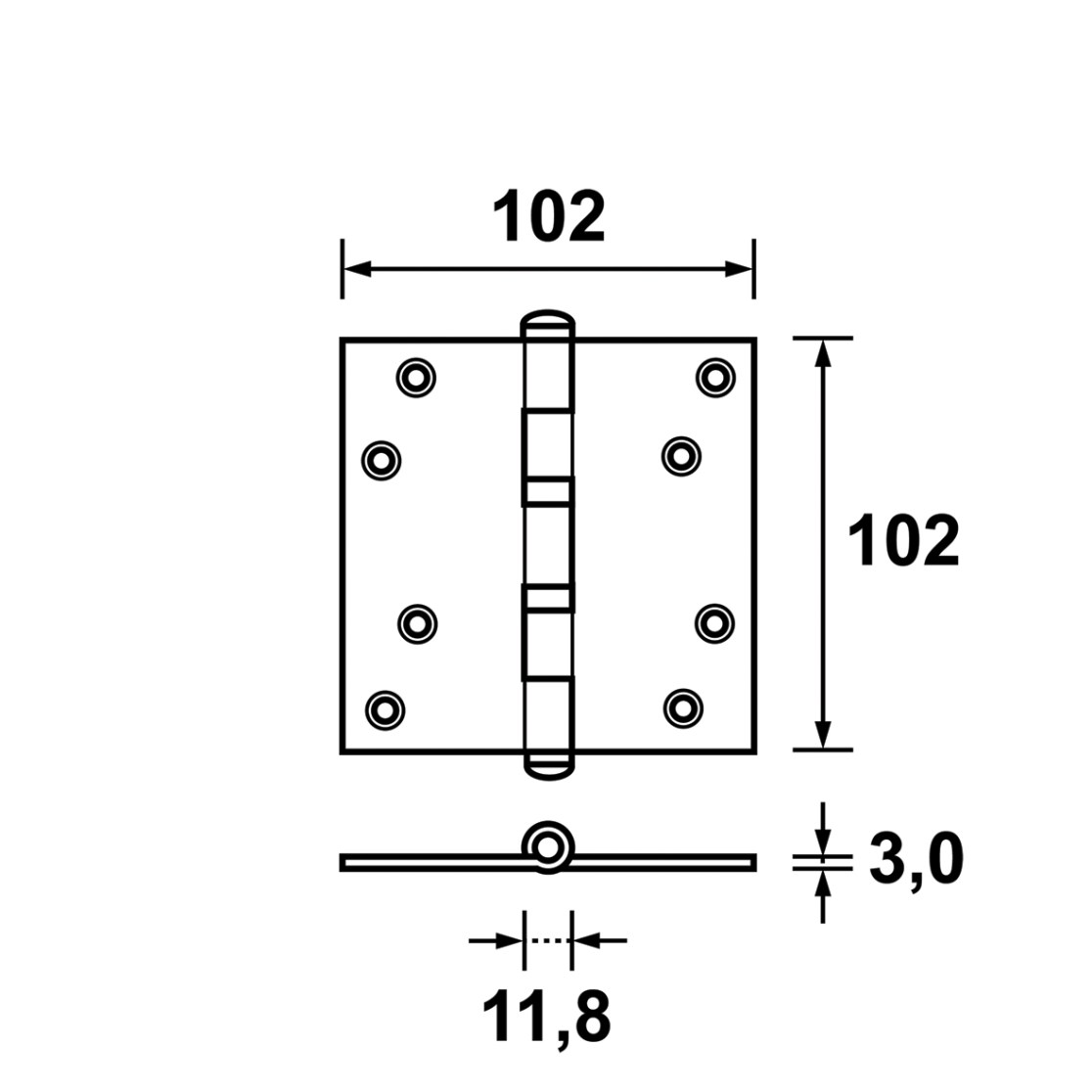

Technical drawings
Hinge ball bearing
15312681E
