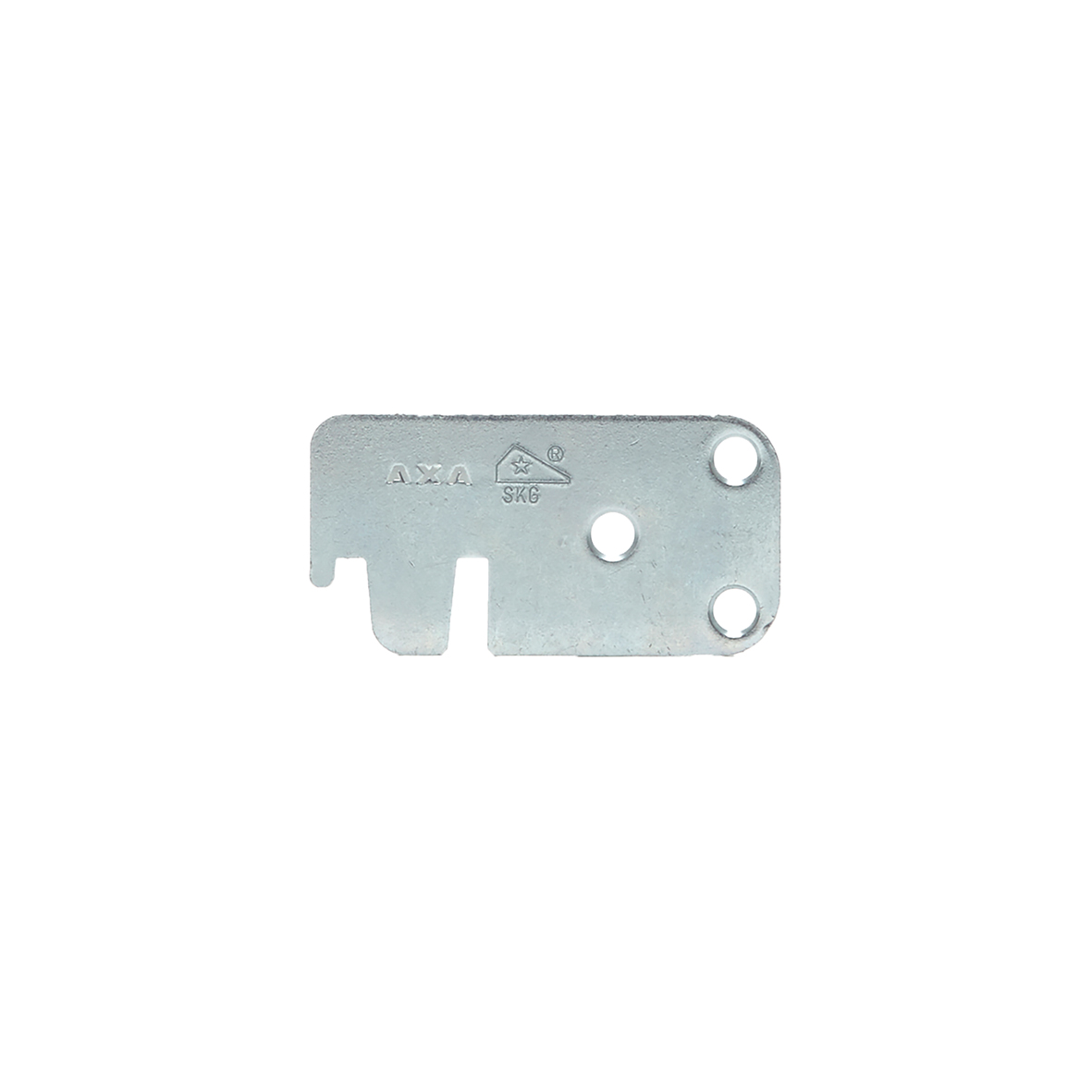

End hook VSHK

3319-93-22/E
arrow_selector
close

SKG 1

Police Hallmark

Security end hook for window fasteners 3318, 3319 and 3320.

  • with ventilation position
  • complies with Police Hallmark for Safe Living and SKG1 (Façade Quality Institution hallmark)
Specifications Downloads Technical drawings
Commercial information
expand_more
Type VSHK
Use in combination with casement fastener 3320, 3319 and 3318
Safety information
expand_more
Burglarproof False
SKG SKG 1
Police Hallmark True
CE certificate of conformity False
Technical information
expand_more
Product Length 77 mm
Product Width 40 mm
Thickness 3 mm
Direction of rotation inward-opening
Bolt type hook bolt
Material Steel
Finish Topcoat galvanized
Assembly information
expand_more
Including Mounting Material False
Assembly time 5 min
Recommended Mounting Materials
- 4.0 x 40 mm screw: 3 pieces
Logistic information
expand_more
Product Weight 63 gr
Pieces per small package 20 piece
EAN small package 8713249112114
Weight small package 1.29 kg
Dimensions small package 116 x 68 x 62 mm
Pieces per bulk package 200 piece
EAN bulk package 8713249112121
Weight bulk package 13.13 kg
Dimensions bulk package 390 x 200 x 120 mm

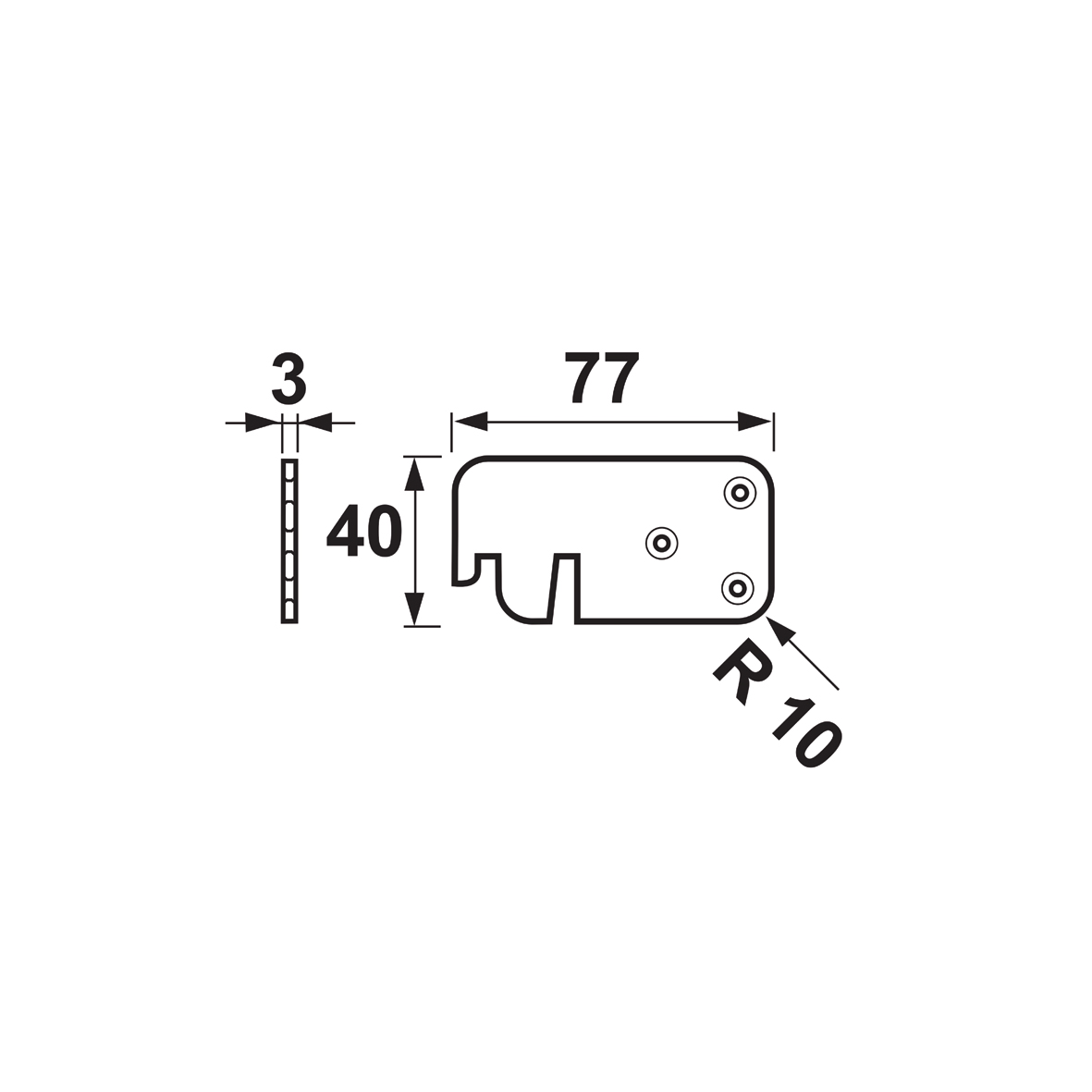

Technical drawings
End hook VSHK
33199322E
