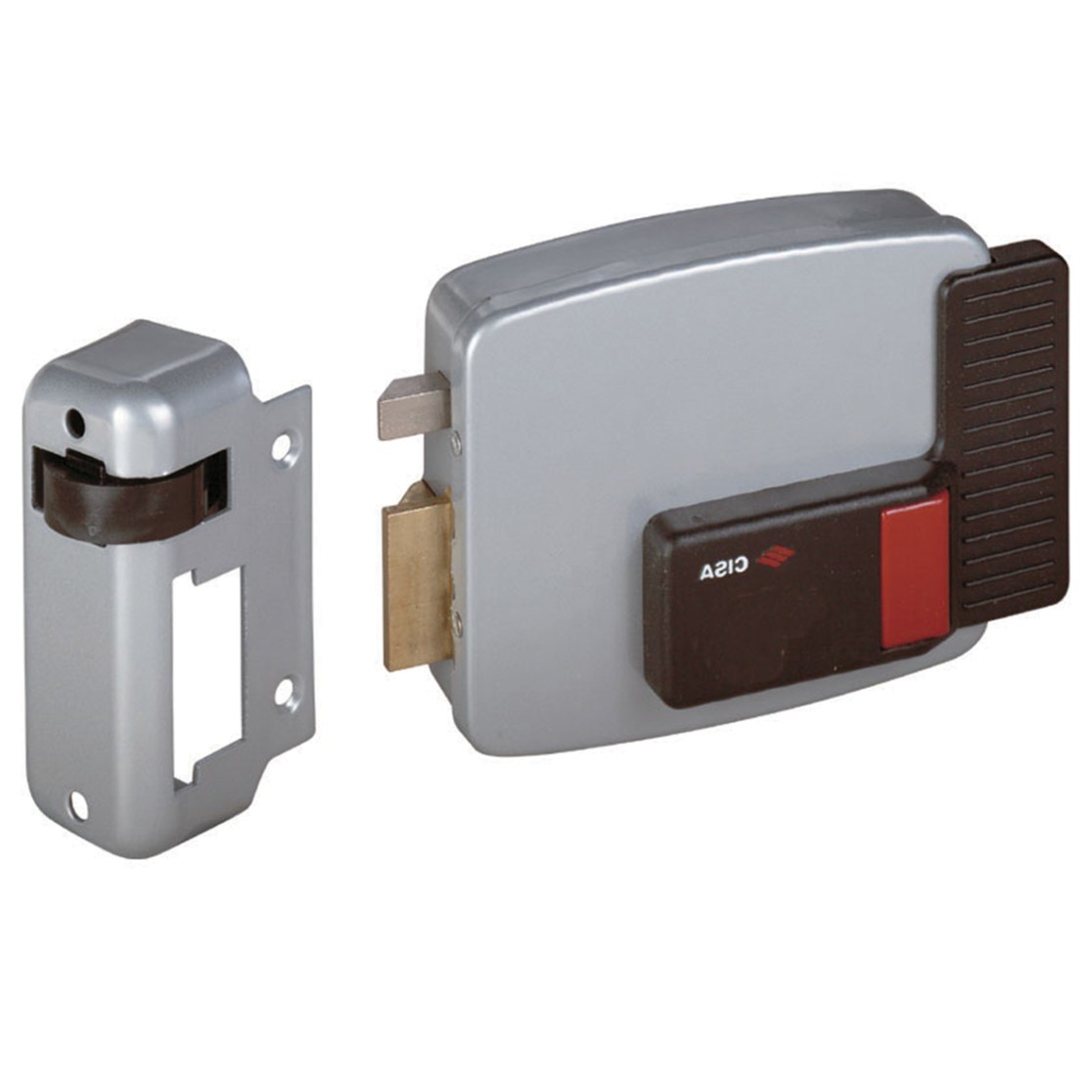

Electric rim door lock 11610.50.2

7CS-1161-050212
arrow_selector
close

Electric rim door lock for exterior doors.

  • electrically operated
  • for DIN right inward-opening doors
  • loose outdoor cylinder (55 mm)
  • lock picking protection
  • certified up to Security grade 3 according to EN 14846
  • when voltage is below the minimum rate (12V), the adjustable electric release system ensures the lock can always be opened electrically
  • current absorption 2.5A
Specifications Downloads Technical drawings Alternative products

Specifications

Recommended Mounting Materials
- 4.0 x 20 mm screw: 4 pieces
- 3.5 x 40 mm screw: 4 pieces
- M5 x 80 mm bolt: 2 pieces
Commercial information
expand_more
Type 11610.50.2
Use for exterior doors
Safety information
expand_more
SKG No
Police Hallmark False
CE Applicable False
Technical information
expand_more
Product Width 128 mm
Product Height 106 mm
Thickness 34 mm
Direction of rotation right inward-opening
Direction of rotation DIN DIN right inward-opening (2)
Bolt catcher surface-mounted striker
Backset 50 mm
Material Steel
Finish Silver
Assembly information
expand_more
Including Mounting Material True
Assembly time 30 min
Recommended Mounting Materials
- 4.0 x 20 mm screw: 4 pieces
- 3.5 x 40 mm screw: 4 pieces
- M5 x 80 mm bolt: 2 pieces
Logistic information
expand_more
Product Weight 1440 gr
Pieces per small package 1 piece
EAN small package 8015345205906
Dimensions small package 180 x 118 x 112 mm

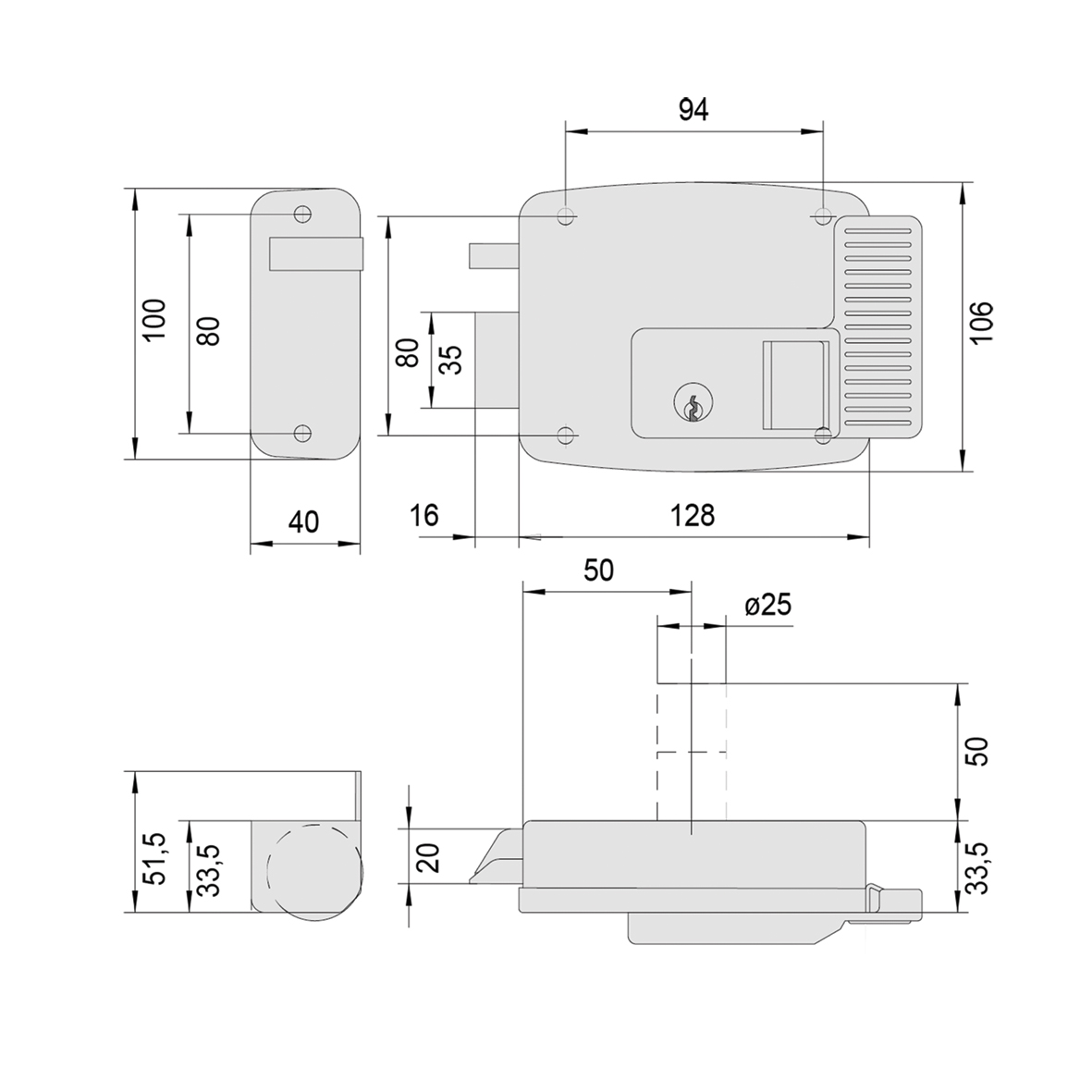

Technical drawings

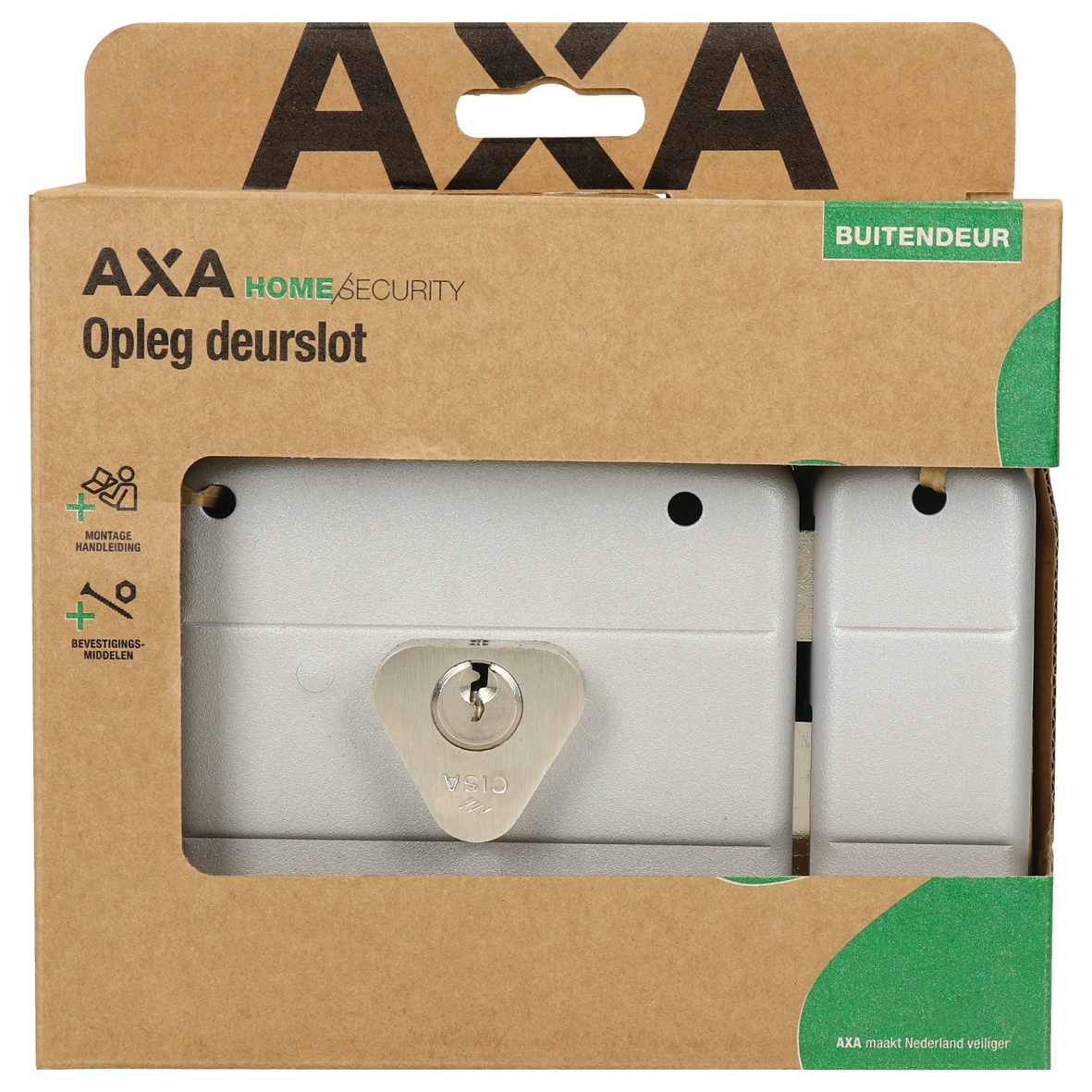

Alternative products
