Door security strip M3-EX 15-19

7603-15-88/BL
arrow_selector
close

SKG 1 + SKG V

Police Hallmark

The door security strip increases the burglary-resistance of doors.

  • for situations where the frame between 15 and 19 mm, extending forward with respect to the door (15 to 19 mm back position of the door)
  • screws always covered
  • easily cut to size
  • complies with Police Hallmark for Safe Living and SKG1 (Façade Quality Institution hallmark)
Specifications Downloads Technical drawings

Specifications

Recommended Mounting Materials
- 4.0 x 40 mm screw: 36 pieces
Commercial information
expand_more
Type M3-EX 15-19
Use for back doors
Safety information
expand_more
Burglarproof True
SKG SKG 1 + SKG V
Police Hallmark True
CE Applicable False
Technical information
expand_more
Product Length 2150 mm
Direction of rotation outward-opening
Material Aluminum
Finish White lacquered
Assembly information
expand_more
Including Mounting Material True
Required height/width wood frame 15 mm
Window/door mounting width requirement 21 mm
Assembly time 20 min
Recommended Mounting Materials
- 4.0 x 40 mm screw: 36 pieces
Logistic information
expand_more
Product Weight 3270 gr
Pieces per small package 1 piece
EAN small package 8713249251134
Weight small package 3.27 kg
Dimensions small package 2175 x 45 x 45 mm
Pieces per bulk package 6 piece
EAN bulk package 8713249251141
Weight bulk package 20.2 kg

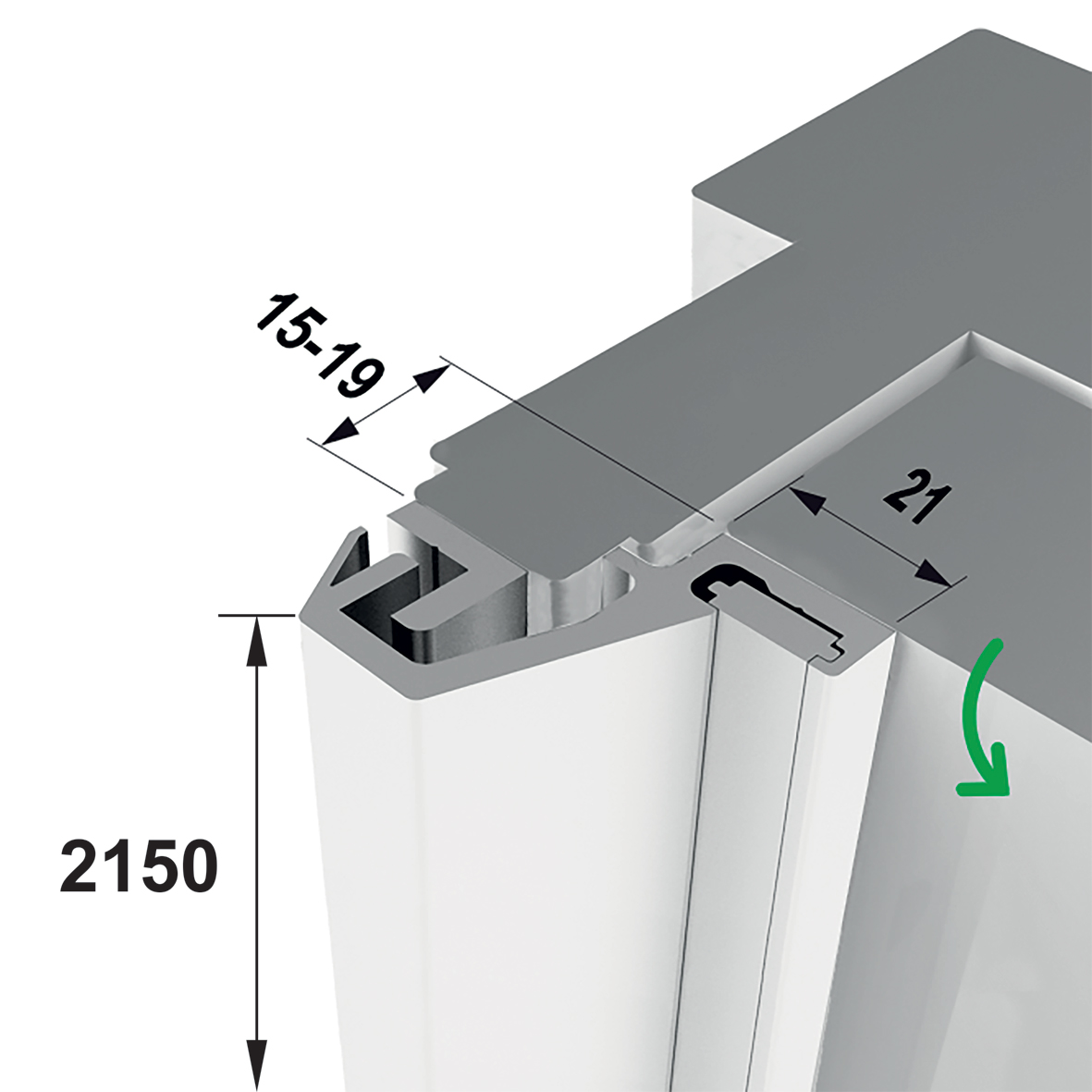

Technical drawings
