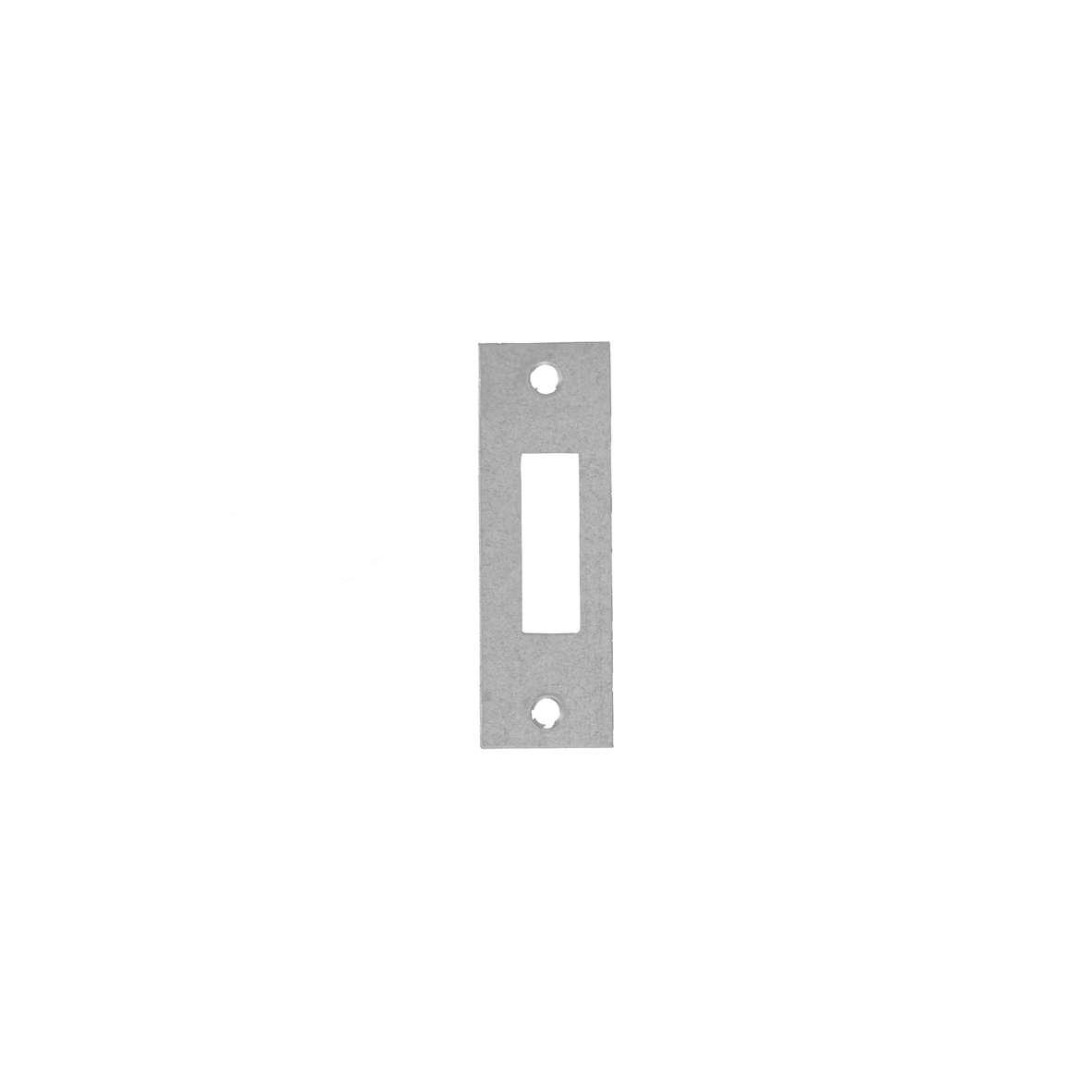

Cupboard lock striking plate 7110

7110-10-22/E
arrow_selector
close

Striking plate for cupboard door lock.

Universally usable
Specifications Downloads Technical drawings Alternative products Similar products

Specifications

Recommended Mounting Materials
- 3.0 x 20 mm screw: 2 pieces
Commercial information
expand_more
Type 7110
Use for interior doors
Safety information
expand_more
SKG No
Police Hallmark False
CE Applicable False
Technical information
expand_more
Product Length 70 mm
Product Width 23 mm
Thickness 1.2 mm
Corner shape right angle
Direction of rotation outward and inward-opening
Direction of rotation DIN all directions
Material Steel
Finish Galvanized
Assembly information
expand_more
Including Mounting Material False
Assembly time 10 min
Recommended Mounting Materials
- 3.0 x 20 mm screw: 2 pieces
Logistic information
expand_more
Product Weight 11 gr
Pieces per small package 10 piece
EAN small package 8713249247021
Weight small package 0.112 kg
Dimensions small package 80 x 130 mm
Pieces per bulk package 300 piece
EAN bulk package 8713249247038
Weight bulk package 3.55 kg
Dimensions bulk package 200 x 150 x 120 mm

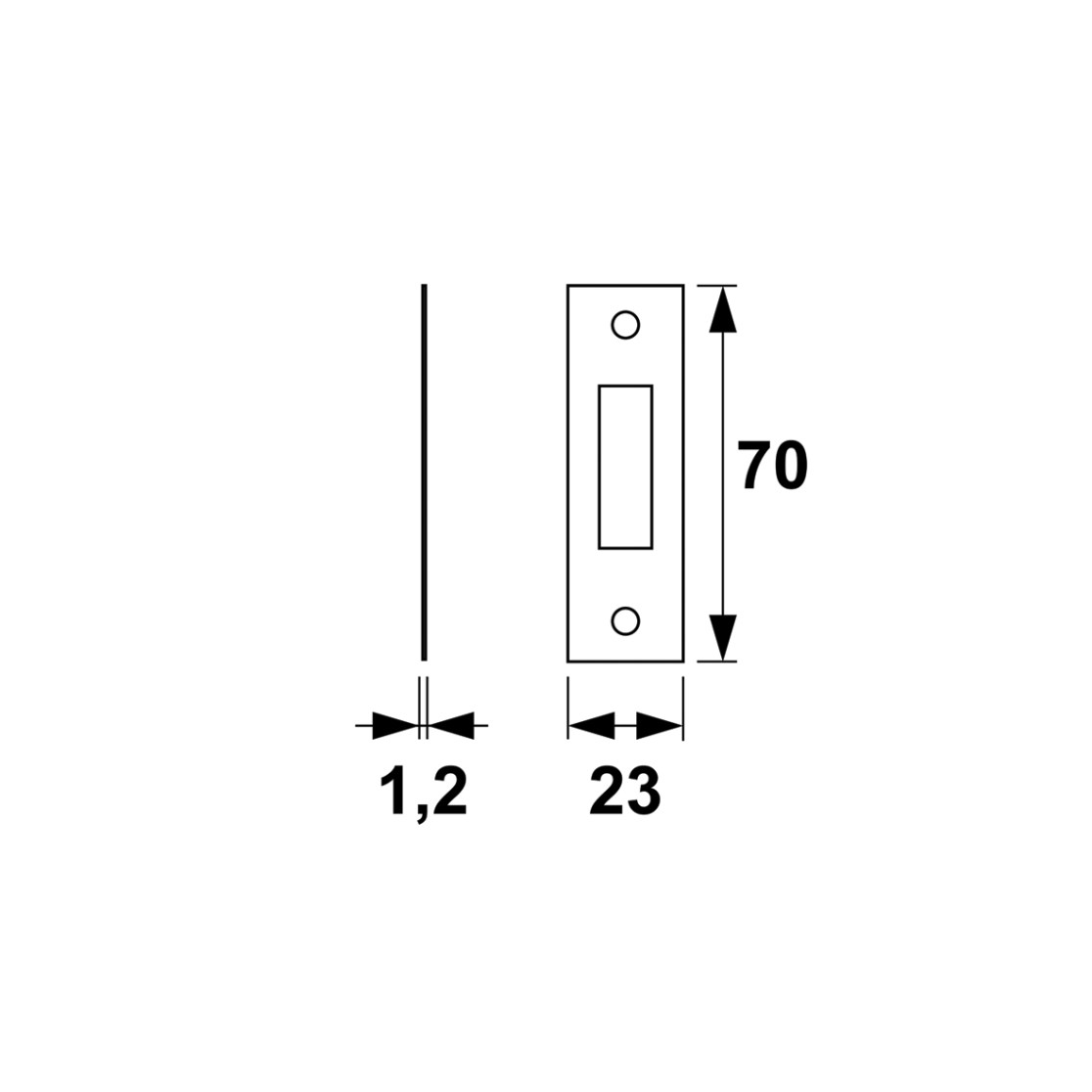

Technical drawings
