Cupboard door lock 7125 PC

7125-50-81/55E
arrow_selector
close

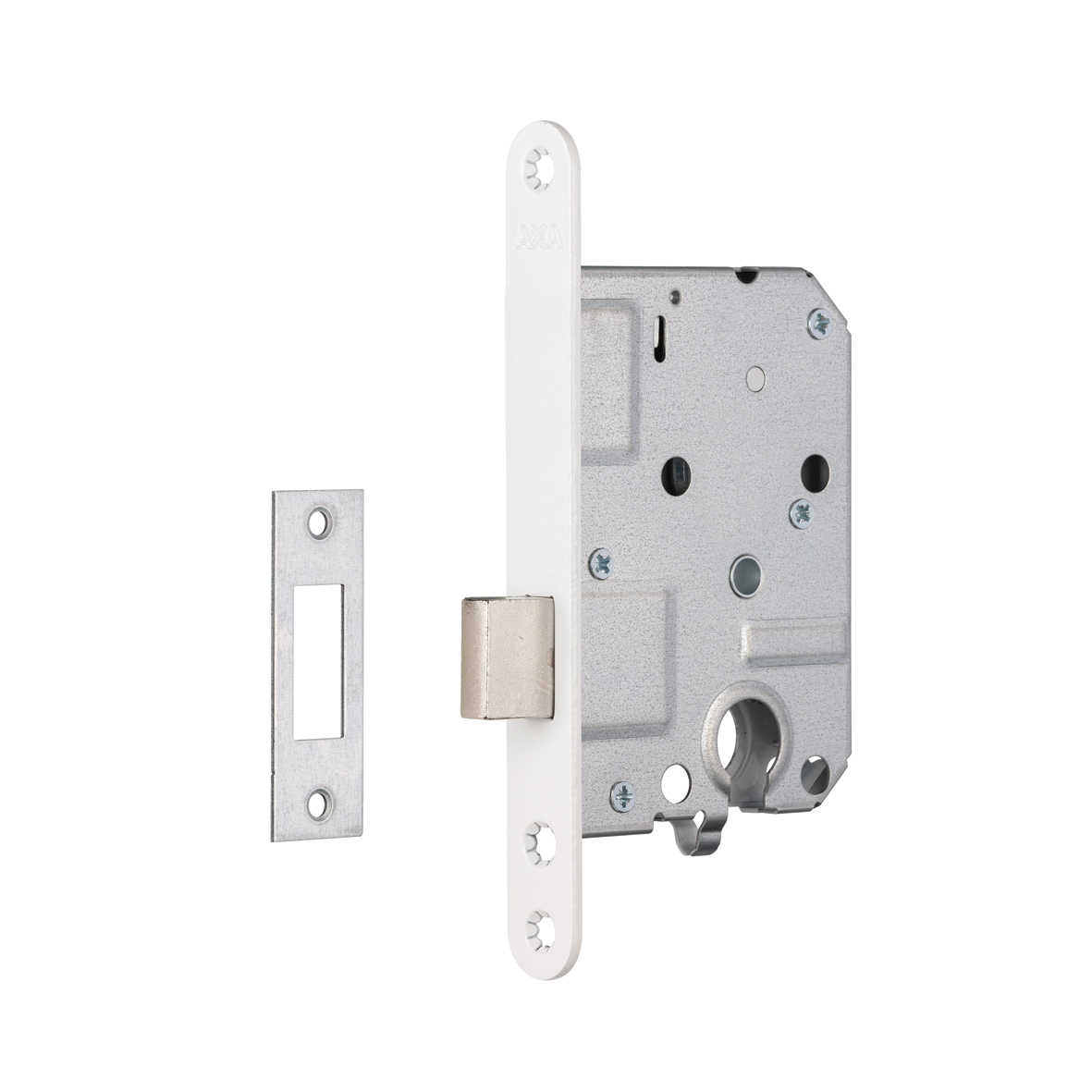

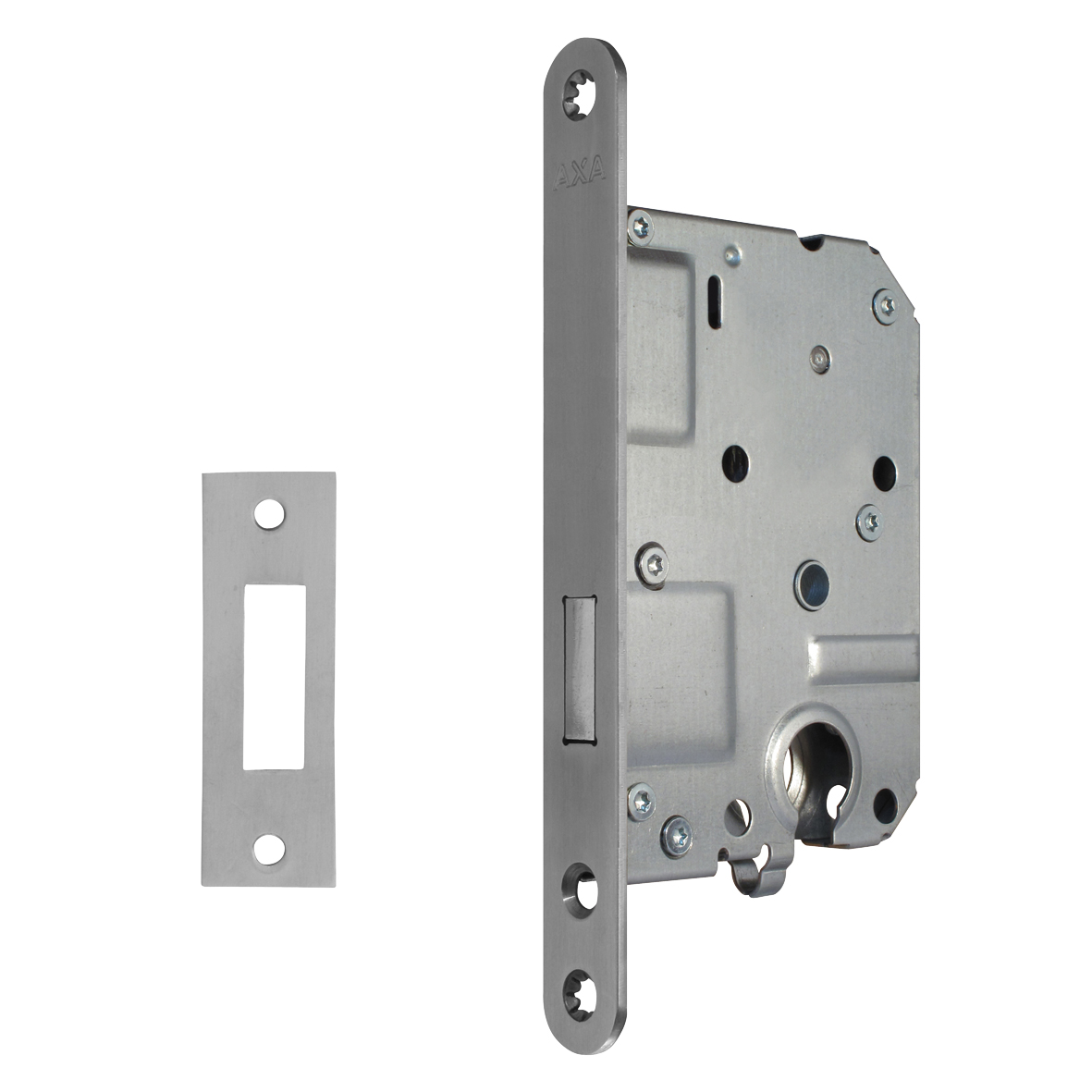

Universal cupboard lock for interior doors.

  • with stainless steel faceplate
  • with a cylinder hole
  • inclusive striking plate and fastening materials
Specifications Downloads Technical drawings Associated products Alternative products

Specifications

Recommended Mounting Materials
- 4.0 x 20 mm screw: 2 pieces
- 3.0 x 20 mm screw: 2 pieces
Commercial information
expand_more
Type 7125 PC
Use for interior doors
Safety information
expand_more
SKG No
Police Hallmark False
CE Applicable False
Technical information
expand_more
Product Length 174 mm
Product Width 20 mm
Thickness 16 mm
Mounting depth 81 mm
Corner shape round corner
Direction of rotation DIN all directions
Bolt type dead bolt
Bolt catcher striking plate
Backset 50 mm
Material Stainless steel
Finish Brushed
Material 2 Steel
Finish 2 Galvanized
Assembly information
expand_more
Including Mounting Material True
Assembly time 30 min
Recommended Mounting Materials
- 4.0 x 20 mm screw: 2 pieces
- 3.0 x 20 mm screw: 2 pieces
Logistic information
expand_more
Product Weight 340 gr
Pieces per small package 5 piece
EAN small package 8713249147192
Weight small package 1.73 kg
Dimensions small package 189 x 89 x 107 mm
Pieces per bulk package 20 piece
EAN bulk package 8713249147208
Weight bulk package 7 kg
Dimensions bulk package 386 x 188 x 114 mm
