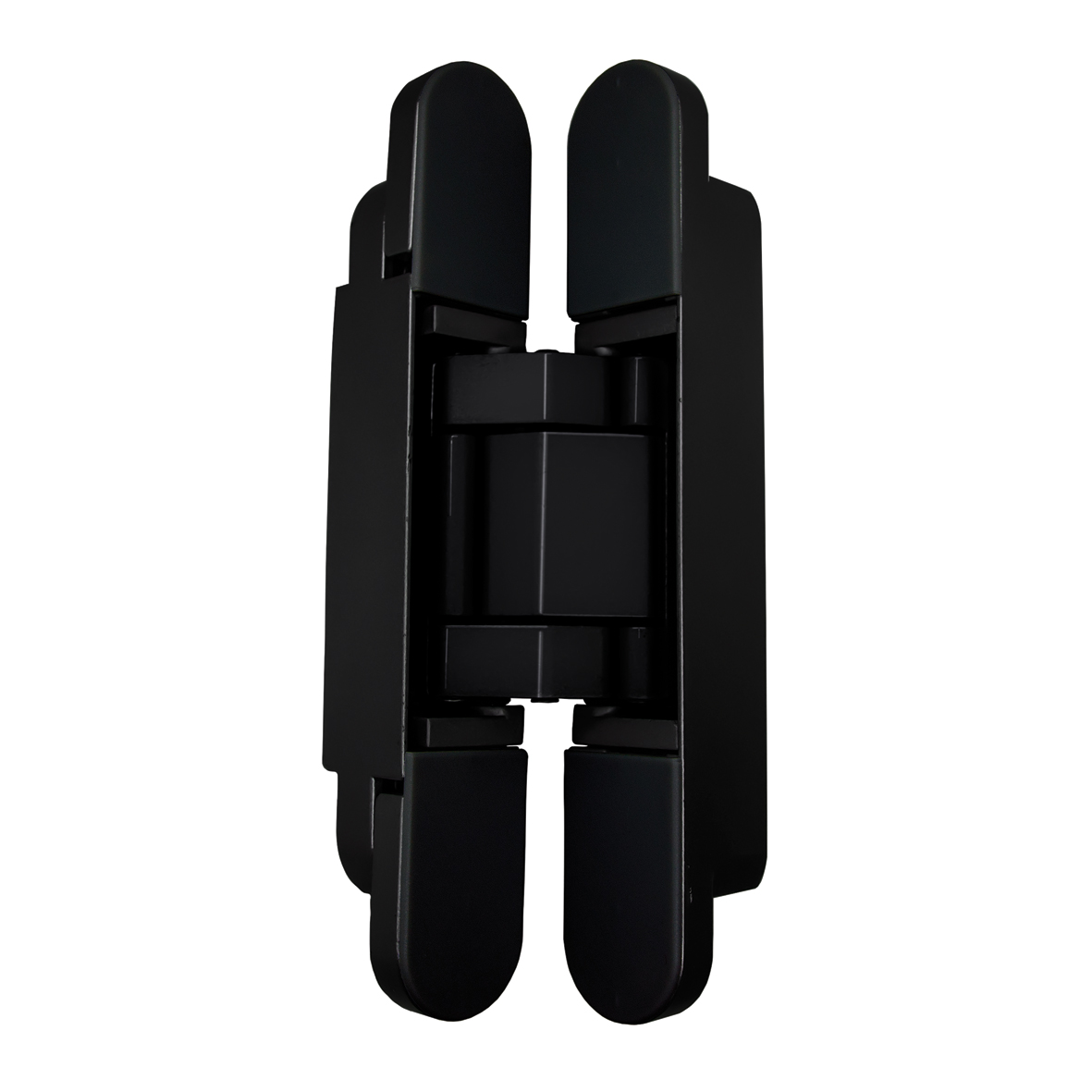

Concealed hinge 1910-3D

1910-18-56
arrow_selector

Smooth running concealed hinge

  • very smooth-running, silent
  • high bearing capacity
  • identical milling size for door and frame
  • door thickness at least 40 mm: door width at most 1000 mm
  • opening angle maximum 180⁰
  • adjustable in 3 directions
Commercial information
expand_more
Type 1910-3D
Use for interior doors
Safety information
expand_more
Burglarproof False
SKG No
Police Hallmark False
CE certificate of conformity False
Technical information
expand_more
Product Width 72 mm
Product Height 177 mm
Thickness 24.5 mm
Corner shape round corner
Bearing synthetic bearing
Direction of rotation all directions
Direction of rotation DIN all directions
Load bearing capacity 2 hinges 80 kg
Load bearing capacity 3 hinges 90 kg
Load bearing capacity 4 hinges 95 kg
Suitable for door thickness min. 35 mm
Material zamac
Finish Black lacquered
Assembly information
expand_more
Including Mounting Material True
Recommended Mounting Materials
- 5.0 x 30 mm screw: 8 pieces
Logistic information
expand_more
Product Weight 748 gr
Pieces per small package 1 piece
EAN small package 8713249317953
Weight small package 0.78 kg
Dimensions small package 210 x 65 x 30 mm
Pieces per bulk package 20 piece
EAN bulk package 8713249317960
Weight bulk package 16.3 kg
Dimensions bulk package 285 x 220 x 175 mm

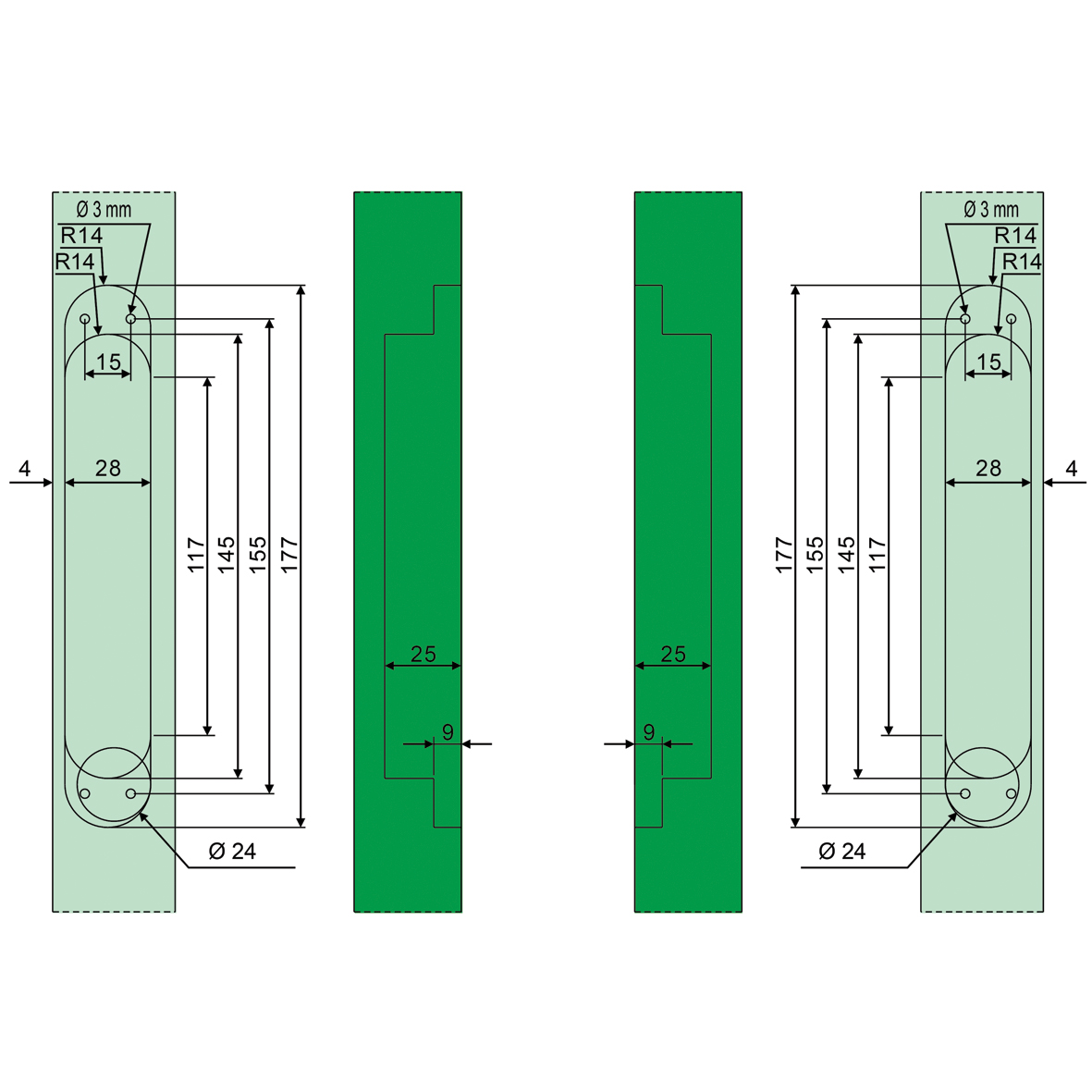

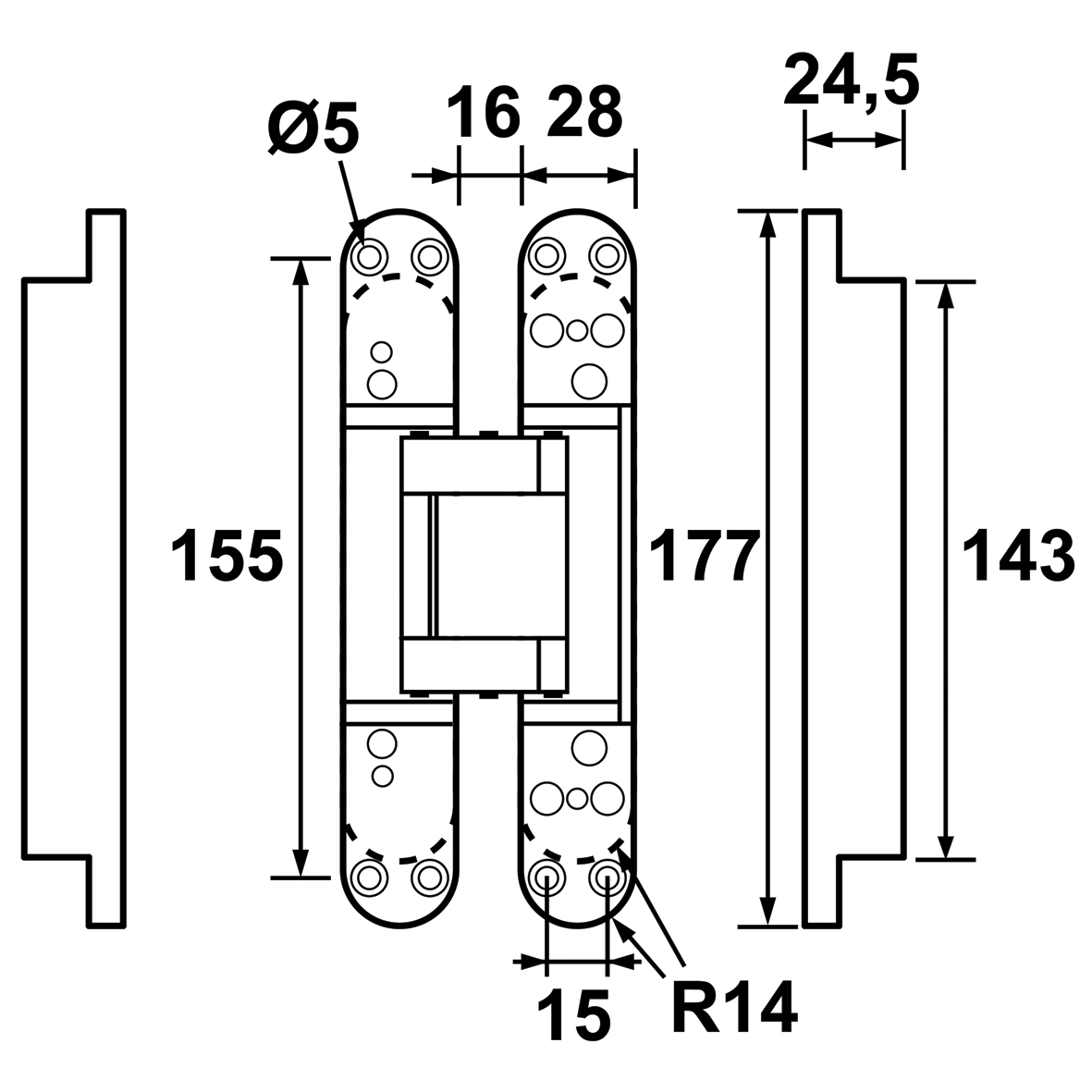

Technical drawings
