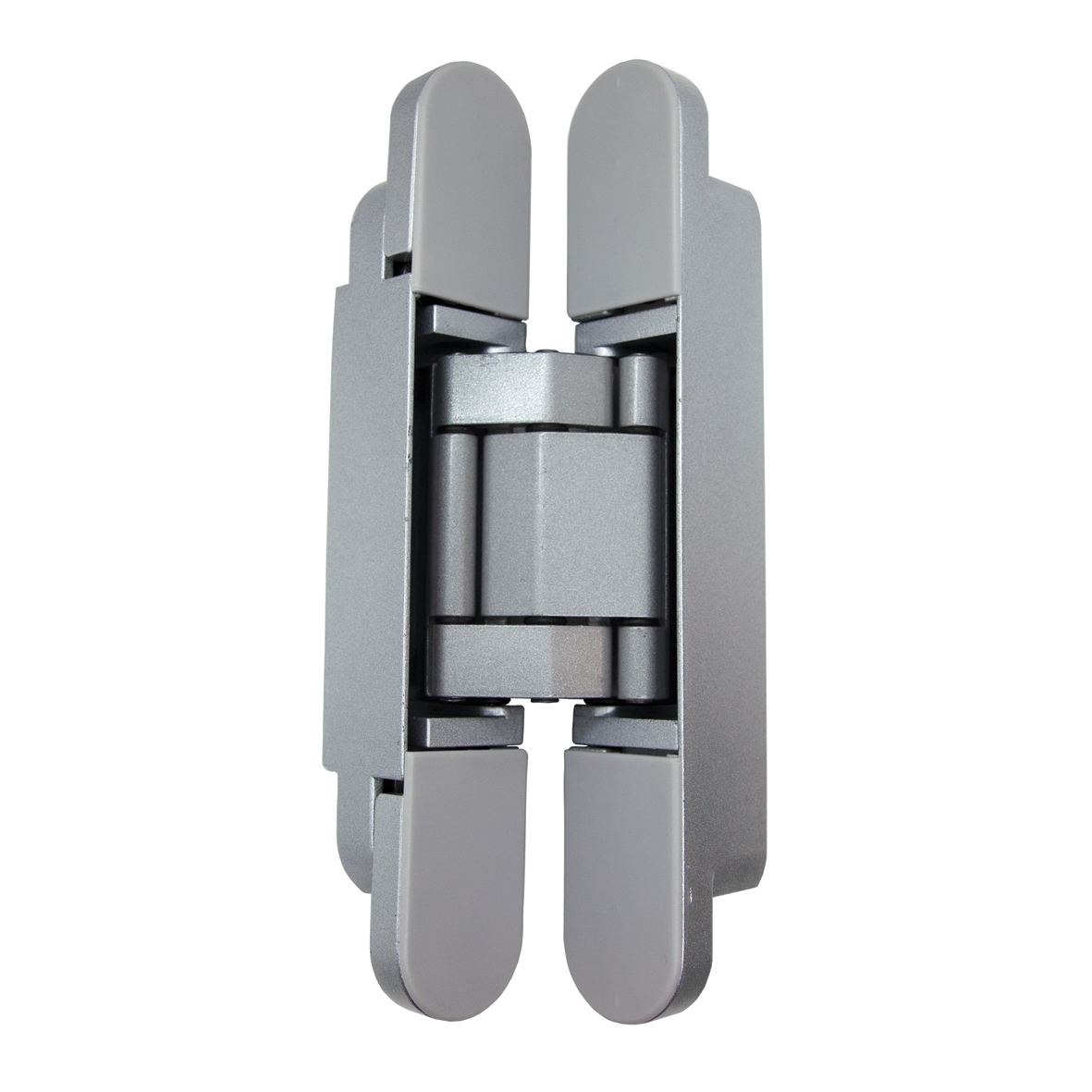

Concealed hinge 1910-3D

1910-18-49
arrow_selector
close

Smooth running concealed hinge

  • very smooth-running, silent
  • high bearing capacity
  • identical milling size for door and frame
  • door thickness at least 40 mm: door width at most 1000 mm
  • opening angle maximum 180⁰
  • adjustable in 3 directions
Specifications Downloads Technical drawings Alternative products Similar products
Commercial information
expand_more
Type 1910-3D
Use for interior doors
Safety information
expand_more
Burglarproof False
SKG No
Police Hallmark False
CE certificate of conformity False
Technical information
expand_more
Product Length 177 mm
Product Width 28 mm
Product Height 145 mm
Thickness 25 mm
Corner shape round corner
Direction of rotation all directions
Direction of rotation DIN all directions
Load bearing capacity 2 hinges 80 kg
Load bearing capacity 3 hinges 90 kg
Load bearing capacity 4 hinges 95 kg
Suitable for door thickness 35 ≤ mm
Material zamac
Finish Grey lacquered
Assembly information
expand_more
Including Mounting Material True
Recommended Mounting Materials
- 5.0 x 30 mm screw: 8 pieces
Logistic information
expand_more
Product Weight 748 gr
Pieces per small package 1 piece
EAN small package 8713249317977
Weight small package 0.78 kg
Dimensions small package 210 x 65 x 30 mm
Pieces per bulk package 20 piece
EAN bulk package 8713249317984
Weight bulk package 16.3 kg
Dimensions bulk package 285 x 220 x 175 mm

Technical drawings
Concealed hinge 1910-3D
19101849
