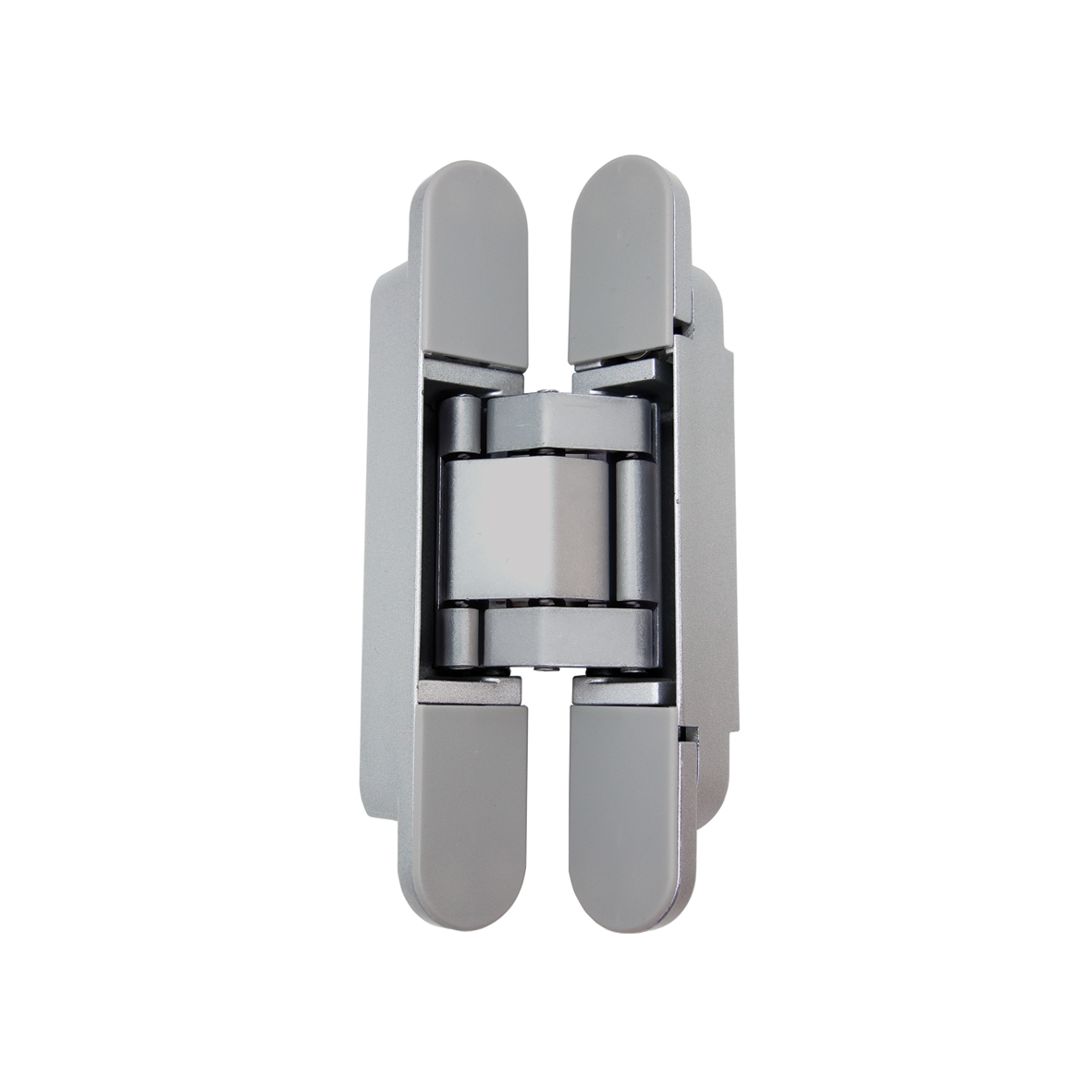

Concealed hinge 1910-3D

1910-15-49
arrow_selector
close

Smooth running concealed hinge

  • very smooth-running, silent
  • high bearing capacity
  • identical milling size for door and frame
  • door thickness at least 35 mm: door width at most 850 mm
  • opening angle maximum 180⁰
  • adjustable in 3 directions
Specifications Downloads Technical drawings Alternative products Similar products
Commercial information
expand_more
Type 1910-3D
Use for interior swing doors
Safety information
expand_more
Burglarproof False
SKG No
Police Hallmark False
CE Applicable False
Technical information
expand_more
Product Length 150 mm
Product Width 25 mm
Product Height 121 mm
Thickness 22.5 mm
Corner shape round corner
Direction of rotation outward and inward-opening
Direction of rotation DIN all directions
Load bearing capacity 2 hinges 40 kg
Load bearing capacity 3 hinges 50 kg
Load bearing capacity 4 hinges 55 kg
Suitable for door thickness 35 ≤ mm
Material zamac
Finish Grey lacquered
Assembly information
expand_more
Including Mounting Material True
Recommended Mounting Materials
- 5.0 x 25 mm screw: 8 pieces
Logistic information
expand_more
Product Weight 510 gr
Pieces per small package 1 piece
EAN small package 8713249317915
Weight small package 0.54 kg
Dimensions small package 210 x 65 x 30 mm
Pieces per bulk package 20 piece
EAN bulk package 8713249317922
Weight bulk package 11.4 kg
Dimensions bulk package 230 x 200 x 190 mm

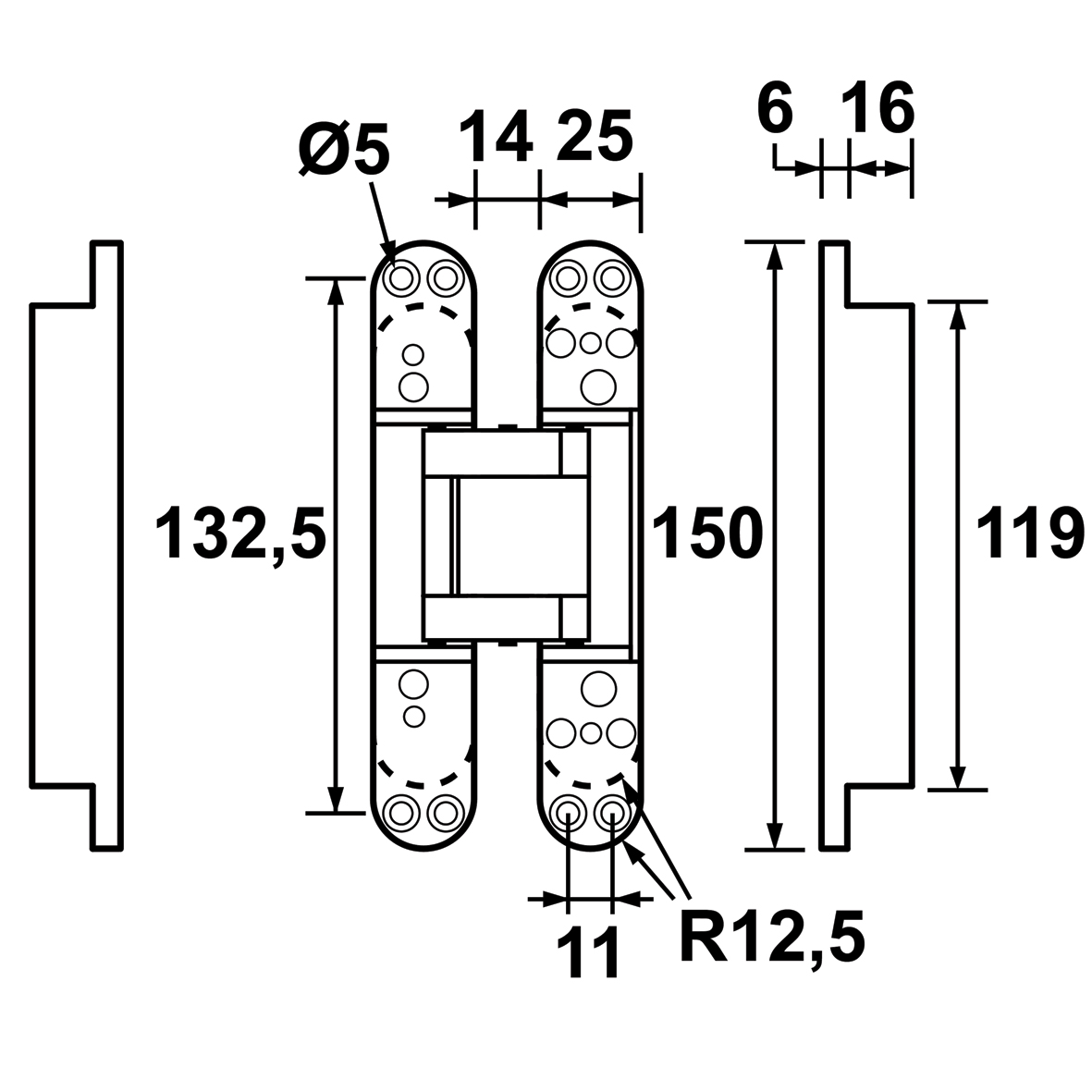

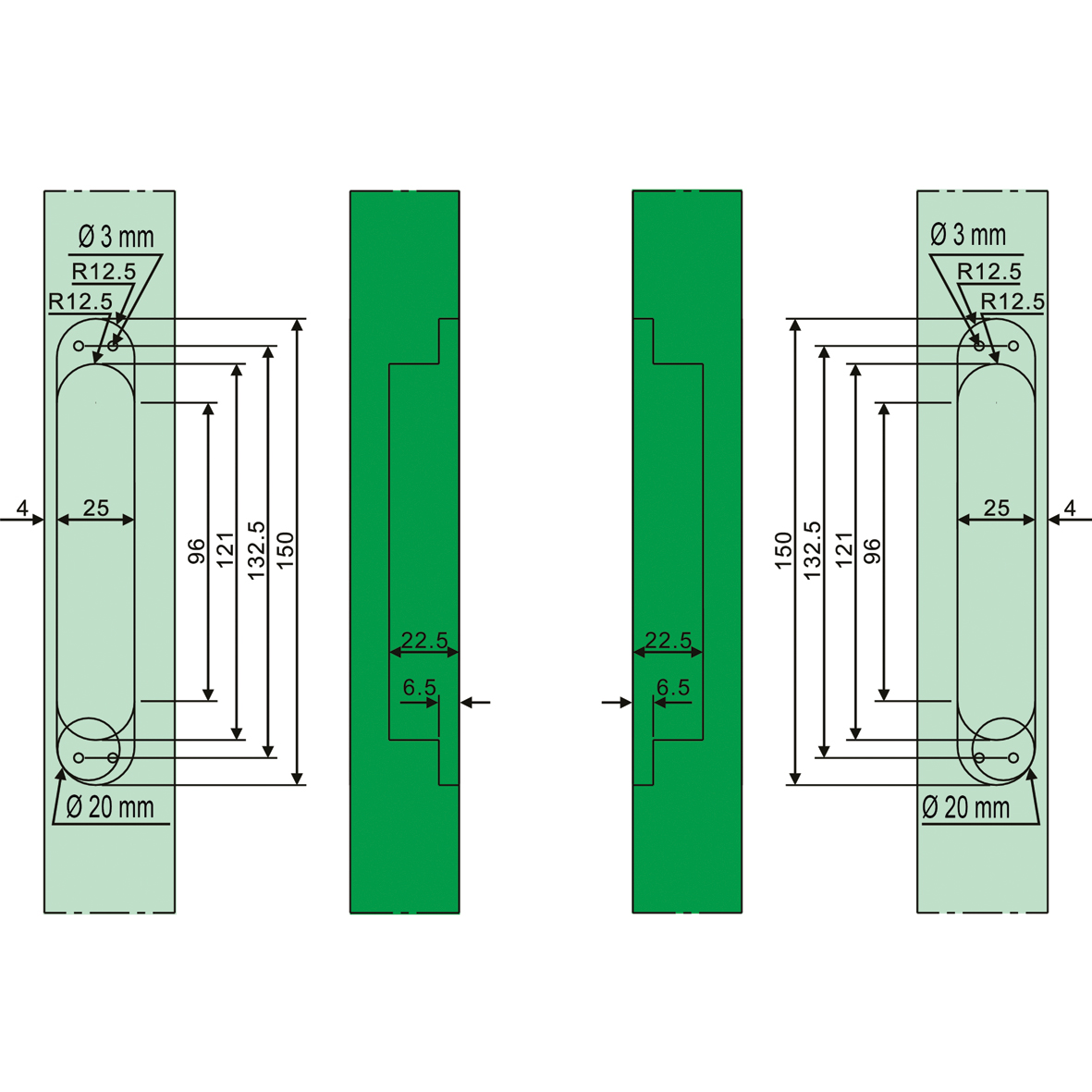

Technical drawings
Concealed hinge 1910-3D
19101549
