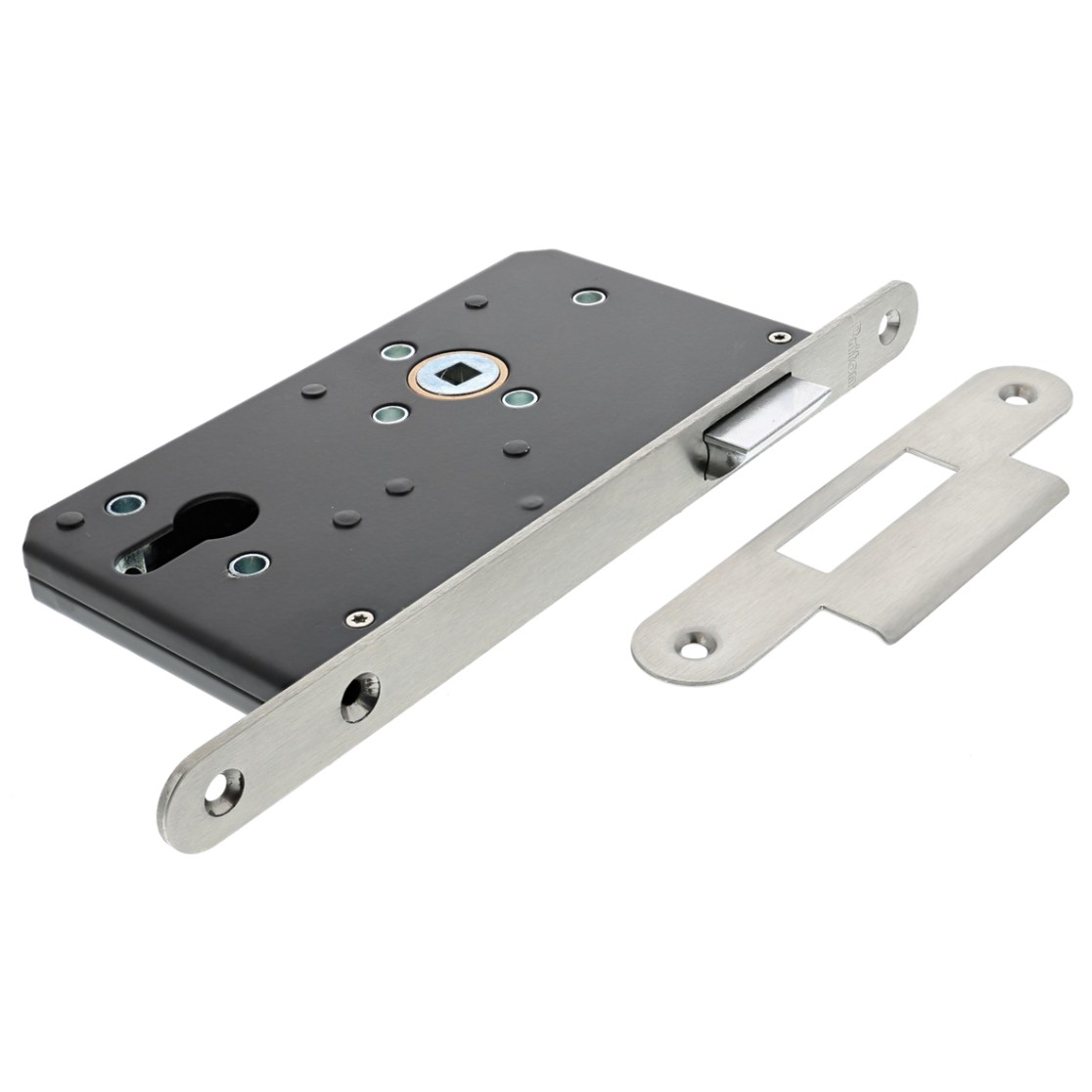

Commercial nightlatch PC

7BR-5650-60RSS
arrow_selector
close

Solid commercial nightlatch for intensive use.

  • with stainless steel face plate
  • with cylinder hole outsite
  • fast reversible latch bolt
  • solid spindlemechanism
  • incl. striking plate and attachment materials
  • fire tested to EN 1634 on timber doors to achieve a 90 minute fire rating, and 4 hour for steel doors
Specifications Downloads Technical drawings

Specifications

Commercial information
expand_more
Type PC
Use for exterior doors
Safety information
expand_more
SKG No
Police Hallmark False
CE Applicable True
Technical information
expand_more
Product Length 235 mm
Product Width 20 mm
Thickness 15 mm
Mounting depth 93 mm
Corner shape round corner
Direction of rotation DIN all directions
Bolt type dead bolt
Bolt catcher striking plate
Heart to heart size type handle hole - Euro profile hole (PC)
Backset 60 mm
Hold-open function type mechanical pivot hold-open function
Material Stainless steel 316
Finish Brushed
Material 2 Steel
Finish 2 Galvanized
Assembly information
expand_more
Including Mounting Material True
Assembly time 10 min
Logistic information
expand_more
Pieces per small package 1 piece
EAN small package 5050640035882
Weight small package 0 kg

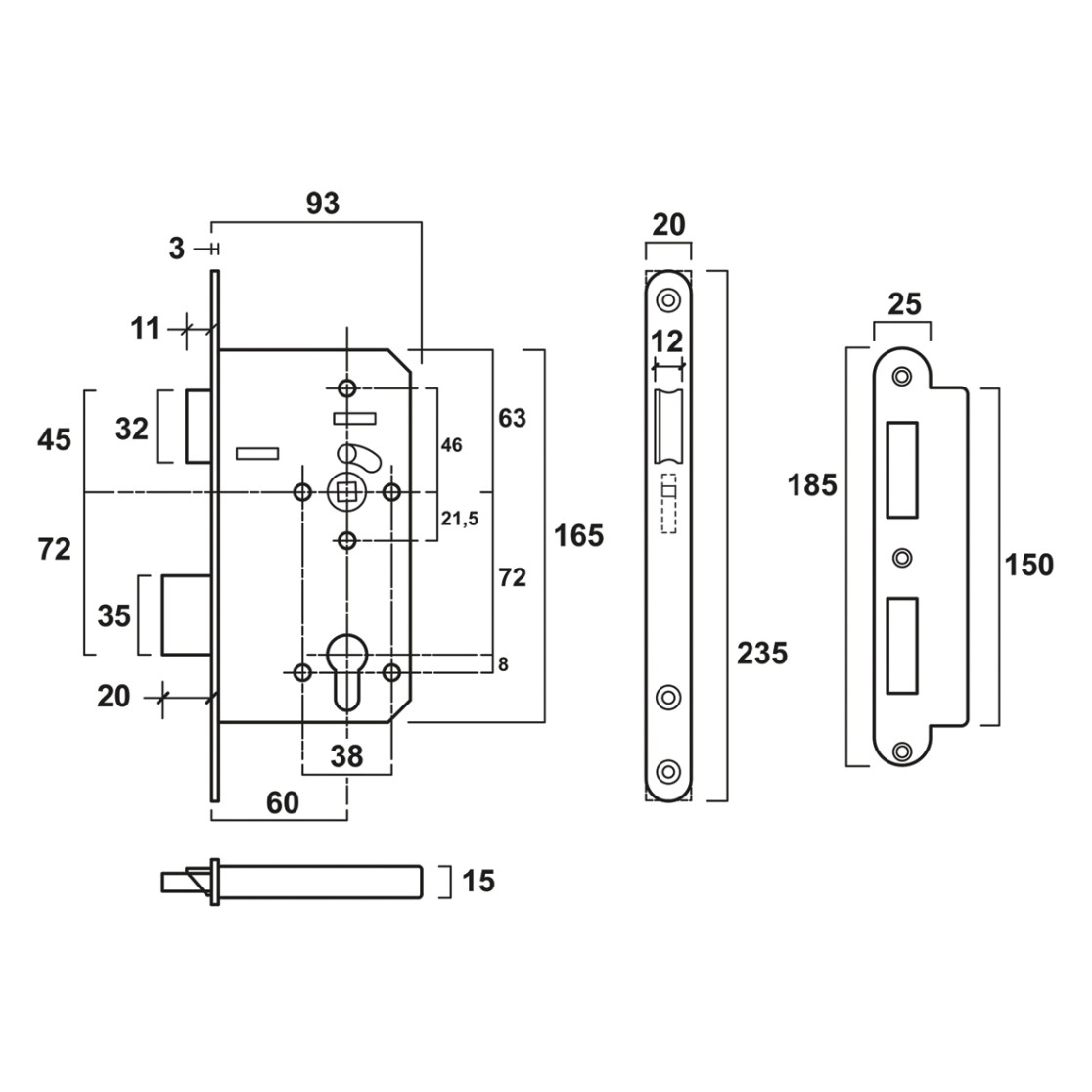

Technical drawings
Commercial nightlatch PC
7BR565060RSS
