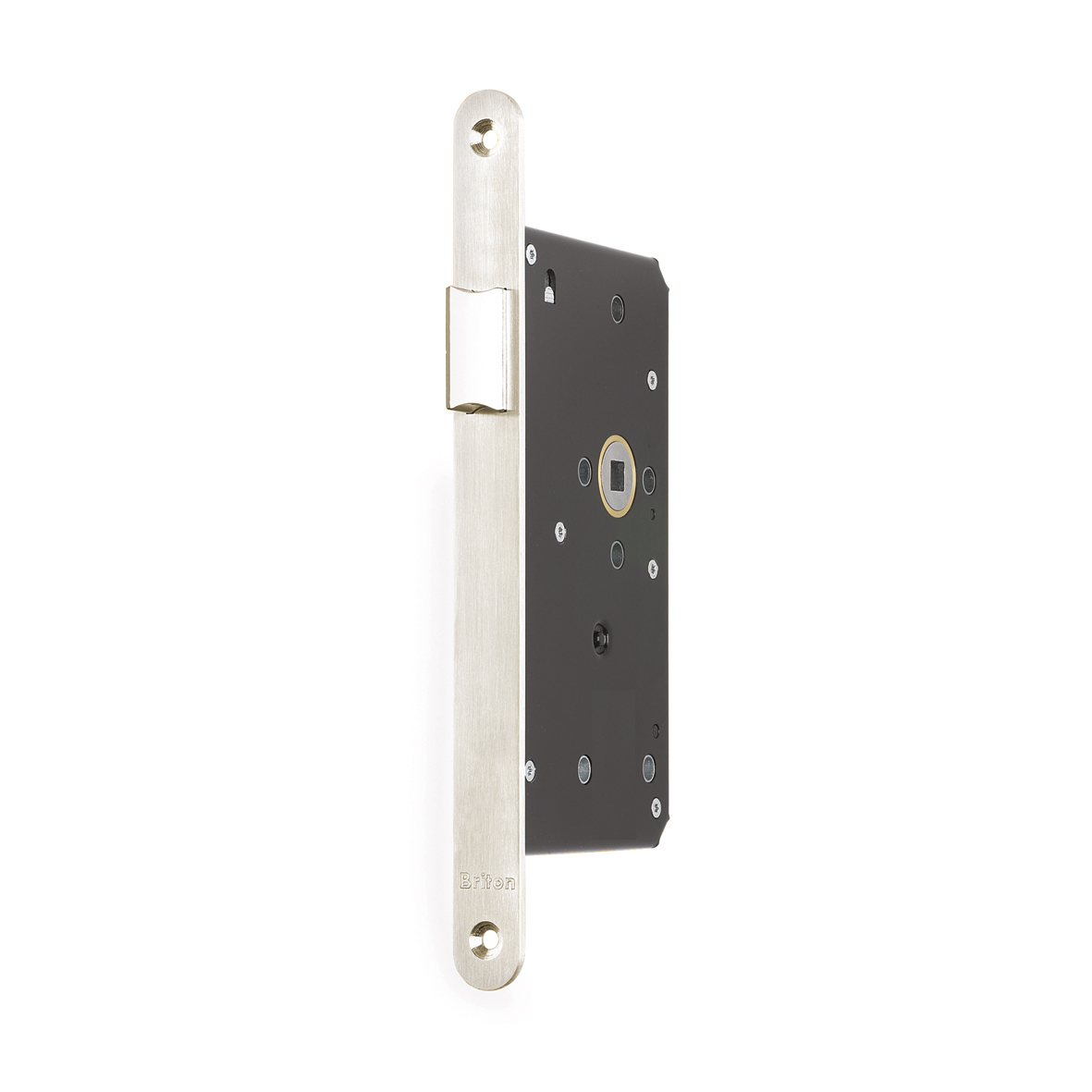

Commercial latch

7BR-5540-60RSS
arrow_selector
close

Solid commercial latch for intensive use.

  • with stainless steel 316 face plate
  • fast reversible latch bolt
  • solid spindlemechanism
  • incl. striking plate and attachment materials
Specifications Downloads Technical drawings

Specifications

Commercial information
expand_more
Use for interior doors
Safety information
expand_more
SKG No
Police Hallmark False
CE Applicable True
Technical information
expand_more
Product Length 235 mm
Product Width 20 mm
Thickness 15 mm
Mounting depth 93 mm
Corner shape round corner
Direction of rotation DIN all directions
Backset 60 mm
Material Stainless steel 316
Finish Brushed
Assembly information
expand_more
Including Mounting Material True
Assembly time 5 min
Logistic information
expand_more
Pieces per small package 1 piece
EAN small package 5050640000194
Weight small package 0 kg

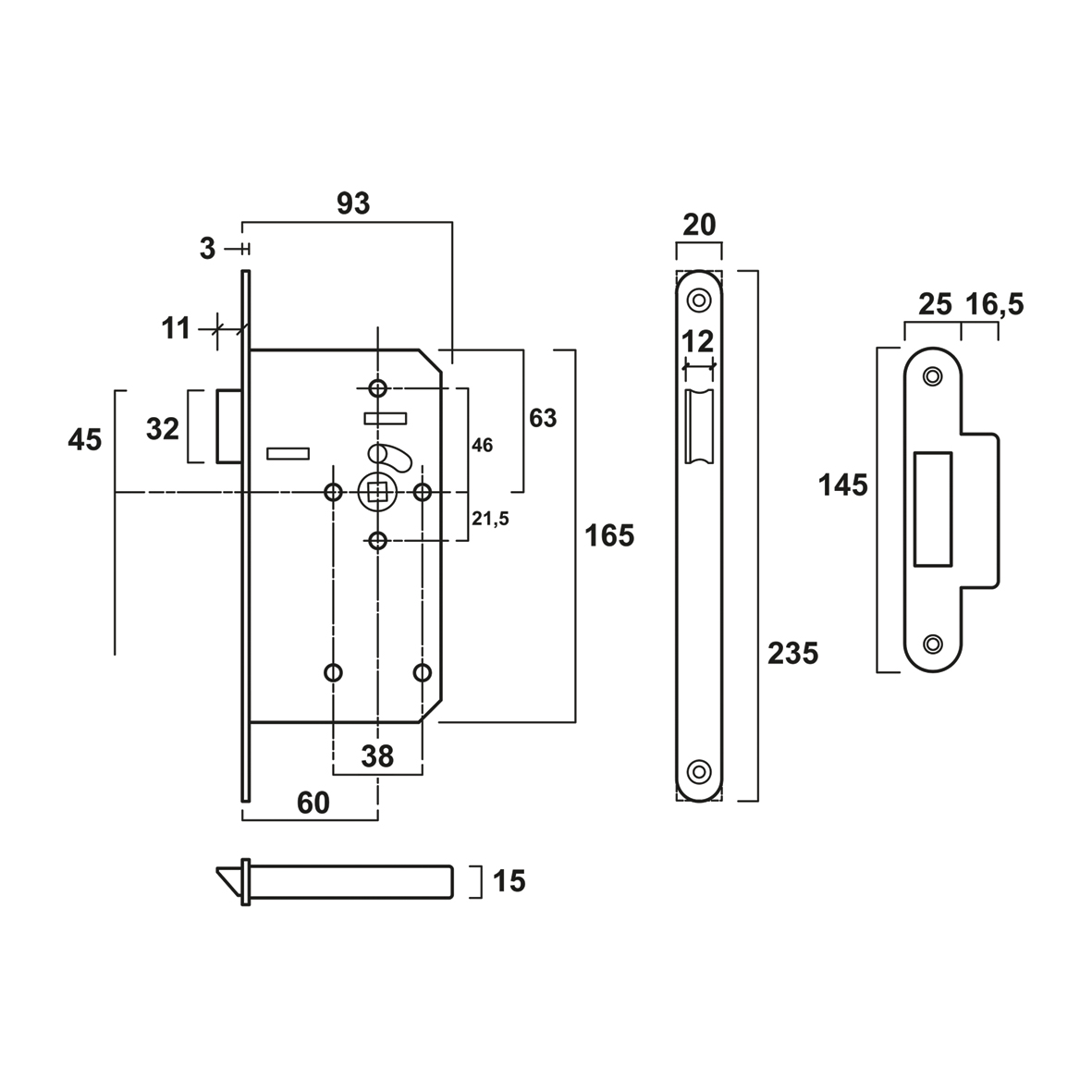

Technical drawings
