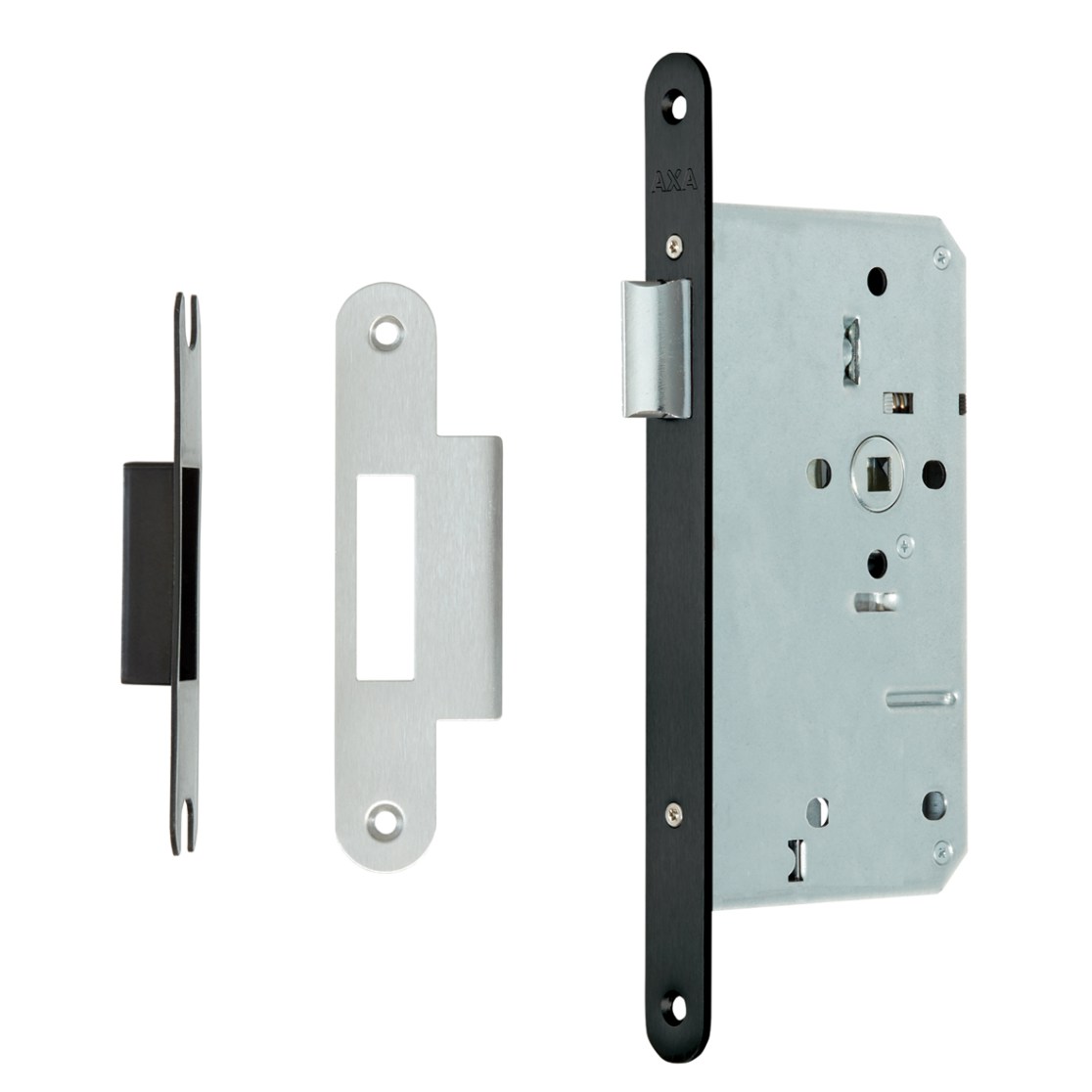

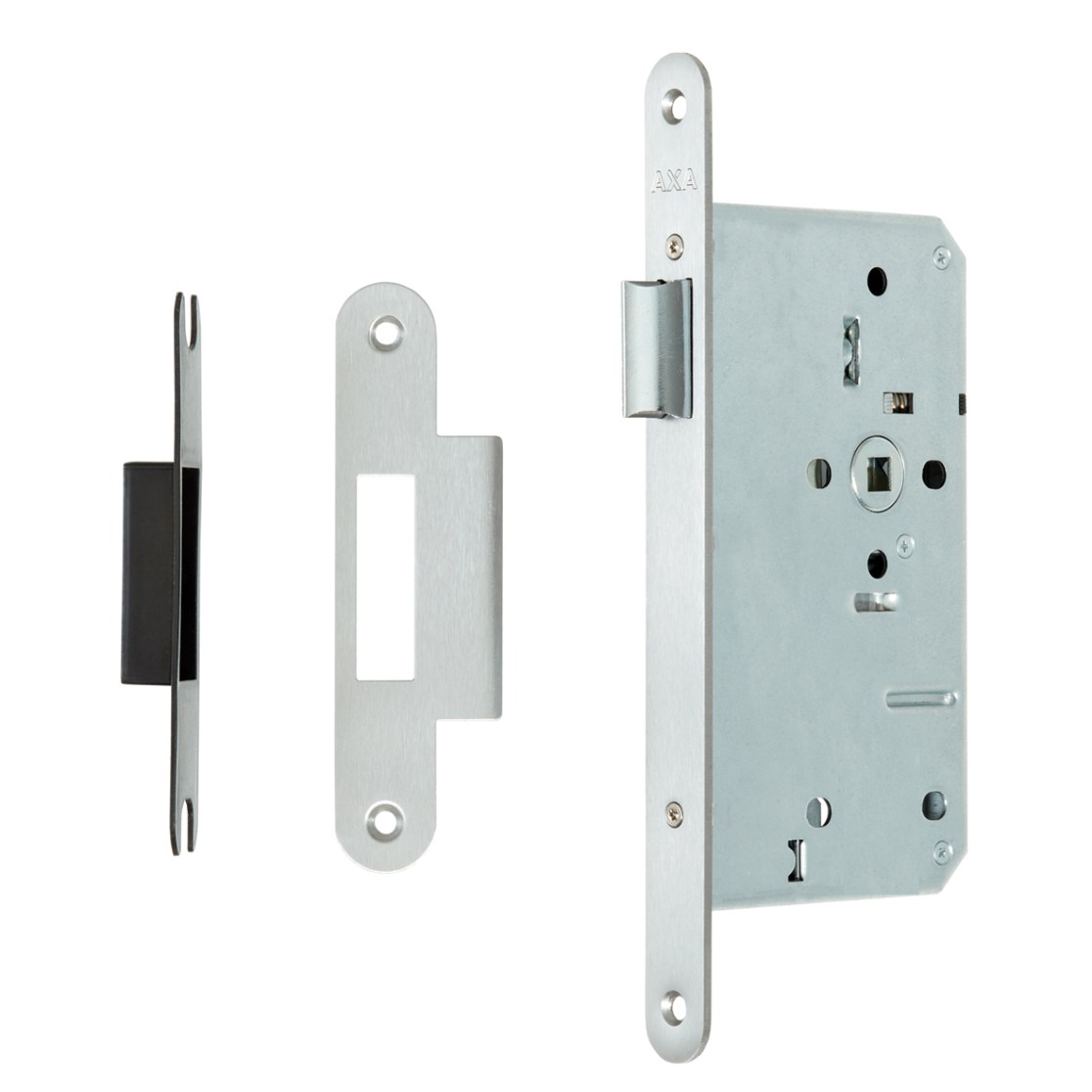

Commercial latch 7055

7055-60-81
arrow_selector
close

Solid commercial latch for intensive use.

  • with stainless steel face plate
  • quick reversible latch
  • sturdy spindle mechanism
  • inclusive striking plate and fastening materials
Specifications Downloads Technical drawings Similar products

Specifications

Commercial information
expand_more
Type 7055
Use for interior doors
Safety information
expand_more
SKG No
Police Hallmark False
CE Applicable True
Technical information
expand_more
Product Length 235 mm
Product Width 20 mm
Thickness 15 mm
Mounting depth 93 mm
Corner shape round corner
Direction of rotation DIN all directions
Bolt type dead bolt
Backset 60 mm
Material Stainless steel
Finish Brushed
Material 2 Steel
Finish 2 Galvanized
Assembly information
expand_more
Including Mounting Material False
Assembly time 5 min
Logistic information
expand_more
Product Weight 632 gr
Pieces per small package 1 piece
EAN small package 8713249257075
Weight small package 0.666 kg
Dimensions small package 240 x 98 x 25 mm
Pieces per bulk package 15 piece
EAN bulk package 8713249257082
Weight bulk package 10.2 kg
Dimensions bulk package 320 x 260 x 155 mm

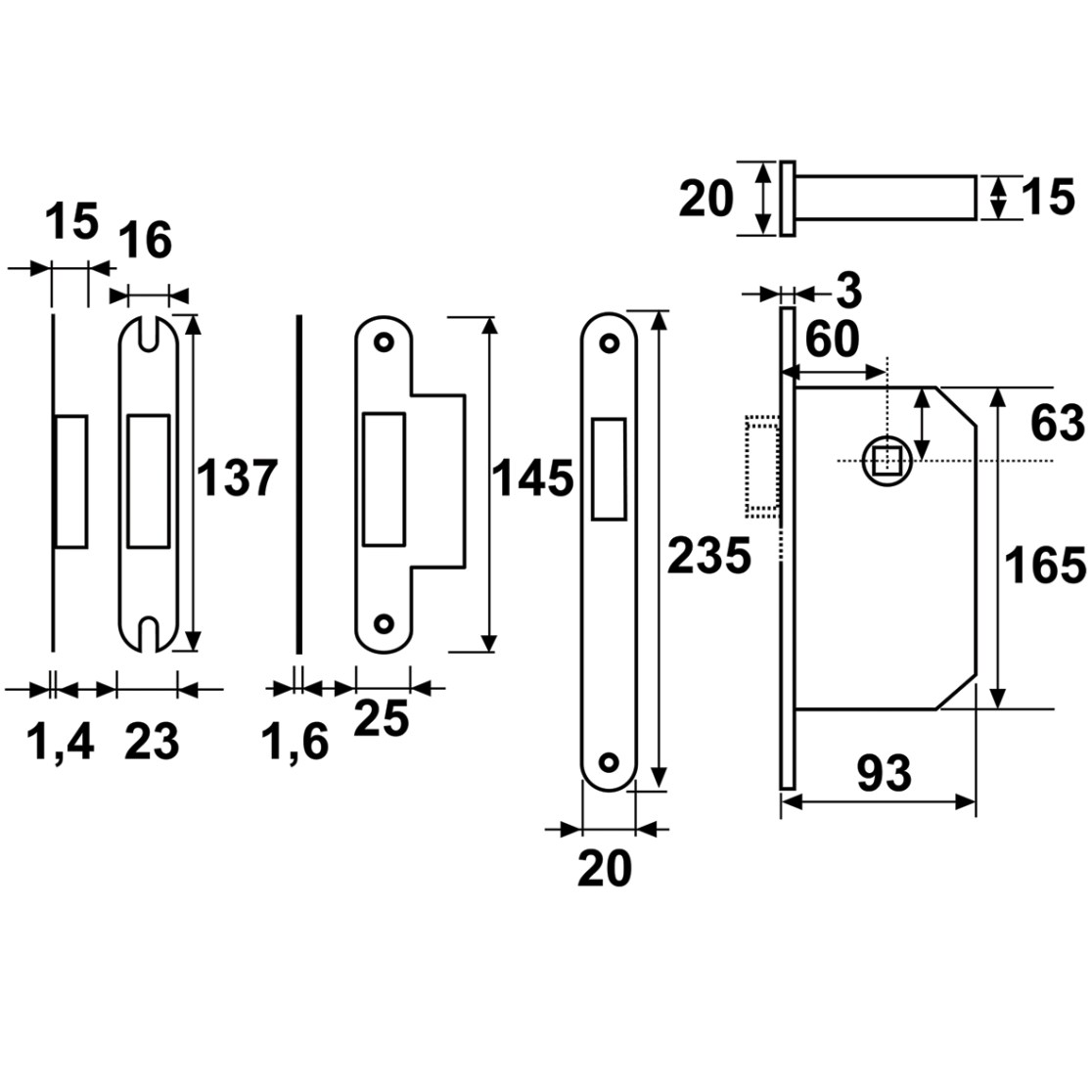

Technical drawings
