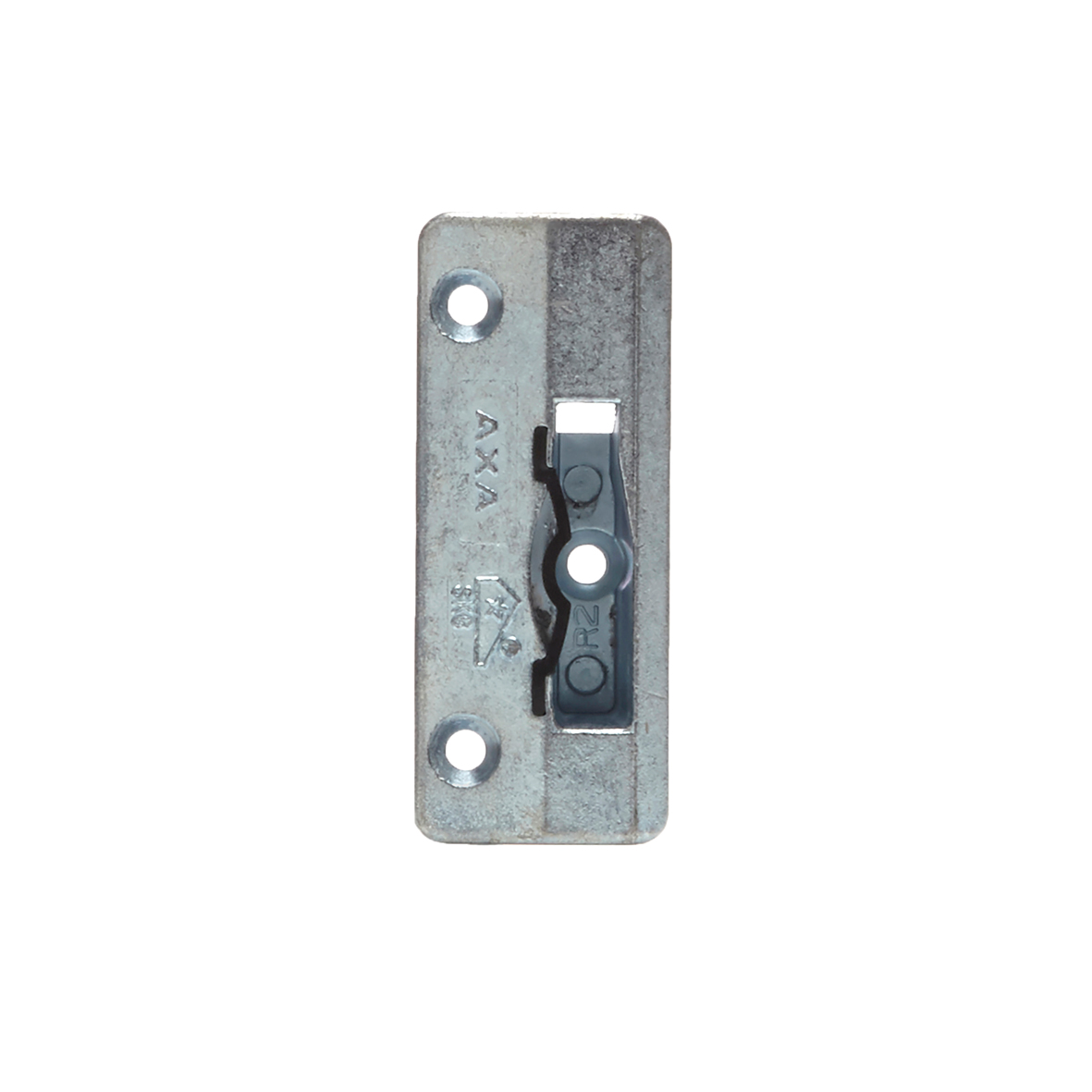

Built-in striker ISR

3319-87-64/E
arrow_selector
close

SKG 1

Police Hallmark

Sturdy built-in striker for window fasteners 3318, 3319 and 3320.

  • special built-in striker with a rattle-free ventilation cam holder
  • for when there is an aluminium draught strip in the groove and/or for windows with narrow frames
  • complies with Police Hallmark for Safe Living and SKG1 (Façade Quality Institution hallmark)
Specifications Downloads Technical drawings Alternative products

Specifications

Recommended Mounting Materials
- 4.0 x 40 mm screw: 3 pieces
Commercial information
expand_more
Type ISR
Use in combination with casement fastener 3320, 3319 and 3318
Safety information
expand_more
Burglarproof True
SKG SKG 1
Police Hallmark True
CE Applicable False
Technical information
expand_more
Product Length 74 mm
Product Width 30 mm
Product Height 21 mm
Direction of rotation right outward-opening
Material zamac
Finish Galvanized
Assembly information
expand_more
Including Mounting Material False
Assembly time 10 min
Recommended Mounting Materials
- 4.0 x 40 mm screw: 3 pieces
Logistic information
expand_more
Product Weight 86 gr
Pieces per small package 6 piece
EAN small package 8713249074276
Weight small package 0.55 kg
Dimensions small package 116 x 68 x 62 mm
Pieces per bulk package 60 piece
EAN bulk package 8713249074283
Weight bulk package 5.63 kg
Dimensions bulk package 290 x 200 x 120 mm

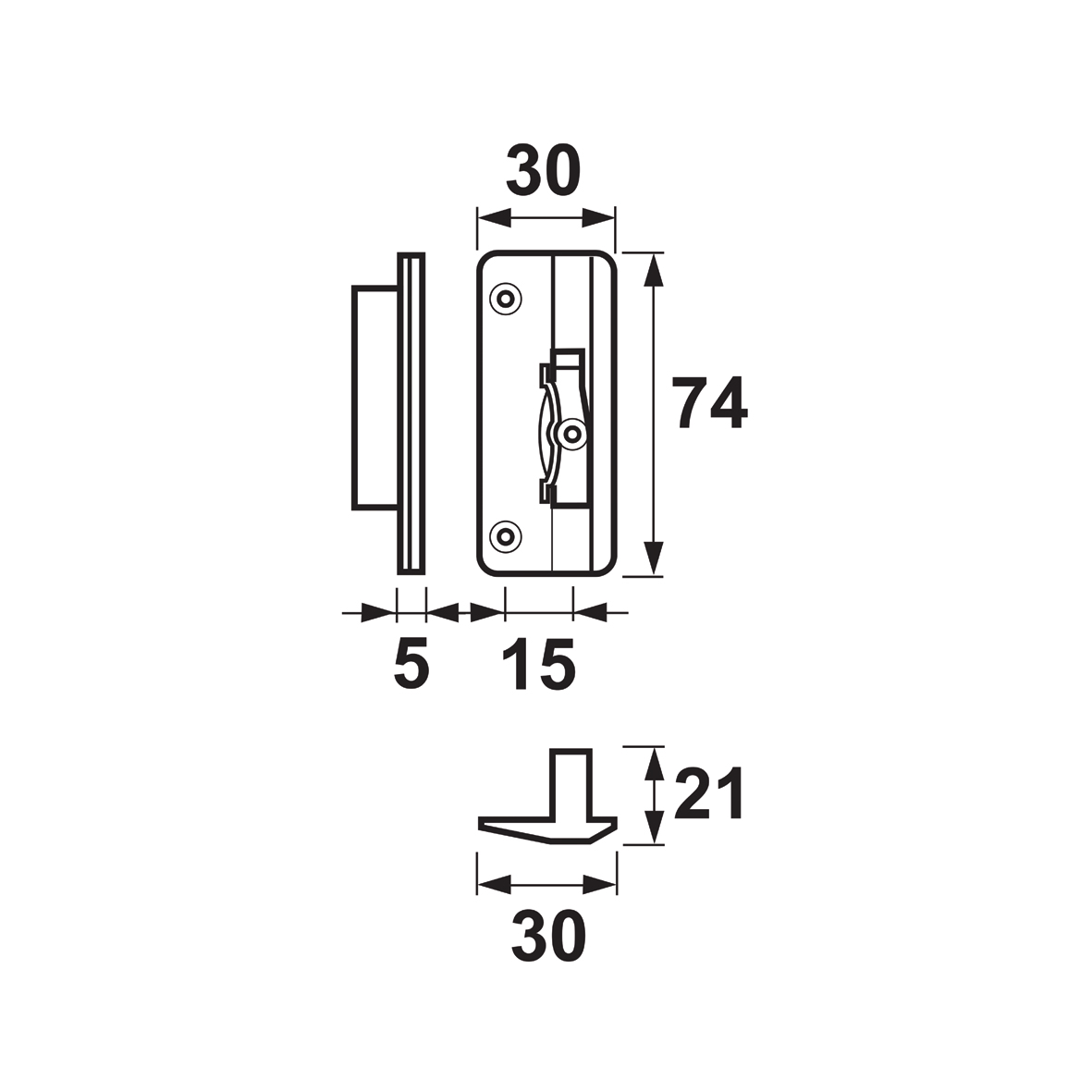

Technical drawings

Alternative products
