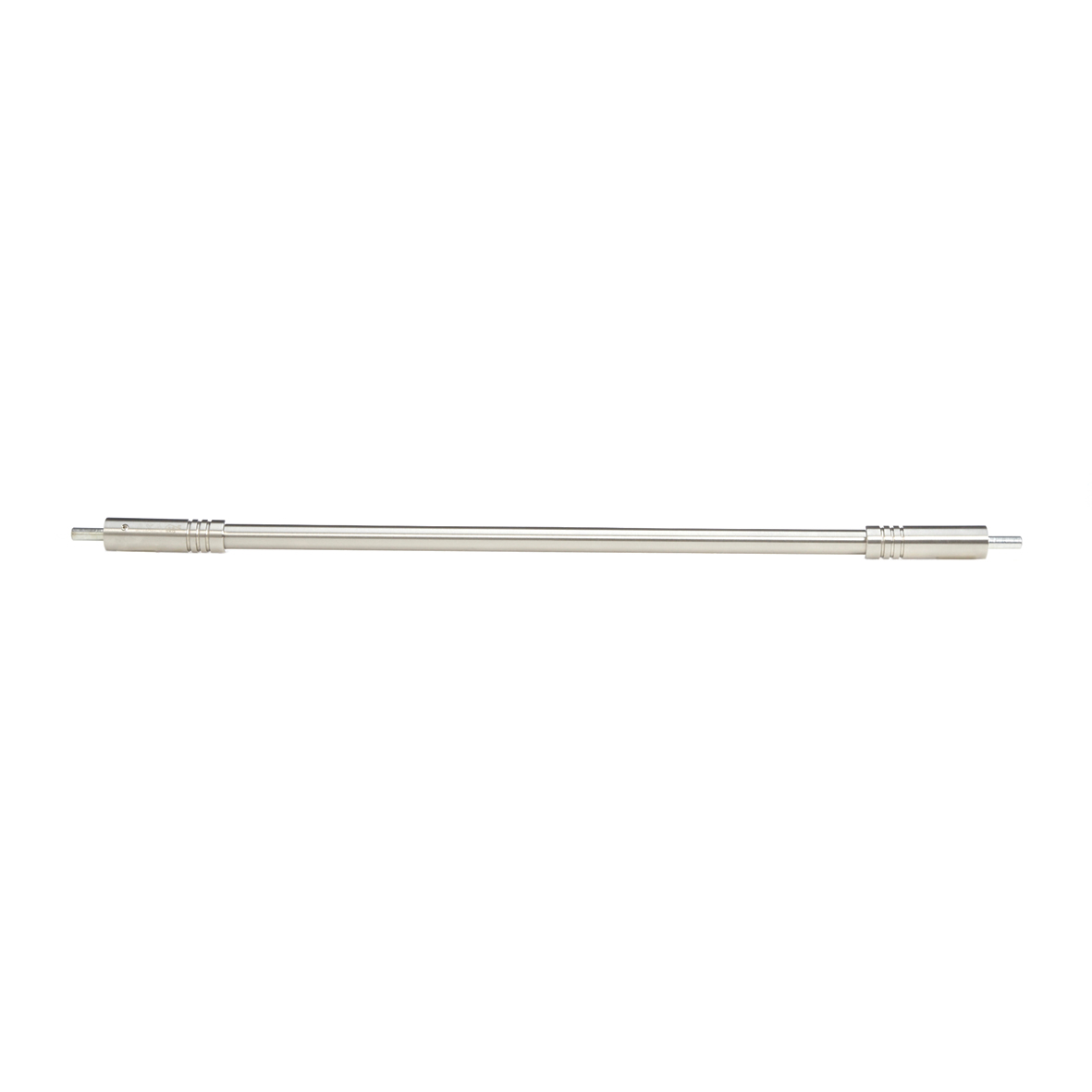

Barrier bar V1

7612-10-81/BL
arrow_selector
close

SKG 2

Police Hallmark

The barrier bar is burglar-resistant and ideal when using hopper windows for ventilation purposes.

  • easily cut to size
  • stainless steel
  • fitting between the jambs
  • complies with Police Hallmark for Safe Living and SKG2 (Façade Quality Institution hallmark)
Specifications Downloads Technical drawings Alternative products

Specifications

Recommended Mounting Materials
- mounting plug: 2 pieces
Commercial information
expand_more
Type V1
Use for skylights, hopper windows and top-hung windows
Safety information
expand_more
Burglarproof True
SKG SKG 2
Police Hallmark True
CE Applicable False
Technical information
expand_more
Product Length 1030 mm
Material Stainless steel
Finish Brushed
Assembly information
expand_more
Including Mounting Material True

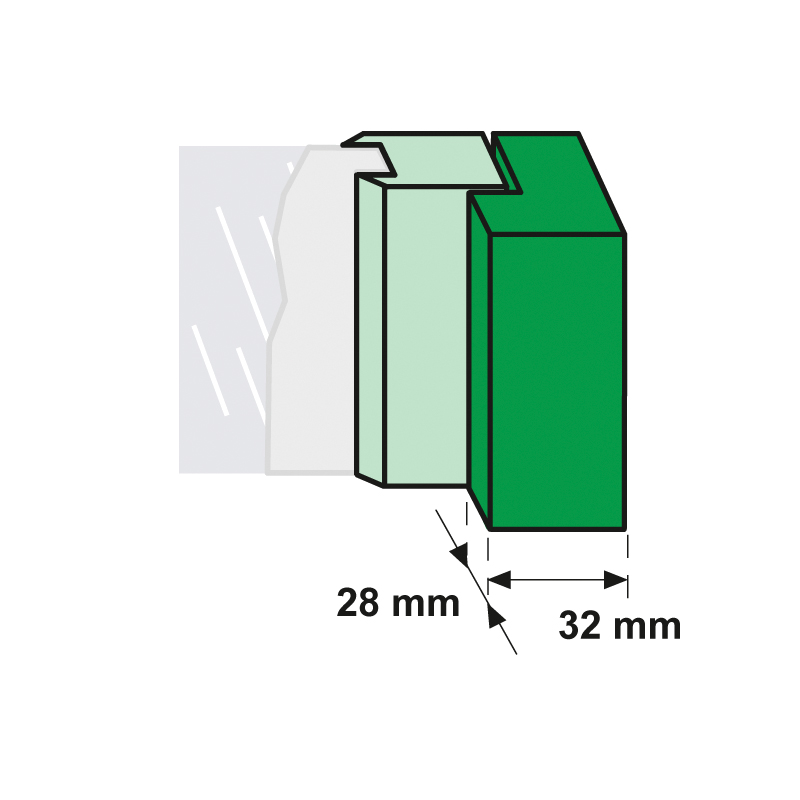

Required depth wood frame 28 mm
Required height/width wood frame 32 mm
Assembly time 15 min
Recommended Mounting Materials
- mounting plug: 2 pieces
Logistic information
expand_more
Product Weight 1895 gr
Pieces per small package 1 piece
EAN small package 8713249227382
Weight small package 1.895 kg
Dimensions small package 1130 x 34 x 34 mm
Pieces per bulk package 6 piece
EAN bulk package 8713249233086
Weight bulk package 12.6 kg

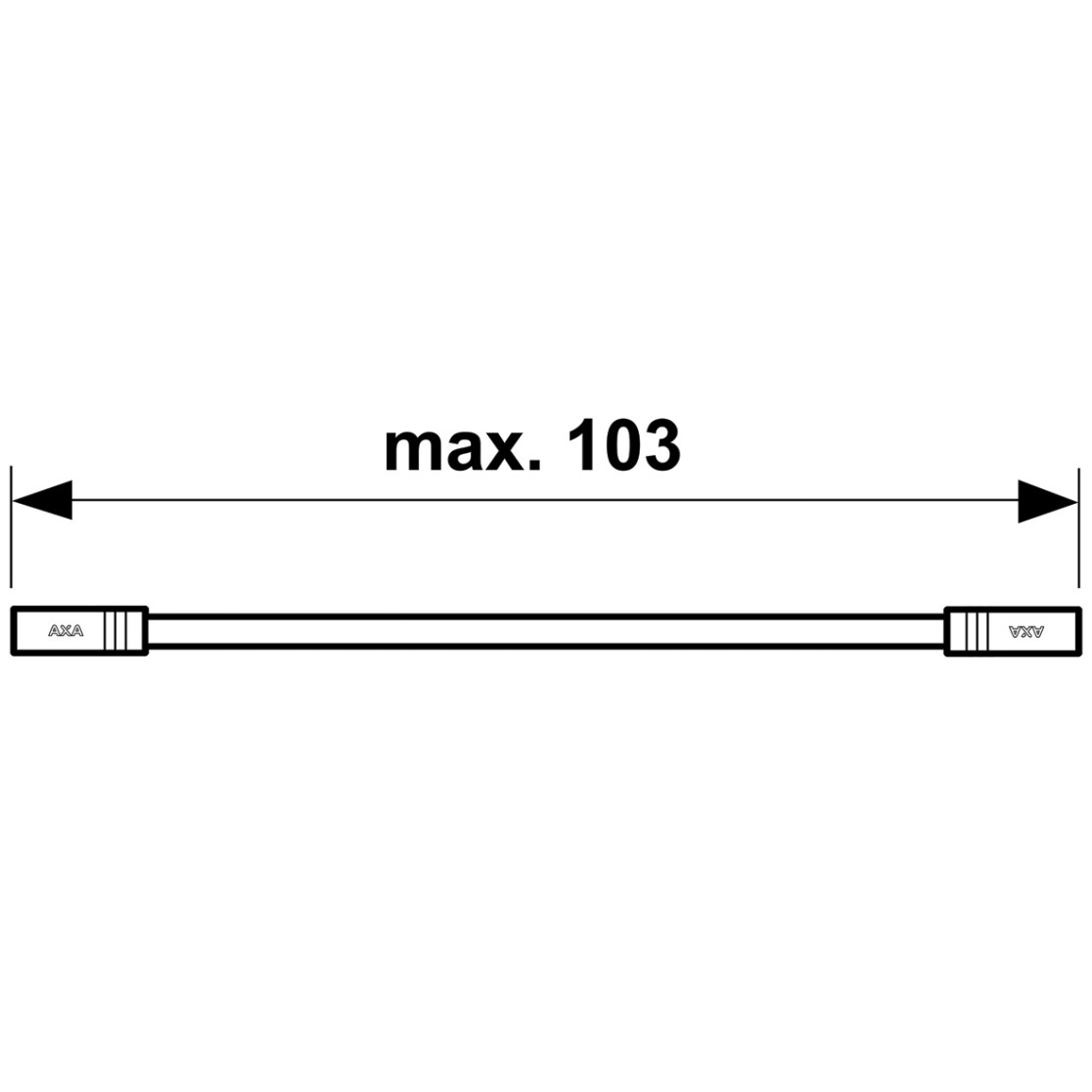

Technical drawings
Barrier bar V1
76121081BL
