Anti-panic set Fast Push 3 side

7534-12-36/29
arrow_selector
close

Solid anti-panic Push bar set.

  • with 3 horizontal bolts
  • low operating force
  • low noise
  • easily cut to size
  • fast installation
  • easy inspection and maintenance
Specifications Downloads Technical drawings Alternative products

Specifications

Commercial information
expand_more
Type Fast Push 3 side
Use for single emergency exit door
Safety information
expand_more
SKG No
Police Hallmark False
CE Applicable True
Technical information
expand_more
Product Length 2500 mm
Product Width 1300 mm
Product Height 139 mm
Operation from the inside
Material Aluminum
Finish Black lacquered
Finish Red lacquered
Material 2 Steel
Finish 2 Galvanized
Logistic information
expand_more
Product Weight 4485 gr
Pieces per small package 1 piece
EAN small package 8713249263380
Weight small package 5.68 kg

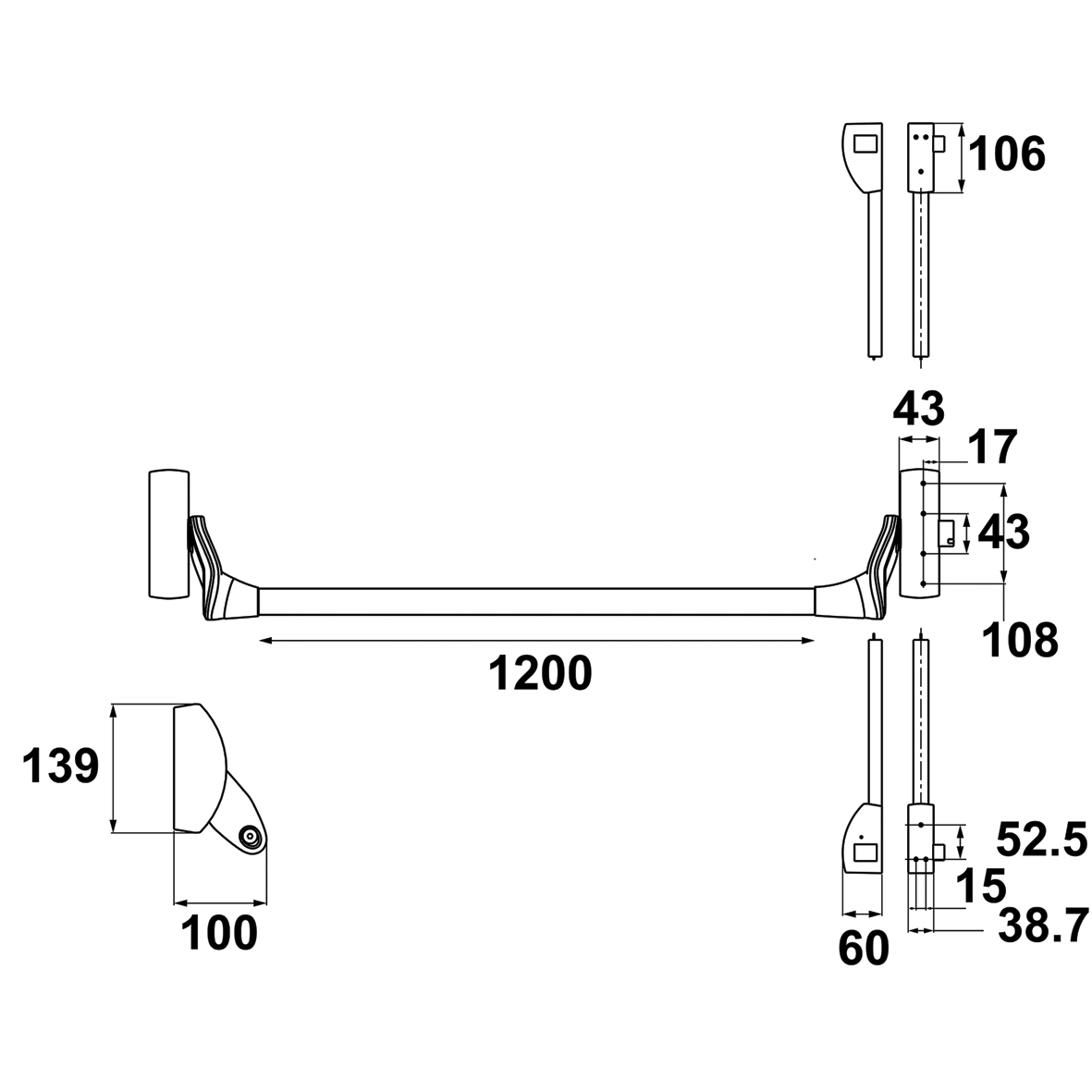

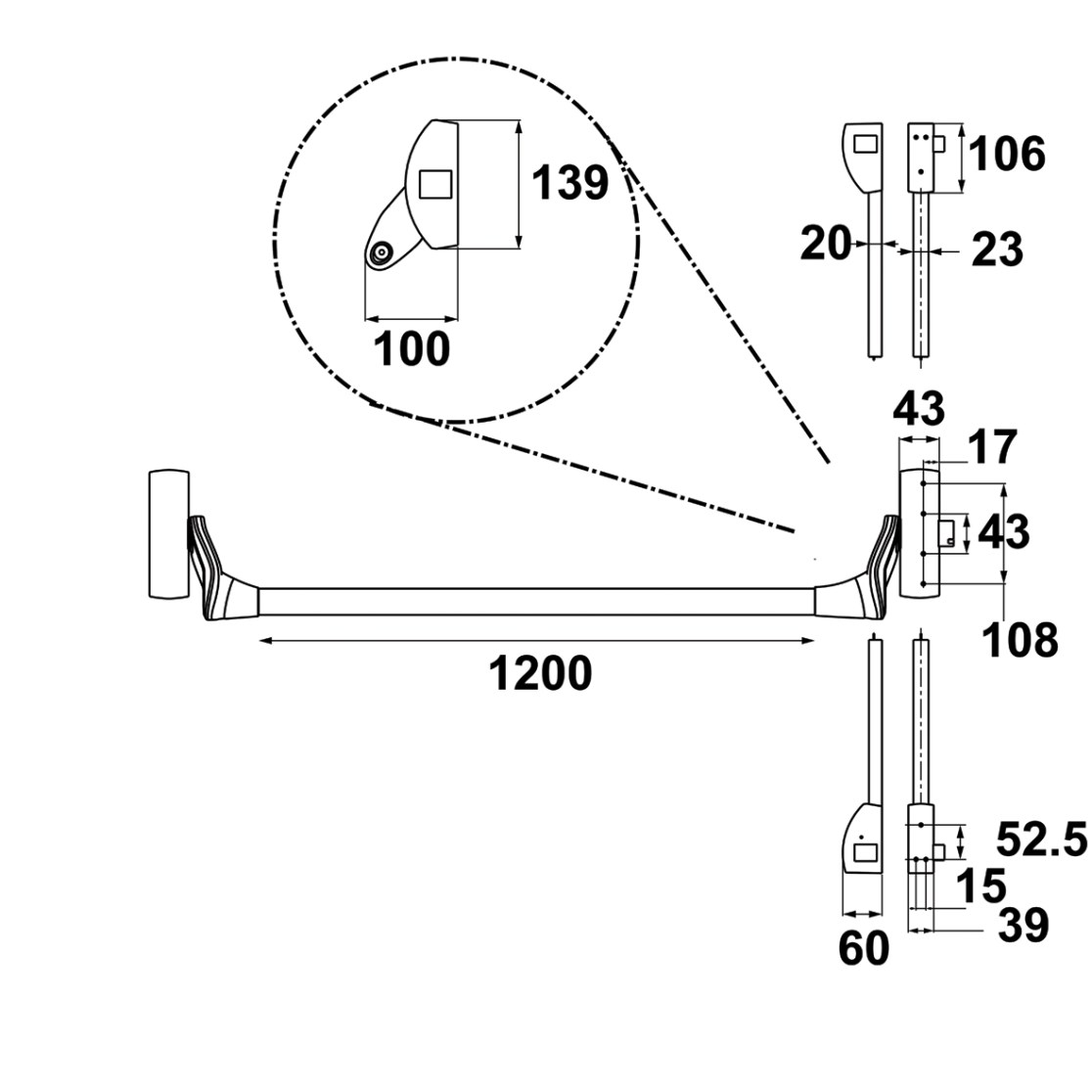

Technical drawings
Anti-panic set Fast Push 3 side
7534123629

Alternative products

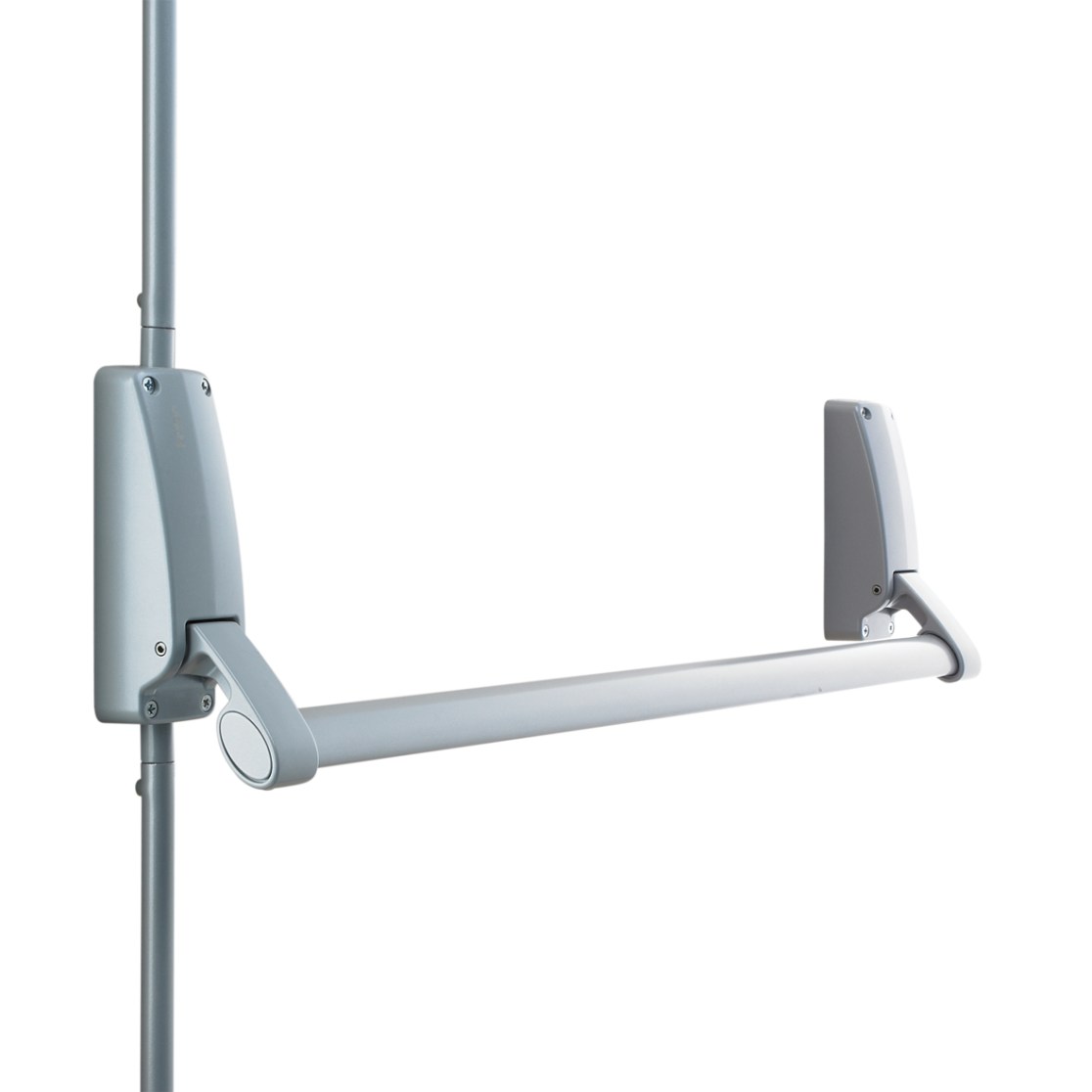

Anti-panic cross bar set 2 bolts top-buttom

7BR-376D-SE

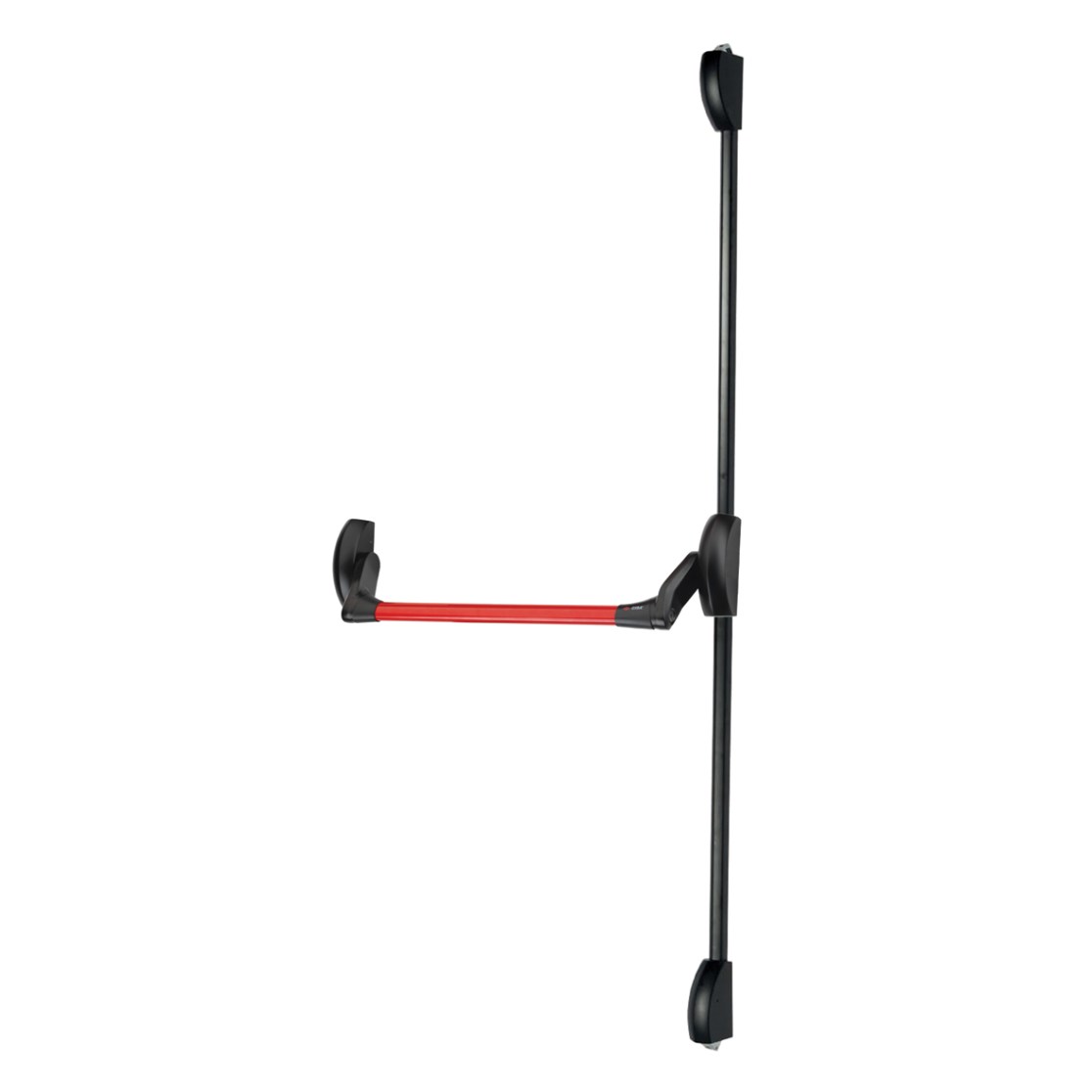

Anti-panic set Fast Push 2 bolts top-buttom
