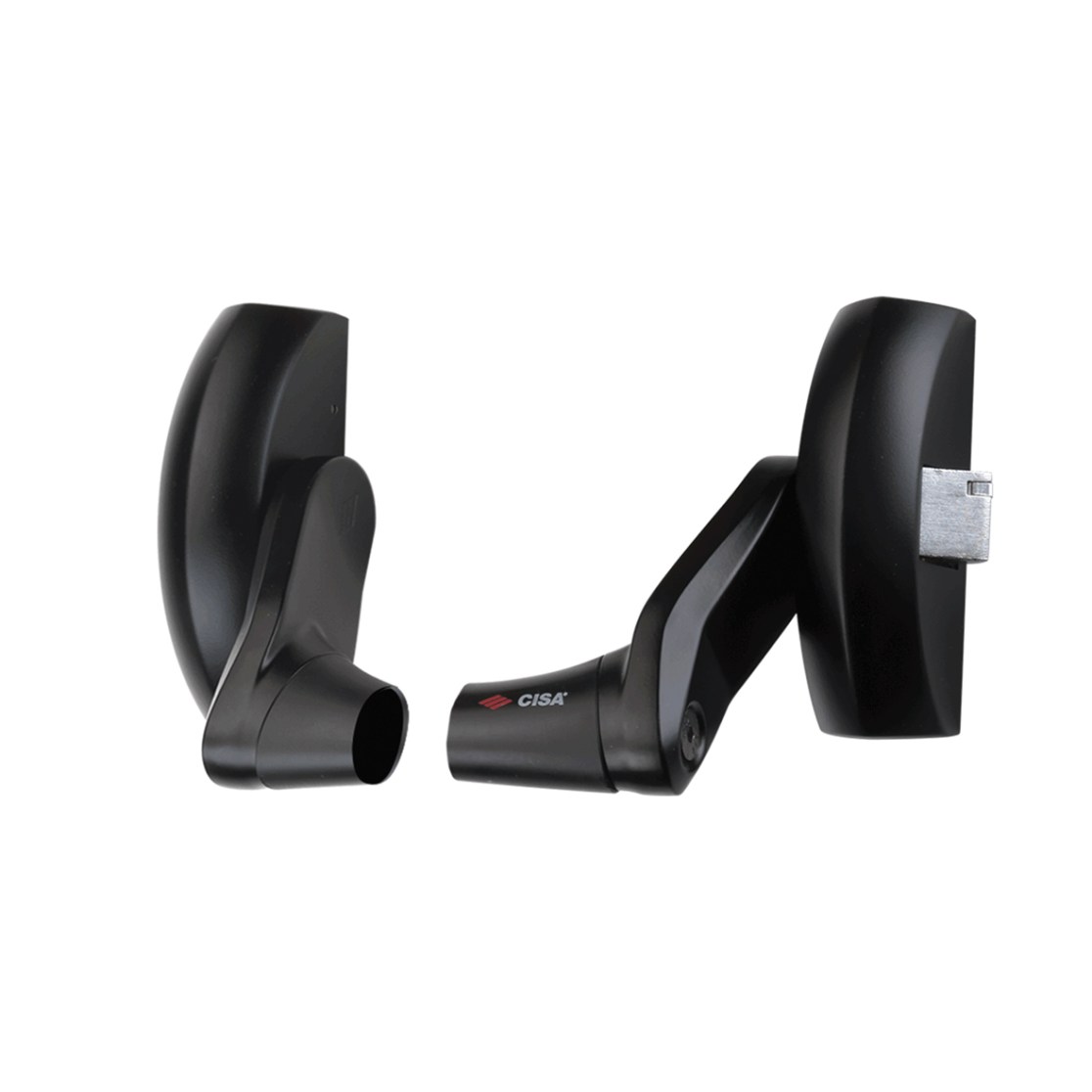

Anti-panic lockset Fast Push side bolt

7533-00-34
arrow_selector
close

Solid anti-panic lockset Fast Push.

  • with bolt
  • with bolt blocking
Specifications Downloads Technical drawings

Specifications

Commercial information
expand_more
Type Fast Push side bolt
Use for emergency exit doors
Safety information
expand_more
SKG No
Police Hallmark False
CE Applicable False
Technical information
expand_more
Product Length 139 mm
Product Width 90 mm
Thickness 100 mm
Operation from the inside
Material Aluminum
Finish Black lacquered
Material 2 Steel
Finish 2 Galvanized
Assembly information
expand_more
Including Mounting Material True
Logistic information
expand_more
Product Weight 2350 gr
Pieces per small package 1 piece
EAN small package 8713249251684
Weight small package 2.35 kg
Dimensions small package 260 x 100 x 100 mm
Pieces per bulk package 5 piece
EAN bulk package 8713249253824
Weight bulk package 0 kg

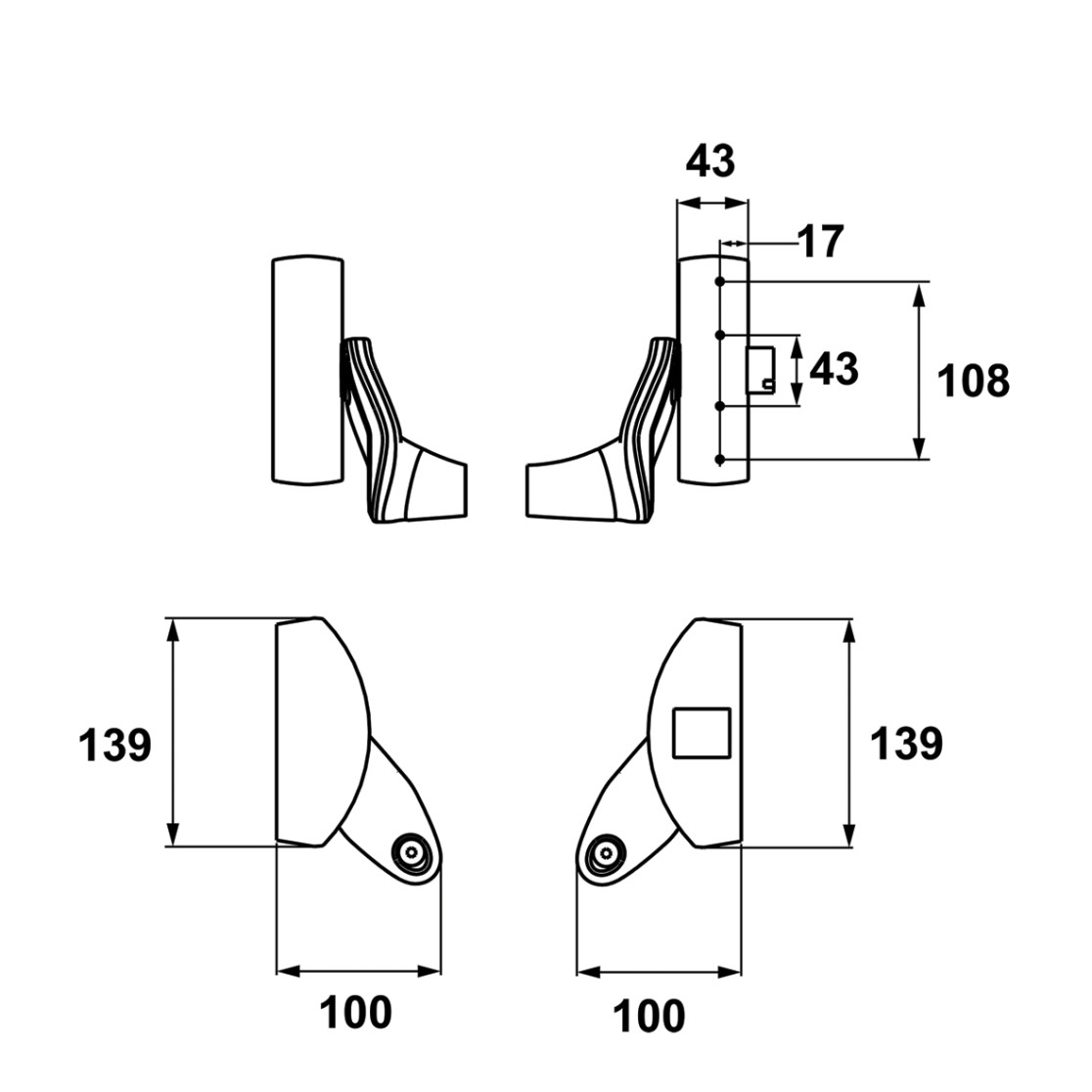

Technical drawings
Anti-panic lockset Fast Push side bolt
75330034
