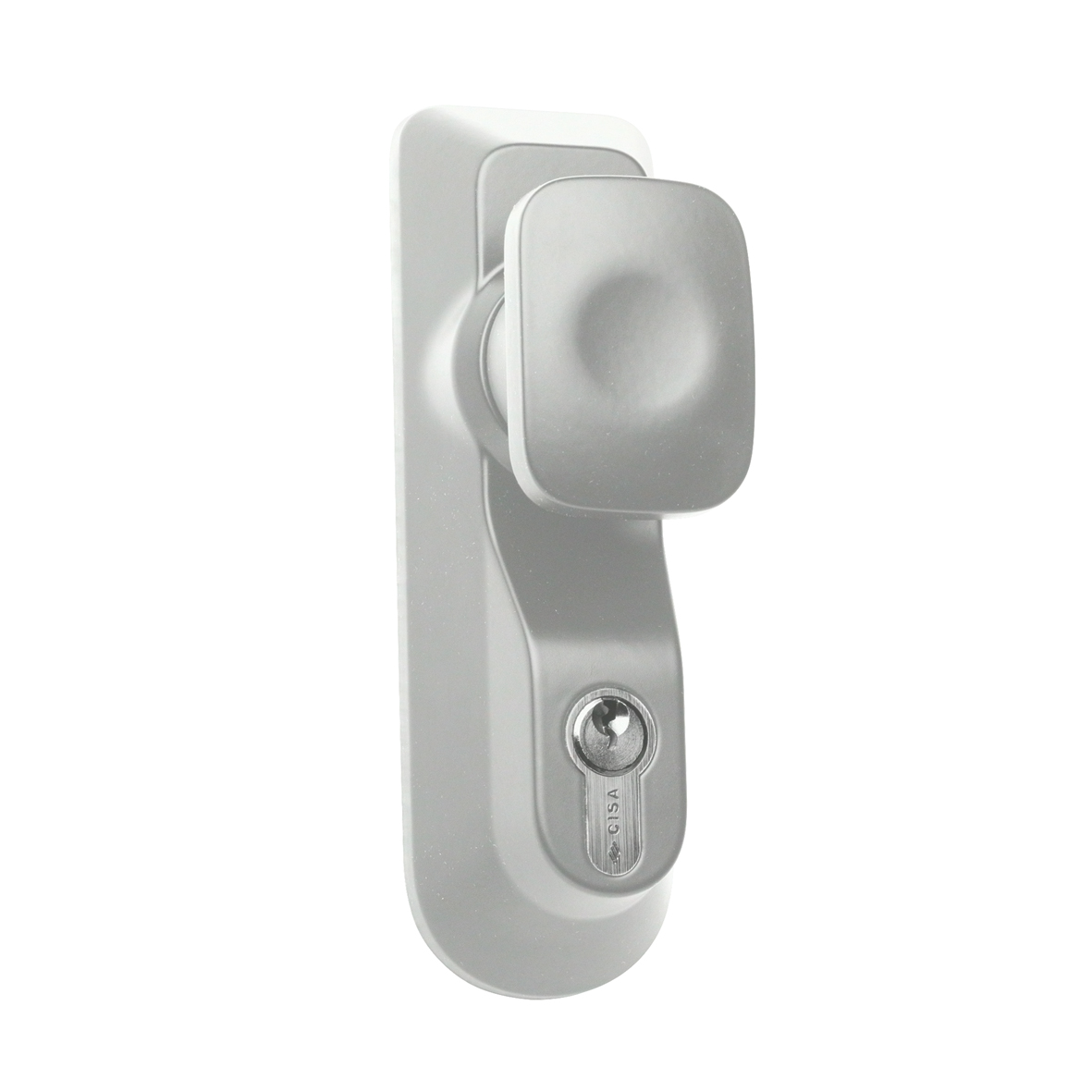

Anti-panic fittings 1413 knob

7BR-1413-KESE
arrow_selector
close

Solid anti-panic knobfittings.

  • solid and reliable
  • complete with attachment material
Specifications Downloads Technical drawings Similar products
Commercial information
expand_more
Type 1413 knob
Use for emergency exit doors in combination with 372, 376, 377 and 378
Safety information
expand_more
Burglarproof False
SKG No
Police Hallmark False
CE certificate of conformity False
Technical information
expand_more
Product Length 118 mm
Product Width 46 mm
Thickness 55 mm
Operation from the outside
Heart to heart size type handle hole - Euro profile hole (PC)
Material zamac
Finish Grey lacquered
Assembly information
expand_more
Including Mounting Material True
Recommended Mounting Materials
- M5 x 90 mm bolt: 2 pieces
- spindle:1 piece
Logistic information
expand_more
Pieces per small package 1 piece
EAN small package 5050640036933

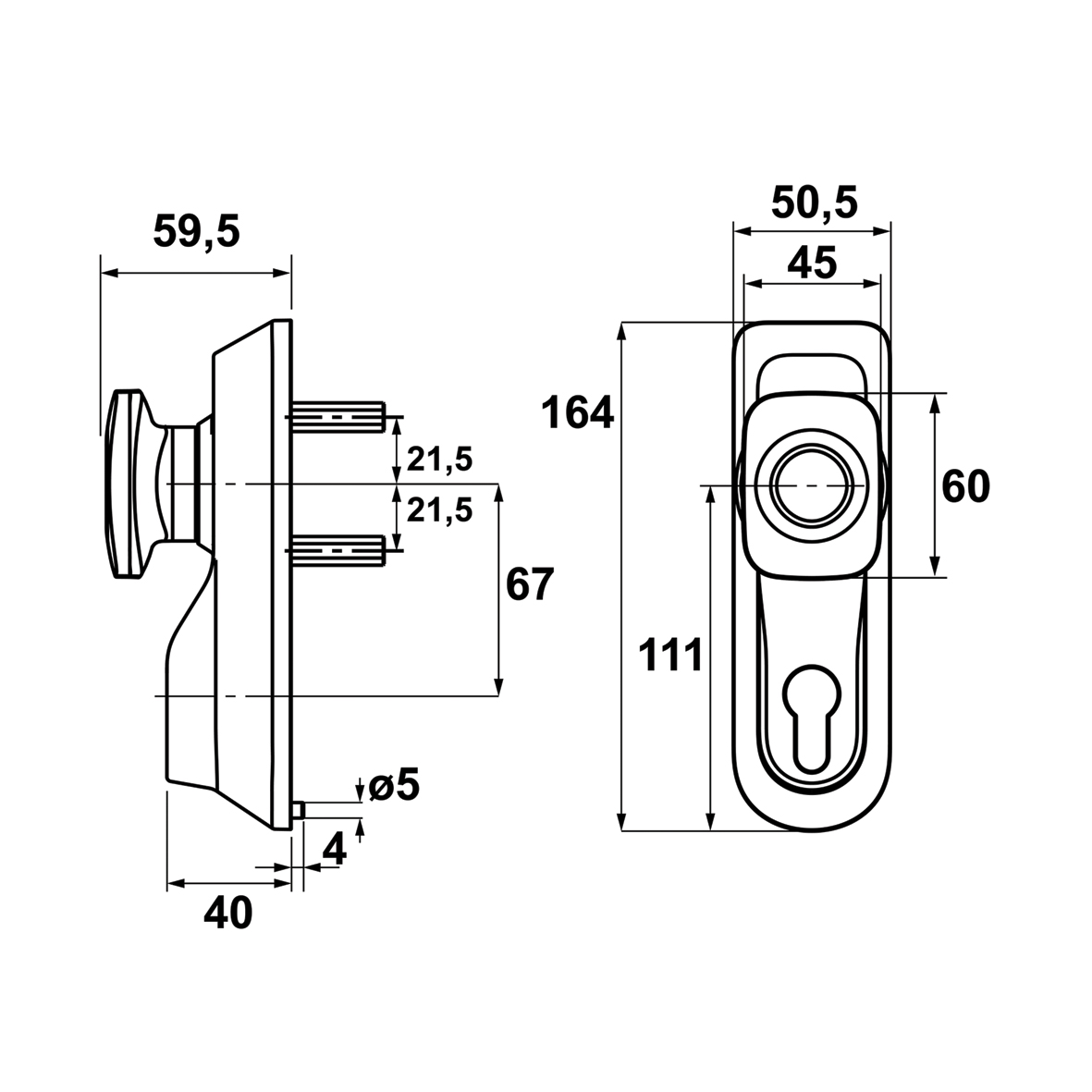

Technical drawings
Anti-panic fittings 1413 knob
7BR1413KESE
