Anti-panic cross bar set side bolt

7BR-378D-LSE
arrow_selector
close

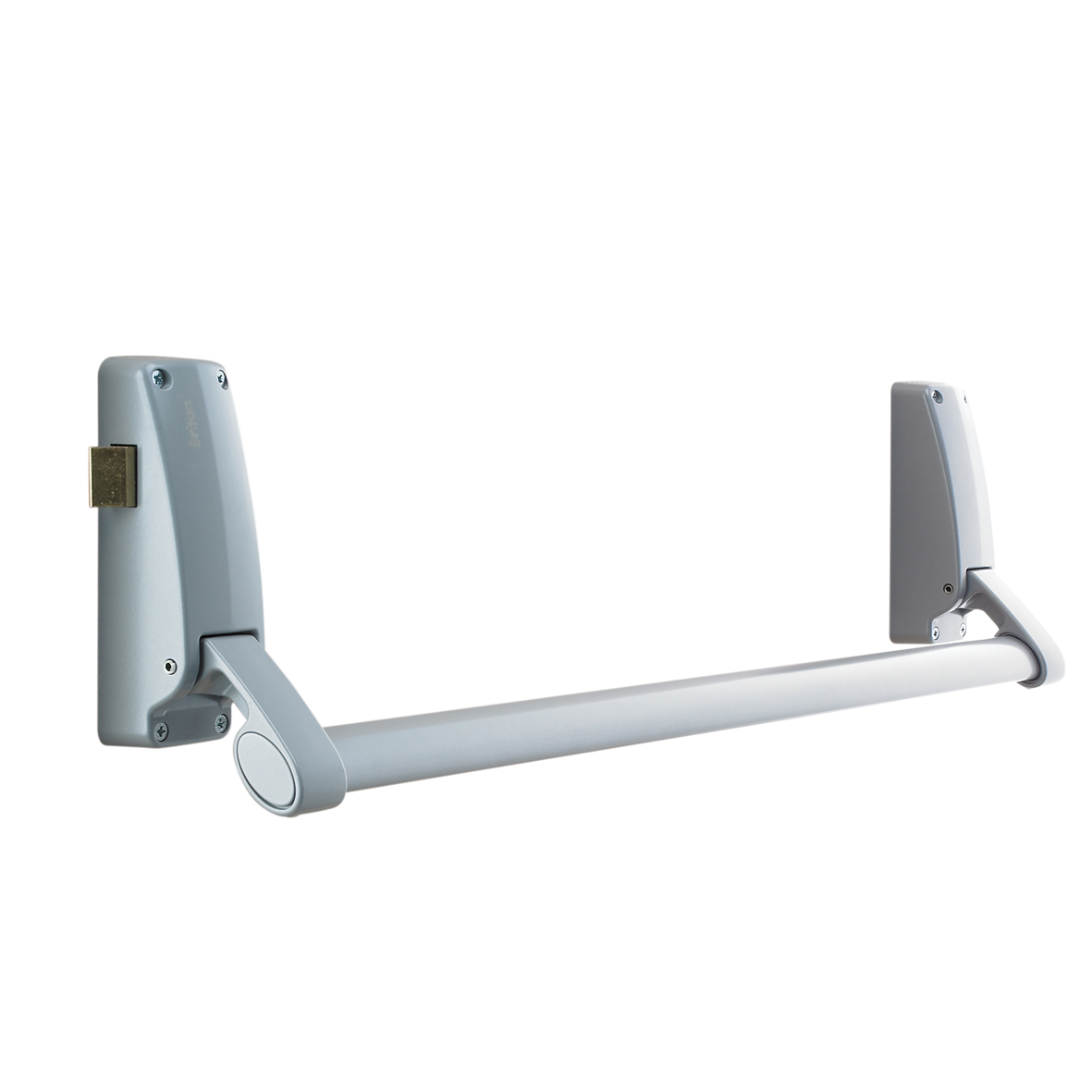

Solid anti-panic cross bar.

  • with side bolt
  • for single doors
  • low operating force
  • low noise
  • can be cut up to 300 mm
  • fast installation
  • easy inspection and maintenance
  • fully certified to EN 1125
Specifications Downloads Technical drawings Alternative products

Specifications

Commercial information
expand_more
Type side bolt
Use for single emergency exit door
Safety information
expand_more
SKG No
Police Hallmark False
CE Applicable True
Technical information
expand_more
Product Width 1200 mm
Product Height 108 mm
Thickness 100 mm
Operation from the inside
Material Aluminum
Finish Grey lacquered
Material 2 Steel
Finish 2 Galvanized
Logistic information
expand_more
Product Weight 1902 gr
Pieces per small package 1 piece
EAN small package 5050640031129
Weight small package 2.47 kg
Dimensions small package 123 x 17 x 65 mm

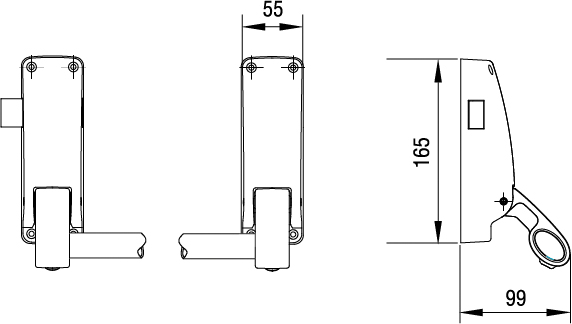

Technical drawings

Alternative products
