Anti-panic cross bar set 2 bolts top-buttom+1 side

7BR377DLSE
arrow_selector
close

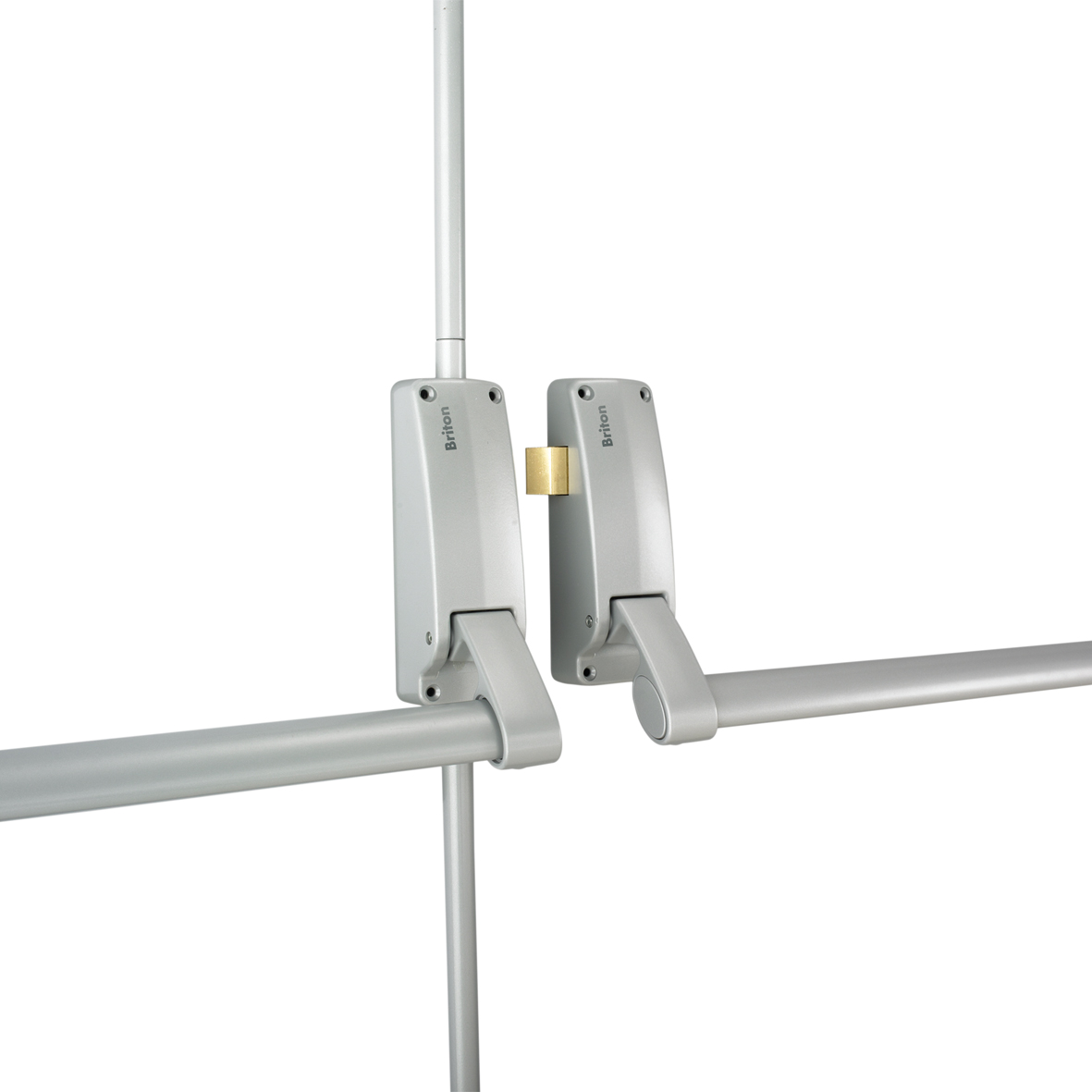

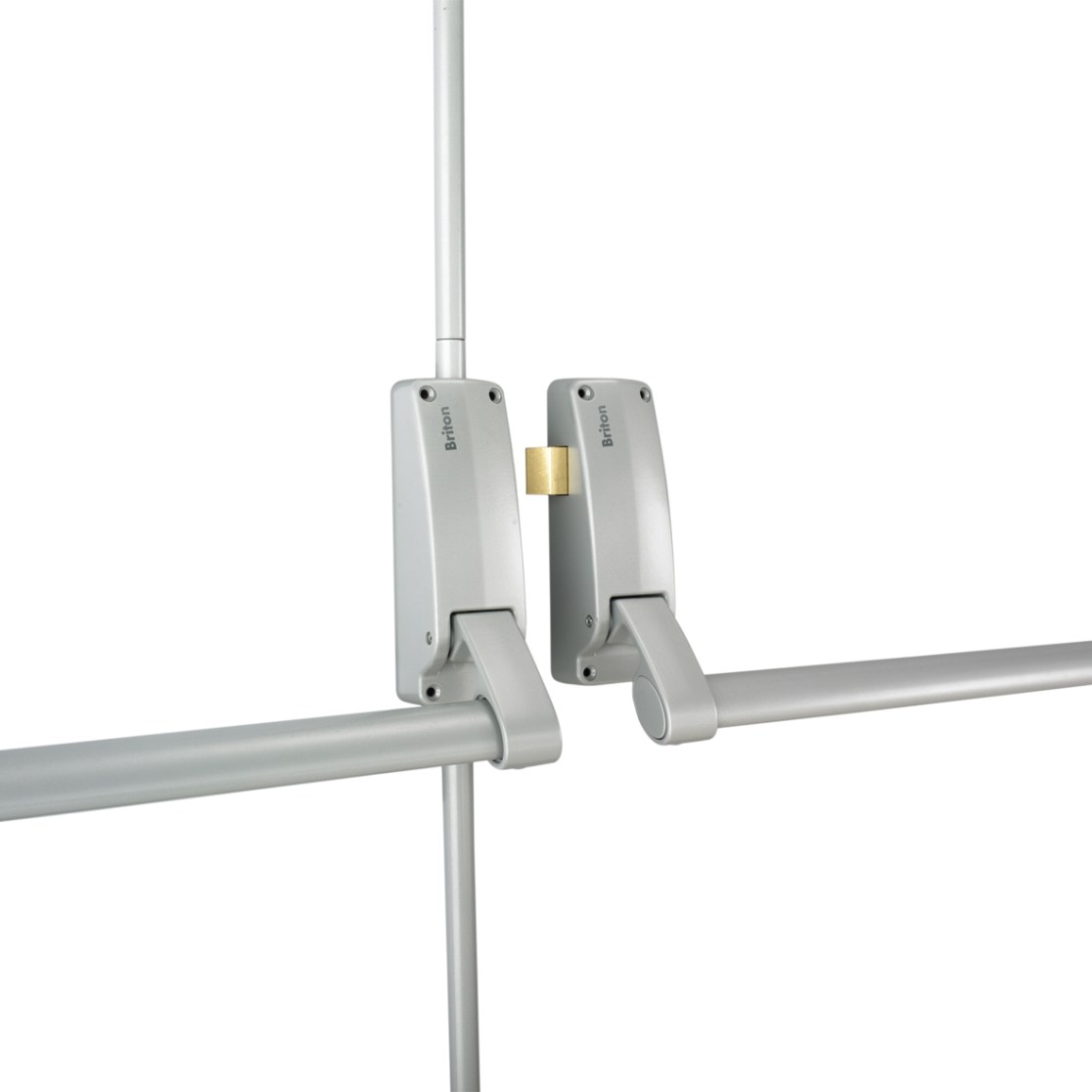

Solid anti-panic cross bar set.

  • with 2 top-buttom bolts and 1 horizontal
  • for double doors
  • low operating force
  • low noise
  • can be cut up to 300 mm
  • fast installation
  • easy inspection and maintenance
  • fully certified to EN 1125
Specifications Downloads Technical drawings

Specifications

Commercial information
expand_more
Type 2 bolts top-buttom+1 side

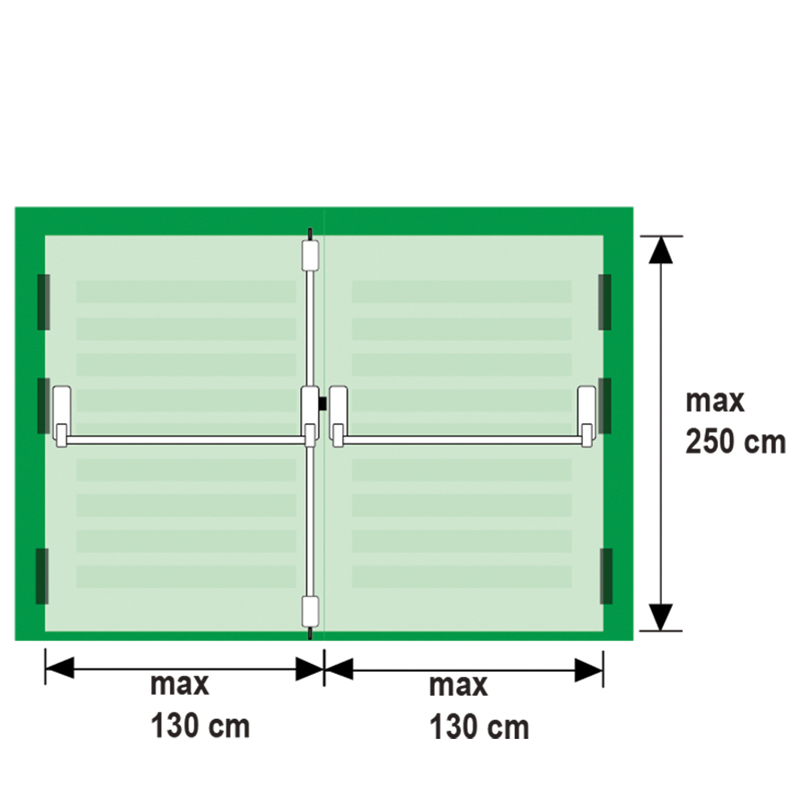

Use for double emergency exit doors
Safety information
expand_more
SKG No
Police Hallmark False
CE Applicable True
Technical information
expand_more
Product Width 1200 mm
Product Height 108 mm
Operation from the inside
Material Aluminum
Finish Grey lacquered
Material 2 Steel
Finish 2 Galvanized
Logistic information
expand_more
Pieces per small package 1 piece
EAN small package 5050640030368

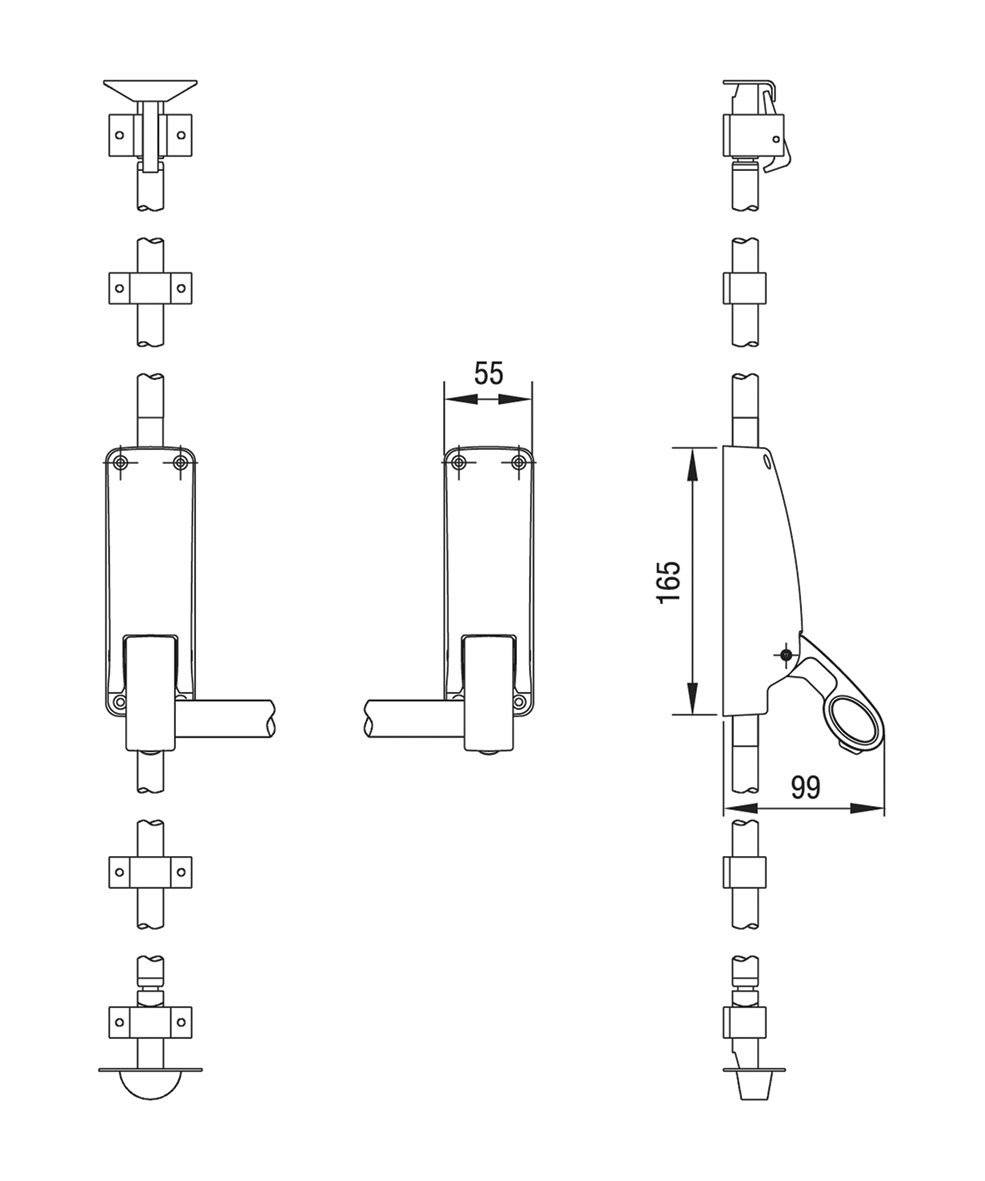

Technical drawings
