Anti-panic bar Fast Touch 7523 side bolt

7523-12-36
arrow_selector
close

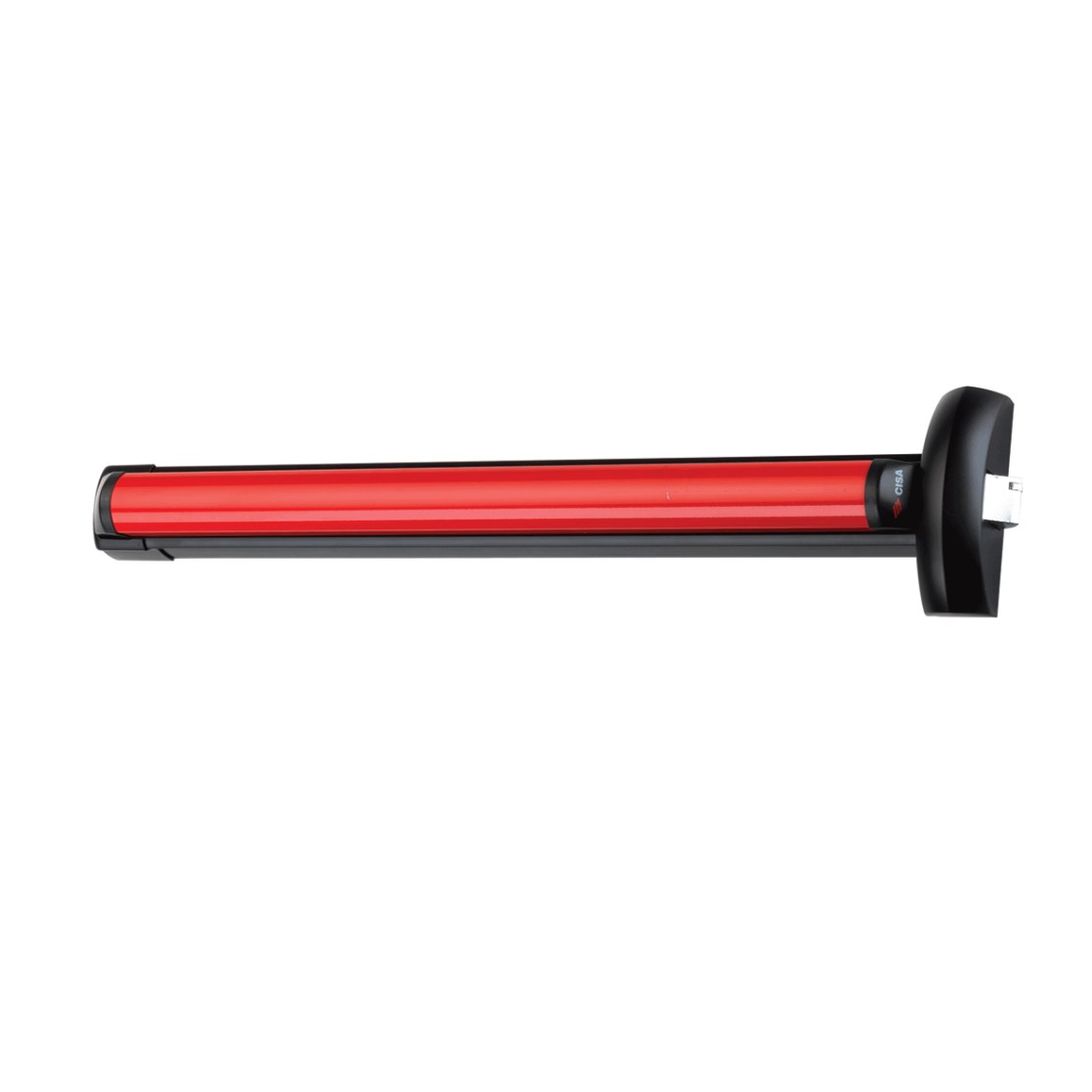

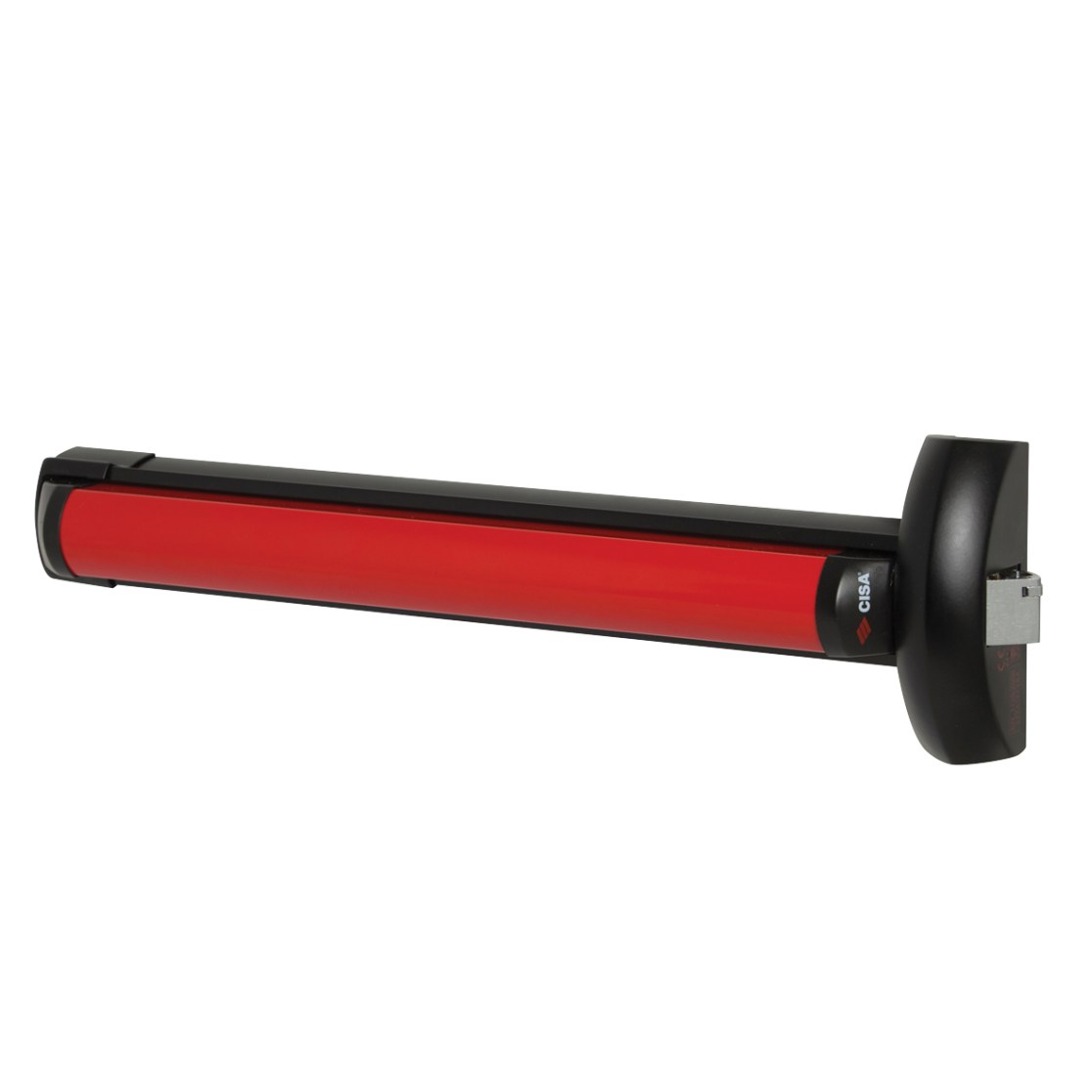

Solid anti-panic bar Fast Touch.

  • with 1 horizontal bolt
  • with bolt blocking
  • low operating force
  • low noise
  • easily cut to size
  • fast installation
  • easy inspection and maintenance
  • meets EN 1125
Specifications Downloads Technical drawings Alternative products

Specifications

Commercial information
expand_more
Type Fast Touch 7523 side bolt
Use for single emergency exit door
Safety information
expand_more
SKG No
Police Hallmark False
CE Applicable True
Technical information
expand_more
Product Width 1300 mm
Product Height 139 mm
Thickness 66 mm
Operation from the inside
Hold-open function type hold-back function
Material Aluminum
Finish Black lacquered
Finish Red lacquered
Material 2 Steel
Finish 2 Galvanized
Assembly information
expand_more
Including Mounting Material True
Logistic information
expand_more
Product Weight 3700 gr
Pieces per small package 1 piece
EAN small package 8713249251554
Weight small package 3.7 kg
Dimensions small package 1225 x 145 x 70 mm
Pieces per bulk package 3 piece
EAN bulk package 8713249253770
Weight bulk package 0 kg

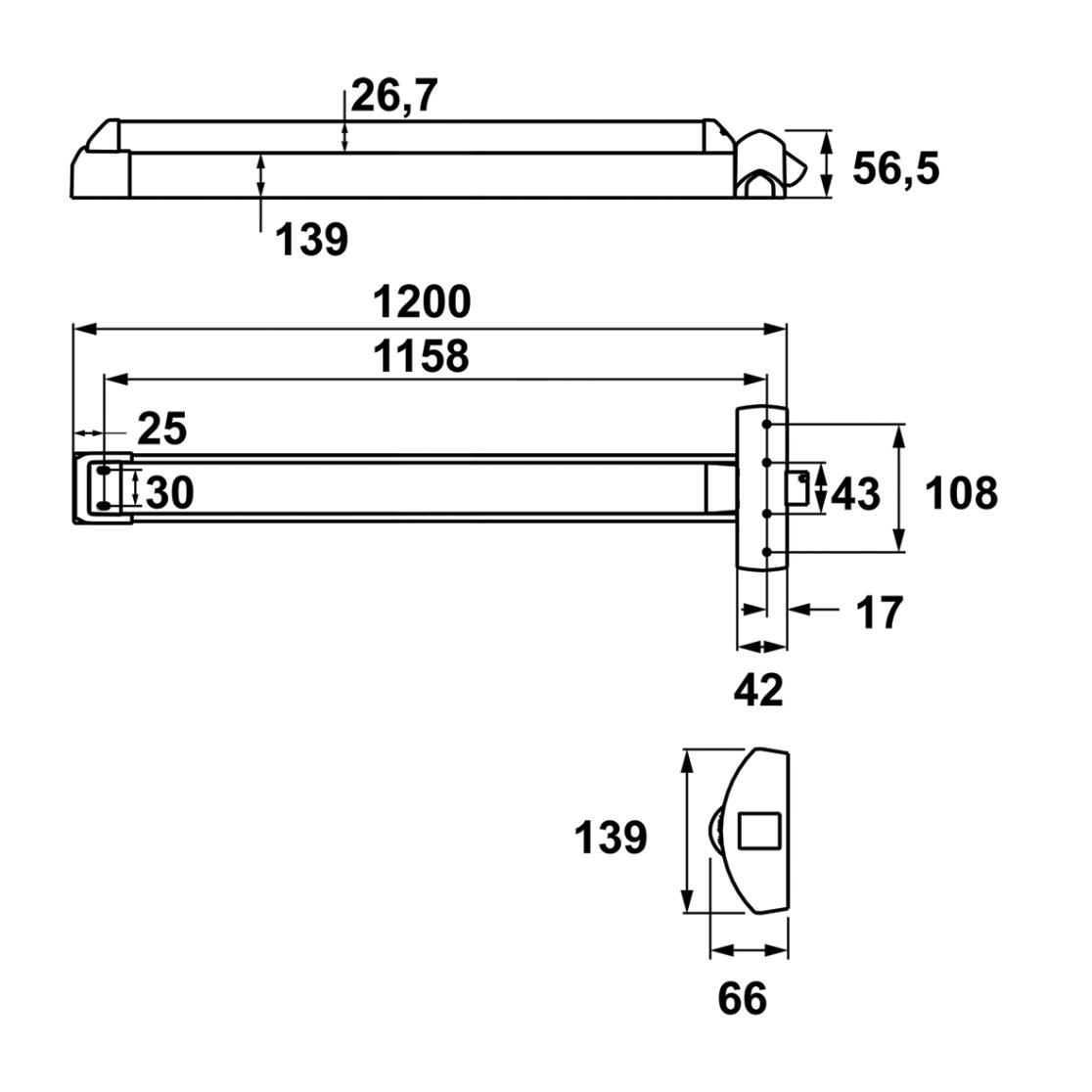

Technical drawings
Anti-panic bar Fast Touch 7523 side bolt
75231236

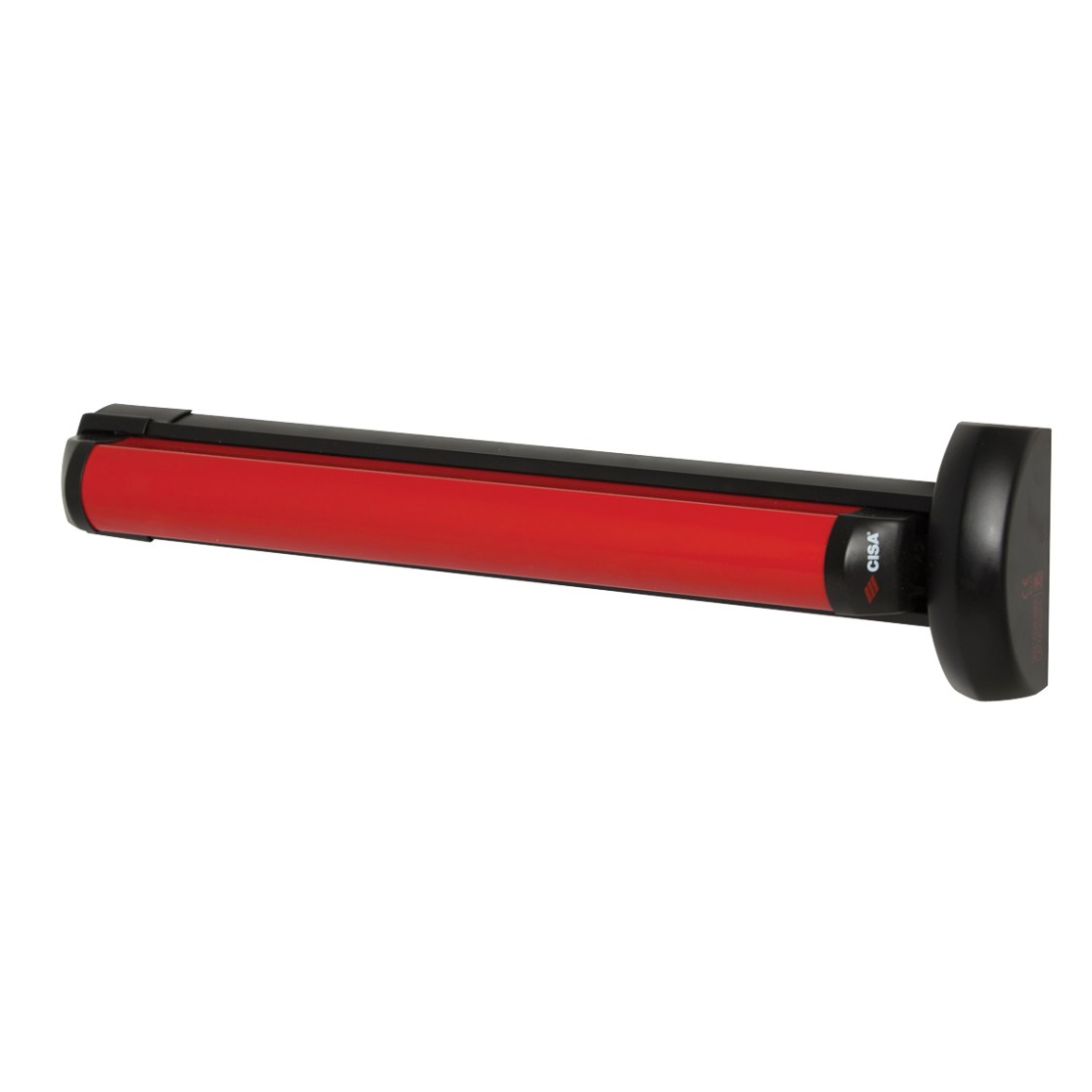

Alternative products
