Commercial nightlatch PC
7BR-5555-60RSSSolid commercial nightlatch for intensive use.
- with stainless steel 316 face plate
- with cylinder hole outsite
- fast reversible latch bolt
- solid spindlemechanism
- incl. striking plate and attachment materials
Solid commercial nightlatch for intensive use.
- with stainless steel 316 face plate
- with cylinder hole outsite
- fast reversible latch bolt
- solid spindlemechanism
- incl. striking plate and attachment materials
Specifications
Commercial information
Type PC
Use for exterior doors
Safety information
SKG No
Police Hallmark False
CE Applicable True
Technical information
Product Length 235 mm
Product Width 20 mm
Thickness 15 mm
Mounting depth 93 mm
Corner shape round corner
Direction of rotation DIN all directions
Heart to heart size type handle hole - Euro profile hole (PC)
Backset 60 mm
Material Stainless steel 316
Finish Brushed
Material 2 Steel
Finish 2 Black lacquered
Assembly information
Including Mounting Material True
Assembly time 5 min
Logistic information
Product Weight 859 gr
Pieces per small package 1 piece
EAN small package 5050640031006
Weight small package 0.915 kg
Dimensions small package 241 x 93 x 25 mm
Downloads
Main Image Installation Manual Declaration of Performance

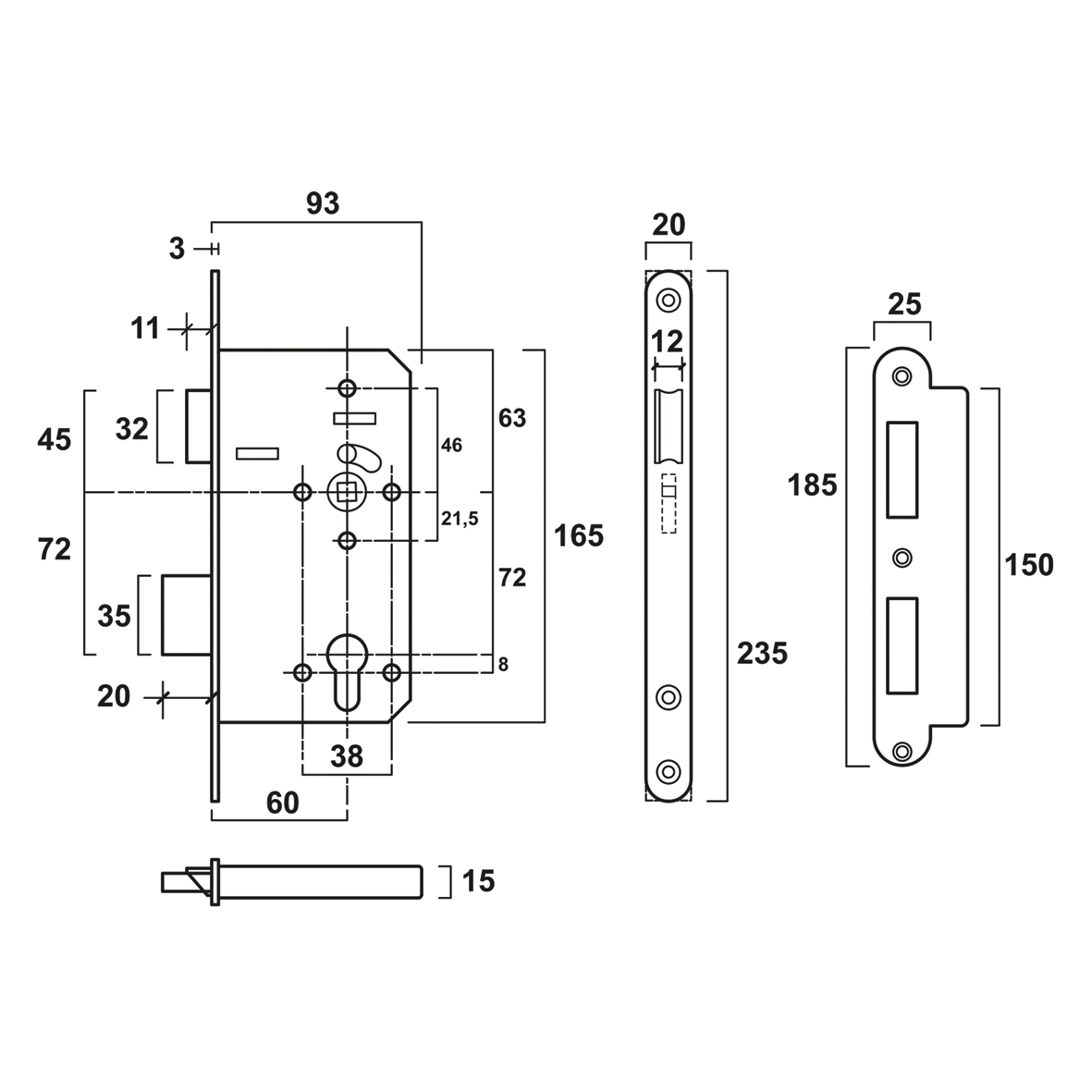

Technical drawings
