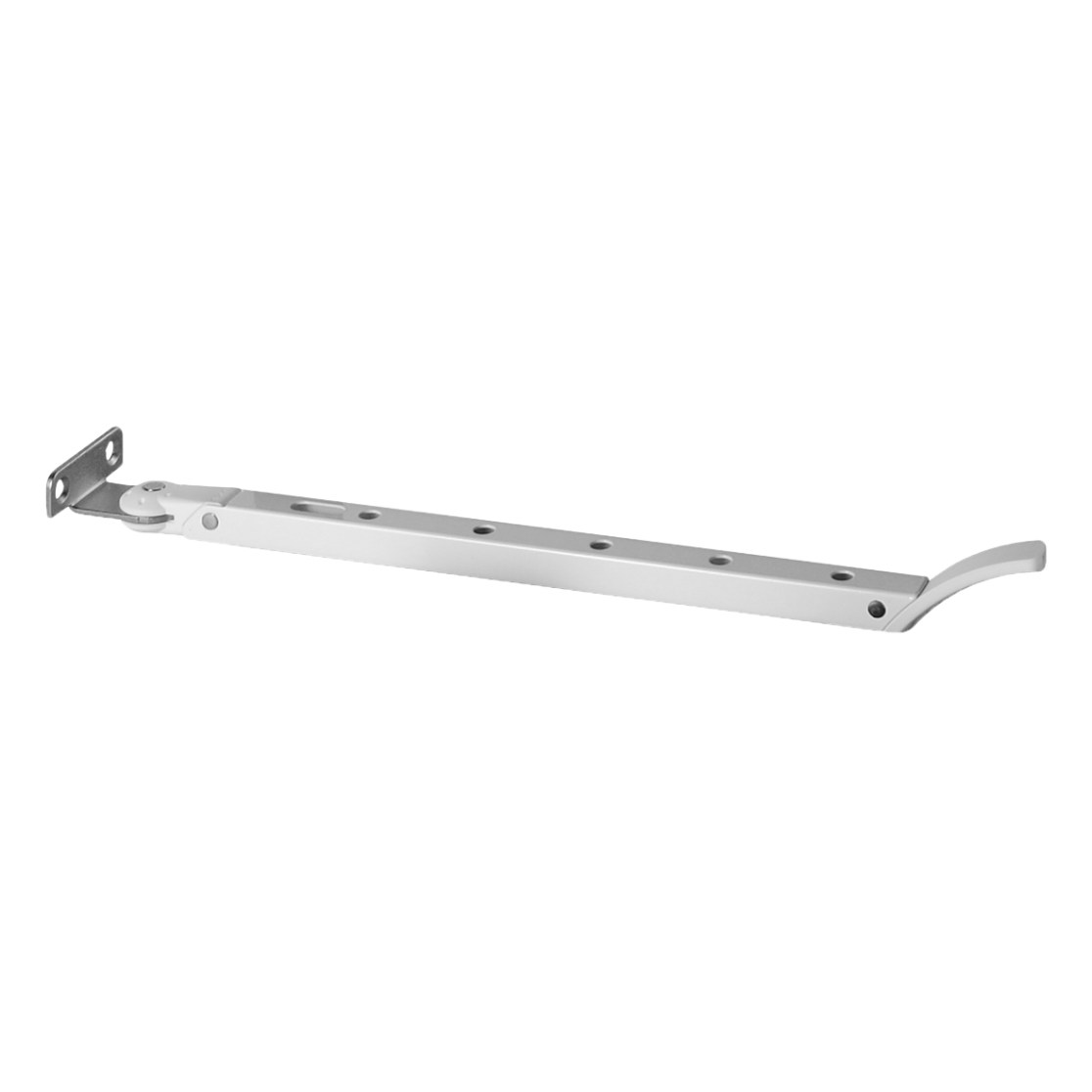

Window stay Habilis

2636-30-74/CP
arrow_selector
close

The AXA Habilis window stay makes it possible to use casement windows for ventilation purposes.

  • five ventilation positions
  • wind-resistant
  • the stay cannot slip off the pin on windy days
Specifications Downloads Technical drawings Associated products Alternative products Similar products

Specifications

Recommended Mounting Materials
- 4.0 x 30 mm screw: 4 pieces
Commercial information
expand_more
Type Habilis
Use for casement windows outward-opening
Safety information
expand_more
SKG No
Police Hallmark False
CE Applicable False
Technical information
expand_more
Product Length 355 mm
Direction of rotation outward-opening
Operation 5 ventilation positions, the stay cannot slip off the pin on windy days
Material Stainless steel
Finish White lacquered
Material 2 Synthetic
Finish 2 White
Assembly information
expand_more
Including Mounting Material True
Mounting length 355 mm
Required depth wood frame 38 mm
Window/door mounting width requirement 32 mm
Assembly time 15 min
Recommended Mounting Materials
- 4.0 x 30 mm screw: 4 pieces
Logistic information
expand_more
Pieces per small package 1 piece
EAN small package 8713249353869
Weight small package 0.254 kg
Dimensions small package 400 x 85 x 45 mm
Pieces per bulk package 8 piece
EAN bulk package 8713249353876
Weight bulk package 2.3 kg
Dimensions bulk package 425 x 175 x 180 mm

Technical drawings
Window stay Habilis
26363074CP
