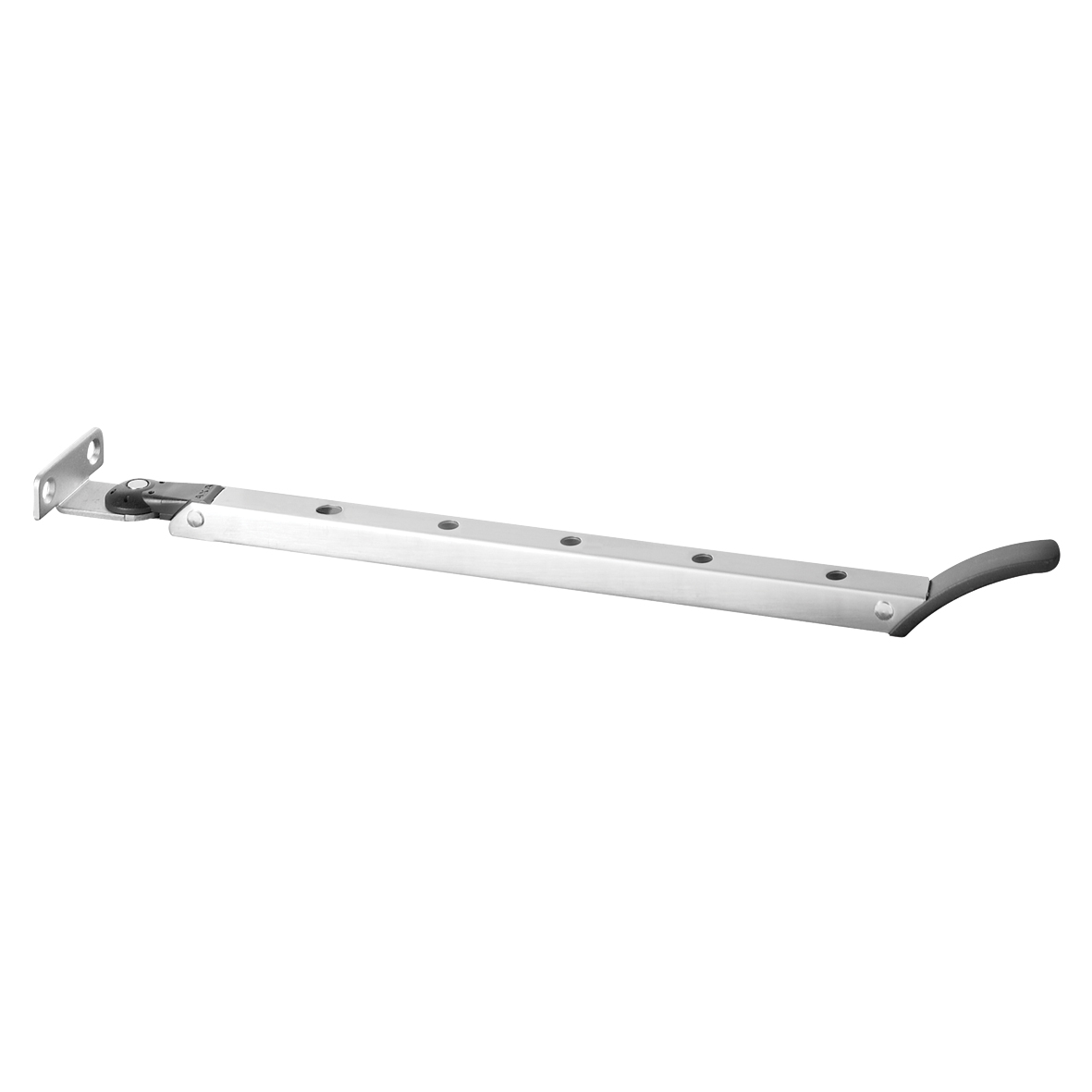

Window stay Elite
2609-30-81/6The AXA Elite window stay makes it possible to use casement windows for ventilation purposes.
- five ventilation positions
- window stay can be removed from the pin, making it possible to open the window fully
- stainless steel

The AXA Elite window stay makes it possible to use casement windows for ventilation purposes.
- five ventilation positions
- window stay can be removed from the pin, making it possible to open the window fully
- stainless steel
Specifications
Recommended Mounting Materials
- 4.0 x 30 mm screw: 4 pieces
- 4.0 x 30 mm screw: 4 pieces
Commercial information
Type Elite
Use for casement windows
Safety information
SKG No
Police Hallmark False
CE Applicable False
Technical information
Product Length 355 mm
Product Width 50 mm
Product Height 32 mm
Direction of rotation outward-opening
Operation 5 ventilation positions, removable from pin
Material Stainless steel
Finish Brushed
Material 2 Synthetic
Finish 2 Black

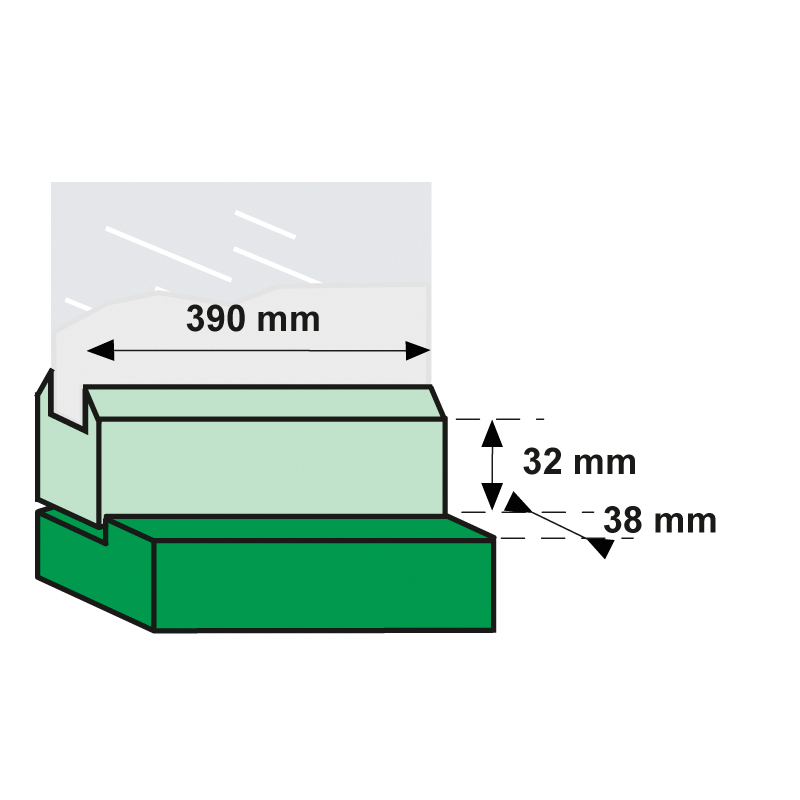

Assembly information
Including Mounting Material False
Mounting length 355 mm
Required depth wood frame 38 mm
Window/door mounting width requirement 32 mm
Assembly time 15 min
Recommended Mounting Materials
- 4.0 x 30 mm screw: 4 pieces
- 4.0 x 30 mm screw: 4 pieces
Logistic information
Product Weight 146 gr
Pieces per bulk package 50 piece
EAN bulk package 8713249048277
Weight bulk package 7.61 kg
Dimensions bulk package 390 x 320 x 180 mm

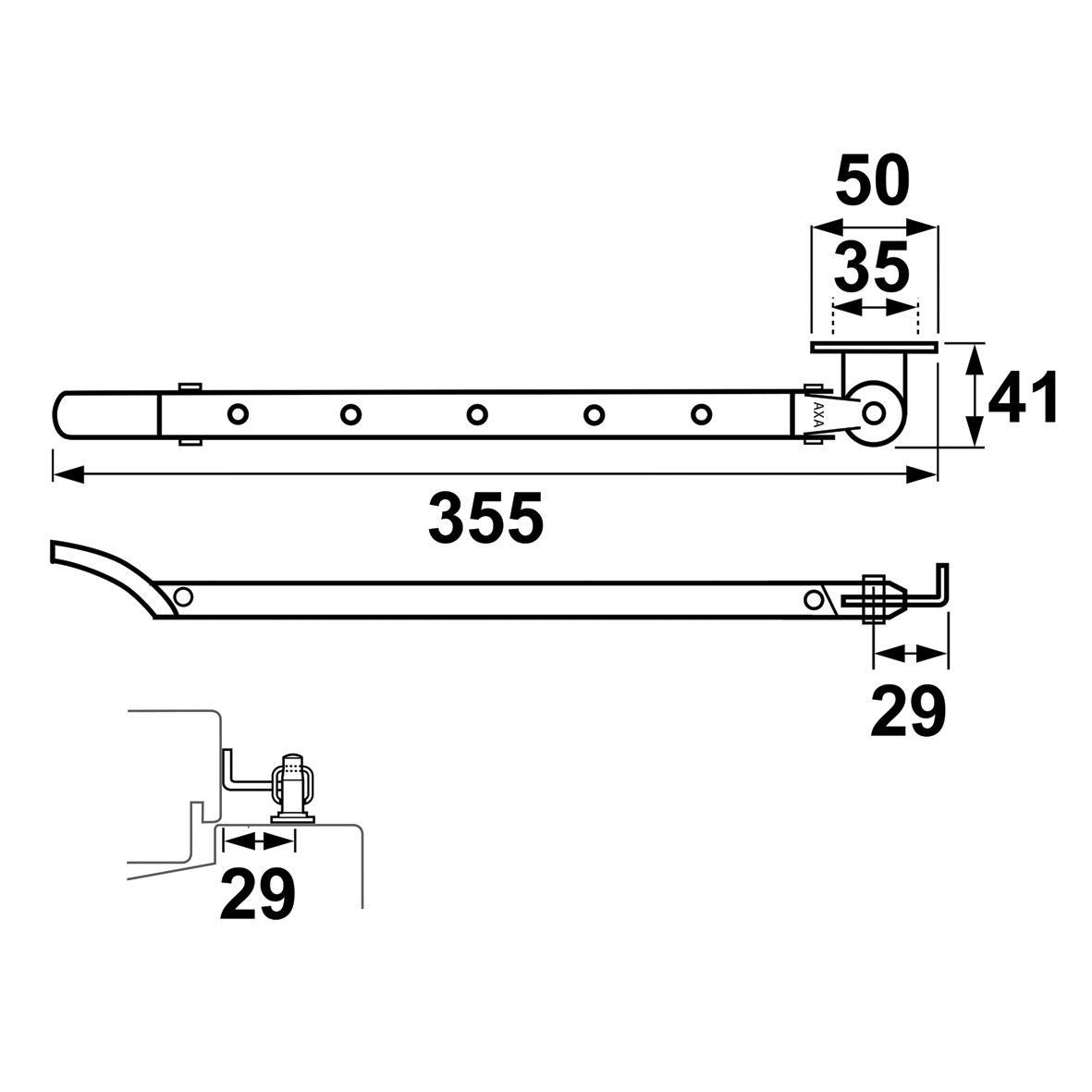

Technical drawings
