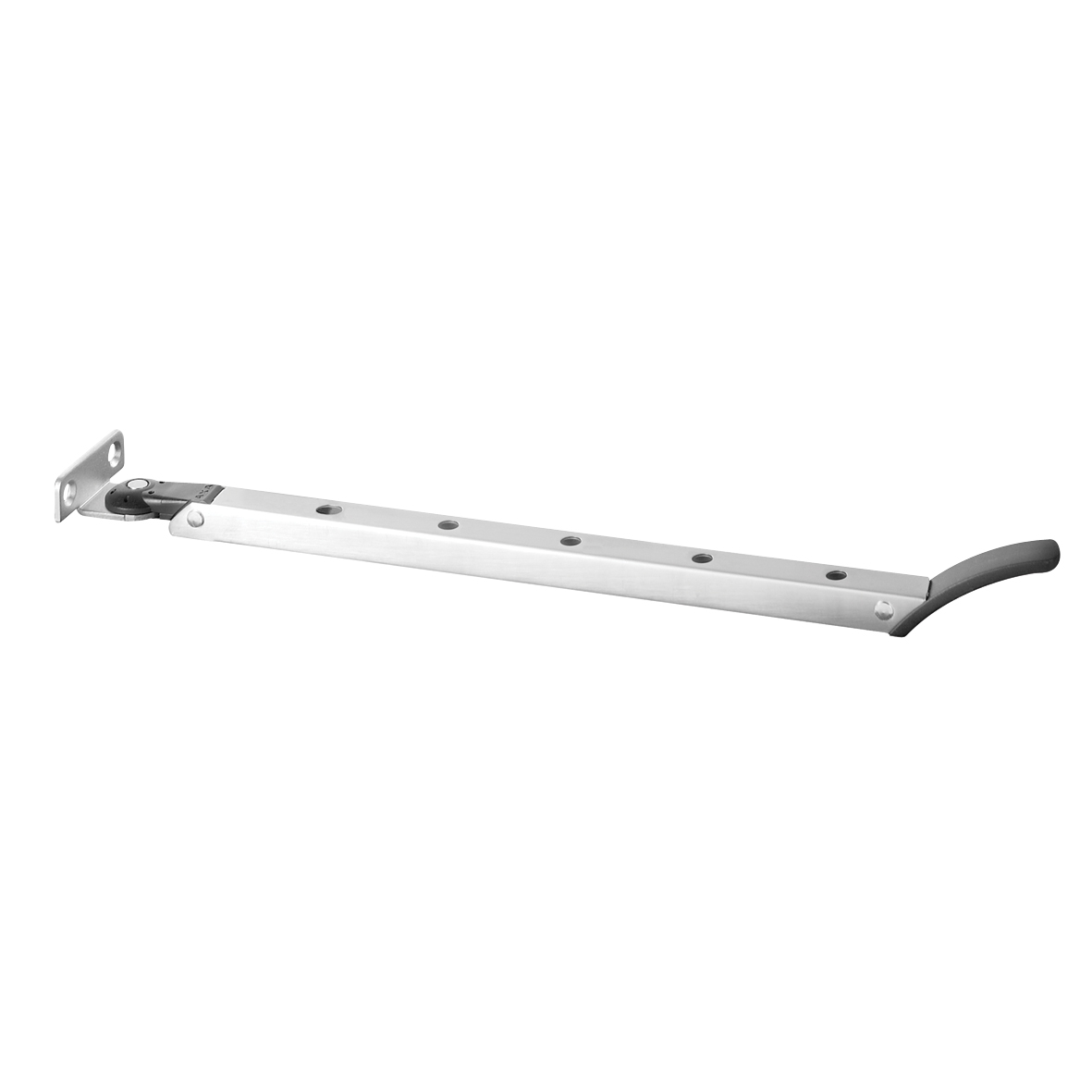

Window stay Elite

2609-31-81
arrow_selector
close

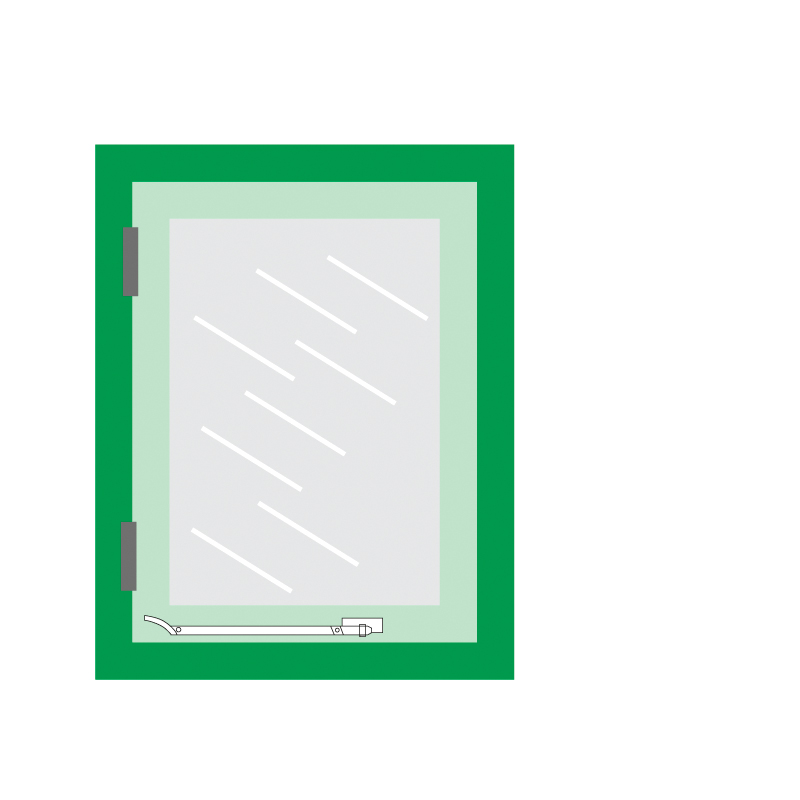

The AXA Elite window stay makes it possible to use casement windows for ventilation purposes.

  • five ventilation positions
  • window stay can be removed from the pin, making it possible to open the window fully
  • stainless steel
Specifications Downloads Technical drawings Associated products Alternative products

Specifications

Recommended Mounting Materials
- 4.0 x 30 mm screw: 4 pieces
Commercial information
expand_more
Type Elite
Use for casement windows
Safety information
expand_more
SKG No
Police Hallmark False
CE Applicable False
Technical information
expand_more
Product Length 355 mm
Product Width 50 mm
Product Height 42 mm
Direction of rotation outward-opening
Operation 5 ventilation positions, removable from pin
Material Stainless steel
Finish Brushed
Material 2 Synthetic
Finish 2 Black
Assembly information
expand_more
Including Mounting Material False
Mounting length 355 mm

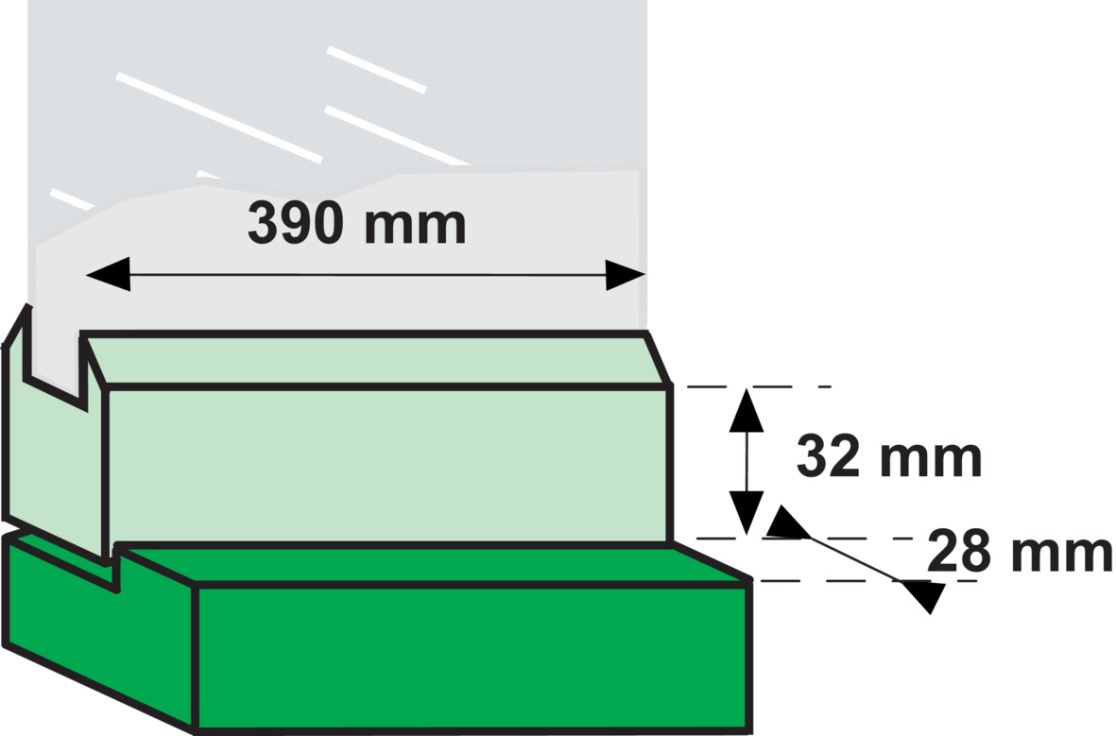

Required depth wood frame 28 mm
Window/door mounting width requirement 32 mm
Assembly time 15 min
Recommended Mounting Materials
- 4.0 x 30 mm screw: 4 pieces
Logistic information
expand_more
Product Weight 137 gr
Pieces per small package 12 piece
EAN small package 8713249048307
Weight small package 1.84 kg
Dimensions small package 381 x 158 x 56 mm
Pieces per bulk package 72 piece
EAN bulk package 8713249048314
Weight bulk package 11.37 kg
Dimensions bulk package 390 x 320 x 180 mm

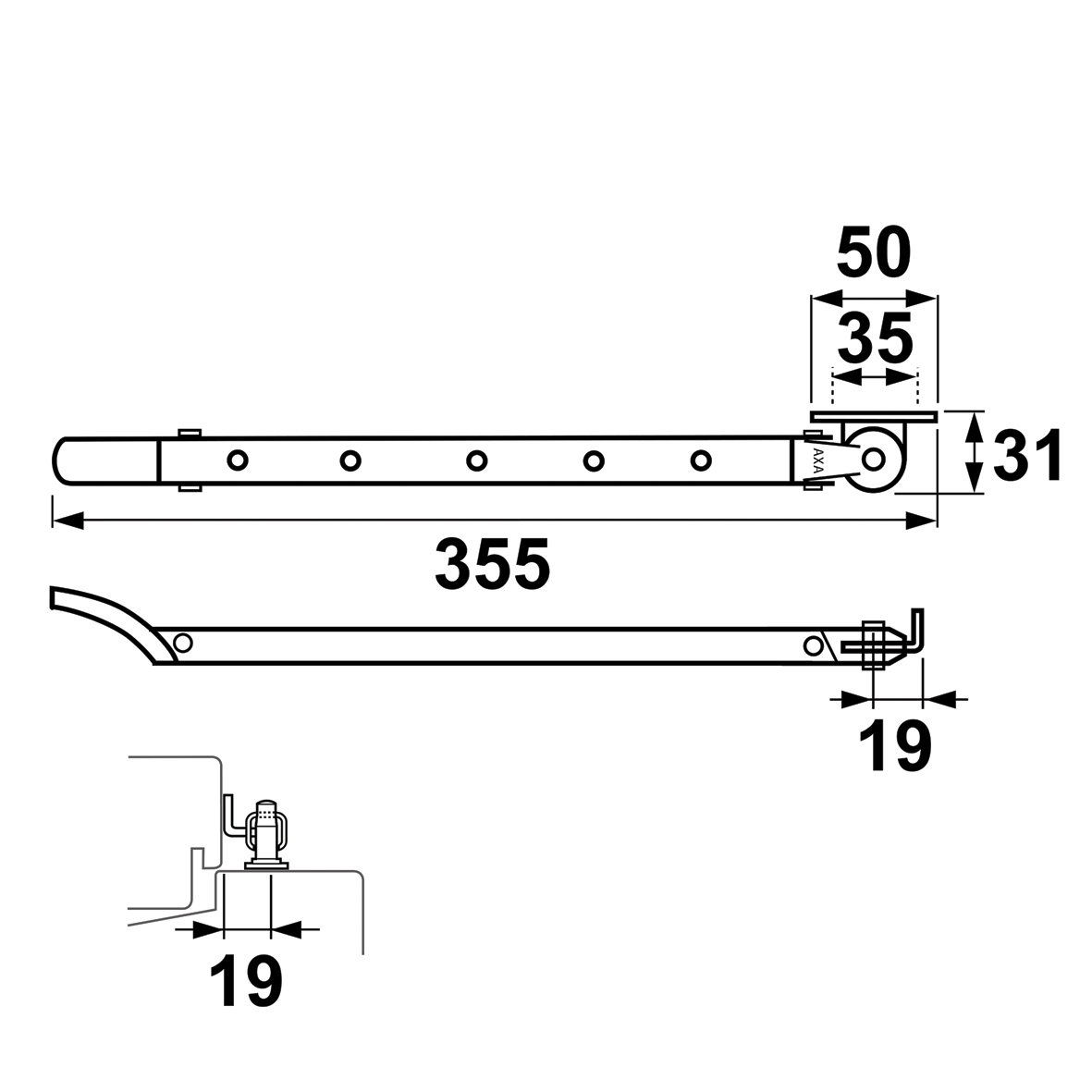

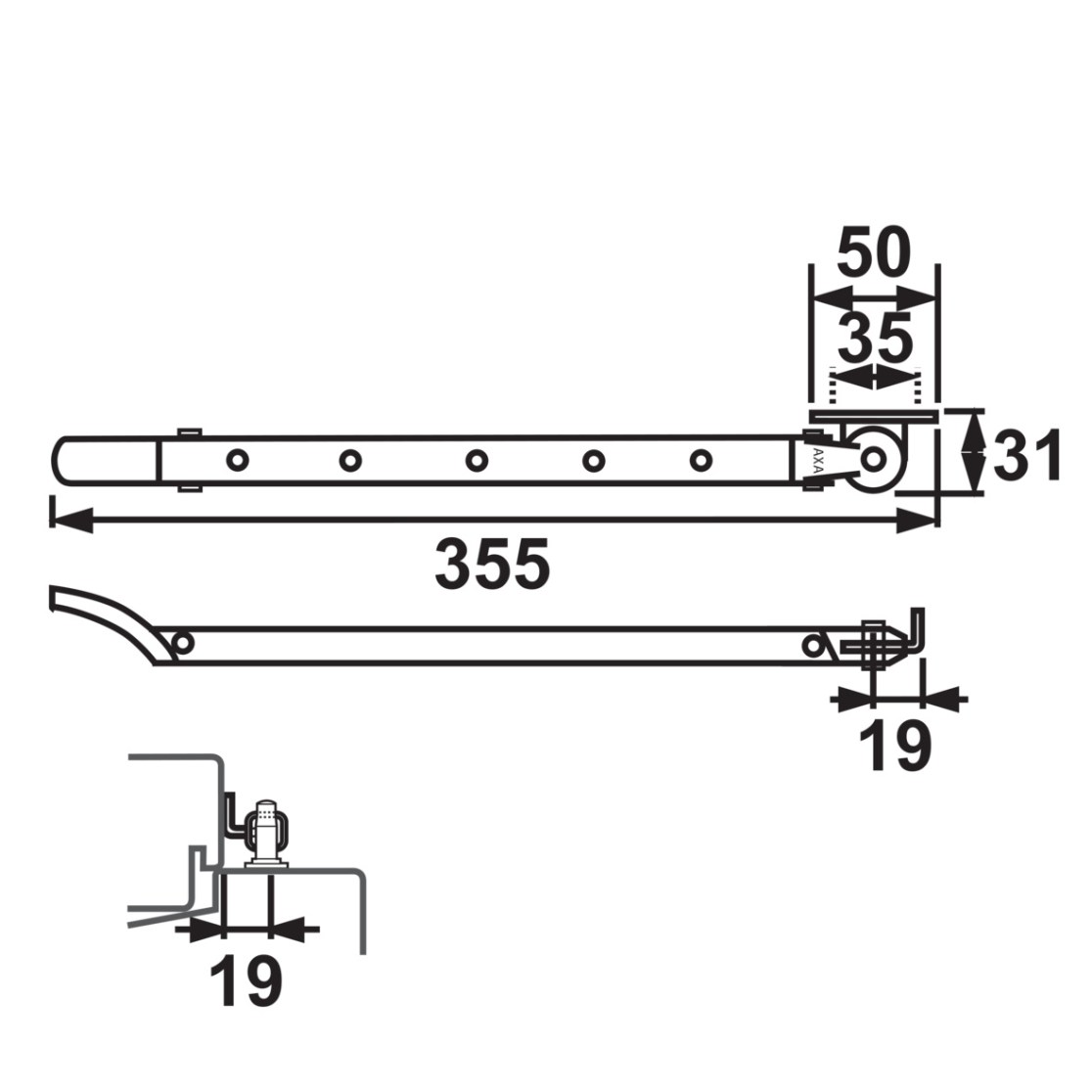

Technical drawings
Window stay Elite
26093181
