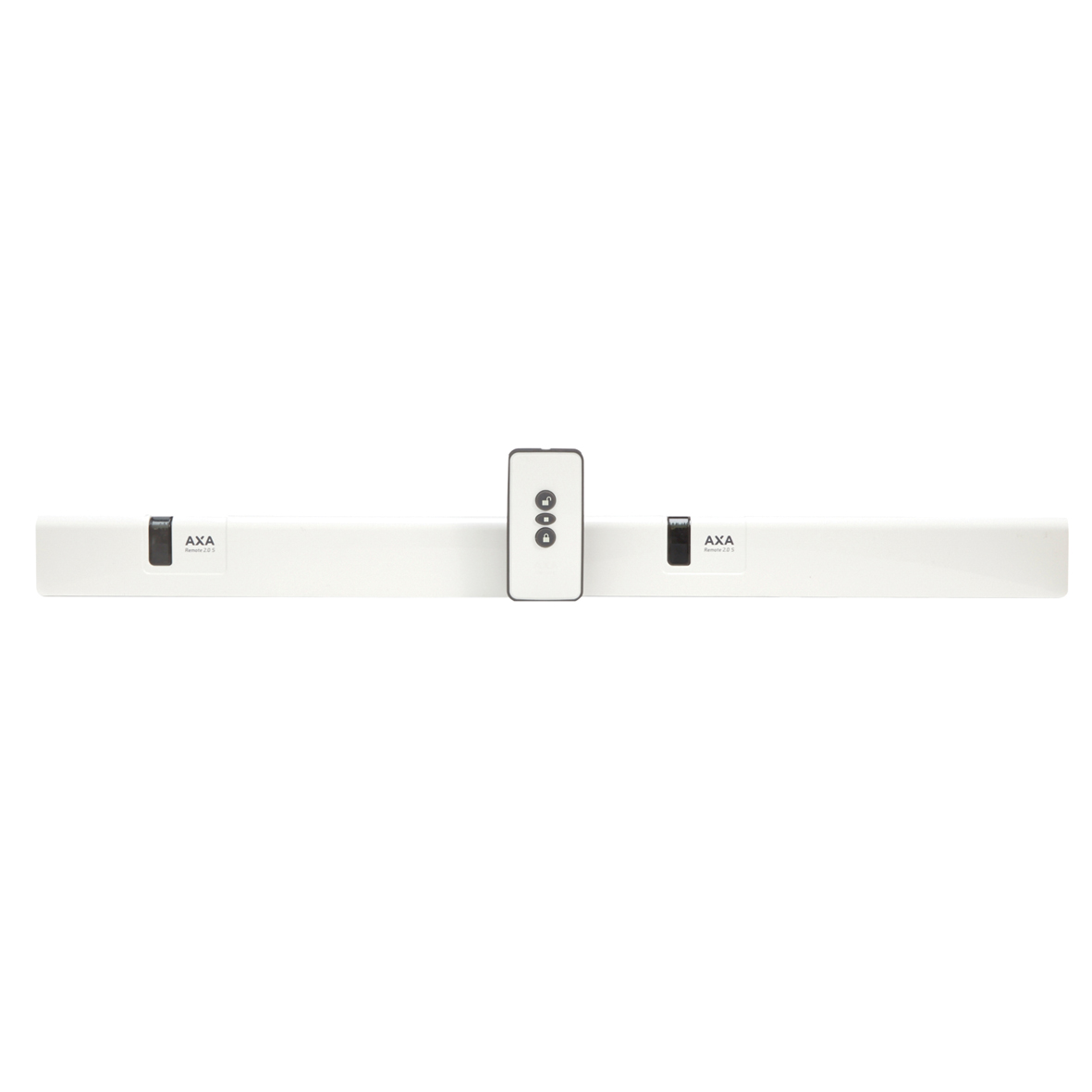

Window opener with remote control AXA Remote 2.0 Synchronous (2x)

2902-50-98

+

2
arrow_selector
close

SKG 2

Police Hallmark

The AXA Remote 2.0â„¢ remote-control window opener makes life easier. No more climbing on unstable stools. A remote control makes it easy to open and close wide hopper windows.

  • natural ventilation for a healthy indoor environment

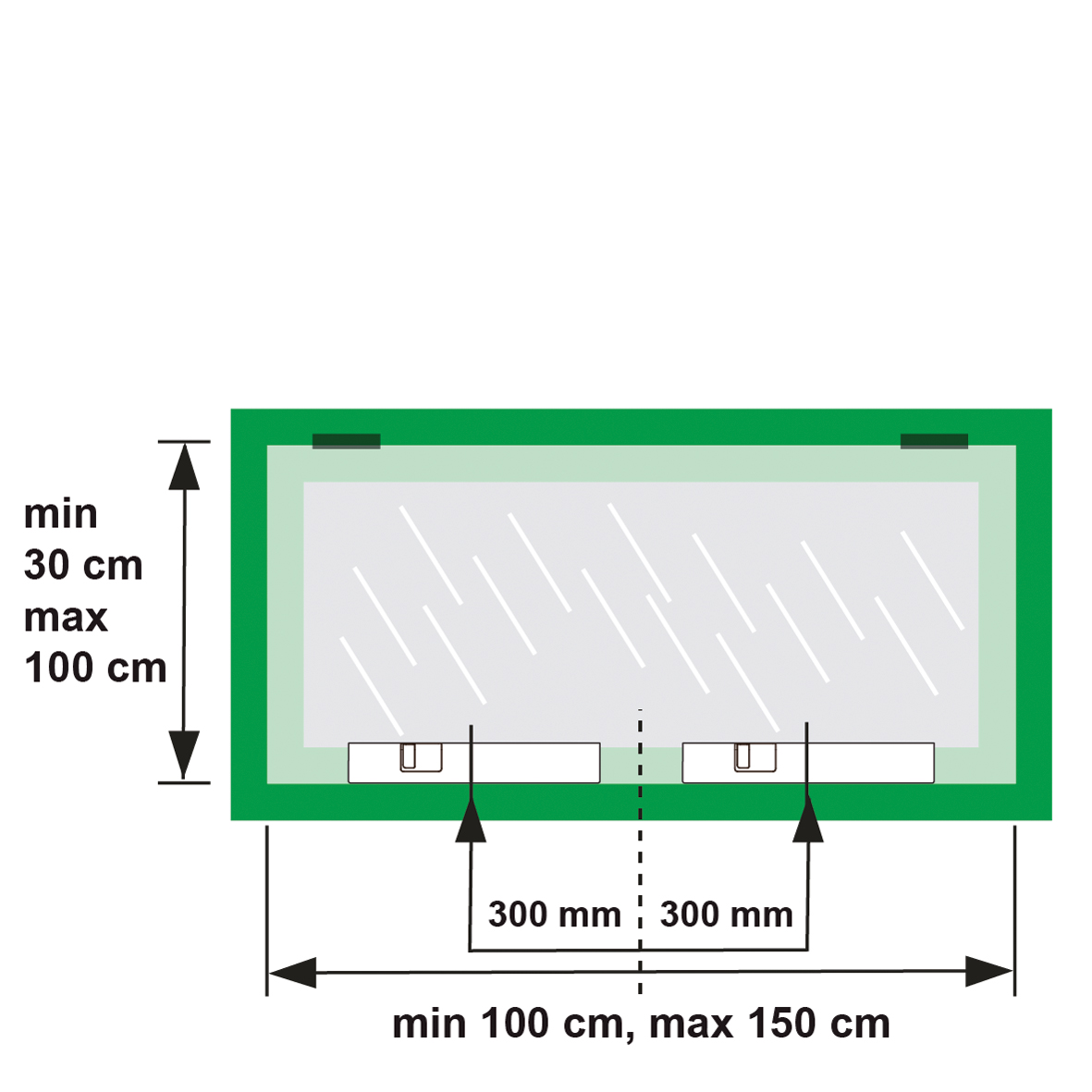

  • especially for wide hinged windows up to 150 cm
  • maximum ventilation opening 130 mm
  • one remote control for a number of windows
  • a high closing force of no less than 400 N
  • easy to combine with a fly screen or net curtains
  • fast and easy to fit and excellent configuration possibilities
  • works exclusively in combination with an adapter
  • complies with Police Hallmark for Safe Living and SKG2 (Façade Quality Institution hallmark)
Specifications Downloads Technical drawings Associated products Alternative products

Specifications

Recommended Mounting Materials
- 4.0 x 40 mm screw: 18 pieces
- 3.5 x 30 mm screw: 4 pieces
Commercial information
expand_more
Type AXA Remote 2.0 Synchronous (2x)
Use for skylights, hopper windows and top-hung windows
Safety information
expand_more
Burglarproof True
SKG SKG 2
Police Hallmark True
CE Applicable True
Technical information
expand_more
Product Length 310 mm
Product Width 38 mm
Product Height 50 mm
Direction of rotation turning upwards
Maximum gap width 130 mm
Operation remote control, variable ventilation
Material Synthetic
Finish White
Material 2 zamac
Finish 2 Galvanized
Assembly information
expand_more
Including Mounting Material True
Mounting length 310 mm
Required depth wood frame 38 mm
Window/door mounting width requirement 40 mm
Assembly time 30 min
Recommended Mounting Materials
- 4.0 x 40 mm screw: 18 pieces
- 3.5 x 30 mm screw: 4 pieces
Logistic information
expand_more
Product Weight 2280 gr
Pieces per small package 1 piece
EAN small package 8713249207773
Weight small package 2.28 kg
Dimensions small package 381 x 158 x 56 mm
Pieces per bulk package 6 piece
EAN bulk package 8713249207926
Weight bulk package 14 kg
Dimensions bulk package 390 x 320 x 180 mm

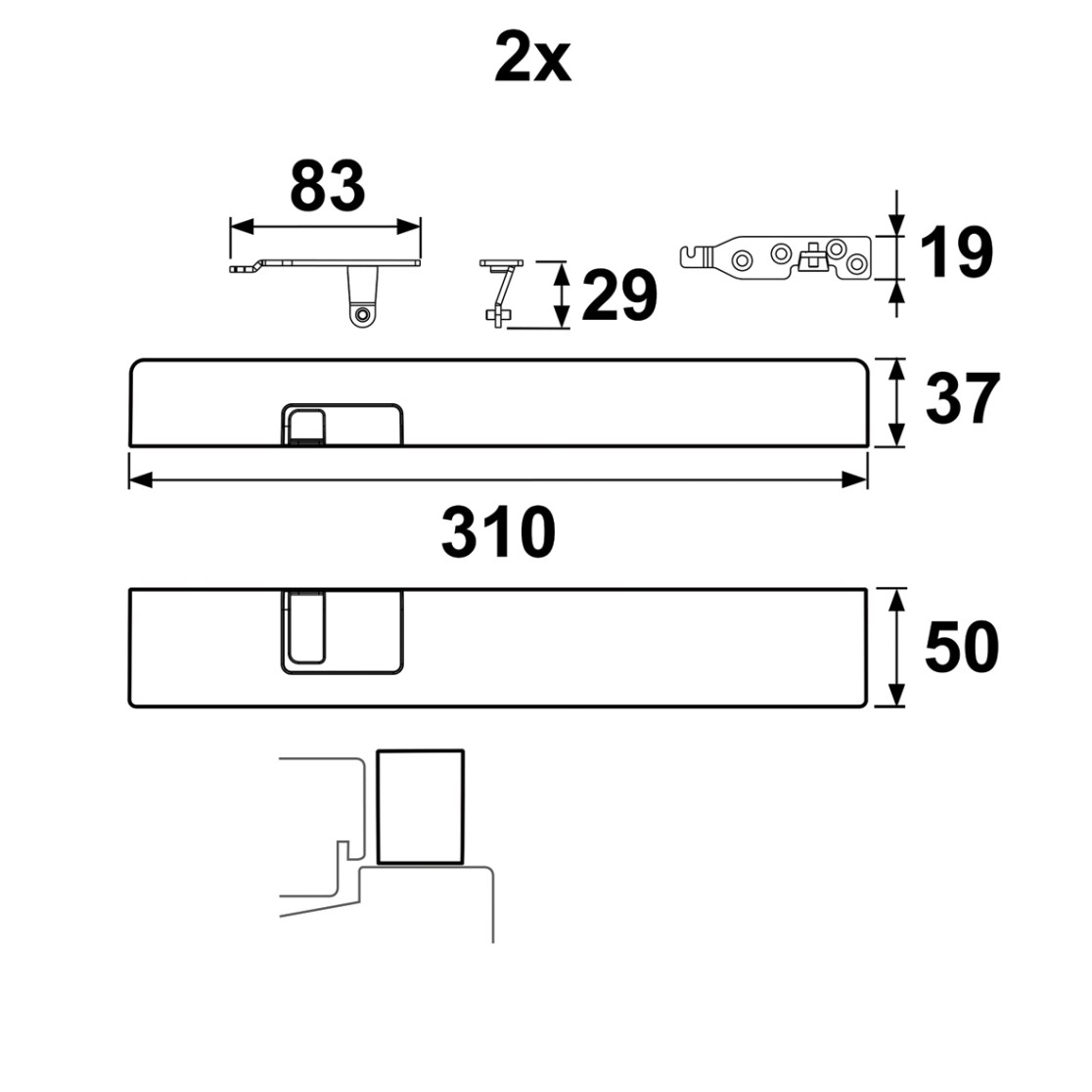

Technical drawings
