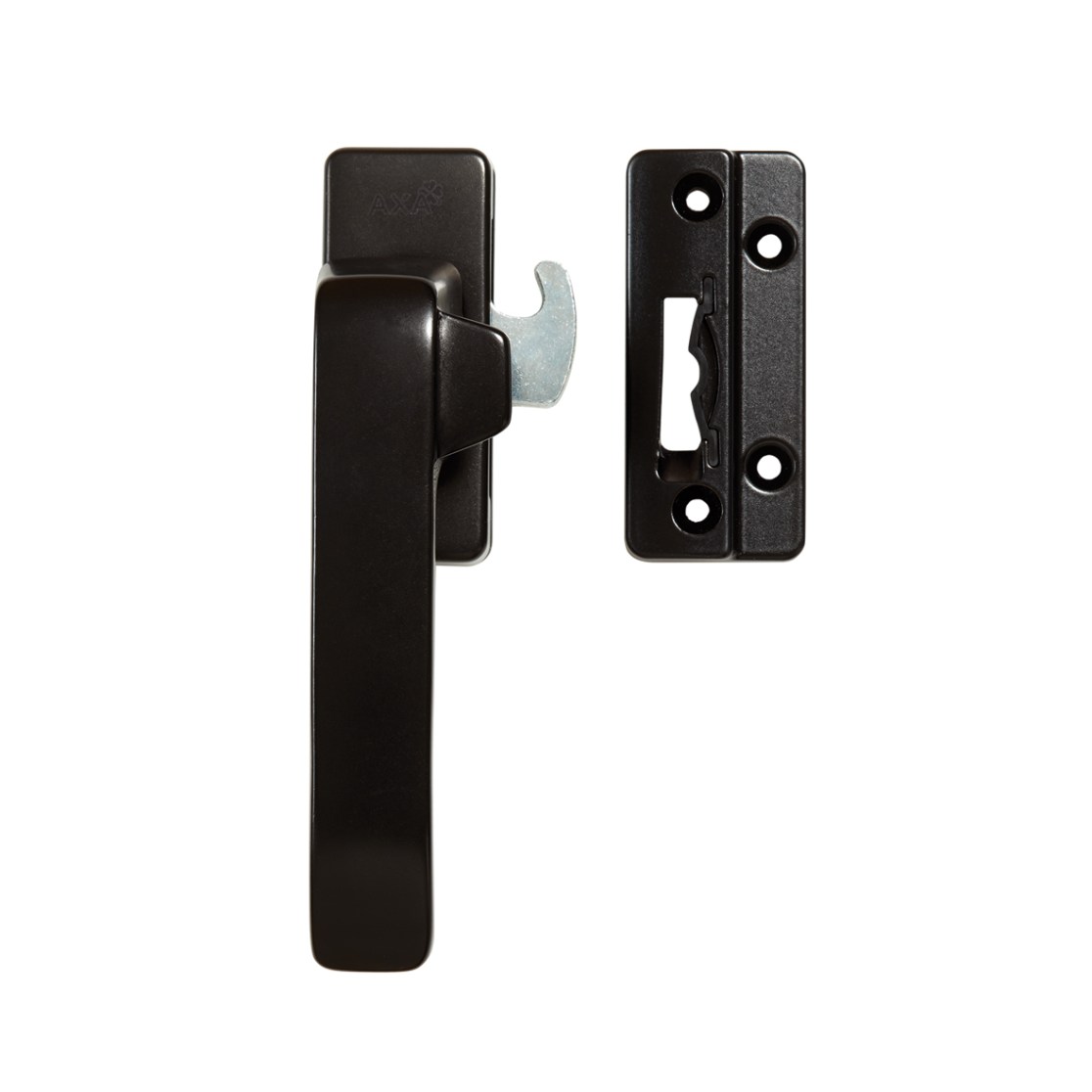

The 3327 standard window fastener can be used to close windows and doors.

  • Solid window fastener, sleek design and invisible attachment
  • optimal ease of use: supple operation, keyed-alike, just one key for the entire home
  • complete with a special surface-mounted striker with a rattle-free ventilation cam holder and fixings
  • simple and quick installation, even on narrow windows
Specifications Downloads Technical drawings Alternative products Similar products

Specifications

Recommended Mounting Materials
- 4.0 x 40 mm screw: 2 pieces
- 4.0 x 50 mm screw: 6 pieces
or
- 4.0 x 40 mm screw: 4 pieces
- 4.0 x 50 mm screw: 2 pieces
Commercial information
expand_more
Type 3327
Use for outward-opening casement windows and doors
Safety information
expand_more
SKG No
Police Hallmark False
CE Applicable False
Technical information
expand_more
Product Length 145 mm
Product Width 30 mm
Product Height 46 mm
Direction of rotation right outward-opening
Bolt type hook bolt
Bolt catcher surface-mounted striker
Material Aluminum
Finish Polished anodised F8, black
Assembly information
expand_more
Including Mounting Material True
Mounting length 150 mm
Required depth wood frame 33 mm
Window/door mounting width requirement 47 mm
Assembly time 15 min
Recommended Mounting Materials
- 4.0 x 40 mm screw: 2 pieces
- 4.0 x 50 mm screw: 6 pieces
or
- 4.0 x 40 mm screw: 4 pieces
- 4.0 x 50 mm screw: 2 pieces
Logistic information
expand_more
Product Weight 482 gr
Pieces per small package 1 piece
EAN small package 8713249273600
Weight small package 0.482 kg
Dimensions small package 215 x 95 x 55 mm
Pieces per bulk package 8 piece
EAN bulk package 8713249273617
Weight bulk package 4.11 kg
Dimensions bulk package 390 x 200 x 120 mm
